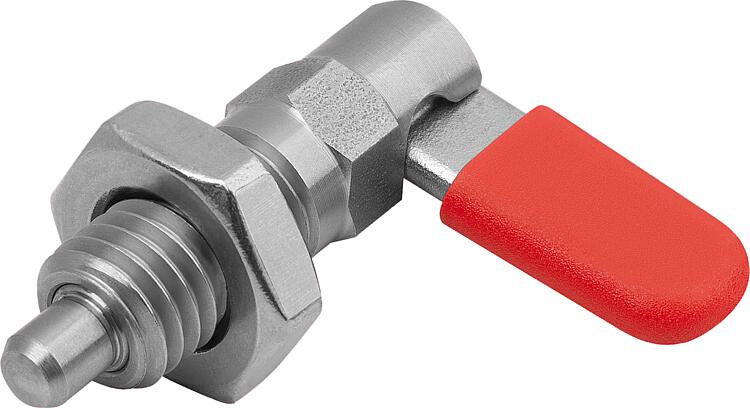

B0535_DCam-action indexing plungers with stop, stainless steel, Form D,... |
go back |
|
Item description/product images |
|
|
DescriptionProduct description:Cam-action indexing plunger are used where any change in locking position due to lateral forces should be prevented. Turning the grip through 180° retracts the indexing pin, enabling a change in the indexed position. The notch ensures that the grip remains in this position and the indexing pin remains retracted.
A stop at 180° prevents the lever rotating further and the indexing pin from extending again.
The rotation direction is defined by selecting a left or right stop side.Material:Grip 1.4308.
Threaded sleeve and indexing pin 1.4305.
Spring 1.4310.
Grip cap thermoplast PA.Version:Threaded sleeve and grip bright.
Indexing pin ground and left bright.
Spring bright.
Grip cap in various colours:
-black grey RAL 7021
-pure orange RAL 2004
-colza yellow RAL 1021
-traffic red RAL 3020
-signal green RAL 6032
-traffic blue RAL 5017
-light grey RAL 7035Advantages:Turning the grip through 180° retracts the pin.
Optionally available with coloured plastic grip caps.
180° stop with rotation in one direction.On request:Special versions.
Accessory:Mounting bracket B0065.
Positioning bush B0063.
Special features: DownloadHere is all the information as a PDF datasheet:
Are you looking for CAD data? These can be found directly in the product table.
|
| Order No. | Form | Version 2 | Component
colour | D | D1 | D2 | L | L1 | L3 | B | B1 | H | SW1 | SW2 | Fx30° | Spring force
initial pressure
F1 approx. N | Spring force
final pressure
F2 approx. N | CAD | Acc. | Price | Order |
|---|
| B0535.11070410 | D | left | black grey RAL 7021 | 4 | M10 | 10 | 39,5 | 26,3 | 15 | 10,9 | 4,9 | 6 | 10 | 17 | 1 | 8 | 14 |  | | 17.27 € | | | B0535.11070510 | D | left | black grey RAL 7021 | 5 | M10 | 10 | 39,5 | 26,3 | 15 | 10,9 | 4,9 | 6 | 10 | 17 | 1,3 | 8 | 14 | | | 17.27 € | | | B0535.11070610 | D | left | black grey RAL 7021 | 6 | M10 | 10 | 39,5 | 26,3 | 15 | 10,9 | 4,9 | 6 | 10 | 17 | 1,8 | 8 | 14 | | | 17.27 € | | | B0535.11070512 | D | left | black grey RAL 7021 | 5 | M12 | 12 | 48,4 | 31,1 | 19 | 12,9 | 5,7 | 8 | 12 | 19 | 1,3 | 5 | 15 | | | 18.99 € | | | B0535.11070612 | D | left | black grey RAL 7021 | 6 | M12 | 12 | 48,4 | 31,1 | 19 | 12,9 | 5,7 | 8 | 12 | 19 | 1,8 | 5 | 15 | | | 18.99 € | | | B0535.11070812 | D | left | black grey RAL 7021 | 8 | M12 | 12 | 48,4 | 31,1 | 19 | 12,9 | 5,7 | 8 | 12 | 19 | 2,3 | 5 | 15 | | | 18.99 € | | | B0535.11070616 | D | left | black grey RAL 7021 | 6 | M16 | 16 | 62,8 | 41,5 | 26 | 16,6 | 7 | 10 | 16 | 24 | 1,8 | 15 | 35 | | | 21.24 € | | | B0535.11070816 | D | left | black grey RAL 7021 | 8 | M16 | 16 | 62,8 | 41,5 | 26 | 16,6 | 7 | 10 | 16 | 24 | 2,3 | 15 | 35 | | | 21.24 € | | | B0535.11071016 | D | left | black grey RAL 7021 | 10 | M16 | 16 | 62,8 | 41,5 | 26 | 16,6 | 7 | 10 | 16 | 24 | 2,8 | 15 | 35 | | | 21.24 € | | | B0535.110708201 | D | left | black grey RAL 7021 | 8 | M20x1,5 | 20 | 72,3 | 51,3 | 30 | 20,5 | 8,5 | 12 | 20 | 30 | 2,3 | 20 | 60 | | | 26.25 € | | | B0535.110710201 | D | left | black grey RAL 7021 | 10 | M20x1,5 | 20 | 72,3 | 51,3 | 30 | 20,5 | 8,5 | 12 | 20 | 30 | 2,8 | 20 | 60 | | | 26.25 € | | | B0535.110712201 | D | left | black grey RAL 7021 | 12 | M20x1,5 | 20 | 72,3 | 51,3 | 30 | 20,5 | 8,5 | 12 | 20 | 30 | 3 | 20 | 60 | | | 26.25 € | | | B0535.110704102 | D | left | orange RAL 2004 | 4 | M10 | 10 | 39,5 | 26,3 | 15 | 10,9 | 4,9 | 6 | 10 | 17 | 1 | 8 | 14 | | | 17.27 € | | | B0535.110705102 | D | left | orange RAL 2004 | 5 | M10 | 10 | 39,5 | 26,3 | 15 | 10,9 | 4,9 | 6 | 10 | 17 | 1,3 | 8 | 14 | | | 17.27 € | | | B0535.110706102 | D | left | orange RAL 2004 | 6 | M10 | 10 | 39,5 | 26,3 | 15 | 10,9 | 4,9 | 6 | 10 | 17 | 1,8 | 8 | 14 | | | 17.27 € | | | B0535.110705122 | D | left | orange RAL 2004 | 5 | M12 | 12 | 48,4 | 31,1 | 19 | 12,9 | 5,7 | 8 | 12 | 19 | 1,3 | 5 | 15 | | | 18.99 € | | | B0535.110706122 | D | left | orange RAL 2004 | 6 | M12 | 12 | 48,4 | 31,1 | 19 | 12,9 | 5,7 | 8 | 12 | 19 | 1,8 | 5 | 15 | | | 18.99 € | | | B0535.110708122 | D | left | orange RAL 2004 | 8 | M12 | 12 | 48,4 | 31,1 | 19 | 12,9 | 5,7 | 8 | 12 | 19 | 2,3 | 5 | 15 | | | 18.99 € | | | B0535.110706162 | D | left | orange RAL 2004 | 6 | M16 | 16 | 62,8 | 41,5 | 26 | 16,6 | 7 | 10 | 16 | 24 | 1,8 | 15 | 35 | | | 21.24 € | | | B0535.110708162 | D | left | orange RAL 2004 | 8 | M16 | 16 | 62,8 | 41,5 | 26 | 16,6 | 7 | 10 | 16 | 24 | 2,3 | 15 | 35 | | | 21.24 € | | | B0535.110710162 | D | left | orange RAL 2004 | 10 | M16 | 16 | 62,8 | 41,5 | 26 | 16,6 | 7 | 10 | 16 | 24 | 2,8 | 15 | 35 | | | 21.24 € | | | B0535.1107082012 | D | left | orange RAL 2004 | 8 | M20x1,5 | 20 | 72,3 | 51,3 | 30 | 20,5 | 8,5 | 12 | 20 | 30 | 2,3 | 20 | 60 | | | 26.25 € | | | B0535.1107102012 | D | left | orange RAL 2004 | 10 | M20x1,5 | 20 | 72,3 | 51,3 | 30 | 20,5 | 8,5 | 12 | 20 | 30 | 2,8 | 20 | 60 | | | 26.25 € | | | B0535.1107122012 | D | left | orange RAL 2004 | 12 | M20x1,5 | 20 | 72,3 | 51,3 | 30 | 20,5 | 8,5 | 12 | 20 | 30 | 3 | 20 | 60 | | | 26.25 € | | | B0535.1107041016 | D | left | colza yellow RAL 1021 | 4 | M10 | 10 | 39,5 | 26,3 | 15 | 10,9 | 4,9 | 6 | 10 | 17 | 1 | 8 | 14 | | | 17.27 € | | | B0535.1107051016 | D | left | colza yellow RAL 1021 | 5 | M10 | 10 | 39,5 | 26,3 | 15 | 10,9 | 4,9 | 6 | 10 | 17 | 1,3 | 8 | 14 | | | 17.27 € | | | B0535.1107061016 | D | left | colza yellow RAL 1021 | 6 | M10 | 10 | 39,5 | 26,3 | 15 | 10,9 | 4,9 | 6 | 10 | 17 | 1,8 | 8 | 14 | | | 17.27 € | | | B0535.1107051216 | D | left | colza yellow RAL 1021 | 5 | M12 | 12 | 48,4 | 31,1 | 19 | 12,9 | 5,7 | 8 | 12 | 19 | 1,3 | 5 | 15 | | | 18.99 € | | | B0535.1107061216 | D | left | colza yellow RAL 1021 | 6 | M12 | 12 | 48,4 | 31,1 | 19 | 12,9 | 5,7 | 8 | 12 | 19 | 1,8 | 5 | 15 | | | 18.99 € | | | B0535.1107081216 | D | left | colza yellow RAL 1021 | 8 | M12 | 12 | 48,4 | 31,1 | 19 | 12,9 | 5,7 | 8 | 12 | 19 | 2,3 | 5 | 15 | | | 18.99 € | | | B0535.1107061616 | D | left | colza yellow RAL 1021 | 6 | M16 | 16 | 62,8 | 41,5 | 26 | 16,6 | 7 | 10 | 16 | 24 | 1,8 | 15 | 35 | | | 21.24 € | | | B0535.1107081616 | D | left | colza yellow RAL 1021 | 8 | M16 | 16 | 62,8 | 41,5 | 26 | 16,6 | 7 | 10 | 16 | 24 | 2,3 | 15 | 35 | | | 21.24 € | | | B0535.1107101616 | D | left | colza yellow RAL 1021 | 10 | M16 | 16 | 62,8 | 41,5 | 26 | 16,6 | 7 | 10 | 16 | 24 | 2,8 | 15 | 35 | | | 21.24 € | | | B0535.11070820116 | D | left | colza yellow RAL 1021 | 8 | M20x1,5 | 20 | 72,3 | 51,3 | 30 | 20,5 | 8,5 | 12 | 20 | 30 | 2,3 | 20 | 60 | | | 26.25 € | | | B0535.11071020116 | D | left | colza yellow RAL 1021 | 10 | M20x1,5 | 20 | 72,3 | 51,3 | 30 | 20,5 | 8,5 | 12 | 20 | 30 | 2,8 | 20 | 60 | | | 26.25 € | | | B0535.11071220116 | D | left | colza yellow RAL 1021 | 12 | M20x1,5 | 20 | 72,3 | 51,3 | 30 | 20,5 | 8,5 | 12 | 20 | 30 | 3 | 20 | 60 | | | 26.25 € | | | B0535.1107041084 | D | left | traffic red RAL 3020 | 4 | M10 | 10 | 39,5 | 26,3 | 15 | 10,9 | 4,9 | 6 | 10 | 17 | 1 | 8 | 14 | | | 17.27 € | | | B0535.1107051084 | D | left | traffic red RAL 3020 | 5 | M10 | 10 | 39,5 | 26,3 | 15 | 10,9 | 4,9 | 6 | 10 | 17 | 1,3 | 8 | 14 | | | 17.27 € | | | B0535.1107061084 | D | left | traffic red RAL 3020 | 6 | M10 | 10 | 39,5 | 26,3 | 15 | 10,9 | 4,9 | 6 | 10 | 17 | 1,8 | 8 | 14 | | | 17.27 € | | | B0535.1107051284 | D | left | traffic red RAL 3020 | 5 | M12 | 12 | 48,4 | 31,1 | 19 | 12,9 | 5,7 | 8 | 12 | 19 | 1,3 | 5 | 15 | | | 18.99 € | | | B0535.1107061284 | D | left | traffic red RAL 3020 | 6 | M12 | 12 | 48,4 | 31,1 | 19 | 12,9 | 5,7 | 8 | 12 | 19 | 1,8 | 5 | 15 | | | 18.99 € | | | B0535.1107081284 | D | left | traffic red RAL 3020 | 8 | M12 | 12 | 48,4 | 31,1 | 19 | 12,9 | 5,7 | 8 | 12 | 19 | 2,3 | 5 | 15 | | | 18.99 € | | | B0535.1107061684 | D | left | traffic red RAL 3020 | 6 | M16 | 16 | 62,8 | 41,5 | 26 | 16,6 | 7 | 10 | 16 | 24 | 1,8 | 15 | 35 | | | 21.24 € | | | B0535.1107081684 | D | left | traffic red RAL 3020 | 8 | M16 | 16 | 62,8 | 41,5 | 26 | 16,6 | 7 | 10 | 16 | 24 | 2,3 | 15 | 35 | | | 21.24 € | | | B0535.1107101684 | D | left | traffic red RAL 3020 | 10 | M16 | 16 | 62,8 | 41,5 | 26 | 16,6 | 7 | 10 | 16 | 24 | 2,8 | 15 | 35 | | | 21.24 € | | | B0535.11070820184 | D | left | traffic red RAL 3020 | 8 | M20x1,5 | 20 | 72,3 | 51,3 | 30 | 20,5 | 8,5 | 12 | 20 | 30 | 2,3 | 20 | 60 | | | 26.25 € | | | B0535.11071020184 | D | left | traffic red RAL 3020 | 10 | M20x1,5 | 20 | 72,3 | 51,3 | 30 | 20,5 | 8,5 | 12 | 20 | 30 | 2,8 | 20 | 60 | | | 26.25 € | | | B0535.11071220184 | D | left | traffic red RAL 3020 | 12 | M20x1,5 | 20 | 72,3 | 51,3 | 30 | 20,5 | 8,5 | 12 | 20 | 30 | 3 | 20 | 60 | | | 26.25 € | | | B0535.1107041086 | D | left | signal green RAL 6032 | 4 | M10 | 10 | 39,5 | 26,3 | 15 | 10,9 | 4,9 | 6 | 10 | 17 | 1 | 8 | 14 | | | 17.27 € | | | B0535.1107051086 | D | left | signal green RAL 6032 | 5 | M10 | 10 | 39,5 | 26,3 | 15 | 10,9 | 4,9 | 6 | 10 | 17 | 1,3 | 8 | 14 | | | 17.27 € | | | B0535.1107061086 | D | left | signal green RAL 6032 | 6 | M10 | 10 | 39,5 | 26,3 | 15 | 10,9 | 4,9 | 6 | 10 | 17 | 1,8 | 8 | 14 | | | 17.27 € | | | B0535.1107051286 | D | left | signal green RAL 6032 | 5 | M12 | 12 | 48,4 | 31,1 | 19 | 12,9 | 5,7 | 8 | 12 | 19 | 1,3 | 5 | 15 | | | 18.99 € | | | B0535.1107061286 | D | left | signal green RAL 6032 | 6 | M12 | 12 | 48,4 | 31,1 | 19 | 12,9 | 5,7 | 8 | 12 | 19 | 1,8 | 5 | 15 | | | 18.99 € | | | B0535.1107081286 | D | left | signal green RAL 6032 | 8 | M12 | 12 | 48,4 | 31,1 | 19 | 12,9 | 5,7 | 8 | 12 | 19 | 2,3 | 5 | 15 | | | 18.99 € | | | B0535.1107061686 | D | left | signal green RAL 6032 | 6 | M16 | 16 | 62,8 | 41,5 | 26 | 16,6 | 7 | 10 | 16 | 24 | 1,8 | 15 | 35 | | | 21.24 € | | | B0535.1107081686 | D | left | signal green RAL 6032 | 8 | M16 | 16 | 62,8 | 41,5 | 26 | 16,6 | 7 | 10 | 16 | 24 | 2,3 | 15 | 35 | | | 21.24 € | | | B0535.1107101686 | D | left | signal green RAL 6032 | 10 | M16 | 16 | 62,8 | 41,5 | 26 | 16,6 | 7 | 10 | 16 | 24 | 2,8 | 15 | 35 | | | 21.24 € | | | B0535.11070820186 | D | left | signal green RAL 6032 | 8 | M20x1,5 | 20 | 72,3 | 51,3 | 30 | 20,5 | 8,5 | 12 | 20 | 30 | 2,3 | 20 | 60 | | | 26.25 € | | | B0535.11071020186 | D | left | signal green RAL 6032 | 10 | M20x1,5 | 20 | 72,3 | 51,3 | 30 | 20,5 | 8,5 | 12 | 20 | 30 | 2,8 | 20 | 60 | | | 26.25 € | | | B0535.11071220186 | D | left | signal green RAL 6032 | 12 | M20x1,5 | 20 | 72,3 | 51,3 | 30 | 20,5 | 8,5 | 12 | 20 | 30 | 3 | 20 | 60 | | | 26.25 € | | | B0535.1107041087 | D | left | traffic blue RAL 5017 | 4 | M10 | 10 | 39,5 | 26,3 | 15 | 10,9 | 4,9 | 6 | 10 | 17 | 1 | 8 | 14 | | | 17.27 € | | | B0535.1107051087 | D | left | traffic blue RAL 5017 | 5 | M10 | 10 | 39,5 | 26,3 | 15 | 10,9 | 4,9 | 6 | 10 | 17 | 1,3 | 8 | 14 | | | 17.27 € | | | B0535.1107061087 | D | left | traffic blue RAL 5017 | 6 | M10 | 10 | 39,5 | 26,3 | 15 | 10,9 | 4,9 | 6 | 10 | 17 | 1,8 | 8 | 14 | | | 17.27 € | | | B0535.1107051287 | D | left | traffic blue RAL 5017 | 5 | M12 | 12 | 48,4 | 31,1 | 19 | 12,9 | 5,7 | 8 | 12 | 19 | 1,3 | 5 | 15 | | | 18.99 € | | | B0535.1107061287 | D | left | traffic blue RAL 5017 | 6 | M12 | 12 | 48,4 | 31,1 | 19 | 12,9 | 5,7 | 8 | 12 | 19 | 1,8 | 5 | 15 | | | 18.99 € | | | B0535.1107081287 | D | left | traffic blue RAL 5017 | 8 | M12 | 12 | 48,4 | 31,1 | 19 | 12,9 | 5,7 | 8 | 12 | 19 | 2,3 | 5 | 15 | | | 18.99 € | | | B0535.1107061687 | D | left | traffic blue RAL 5017 | 6 | M16 | 16 | 62,8 | 41,5 | 26 | 16,6 | 7 | 10 | 16 | 24 | 1,8 | 15 | 35 | | | 21.24 € | | | B0535.1107081687 | D | left | traffic blue RAL 5017 | 8 | M16 | 16 | 62,8 | 41,5 | 26 | 16,6 | 7 | 10 | 16 | 24 | 2,3 | 15 | 35 | | | 21.24 € | | | B0535.1107101687 | D | left | traffic blue RAL 5017 | 10 | M16 | 16 | 62,8 | 41,5 | 26 | 16,6 | 7 | 10 | 16 | 24 | 2,8 | 15 | 35 | | | 21.24 € | | | B0535.11070820187 | D | left | traffic blue RAL 5017 | 8 | M20x1,5 | 20 | 72,3 | 51,3 | 30 | 20,5 | 8,5 | 12 | 20 | 30 | 2,3 | 20 | 60 | | | 26.25 € | | | B0535.11071020187 | D | left | traffic blue RAL 5017 | 10 | M20x1,5 | 20 | 72,3 | 51,3 | 30 | 20,5 | 8,5 | 12 | 20 | 30 | 2,8 | 20 | 60 | | | 26.25 € | | | B0535.11071220187 | D | left | traffic blue RAL 5017 | 12 | M20x1,5 | 20 | 72,3 | 51,3 | 30 | 20,5 | 8,5 | 12 | 20 | 30 | 3 | 20 | 60 | | | 26.25 € | | | B0535.1107041088 | D | left | light grey RAL 7035 | 4 | M10 | 10 | 39,5 | 26,3 | 15 | 10,9 | 4,9 | 6 | 10 | 17 | 1 | 8 | 14 | | | 17.27 € | | | B0535.1107051088 | D | left | light grey RAL 7035 | 5 | M10 | 10 | 39,5 | 26,3 | 15 | 10,9 | 4,9 | 6 | 10 | 17 | 1,3 | 8 | 14 | | | 17.27 € | | | B0535.1107061088 | D | left | light grey RAL 7035 | 6 | M10 | 10 | 39,5 | 26,3 | 15 | 10,9 | 4,9 | 6 | 10 | 17 | 1,8 | 8 | 14 | | | 17.27 € | | | B0535.1107051288 | D | left | light grey RAL 7035 | 5 | M12 | 12 | 48,4 | 31,1 | 19 | 12,9 | 5,7 | 8 | 12 | 19 | 1,3 | 5 | 15 | | | 18.99 € | | | B0535.1107061288 | D | left | light grey RAL 7035 | 6 | M12 | 12 | 48,4 | 31,1 | 19 | 12,9 | 5,7 | 8 | 12 | 19 | 1,8 | 5 | 15 | | | 18.99 € | | | B0535.1107081288 | D | left | light grey RAL 7035 | 8 | M12 | 12 | 48,4 | 31,1 | 19 | 12,9 | 5,7 | 8 | 12 | 19 | 2,3 | 5 | 15 | | | 18.99 € | | | B0535.1107061688 | D | left | light grey RAL 7035 | 6 | M16 | 16 | 62,8 | 41,5 | 26 | 16,6 | 7 | 10 | 16 | 24 | 1,8 | 15 | 35 | | | 21.24 € | | | B0535.1107081688 | D | left | light grey RAL 7035 | 8 | M16 | 16 | 62,8 | 41,5 | 26 | 16,6 | 7 | 10 | 16 | 24 | 2,3 | 15 | 35 | | | 21.24 € | | | B0535.1107101688 | D | left | light grey RAL 7035 | 10 | M16 | 16 | 62,8 | 41,5 | 26 | 16,6 | 7 | 10 | 16 | 24 | 2,8 | 15 | 35 | | | 21.24 € | | | B0535.11070820188 | D | left | light grey RAL 7035 | 8 | M20x1,5 | 20 | 72,3 | 51,3 | 30 | 20,5 | 8,5 | 12 | 20 | 30 | 2,3 | 20 | 60 | | | 26.25 € | | | B0535.11071020188 | D | left | light grey RAL 7035 | 10 | M20x1,5 | 20 | 72,3 | 51,3 | 30 | 20,5 | 8,5 | 12 | 20 | 30 | 2,8 | 20 | 60 | | | 26.25 € | | | B0535.11071220188 | D | left | light grey RAL 7035 | 12 | M20x1,5 | 20 | 72,3 | 51,3 | 30 | 20,5 | 8,5 | 12 | 20 | 30 | 3 | 20 | 60 | | | 26.25 € | | | B0535.21070410 | D | right | black grey RAL 7021 | 4 | M10 | 10 | 39,5 | 26,3 | 15 | 10,9 | 4,9 | 6 | 10 | 17 | 1 | 8 | 14 | | | 17.27 € | | | B0535.21070510 | D | right | black grey RAL 7021 | 5 | M10 | 10 | 39,5 | 26,3 | 15 | 10,9 | 4,9 | 6 | 10 | 17 | 1,3 | 8 | 14 | | | 17.27 € | | | B0535.21070610 | D | right | black grey RAL 7021 | 6 | M10 | 10 | 39,5 | 26,3 | 15 | 10,9 | 4,9 | 6 | 10 | 17 | 1,8 | 8 | 14 | | | 17.27 € | | | B0535.21070512 | D | right | black grey RAL 7021 | 5 | M12 | 12 | 48,4 | 31,1 | 19 | 12,9 | 5,7 | 8 | 12 | 19 | 1,3 | 5 | 15 | | | 18.99 € | | | B0535.21070612 | D | right | black grey RAL 7021 | 6 | M12 | 12 | 48,4 | 31,1 | 19 | 12,9 | 5,7 | 8 | 12 | 19 | 1,8 | 5 | 15 | | | 18.99 € | | | B0535.21070812 | D | right | black grey RAL 7021 | 8 | M12 | 12 | 48,4 | 31,1 | 19 | 12,9 | 5,7 | 8 | 12 | 19 | 2,3 | 5 | 15 | | | 18.99 € | | | B0535.21070616 | D | right | black grey RAL 7021 | 6 | M16 | 16 | 62,8 | 41,5 | 26 | 16,6 | 7 | 10 | 16 | 24 | 1,8 | 15 | 35 | | | 21.24 € | | | B0535.21070816 | D | right | black grey RAL 7021 | 8 | M16 | 16 | 62,8 | 41,5 | 26 | 16,6 | 7 | 10 | 16 | 24 | 2,3 | 15 | 35 | | | 21.24 € | | | B0535.21071016 | D | right | black grey RAL 7021 | 10 | M16 | 16 | 62,8 | 41,5 | 26 | 16,6 | 7 | 10 | 16 | 24 | 2,8 | 15 | 35 | | | 21.24 € | | | B0535.210708201 | D | right | black grey RAL 7021 | 8 | M20x1,5 | 20 | 72,3 | 51,3 | 30 | 20,5 | 8,5 | 12 | 20 | 30 | 2,3 | 20 | 60 | | | 26.25 € | | | B0535.210710201 | D | right | black grey RAL 7021 | 10 | M20x1,5 | 20 | 72,3 | 51,3 | 30 | 20,5 | 8,5 | 12 | 20 | 30 | 2,8 | 20 | 60 | | | 26.25 € | | | B0535.210712201 | D | right | black grey RAL 7021 | 12 | M20x1,5 | 20 | 72,3 | 51,3 | 30 | 20,5 | 8,5 | 12 | 20 | 30 | 3 | 20 | 60 | | | 26.25 € | | | B0535.210704102 | D | right | orange RAL 2004 | 4 | M10 | 10 | 39,5 | 26,3 | 15 | 10,9 | 4,9 | 6 | 10 | 17 | 1 | 8 | 14 | | | 17.27 € | | | B0535.210705102 | D | right | orange RAL 2004 | 5 | M10 | 10 | 39,5 | 26,3 | 15 | 10,9 | 4,9 | 6 | 10 | 17 | 1,3 | 8 | 14 | | | 17.27 € | | | B0535.210706102 | D | right | orange RAL 2004 | 6 | M10 | 10 | 39,5 | 26,3 | 15 | 10,9 | 4,9 | 6 | 10 | 17 | 1,8 | 8 | 14 | | | 17.27 € | | | B0535.210705122 | D | right | orange RAL 2004 | 5 | M12 | 12 | 48,4 | 31,1 | 19 | 12,9 | 5,7 | 8 | 12 | 19 | 1,3 | 5 | 15 | | | 18.99 € | | | B0535.210706122 | D | right | orange RAL 2004 | 6 | M12 | 12 | 48,4 | 31,1 | 19 | 12,9 | 5,7 | 8 | 12 | 19 | 1,8 | 5 | 15 | | | 18.99 € | | | B0535.210708122 | D | right | orange RAL 2004 | 8 | M12 | 12 | 48,4 | 31,1 | 19 | 12,9 | 5,7 | 8 | 12 | 19 | 2,3 | 5 | 15 | | | 18.99 € | | | B0535.210706162 | D | right | orange RAL 2004 | 6 | M16 | 16 | 62,8 | 41,5 | 26 | 16,6 | 7 | 10 | 16 | 24 | 1,8 | 15 | 35 | | | 21.24 € | | | B0535.210708162 | D | right | orange RAL 2004 | 8 | M16 | 16 | 62,8 | 41,5 | 26 | 16,6 | 7 | 10 | 16 | 24 | 2,3 | 15 | 35 | | | 21.24 € | | | B0535.210710162 | D | right | orange RAL 2004 | 10 | M16 | 16 | 62,8 | 41,5 | 26 | 16,6 | 7 | 10 | 16 | 24 | 2,8 | 15 | 35 | | | 21.24 € | | | B0535.2107082012 | D | right | orange RAL 2004 | 8 | M20x1,5 | 20 | 72,3 | 51,3 | 30 | 20,5 | 8,5 | 12 | 20 | 30 | 2,3 | 20 | 60 | | | 26.25 € | | | B0535.2107102012 | D | right | orange RAL 2004 | 10 | M20x1,5 | 20 | 72,3 | 51,3 | 30 | 20,5 | 8,5 | 12 | 20 | 30 | 2,8 | 20 | 60 | | | 26.25 € | | | B0535.2107122012 | D | right | orange RAL 2004 | 12 | M20x1,5 | 20 | 72,3 | 51,3 | 30 | 20,5 | 8,5 | 12 | 20 | 30 | 3 | 20 | 60 | | | 26.25 € | | | B0535.2107041016 | D | right | colza yellow RAL 1021 | 4 | M10 | 10 | 39,5 | 26,3 | 15 | 10,9 | 4,9 | 6 | 10 | 17 | 1 | 8 | 14 | | | 17.27 € | | | B0535.2107051016 | D | right | colza yellow RAL 1021 | 5 | M10 | 10 | 39,5 | 26,3 | 15 | 10,9 | 4,9 | 6 | 10 | 17 | 1,3 | 8 | 14 | | | 17.27 € | | | B0535.2107061016 | D | right | colza yellow RAL 1021 | 6 | M10 | 10 | 39,5 | 26,3 | 15 | 10,9 | 4,9 | 6 | 10 | 17 | 1,8 | 8 | 14 | | | 17.27 € | | | B0535.2107051216 | D | right | colza yellow RAL 1021 | 5 | M12 | 12 | 48,4 | 31,1 | 19 | 12,9 | 5,7 | 8 | 12 | 19 | 1,3 | 5 | 15 | | | 18.99 € | | | B0535.2107061216 | D | right | colza yellow RAL 1021 | 6 | M12 | 12 | 48,4 | 31,1 | 19 | 12,9 | 5,7 | 8 | 12 | 19 | 1,8 | 5 | 15 | | | 18.99 € | | | B0535.2107081216 | D | right | colza yellow RAL 1021 | 8 | M12 | 12 | 48,4 | 31,1 | 19 | 12,9 | 5,7 | 8 | 12 | 19 | 2,3 | 5 | 15 | | | 18.99 € | | | B0535.2107061616 | D | right | colza yellow RAL 1021 | 6 | M16 | 16 | 62,8 | 41,5 | 26 | 16,6 | 7 | 10 | 16 | 24 | 1,8 | 15 | 35 | | | 21.24 € | | | B0535.2107081616 | D | right | colza yellow RAL 1021 | 8 | M16 | 16 | 62,8 | 41,5 | 26 | 16,6 | 7 | 10 | 16 | 24 | 2,3 | 15 | 35 | | | 21.24 € | | | B0535.2107101616 | D | right | colza yellow RAL 1021 | 10 | M16 | 16 | 62,8 | 41,5 | 26 | 16,6 | 7 | 10 | 16 | 24 | 2,8 | 15 | 35 | | | 21.24 € | | | B0535.21070820116 | D | right | colza yellow RAL 1021 | 8 | M20x1,5 | 20 | 72,3 | 51,3 | 30 | 20,5 | 8,5 | 12 | 20 | 30 | 2,3 | 20 | 60 | | | 26.25 € | | | B0535.21071020116 | D | right | colza yellow RAL 1021 | 10 | M20x1,5 | 20 | 72,3 | 51,3 | 30 | 20,5 | 8,5 | 12 | 20 | 30 | 2,8 | 20 | 60 | | | 26.25 € | | | B0535.21071220116 | D | right | colza yellow RAL 1021 | 12 | M20x1,5 | 20 | 72,3 | 51,3 | 30 | 20,5 | 8,5 | 12 | 20 | 30 | 3 | 20 | 60 | | | 26.25 € | | | B0535.2107041084 | D | right | traffic red RAL 3020 | 4 | M10 | 10 | 39,5 | 26,3 | 15 | 10,9 | 4,9 | 6 | 10 | 17 | 1 | 8 | 14 | | | 17.27 € | | | B0535.2107051084 | D | right | traffic red RAL 3020 | 5 | M10 | 10 | 39,5 | 26,3 | 15 | 10,9 | 4,9 | 6 | 10 | 17 | 1,3 | 8 | 14 | | | 17.27 € | | | B0535.2107061084 | D | right | traffic red RAL 3020 | 6 | M10 | 10 | 39,5 | 26,3 | 15 | 10,9 | 4,9 | 6 | 10 | 17 | 1,8 | 8 | 14 | | | 17.27 € | | | B0535.2107051284 | D | right | traffic red RAL 3020 | 5 | M12 | 12 | 48,4 | 31,1 | 19 | 12,9 | 5,7 | 8 | 12 | 19 | 1,3 | 5 | 15 | | | 18.99 € | | | B0535.2107061284 | D | right | traffic red RAL 3020 | 6 | M12 | 12 | 48,4 | 31,1 | 19 | 12,9 | 5,7 | 8 | 12 | 19 | 1,8 | 5 | 15 | | | 18.99 € | | | B0535.2107081284 | D | right | traffic red RAL 3020 | 8 | M12 | 12 | 48,4 | 31,1 | 19 | 12,9 | 5,7 | 8 | 12 | 19 | 2,3 | 5 | 15 | | | 18.99 € | | | B0535.2107061684 | D | right | traffic red RAL 3020 | 6 | M16 | 16 | 62,8 | 41,5 | 26 | 16,6 | 7 | 10 | 16 | 24 | 1,8 | 15 | 35 | | | 21.24 € | | | B0535.2107081684 | D | right | traffic red RAL 3020 | 8 | M16 | 16 | 62,8 | 41,5 | 26 | 16,6 | 7 | 10 | 16 | 24 | 2,3 | 15 | 35 | | | 21.24 € | | | B0535.2107101684 | D | right | traffic red RAL 3020 | 10 | M16 | 16 | 62,8 | 41,5 | 26 | 16,6 | 7 | 10 | 16 | 24 | 2,8 | 15 | 35 | | | 21.24 € | | | B0535.21070820184 | D | right | traffic red RAL 3020 | 8 | M20x1,5 | 20 | 72,3 | 51,3 | 30 | 20,5 | 8,5 | 12 | 20 | 30 | 2,3 | 20 | 60 | | | 26.25 € | | | B0535.21071020184 | D | right | traffic red RAL 3020 | 10 | M20x1,5 | 20 | 72,3 | 51,3 | 30 | 20,5 | 8,5 | 12 | 20 | 30 | 2,8 | 20 | 60 | | | 26.25 € | | | B0535.21071220184 | D | right | traffic red RAL 3020 | 12 | M20x1,5 | 20 | 72,3 | 51,3 | 30 | 20,5 | 8,5 | 12 | 20 | 30 | 3 | 20 | 60 | | | 26.25 € | | | B0535.2107041086 | D | right | signal green RAL 6032 | 4 | M10 | 10 | 39,5 | 26,3 | 15 | 10,9 | 4,9 | 6 | 10 | 17 | 1 | 8 | 14 | | | 17.27 € | | | B0535.2107051086 | D | right | signal green RAL 6032 | 5 | M10 | 10 | 39,5 | 26,3 | 15 | 10,9 | 4,9 | 6 | 10 | 17 | 1,3 | 8 | 14 | | | 17.27 € | | | B0535.2107061086 | D | right | signal green RAL 6032 | 6 | M10 | 10 | 39,5 | 26,3 | 15 | 10,9 | 4,9 | 6 | 10 | 17 | 1,8 | 8 | 14 | | | 17.27 € | | | B0535.2107051286 | D | right | signal green RAL 6032 | 5 | M12 | 12 | 48,4 | 31,1 | 19 | 12,9 | 5,7 | 8 | 12 | 19 | 1,3 | 5 | 15 | | | 18.99 € | | | B0535.2107061286 | D | right | signal green RAL 6032 | 6 | M12 | 12 | 48,4 | 31,1 | 19 | 12,9 | 5,7 | 8 | 12 | 19 | 1,8 | 5 | 15 | | | 18.99 € | | | B0535.2107081286 | D | right | signal green RAL 6032 | 8 | M12 | 12 | 48,4 | 31,1 | 19 | 12,9 | 5,7 | 8 | 12 | 19 | 2,3 | 5 | 15 | | | 18.99 € | | | B0535.2107061686 | D | right | signal green RAL 6032 | 6 | M16 | 16 | 62,8 | 41,5 | 26 | 16,6 | 7 | 10 | 16 | 24 | 1,8 | 15 | 35 | | | 21.24 € | | | B0535.2107081686 | D | right | signal green RAL 6032 | 8 | M16 | 16 | 62,8 | 41,5 | 26 | 16,6 | 7 | 10 | 16 | 24 | 2,3 | 15 | 35 | | | 21.24 € | | | B0535.2107101686 | D | right | signal green RAL 6032 | 10 | M16 | 16 | 62,8 | 41,5 | 26 | 16,6 | 7 | 10 | 16 | 24 | 2,8 | 15 | 35 | | | 21.24 € | | | B0535.21070820186 | D | right | signal green RAL 6032 | 8 | M20x1,5 | 20 | 72,3 | 51,3 | 30 | 20,5 | 8,5 | 12 | 20 | 30 | 2,3 | 20 | 60 | | | 26.25 € | | | B0535.21071020186 | D | right | signal green RAL 6032 | 10 | M20x1,5 | 20 | 72,3 | 51,3 | 30 | 20,5 | 8,5 | 12 | 20 | 30 | 2,8 | 20 | 60 | | | 26.25 € | | | B0535.21071220186 | D | right | signal green RAL 6032 | 12 | M20x1,5 | 20 | 72,3 | 51,3 | 30 | 20,5 | 8,5 | 12 | 20 | 30 | 3 | 20 | 60 | | | 26.25 € | | | B0535.2107041087 | D | right | traffic blue RAL 5017 | 4 | M10 | 10 | 39,5 | 26,3 | 15 | 10,9 | 4,9 | 6 | 10 | 17 | 1 | 8 | 14 | | | 17.27 € | | | B0535.2107051087 | D | right | traffic blue RAL 5017 | 5 | M10 | 10 | 39,5 | 26,3 | 15 | 10,9 | 4,9 | 6 | 10 | 17 | 1,3 | 8 | 14 | | | 17.27 € | | | B0535.2107061087 | D | right | traffic blue RAL 5017 | 6 | M10 | 10 | 39,5 | 26,3 | 15 | 10,9 | 4,9 | 6 | 10 | 17 | 1,8 | 8 | 14 | | | 17.27 € | | | B0535.2107051287 | D | right | traffic blue RAL 5017 | 5 | M12 | 12 | 48,4 | 31,1 | 19 | 12,9 | 5,7 | 8 | 12 | 19 | 1,3 | 5 | 15 | | | 18.99 € | | | B0535.2107061287 | D | right | traffic blue RAL 5017 | 6 | M12 | 12 | 48,4 | 31,1 | 19 | 12,9 | 5,7 | 8 | 12 | 19 | 1,8 | 5 | 15 | | | 18.99 € | | | B0535.2107081287 | D | right | traffic blue RAL 5017 | 8 | M12 | 12 | 48,4 | 31,1 | 19 | 12,9 | 5,7 | 8 | 12 | 19 | 2,3 | 5 | 15 | | | 18.99 € | | | B0535.2107061687 | D | right | traffic blue RAL 5017 | 6 | M16 | 16 | 62,8 | 41,5 | 26 | 16,6 | 7 | 10 | 16 | 24 | 1,8 | 15 | 35 | | | 21.24 € | | | B0535.2107081687 | D | right | traffic blue RAL 5017 | 8 | M16 | 16 | 62,8 | 41,5 | 26 | 16,6 | 7 | 10 | 16 | 24 | 2,3 | 15 | 35 | | | 21.24 € | | | B0535.2107101687 | D | right | traffic blue RAL 5017 | 10 | M16 | 16 | 62,8 | 41,5 | 26 | 16,6 | 7 | 10 | 16 | 24 | 2,8 | 15 | 35 | | | 21.24 € | | | B0535.21070820187 | D | right | traffic blue RAL 5017 | 8 | M20x1,5 | 20 | 72,3 | 51,3 | 30 | 20,5 | 8,5 | 12 | 20 | 30 | 2,3 | 20 | 60 | | | 26.25 € | | | B0535.21071020187 | D | right | traffic blue RAL 5017 | 10 | M20x1,5 | 20 | 72,3 | 51,3 | 30 | 20,5 | 8,5 | 12 | 20 | 30 | 2,8 | 20 | 60 | | | 26.25 € | | | B0535.21071220187 | D | right | traffic blue RAL 5017 | 12 | M20x1,5 | 20 | 72,3 | 51,3 | 30 | 20,5 | 8,5 | 12 | 20 | 30 | 3 | 20 | 60 | | | 26.25 € | | | B0535.2107041088 | D | right | light grey RAL 7035 | 4 | M10 | 10 | 39,5 | 26,3 | 15 | 10,9 | 4,9 | 6 | 10 | 17 | 1 | 8 | 14 | | | 17.27 € | | | B0535.2107051088 | D | right | light grey RAL 7035 | 5 | M10 | 10 | 39,5 | 26,3 | 15 | 10,9 | 4,9 | 6 | 10 | 17 | 1,3 | 8 | 14 | | | 17.27 € | | | B0535.2107061088 | D | right | light grey RAL 7035 | 6 | M10 | 10 | 39,5 | 26,3 | 15 | 10,9 | 4,9 | 6 | 10 | 17 | 1,8 | 8 | 14 | | | 17.27 € | | | B0535.2107051288 | D | right | light grey RAL 7035 | 5 | M12 | 12 | 48,4 | 31,1 | 19 | 12,9 | 5,7 | 8 | 12 | 19 | 1,3 | 5 | 15 | | | 18.99 € | | | B0535.2107061288 | D | right | light grey RAL 7035 | 6 | M12 | 12 | 48,4 | 31,1 | 19 | 12,9 | 5,7 | 8 | 12 | 19 | 1,8 | 5 | 15 | | | 18.99 € | | | B0535.2107081288 | D | right | light grey RAL 7035 | 8 | M12 | 12 | 48,4 | 31,1 | 19 | 12,9 | 5,7 | 8 | 12 | 19 | 2,3 | 5 | 15 | | | 18.99 € | | | B0535.2107061688 | D | right | light grey RAL 7035 | 6 | M16 | 16 | 62,8 | 41,5 | 26 | 16,6 | 7 | 10 | 16 | 24 | 1,8 | 15 | 35 | | | 21.24 € | | | B0535.2107081688 | D | right | light grey RAL 7035 | 8 | M16 | 16 | 62,8 | 41,5 | 26 | 16,6 | 7 | 10 | 16 | 24 | 2,3 | 15 | 35 | | | 21.24 € | | | B0535.2107101688 | D | right | light grey RAL 7035 | 10 | M16 | 16 | 62,8 | 41,5 | 26 | 16,6 | 7 | 10 | 16 | 24 | 2,8 | 15 | 35 | | | 21.24 € | | | B0535.21070820188 | D | right | light grey RAL 7035 | 8 | M20x1,5 | 20 | 72,3 | 51,3 | 30 | 20,5 | 8,5 | 12 | 20 | 30 | 2,3 | 20 | 60 | | | 26.25 € | | | B0535.21071020188 | D | right | light grey RAL 7035 | 10 | M20x1,5 | 20 | 72,3 | 51,3 | 30 | 20,5 | 8,5 | 12 | 20 | 30 | 2,8 | 20 | 60 | | | 26.25 € | | | B0535.21071220188 | D | right | light grey RAL 7035 | 12 | M20x1,5 | 20 | 72,3 | 51,3 | 30 | 20,5 | 8,5 | 12 | 20 | 30 | 3 | 20 | 60 | | | 26.25 € | |
