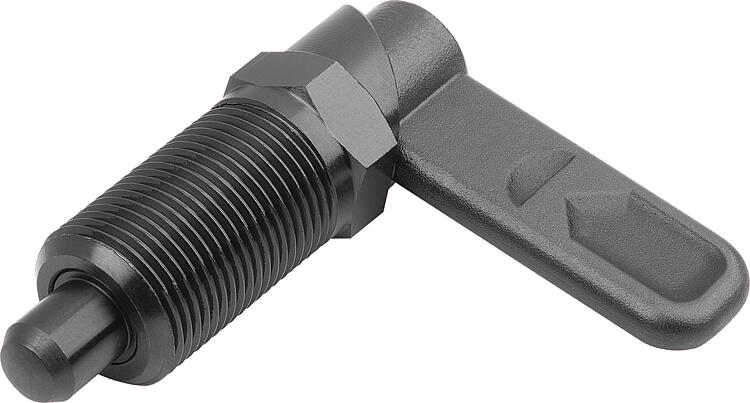

B0532_ACam-action indexing plungers with stop, Form A, without grip cap... |
go back |
|
Item description/product images |
|
|
DescriptionProduct description:Cam-action indexing plunger are used where any change in locking position due to lateral forces should be prevented. Turning the grip through 180° retracts the indexing pin, enabling a change in the indexed position. The notch ensures that the grip remains in this position and the indexing pin remains retracted.
A stop at 180° prevents the lever rotating further and the indexing pin from extending again.
The rotation direction is defined by selecting a left or right stop side.Material:Grip 1.0503.
Threaded sleeve and indexing pin free-cutting steel.
Spring 1.4310.Version:Threaded sleeve and grip black oxidised.
Indexing pin hardened, ground and black oxidised.
Spring bright.Advantages:Turning the grip through 180° retracts the pin.
180° stop with rotation in one direction.On request:Special versions.
Accessory:Mounting bracket B0065.
Positioning bush B0063.
Drawing reference:1) Stop, left
2) Stop, right DownloadHere is all the information as a PDF datasheet:
Are you looking for CAD data? These can be found directly in the product table.
|
| Order No. | Form | Version 2 | D | D1 | D2 | L | L1 | L3 | B | B1 | H | SW1 | Fx30° | Spring force
initial pressure
F1 approx. N | Spring force
final pressure
F2 approx. N | CAD | Acc. | Price | Order |
|---|
| B0532.1040410 | A | left | 4 | M10 | 10 | 38,5 | 25 | 15 | 9 | 3 | 6 | 10 | 1 | 8 | 14 |  | | 13.04 € | | | B0532.1040510 | A | left | 5 | M10 | 10 | 38,5 | 25 | 15 | 9 | 3 | 6 | 10 | 1,3 | 8 | 14 | | | 13.04 € | | | B0532.1040610 | A | left | 6 | M10 | 10 | 38,5 | 25 | 15 | 9 | 3 | 6 | 10 | 1,8 | 8 | 14 | | | 13.04 € | | | B0532.1040512 | A | left | 5 | M12 | 12 | 47,4 | 30 | 19 | 10,8 | 3,6 | 8 | 12 | 1,3 | 5 | 15 | | | 13.23 € | | | B0532.1040612 | A | left | 6 | M12 | 12 | 47,4 | 30 | 19 | 10,8 | 3,6 | 8 | 12 | 1,8 | 5 | 15 | | | 13.23 € | | | B0532.1040812 | A | left | 8 | M12 | 12 | 47,4 | 30 | 19 | 10,8 | 3,6 | 8 | 12 | 2,3 | 5 | 15 | | | 13.23 € | | | B0532.1040616 | A | left | 6 | M16 | 16 | 61,2 | 40 | 26 | 14,4 | 4,8 | 10 | 16 | 1,8 | 15 | 35 | | | 15.90 € | | | B0532.1040816 | A | left | 8 | M16 | 16 | 61,2 | 40 | 26 | 14,4 | 4,8 | 10 | 16 | 2,3 | 15 | 35 | | | 15.90 € | | | B0532.1041016 | A | left | 10 | M16 | 16 | 61,2 | 40 | 26 | 14,4 | 4,8 | 10 | 16 | 2,8 | 15 | 35 | | | 15.90 € | | | B0532.10408201 | A | left | 8 | M20x1,5 | 20 | 71 | 50 | 30 | 18 | 6 | 12 | 20 | 2,3 | 20 | 60 | | | 17.64 € | | | B0532.10410201 | A | left | 10 | M20x1,5 | 20 | 71 | 50 | 30 | 18 | 6 | 12 | 20 | 2,8 | 20 | 60 | | | 17.64 € | | | B0532.10412201 | A | left | 12 | M20x1,5 | 20 | 71 | 50 | 30 | 18 | 6 | 12 | 20 | 3 | 20 | 60 | | | 17.64 € | | | B0532.2040410 | A | right | 4 | M10 | 10 | 38,5 | 25 | 15 | 9 | 3 | 6 | 10 | 1 | 8 | 14 | | | 13.04 € | | | B0532.2040510 | A | right | 5 | M10 | 10 | 38,5 | 25 | 15 | 9 | 3 | 6 | 10 | 1,3 | 8 | 14 | | | 13.04 € | | | B0532.2040610 | A | right | 6 | M10 | 10 | 38,5 | 25 | 15 | 9 | 3 | 6 | 10 | 1,8 | 8 | 14 | | | 13.04 € | | | B0532.2040512 | A | right | 5 | M12 | 12 | 47,4 | 30 | 19 | 10,8 | 3,6 | 8 | 12 | 1,3 | 5 | 15 | | | 13.23 € | | | B0532.2040612 | A | right | 6 | M12 | 12 | 47,4 | 30 | 19 | 10,8 | 3,6 | 8 | 12 | 1,8 | 5 | 15 | | | 13.23 € | | | B0532.2040812 | A | right | 8 | M12 | 12 | 47,4 | 30 | 19 | 10,8 | 3,6 | 8 | 12 | 2,3 | 5 | 15 | | | 13.23 € | | | B0532.2040616 | A | right | 6 | M16 | 16 | 61,2 | 40 | 26 | 14,4 | 4,8 | 10 | 16 | 1,8 | 15 | 35 | | | 15.90 € | | | B0532.2040816 | A | right | 8 | M16 | 16 | 61,2 | 40 | 26 | 14,4 | 4,8 | 10 | 16 | 2,3 | 15 | 35 | | | 15.90 € | | | B0532.2041016 | A | right | 10 | M16 | 16 | 61,2 | 40 | 26 | 14,4 | 4,8 | 10 | 16 | 2,8 | 15 | 35 | | | 15.90 € | | | B0532.20408201 | A | right | 8 | M20x1,5 | 20 | 71 | 50 | 30 | 18 | 6 | 12 | 20 | 2,3 | 20 | 60 | | | 17.64 € | | | B0532.20410201 | A | right | 10 | M20x1,5 | 20 | 71 | 50 | 30 | 18 | 6 | 12 | 20 | 2,8 | 20 | 60 | | | 17.64 € | | | B0532.20412201 | A | right | 12 | M20x1,5 | 20 | 71 | 50 | 30 | 18 | 6 | 12 | 20 | 3 | 20 | 60 | | | 17.64 € | |
