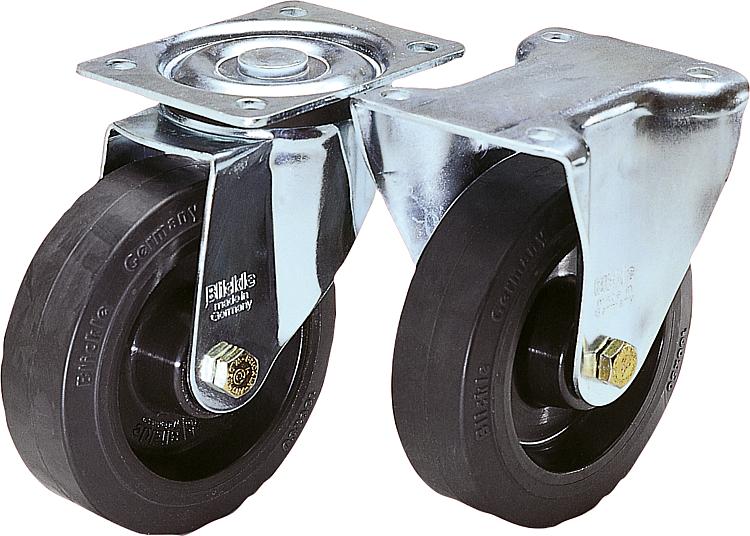

Sheet steel swivel and fixed castors with vulcanised-on elastic solid rubber tyres, standard version
B0483

Sheet steel swivel and fixed castors with vulcanised-on elastic...

go back

Item description/product images

Show/filter all items
DescriptionMaterial:Housing steel plate.
Wheel body PA 6 with vulcanised elastic solid rubber tyre.
Version:Housing press formed.

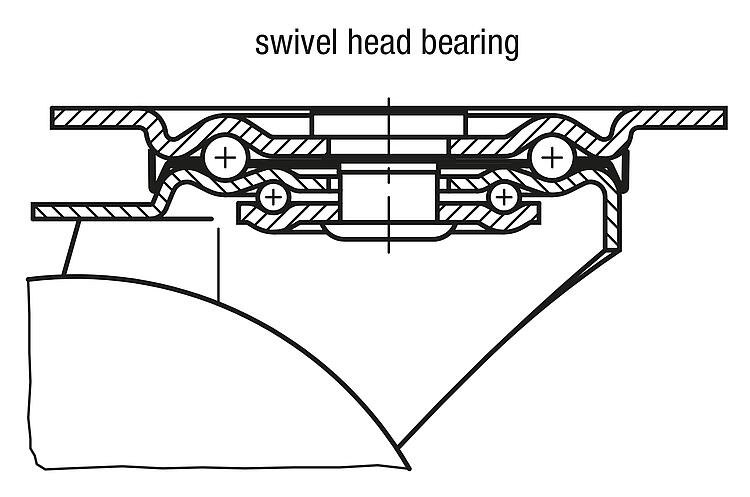

Double ball bearing with ball shield in castor head.
Roller bearings in the wheels.
Note:Wheel axle bolted.
Wheels are shock and impact proof.
DownloadHere is all the information as a PDF datasheet:

Are you looking for CAD data? These can be found directly in the product table.
 Datasheet B0483 Sheet steel swivel and fixed castors with vulcanised-on elastic solid rubber tyres, standard version 445 kB

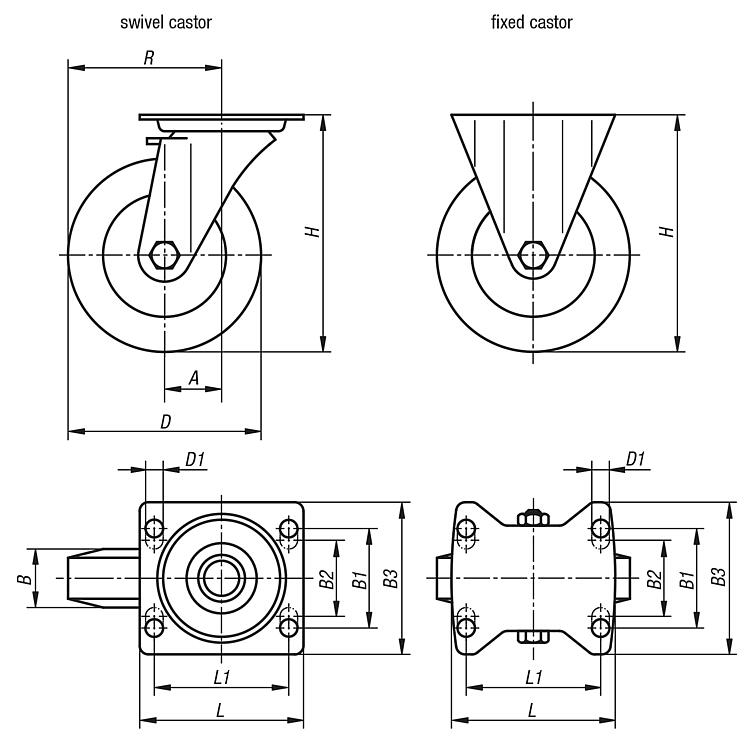

Drawings (total overview)

Sheet steel swivel and fixed castors with vulcanised-on elastic solid rubber tyres, standard version
Sheet steel swivel and fixed castors with vulcanised-on elastic solid rubber tyres, standard version

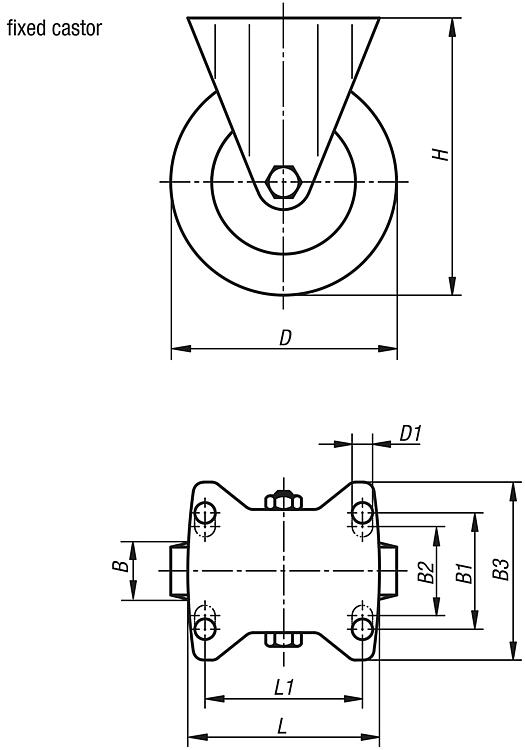

Steel plate fixed castors with vulcanised-on elastic solid rubber tyres, standard version

More information

Drawings

Steel plate fixed castors with vulcanised-on elastic solid rubber tyres, standard version

Item selection/filter

Order No.ItemVersion 1Wheel
bearing
BB1B2B3DD1HLL1Permissible
load
kg
CADAcc.PriceOrder
B0483.100371Fixed castorwithout locking systemroller bearing32-6085100912510080170 31.93 €
B0483.125371Fixed castorwithout locking systemroller bearing37-6085125915010080200 38.57 €
B0483.160501Fixed castorwithout locking systemroller bearing50758011016011195140105350 66.36 €
B0483.200501Fixed castorwithout locking systemroller bearing50758011020011235140105400 82.50 €

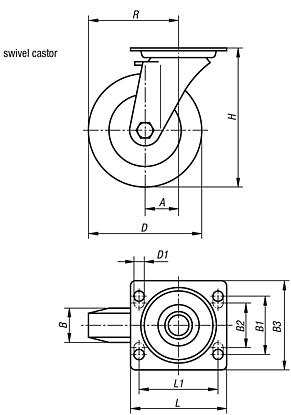

Steel plate swivel castors with vulcanised-on elastic solid rubber tyres, standard version

More information

Drawings

Steel plate swivel castors with vulcanised-on elastic solid rubber tyres, standard version
Steel plate swivel castors with vulcanised-on elastic solid rubber tyres, standard version

Item selection/filter

Order No.ItemVersion 1Wheel
bearing
ABB1B2B3DD1HLL1RPermissible
load
kg
CADAcc.PriceOrder
B0483.10037Swivel castorwithout locking systemroller bearing3632-608510091251008086170 35.08 €
B0483.12537Swivel castorwithout locking systemroller bearing4037-6085125915010080102,5200 45.03 €
B0483.16050Swivel castorwithout locking systemroller bearing6050758011016011195140105140350 76.49 €
B0483.20050Swivel castorwithout locking systemroller bearing6550758011020011235140105165400 91.65 €

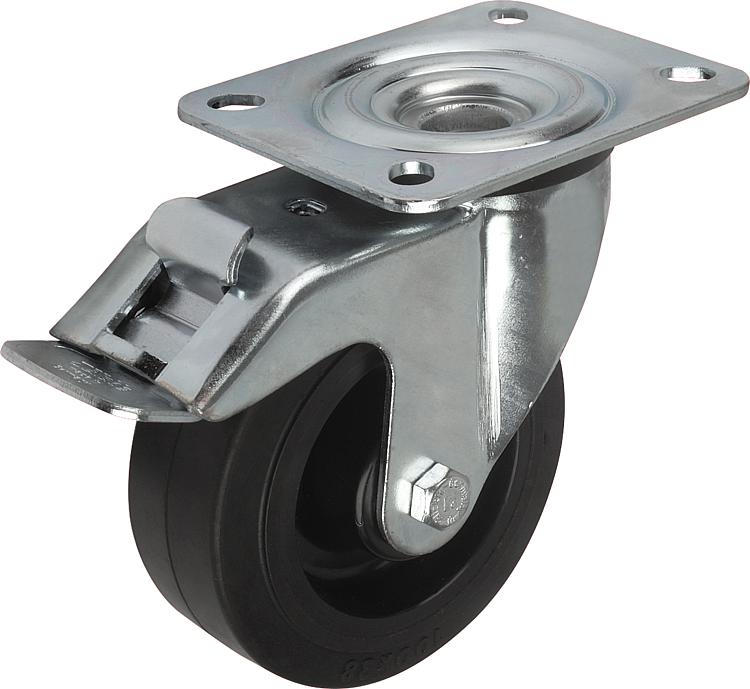

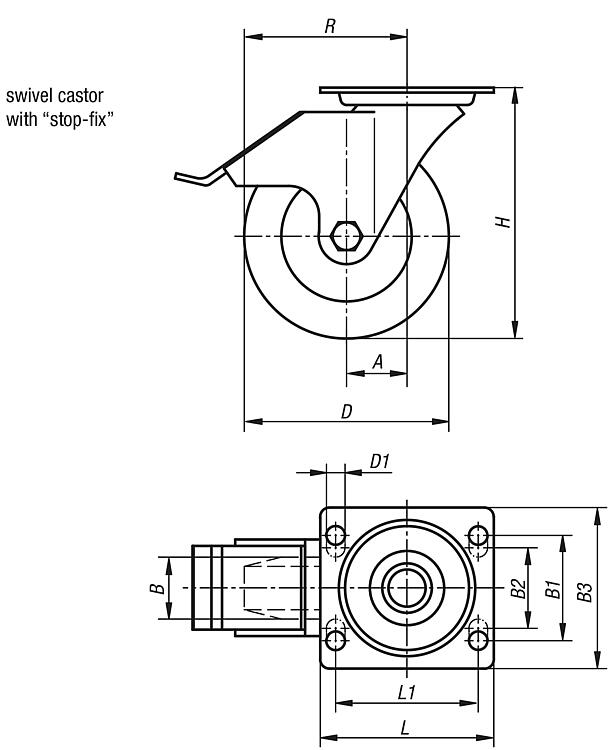

Steel plate swivel castors with stop-fix, vulcanised-on elastic solid rubber tyres, standard version

More information

Drawings

Steel plate swivel castors with stop-fix, vulcanised-on elastic solid rubber tyres, standard version
Steel plate swivel castors with stop-fix, vulcanised-on elastic solid rubber tyres, standard version

Item selection/filter

Order No.ItemVersion 1Wheel
bearing
ABB1B2B3DD1HLL1RPermissible
load
kg
CADAcc.PriceOrder
B0483.100372Swivel castorwith stop-fix locking systemroller bearing3632-608510091251008086170 57.23 €
B0483.125372Swivel castorwith stop-fix locking systemroller bearing4037-6085125915010080102,5200 64.01 €
B0483.160502Swivel castorwith stop-fix locking systemroller bearing6050758011016011195140105140350 103.38 €
B0483.200502Swivel castorwith stop-fix locking systemroller bearing6550758011020011235140105165400 117.57 €
