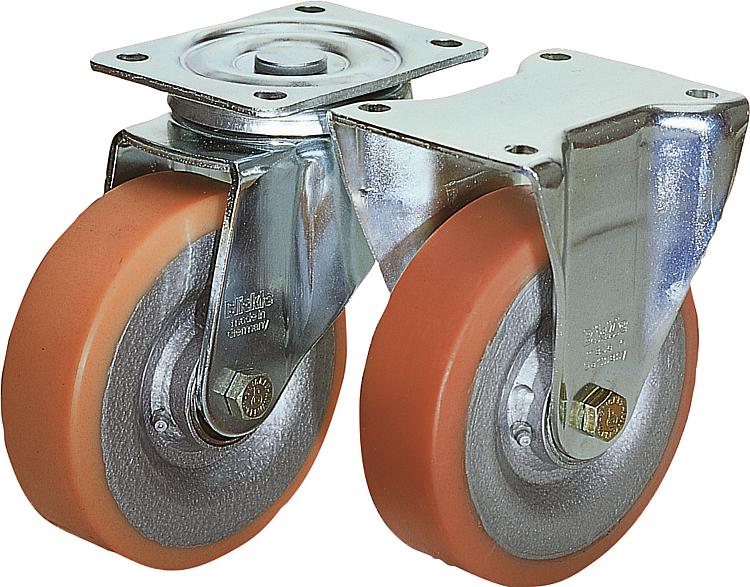

Steel plate swivel and fixed castors with Extrathane® tread, heavy duty version
B0487

Steel plate swivel and fixed castors with Extrathane® tread,...

go back

Item description/product images

Show/filter all items
DescriptionMaterial:Housing thick steel plate.
Wheels welded steel body and Extrathane® tread.
Version:Housing press formed.
Swivel castor housing with strong fork and base plate, very robust centre pin bolted and secured. The swivel head is additionally reinforced with specially formed and hardened bearing shells.
Note:These castors are particularly shock and impact proof. The treads resist abrasion and are elastic and low-noise. Wheel axle bolted.
DownloadHere is all the information as a PDF datasheet:

Are you looking for CAD data? These can be found directly in the product table.
 Datasheet B0487 Steel plate swivel and fixed castors with Extrathane® tread, heavy duty version 508 kB

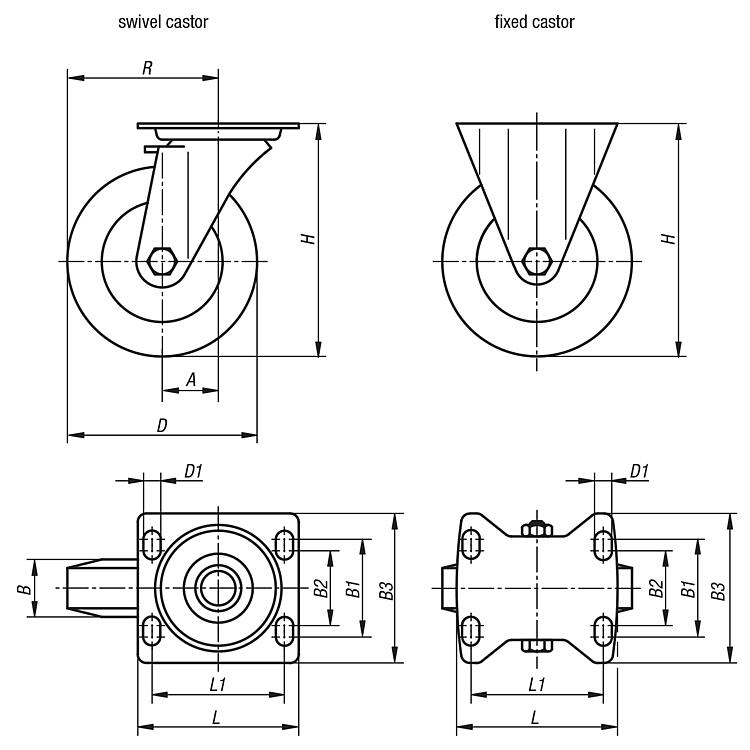

Drawings (total overview)

Steel plate swivel and fixed castors with Extrathane® tread, heavy duty version
Steel plate swivel and fixed castors with Extrathane® tread, heavy duty version

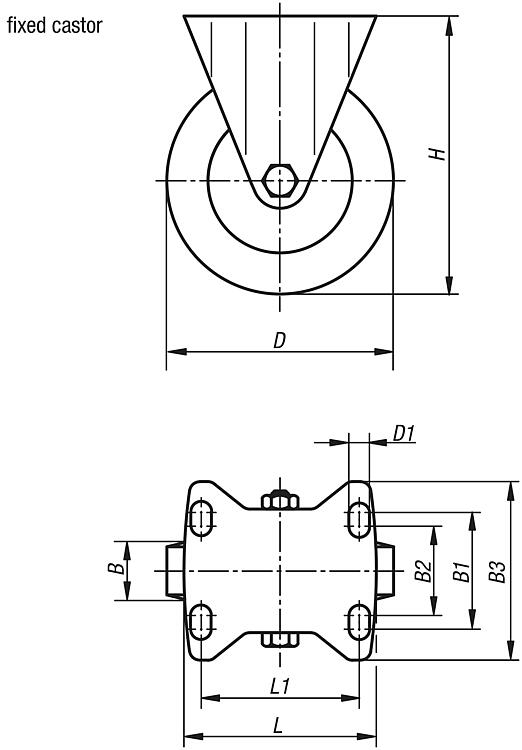

Steel plate fixed castors with Extrathane® tread, heavy duty version

More information

Drawings

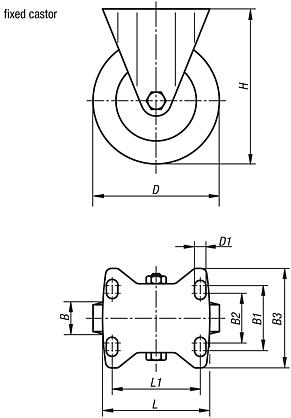

Steel plate fixed castors with Extrathane® tread, heavy duty version

Item selection/filter

Order No.ItemVersion 1Wheel
bearing
BB1B2B3DD1LL1HPermissible
load
kg
CADAcc.PriceOrder
B0487.125501Fixed castorwithout locking systemball bearing50807511012511140105170500 147.14 €
B0487.160501Fixed castorwithout locking systemball bearing50807511016011140105202700 191.21 €
B0487.200501Fixed castorwithout locking systemball bearing50807511020011140105245900 213.34 €

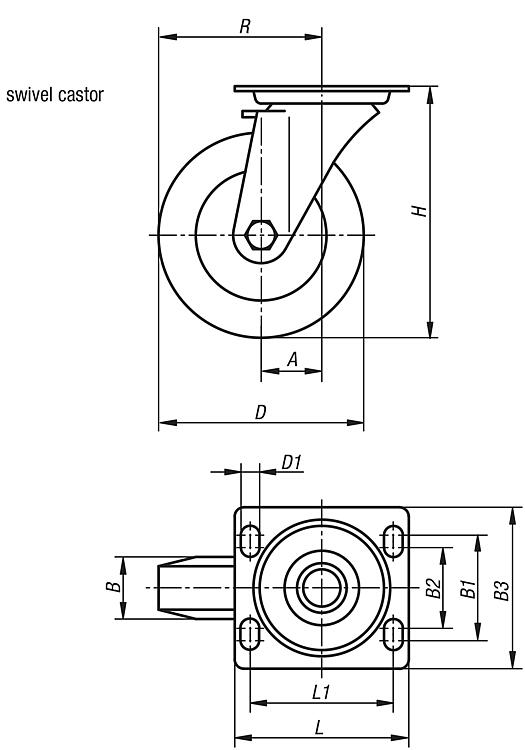

Steel plate swivel castors with Extrathane® tread, heavy duty version

More information

Drawings

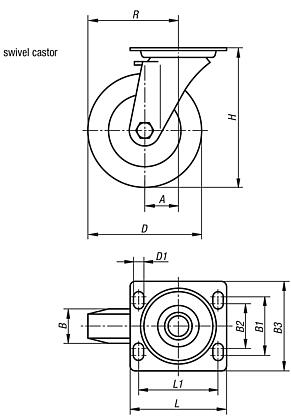

Steel plate swivel castors with Extrathane® tread, heavy duty version
Steel plate swivel castors with Extrathane® tread, heavy duty version

Item selection/filter

Order No.ItemVersion 1Wheel
bearing
ABB1B2B3DD1HLL1RPermissible
load
kg
CADAcc.PriceOrder
B0487.12550Swivel castorwithout locking systemball bearing5550807511012511170140105117,5500 184.91 €
B0487.16050Swivel castorwithout locking systemball bearing6550807511016011202140105145700 235.47 €
B0487.20050Swivel castorwithout locking systemball bearing7050807511020011245140105170900 265.51 €

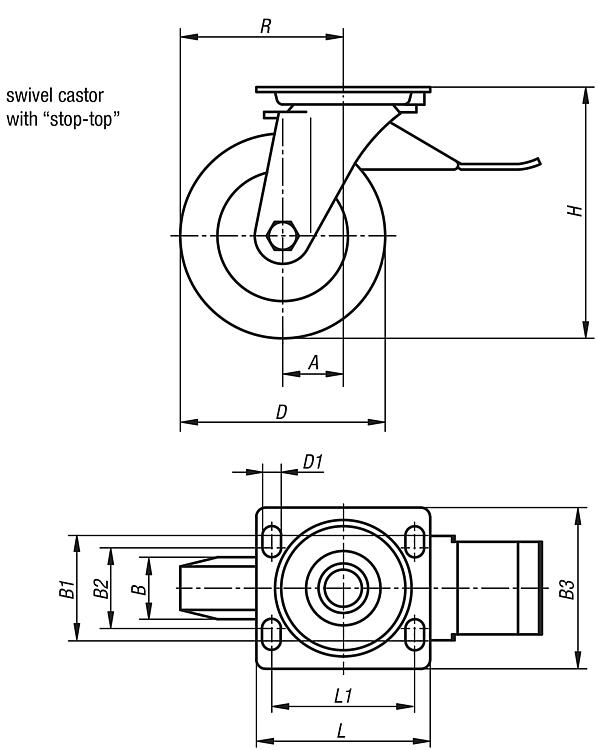

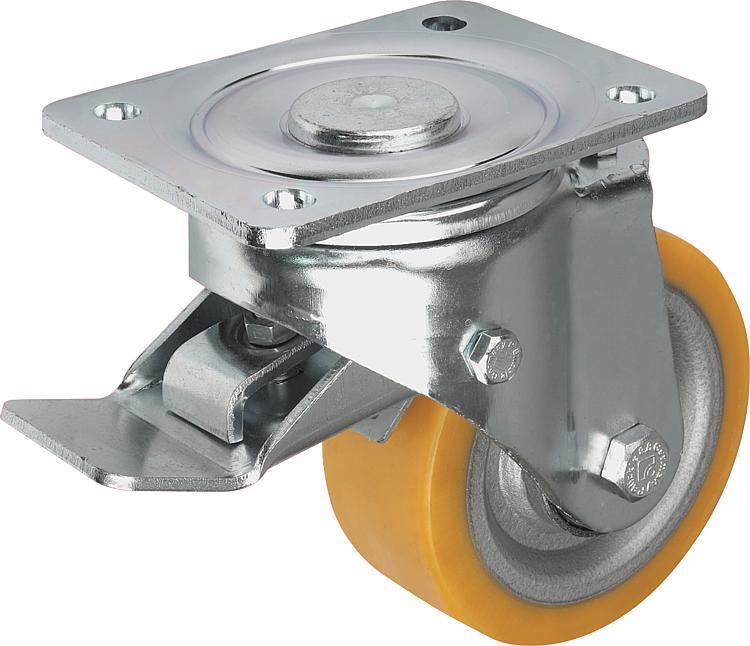

Steel plate swivel castors with stop-top, Extrathane® tread, heavy duty version

More information

Drawings

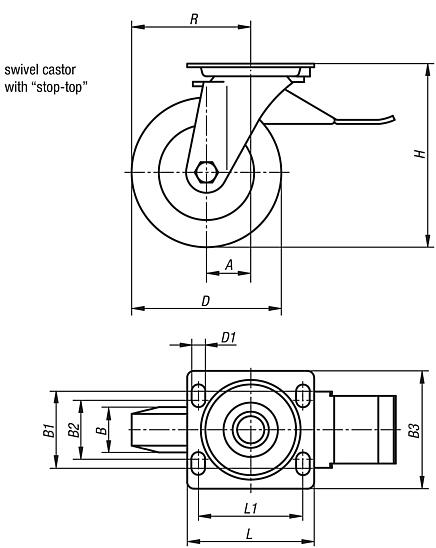

Steel plate swivel castors with stop-top, Extrathane® tread, heavy duty version
Steel plate swivel castors with stop-top, Extrathane® tread, heavy duty version

Item selection/filter

Order No.ItemVersion 1Wheel
bearing
ABB1B2B3DD1HLL1RPermissible
load
kg
CADAcc.PriceOrder
B0487.125502Swivel castorwith stop-top locking systemball bearing5550807511012511170140105117,5500 221.23 €
B0487.160502Swivel castorwith stop-top locking systemball bearing6550807511016011202140105145700 271.79 €
B0487.200502Swivel castorwith stop-top locking systemball bearing7050807511020011245140105170900 300.23 €
