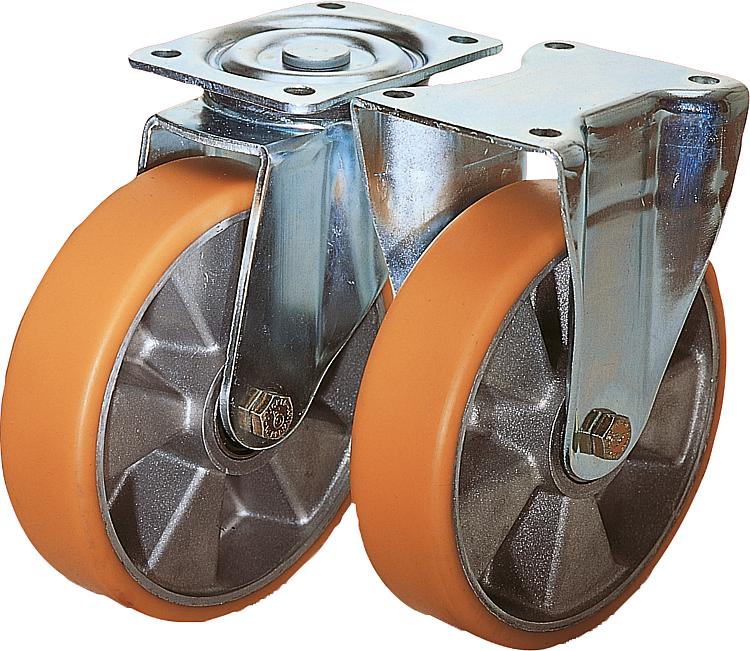

Steel plate swivel and fixed castors with Extrathane® tread, medium load version
B0486

Steel plate swivel and fixed castors with Extrathane® tread,...

go back

Item description/product images

Show/filter all items
DescriptionMaterial:Housing steel plate.
Wheel body die-cast aluminium with Extrathane® tread.
Version:Housing press formed.

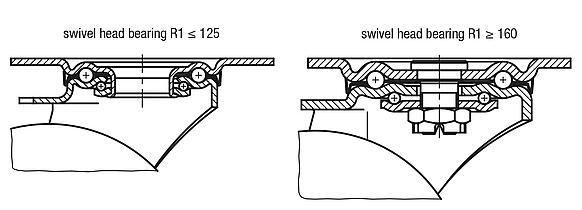

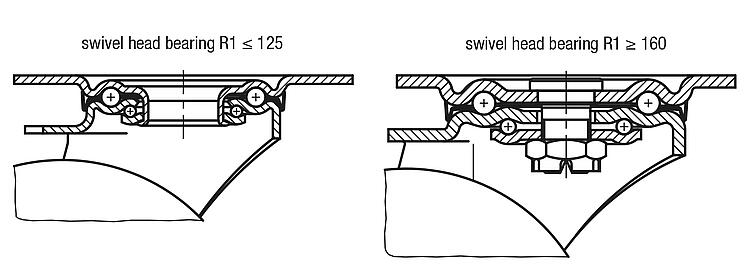

Double ball bearing with ball shield in the castor head.
Precision ball bearings in the wheels.
Note:The wheels are corrosion resistant and they have a low rolling resistance. Wheel axle bolted.
From diameter 125 mm the wheels have spokes.
DownloadHere is all the information as a PDF datasheet:

Are you looking for CAD data? These can be found directly in the product table.
 Datasheet B0486 Steel plate swivel and fixed castors with Extrathane® tread, medium load version 476 kB

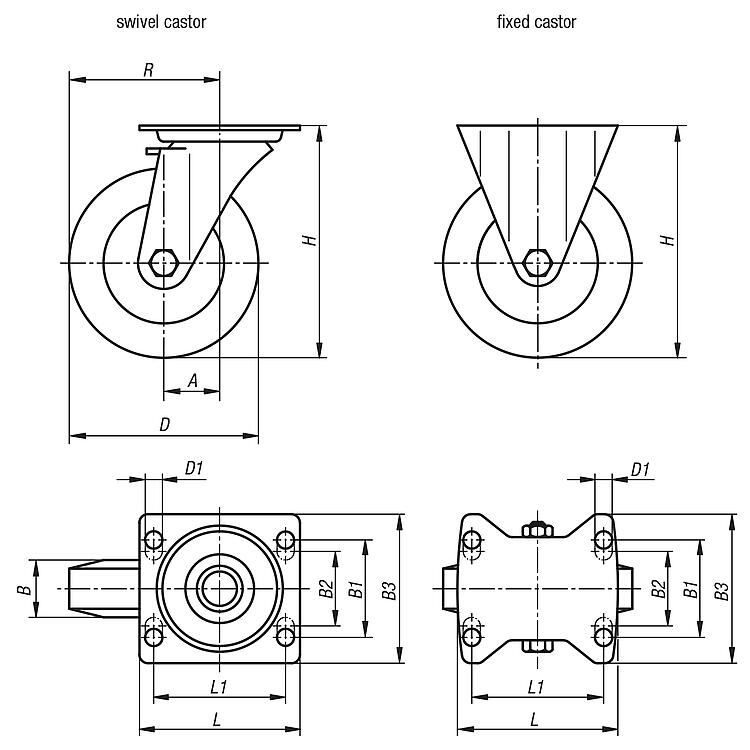

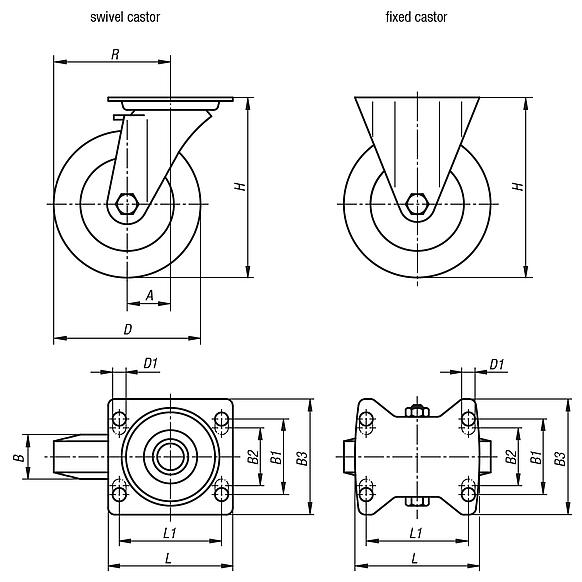

Drawings (total overview)

Steel plate swivel and fixed castors with Extrathane® tread, medium load version
Steel plate swivel and fixed castors with Extrathane® tread, medium load version

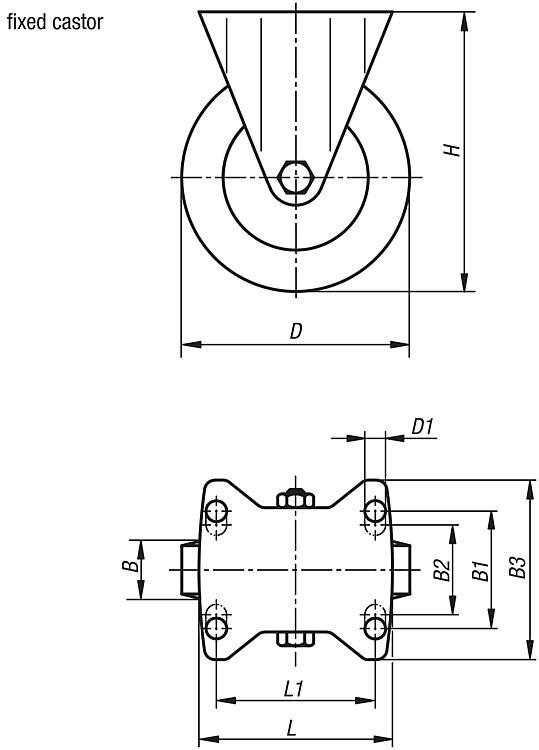

Steel plate fixed castors with Extrathane® tread, medium load version

More information

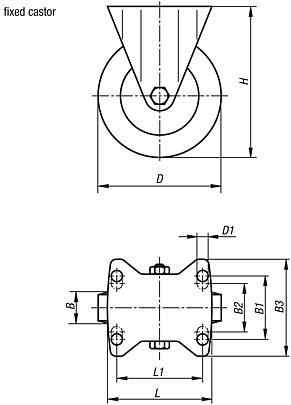

Drawings

Steel plate fixed castors with Extrathane® tread, medium load version

Item selection/filter

Order No.ItemVersion 1Wheel
bearing
BB1B2B3DD1HLL1Permissible
load
kg
CADAcc.PriceOrder
B0486.100401Fixed castorwithout locking systemball bearing4060-85100913010080250 65.76 €
B0486.125401Fixed castorwithout locking systemball bearing4060-85125915510080250 74.11 €
B0486.160501Fixed castorwithout locking systemball bearing50807511016011202140105550 113.46 €
B0486.200501Fixed castorwithout locking systemball bearing50807511020011245140105800 135.27 €

Steel plate swivel castors with Extrathane® tread, medium load version

More information

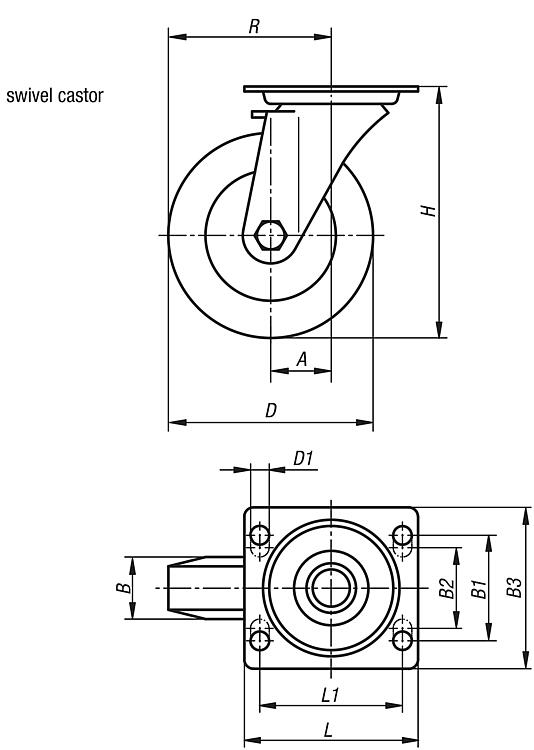

Drawings

Steel plate swivel castors with Extrathane® tread, medium load version
Steel plate swivel castors with Extrathane® tread, medium load version

Item selection/filter

Order No.ItemVersion 1Wheel
bearing
ABB1B2B3DD1HLL1RPermissible
load
kg
CADAcc.PriceOrder
B0486.10040Swivel castorwithout locking systemball bearing454060-8510091301008095250 73.31 €
B0486.12540Swivel castorwithout locking systemball bearing484060-85125915510080110,5250 83.29 €
B0486.16050Swivel castorwithout locking systemball bearing6350807511016011202140105143550 141.13 €
B0486.20050Swivel castorwithout locking systemball bearing7050807511020011245140105170800 161.20 €

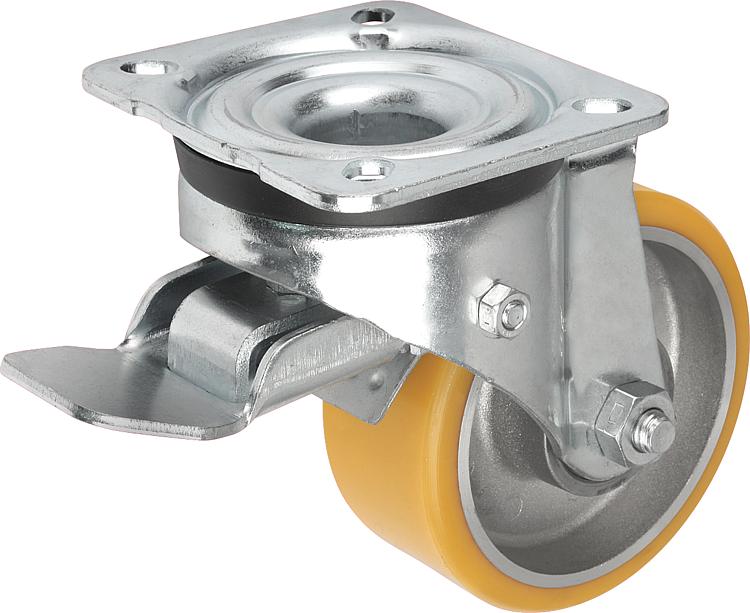

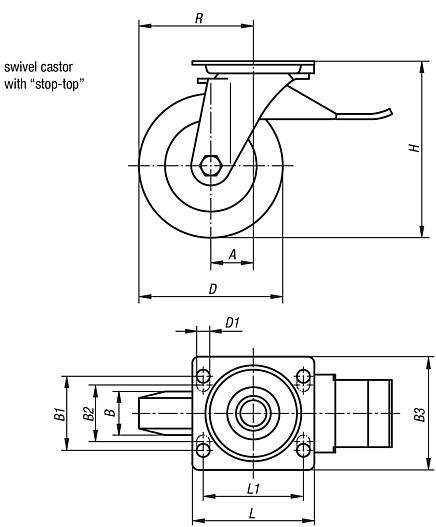

Steel plate swivel castors with stop-top, Extrathane® tread, medium load version

More information

Drawings

Steel plate swivel castors with stop-top, Extrathane® tread, medium load version
Steel plate swivel castors with stop-top, Extrathane® tread, medium load version

Item selection/filter

Order No.ItemVersion 1Wheel
bearing
ABB1B2B3DD1HLL1RPermissible
load
kg
CADAcc.PriceOrder
B0486.100402Swivel castorwith stop-top locking systemball bearing454060-8510091301008095250 96.71 €
B0486.125402Swivel castorwith stop-top locking systemball bearing484060-85125915510080110,5250 106.67 €
B0486.160502Swivel castorwith stop-top locking systemball bearing6350807511016011202140105143550 173.82 €
B0486.200502Swivel castorwith stop-top locking systemball bearing7050807511020011245140105170800 194.39 €
