Steel plate swivel and fixed castors with abrasion resistant polyurethane tread, standard version
B0485

Steel plate swivel and fixed castors with abrasion resistant...

go back

Item description/product images

Show/filter all items
DescriptionMaterial:Housing steel plate.
Wheel body PA 6 with abrasion-resistant polyurethane tread.
Version:Housing press formed.
Double ball bearing with ball shield in the castor head.
Plain bearing in the wheels.
Note:The wheels are unbreakable, maintenance-free and non-corroding. Wheel axle bolted. Tread non-marking.
DownloadHere is all the information as a PDF datasheet:

Are you looking for CAD data? These can be found directly in the product table.
 Datasheet B0485 Steel plate swivel and fixed castors with abrasion resistant polyurethane tread, standard version 376 kB

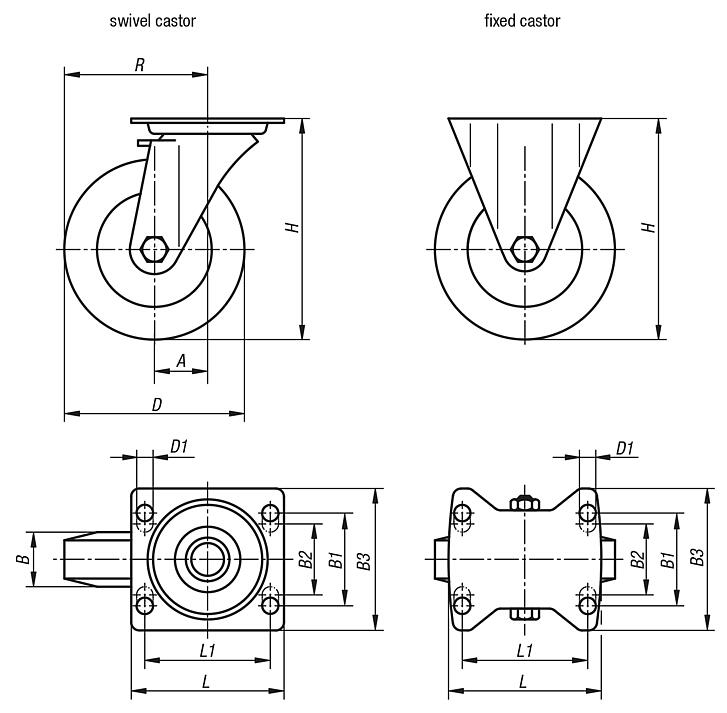

Drawings (total overview)

Steel plate swivel and fixed castors with abrasion resistant polyurethane tread, standard version

Steel plate fixed castors with abrasion resistant polyurethane tread, standard version

More information

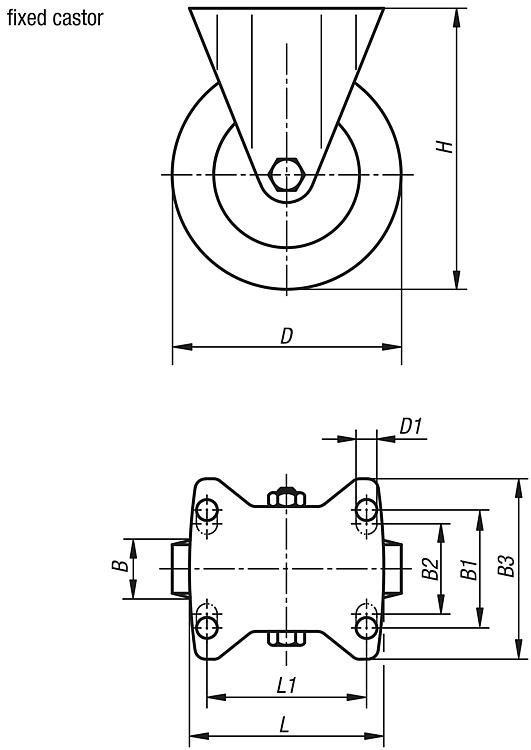

Drawings

Steel plate fixed castors with abrasion resistant polyurethane tread, standard version

Item selection/filter

Order No.ItemVersion 1Wheel
bearing
BB1B2B3DD1HLL1Permissible
load
kg
CADAcc.PriceOrder
B0485.100351Fixed castorwithout locking systemplain bearing3560-85100912510080200 25.94 €
B0485.125351Fixed castorwithout locking systemplain bearing4060-85125915010080200 36.67 €
B0485.150401Fixed castorwithout locking systemplain bearing45807511015011190140105400 49.47 €
B0485.200501Fixed castorwithout locking systemplain bearing50807511020011235140105400 76.82 €

Steel plate swivel castors with abrasion resistant polyurethane tread, standard version

More information

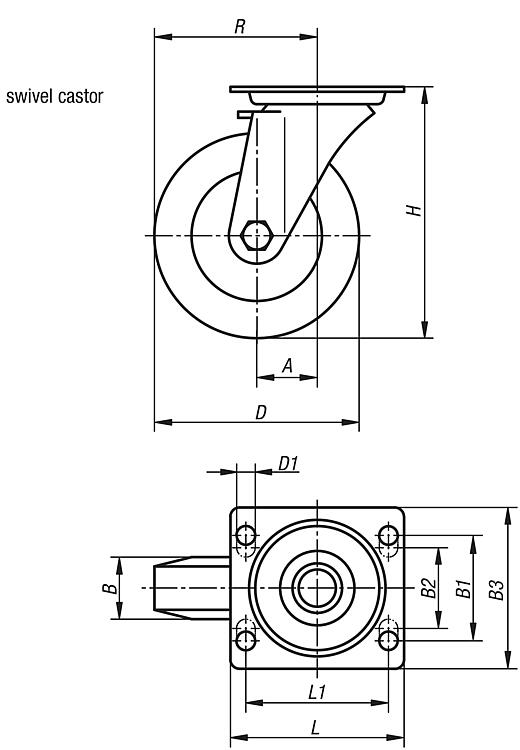

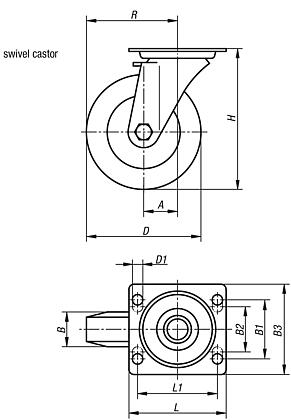

Drawings

Steel plate swivel castors with abrasion resistant polyurethane tread, standard version
Steel plate swivel castors with abrasion resistant polyurethane tread, standard version

Item selection/filter

Order No.ItemVersion 1Wheel
bearing
ABB1B2B3DD1HLL1RPermissible
load
kg
CADAcc.PriceOrder
B0485.10035Swivel castorwithout locking systemplain bearing363560-8510091251008086200 32.06 €
B0485.12535Swivel castorwithout locking systemplain bearing404060-85125915010080102,5200 43.15 €
B0485.15040Swivel castorwithout locking systemplain bearing6045807511015011190140105135400 59.59 €
B0485.20050Swivel castorwithout locking systemplain bearing6550807511020011235140105165400 86.58 €

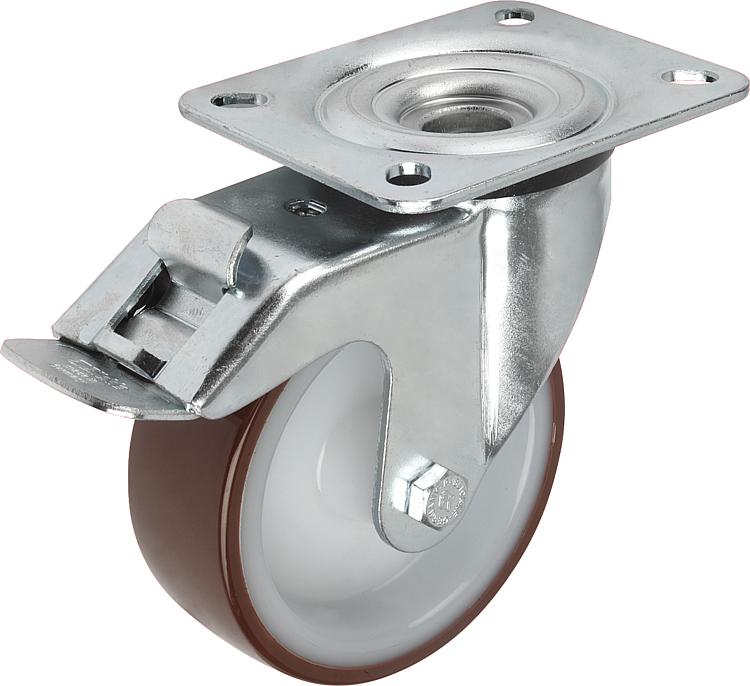

Steel plate swivel castors with stop-fix, abrasion resistant polyurethane tread, standard version

More information

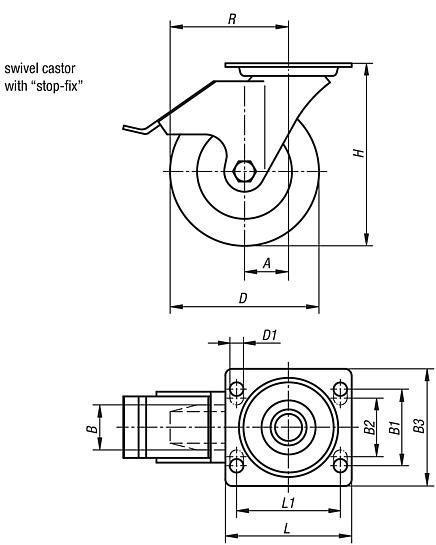

Drawings

Steel plate swivel castors with stop-fix, abrasion resistant polyurethane tread, standard version
Steel plate swivel castors with stop-fix, abrasion resistant polyurethane tread, standard version

Item selection/filter

Order No.ItemVersion 1Wheel
bearing
ABB1B2B3DD1HLL1RPermissible
load
kg
CADAcc.PriceOrder
B0485.100352Swivel castorwith stop-fix locking systemplain bearing363560-8510091251008086200 51.06 €
B0485.125352Swivel castorwith stop-fix locking systemplain bearing404060-85125915010080102,5200 61.95 €
B0485.150402Swivel castorwith stop-fix locking systemplain bearing6045807511015011190140105135400 85.65 €
B0485.200502Swivel castorwith stop-fix locking systemplain bearing6550807511020011235140105165400 111.72 €
