Wheels polyamide heavy-duty version
 B0500

Wheels polyamide heavy-duty version

 go back

Item description/product images

 Show/filter all items
DescriptionMaterial:Polyamide.Note:Polyamide wheels are unbreakable, non-corroding, shock and impact proof and chemical resistant. They also have high abrasion resistance and low roll resistance.

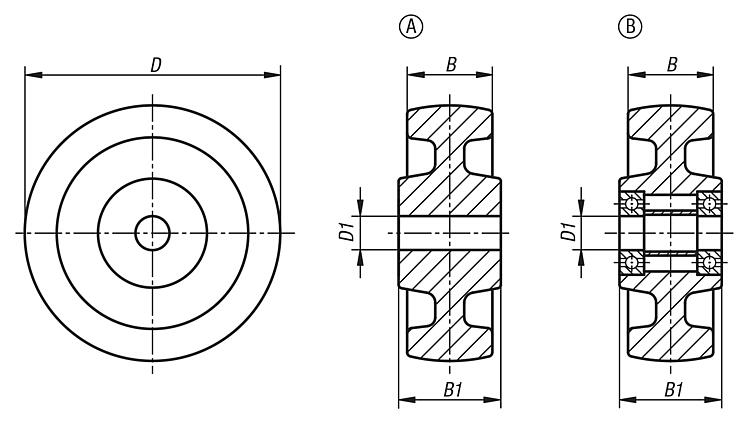

Suitable as replacement rollers for the castors B0491.Drawing reference:

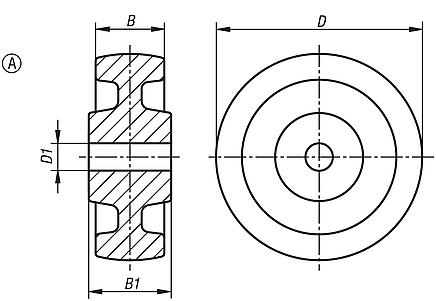

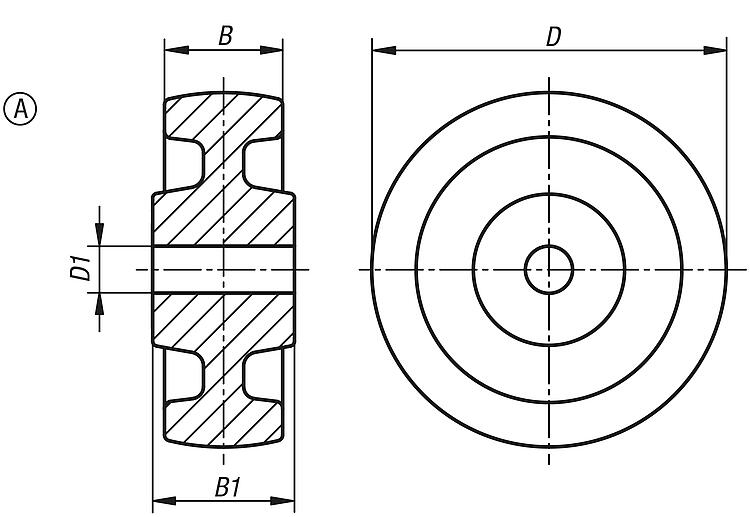

Form A: plain bearing

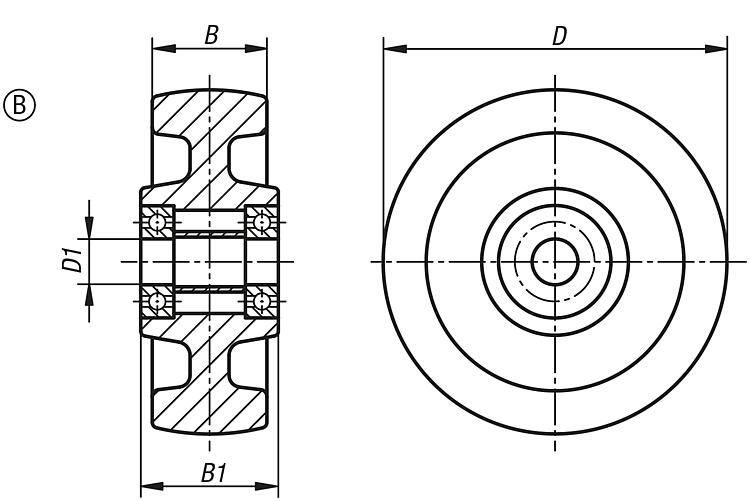

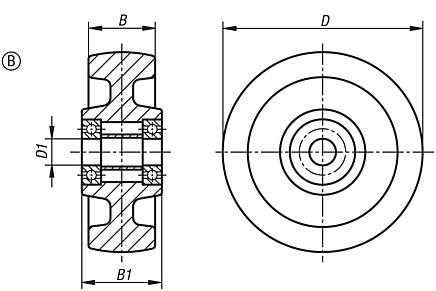

Form B: ball bearing
Special features:
RoHS
DownloadHere is all the information as a PDF datasheet:

Are you looking for CAD data? These can be found directly in the product table.
Datasheet B0500 Wheels polyamide heavy-duty version 215 kB

Drawings (total overview)

Wheels polyamide heavy-duty version

Nylon wheels, heavy version with plain bearings, Form A

 More information

Drawings
Nylon wheels, heavy version with plain bearings, Form A

Item selection/filter
Order No.

Wheel
bearing		DD1BB1Permissible
load
kg		CADAcc.PriceOrder
B0500.07532plain bearing75123235300 12.49 €
B0500.10037plain bearing100153745500 21.00 €
B0500.12540plain bearing125154045700 34.75 €
B0500.15050plain bearing150205060800 42.34 €
B0500.20050plain bearing2002050601500 83.13 €
B0500.25065plain bearing2502565702000 154.55 €

Nylon wheels, heavy version with ball bearings, Form B

 More information

Drawings
Nylon wheels, heavy version with ball bearings, Form B

Item selection/filter
Order No.

Wheel
bearing		DD1BB1Permissible
load
kg		CADAcc.PriceOrder
B0500.075321ball bearing75153235300 41.09 €
B0500.100371ball bearing100153745500 52.45 €
B0500.125401ball bearing125204045700 69.68 €
B0500.150501ball bearing150205060800 70.97 €
B0500.200501ball bearing2002550601500 132.74 €
B0500.250651ball bearing2502565652000 203.89 €
