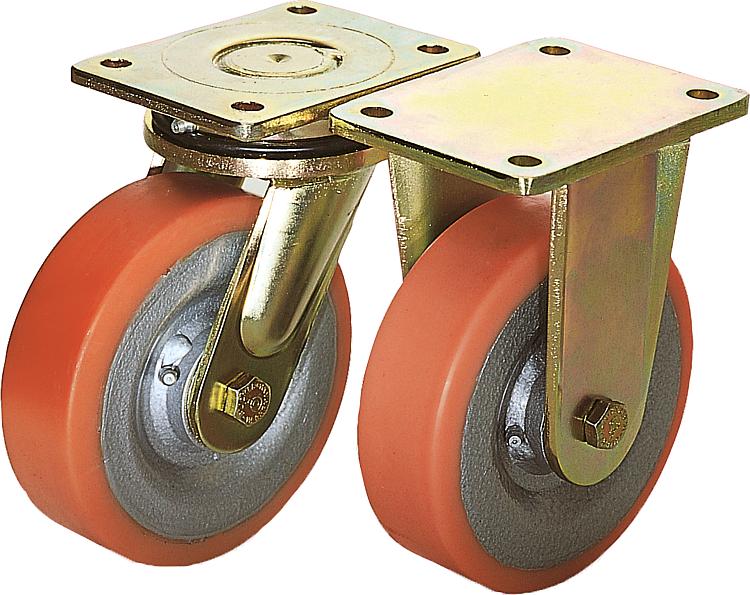

B0488Welded steel swivel and fixed castors with Extrathane® tread,... |
go back |
|
|
DescriptionMaterial:Housing solid welded steel construction.
Wheels with welded steel body and Extrathane® tread.Version:The housing is a rugged welded steel construction.

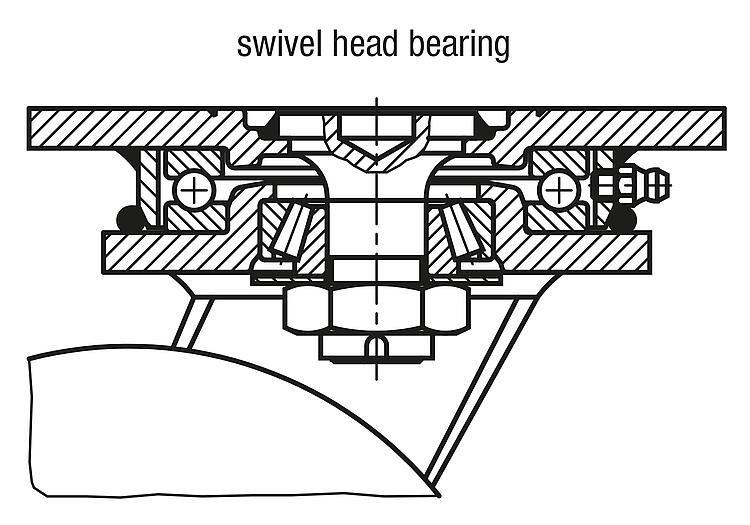

Swivel castor housing with DIN 711 axial groove ball bearing and DIN 720 tapered roller bearing in the swivel head. Dust and splash-proof, with grease nipple. Precision ball bearings in the wheels.Note:Centre pin welded in, bolted and secured. Wheel axle bolted. DownloadHere is all the information as a PDF datasheet:
Are you looking for CAD data? These can be found directly in the product table.
|

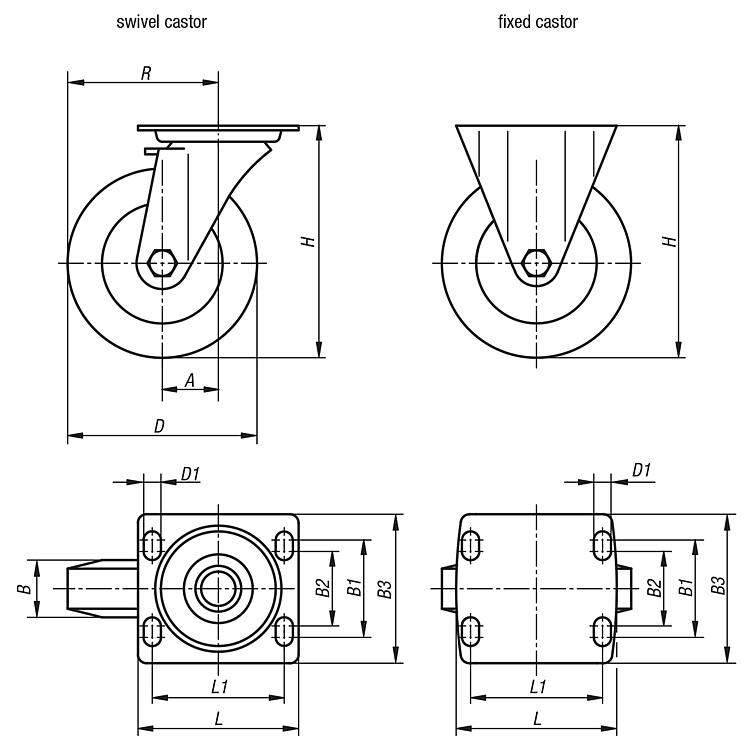

Drawings (total overview) |

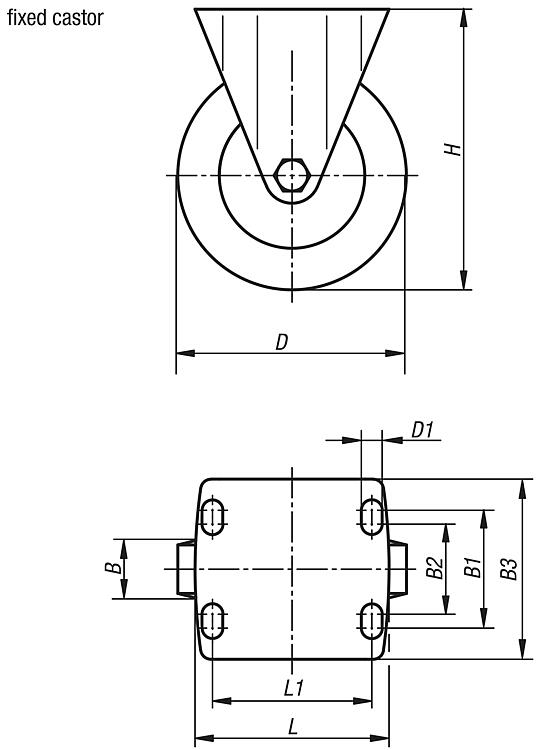

Welded steel fixed castors with Extrathane® tread, heavy-duty version |
More information |
|

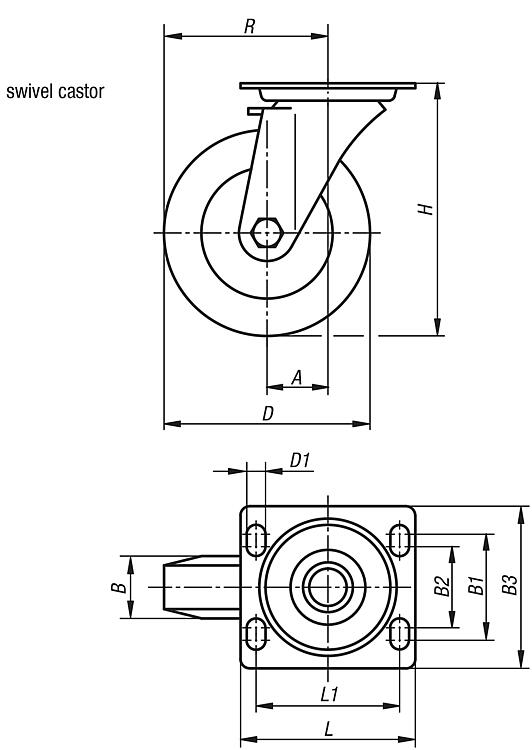

Welded steel swivel castors with Extrathane® tread, heavy-duty version |
More information |
|

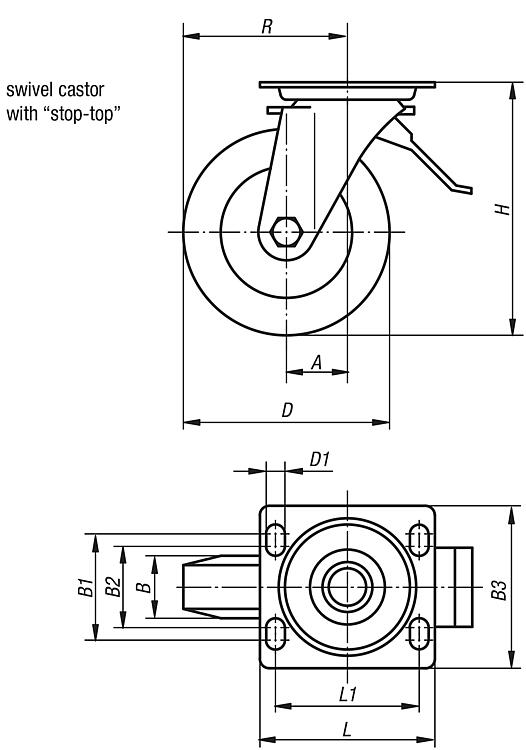

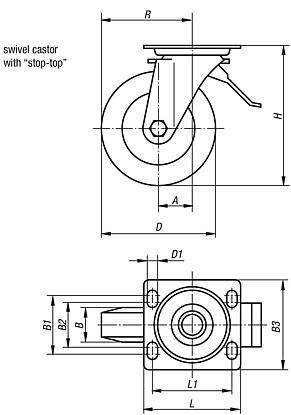

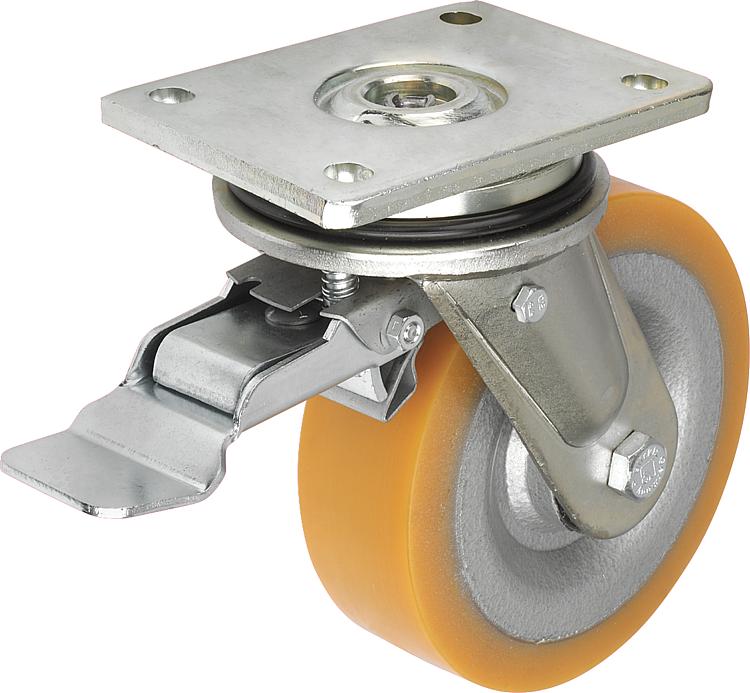

Welded steel swivel castors with stop-top, Extrathane® tread, heavy-duty version |
More information |
|
