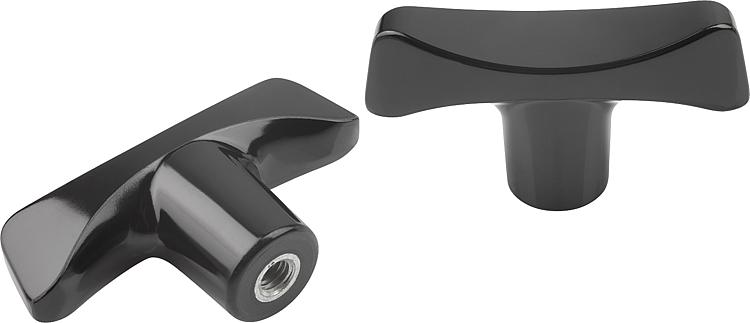

B0305T-grips, with internal thread |
go back |
|
Item description/product images |
|
|
DescriptionMaterial:Black thermoset PF 31.
Bush electro zinc-plated steel.Version:High-gloss polished.On request:Other colours.Special features: DownloadHere is all the information as a PDF datasheet:
Are you looking for CAD data? These can be found directly in the product table.
|
Order No.
| Form | A | B | D | D3 | H | H1 | T | CAD | Acc. | Price | Order |
|---|
| B0305.17006 | K | 70 | 22 | M6 | 19,6 | 38,8 | 20,2 | 12 |  | | 2.42 € | | | B0305.17008 | K | 70 | 22 | M8 | 19,6 | 38,8 | 20,2 | 14 | | | 2.42 € | | | B0305.17010 | K | 70 | 22 | M10 | 19,6 | 38,8 | 20,2 | 14 | | | 2.63 € | | | B0305.18008 | K | 80 | 25 | M8 | 22,3 | 44 | 23 | 14 | | | 3.16 € | | | B0305.18010 | K | 80 | 25 | M10 | 22,3 | 44 | 23 | 22 | | | 3.32 € | | | B0305.19010 | K | 90 | 28 | M10 | 25 | 49,6 | 26 | 22 | | | 3.92 € | | | B0305.19012 | K | 90 | 28 | M12 | 25 | 49,6 | 26 | 21 | | | 4.11 € | |
