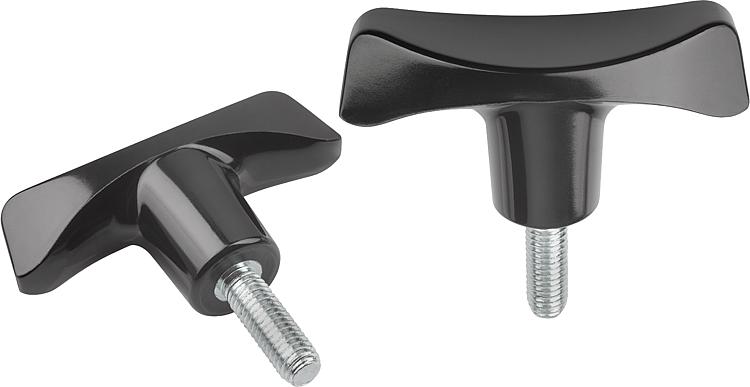

B0305T-grips, with external thread |
go back |
|
Item description/product images |
|
|
DescriptionMaterial:Black thermoset PF 31.
Screw electro zinc-plated steel.Version:High-gloss polished.On request:Other screw sizes, screw lengths and colours.Special features: DownloadHere is all the information as a PDF datasheet:
Are you looking for CAD data? These can be found directly in the product table.
|
Order No.
| Form | A | B | D | D3 | H | H1 | L | CAD | Acc. | Price | Order |
|---|
| B0305.27006X18 | L | 70 | 22 | M6 | 19,6 | 38,8 | 20,2 | 18 |  | | 2.44 € | | | B0305.27008X24 | L | 70 | 22 | M8 | 19,6 | 38,8 | 20,2 | 24 | | | 2.71 € | | | B0305.28010X20 | L | 80 | 25 | M10 | 22,3 | 44 | 23 | 20 | | | 3.16 € | | | B0305.28010X30 | L | 80 | 25 | M10 | 22,3 | 44 | 23 | 30 | | | 3.16 € | | | B0305.29010X30 | L | 90 | 28 | M10 | 25 | 49,6 | 26 | 30 | | | 3.85 € | | | B0305.29012X24 | L | 90 | 28 | M12 | 25 | 49,6 | 26 | 24 | | | 4.91 € | |
