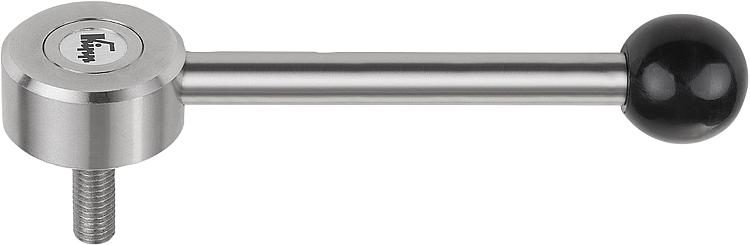

Tension levers flat external thread, stainless steel, 0°
B0254

Tension levers flat external thread, stainless steel, 0°

go back

Item description/product images

DescriptionMaterial:

Steel parts stainless steel 1.4305.
Ball knob black plastic.

Version:Steel parts bright.On request:Other threads, screw lengths and special versions.
Dimensions “H1” and “A” available in other lengths at extra charge.
Drawing reference:
1) flat point DIN EN ISO 4753
Special features:
Stainless steelRoHS
DownloadHere is all the information as a PDF datasheet:

Are you looking for CAD data? These can be found directly in the product table.
 Datasheet B0254 Tension levers flat external thread, stainless steel, 0° 132 kB

Drawings

Tension levers flat external thread, stainless steel, 0°

Item selection/filter

Order No.FormXA=Handle lengthDD1D2D3HH1H2H3No. of
teeth
LCADAcc.PriceOrder
B0254.1081X30M810213,533251019212232630 25.68 €
B0254.1081X40M810213,533251019212232640 26.97 €
B0254.1081X50M810213,533251019212232650 26.97 €
B0254.2101X30M101311941301222213,5263030 31.65 €
B0254.2101X40M101311941301222213,5263040 33.42 €
B0254.2101X50M101311941301222213,5263050 33.42 €
B0254.2101X60M101311941301222213,5263060 33.42 €
B0254.2121X30M121311941301222213,5263030 31.65 €
B0254.2121X40M121311941301222213,5263040 33.42 €
B0254.2121X50M121311941301222213,5263050 33.42 €
B0254.2121X60M121311941301222213,5263060 33.42 €
B0254.3161X40M161482345371428217333640 39.74 €
B0254.3161X50M161482345371428217333650 39.74 €
B0254.3161X60M161482345371428217333660 39.74 €
