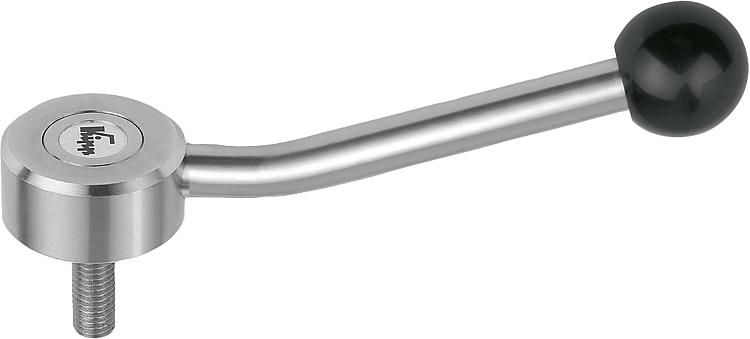

Tension levers flat external thread, stainless steel, 15°
B0254

Tension levers flat external thread, stainless steel, 15°

go back

Item description/product images

DescriptionMaterial:

Steel parts stainless steel 1.4305.
Ball knob black plastic.

Version:Steel parts bright.On request:Other threads, screw lengths and special versions.
Dimensions “H1” and “A” available in other lengths at extra charge.
Drawing reference:
1) flat point DIN EN ISO 4753
Special features:
Stainless steelRoHS
DownloadHere is all the information as a PDF datasheet:

Are you looking for CAD data? These can be found directly in the product table.
 Datasheet B0254 Tension levers flat external thread, stainless steel, 15° 138 kB

Drawings

Tension levers flat external thread, stainless steel, 15°

Item selection/filter

Order No.FormXA=Handle lengthA2DD1D2D3HH1H2H3H4No. of
teeth
LCADAcc.PriceOrder
B0254.1082X3015°M81001513,53325101921223292630 26.94 €
B0254.1082X4015°M81001513,53325101921223292640 28.23 €
B0254.1082X5015°M81001513,53325101921223292650 28.23 €
B0254.2102X3015°M10127151941301222213,526383030 32.92 €
B0254.2102X4015°M10127151941301222213,526383040 34.69 €
B0254.2102X5015°M10127151941301222213,526383050 34.69 €
B0254.2102X6015°M10127151941301222213,526383060 34.69 €
B0254.2122X3015°M12127151941301222213,526383030 32.92 €
B0254.2122X4015°M12127151941301222213,526383040 34.69 €
B0254.2122X5015°M12127151941301222213,526383050 34.69 €
B0254.2122X6015°M12127151941301222213,526383060 34.69 €
B0254.3162X4015°M1614515234537142821733483640 41.00 €
B0254.3162X5015°M1614515234537142821733483650 41.00 €
B0254.3162X6015°M1614515234537142821733483660 41.00 €
