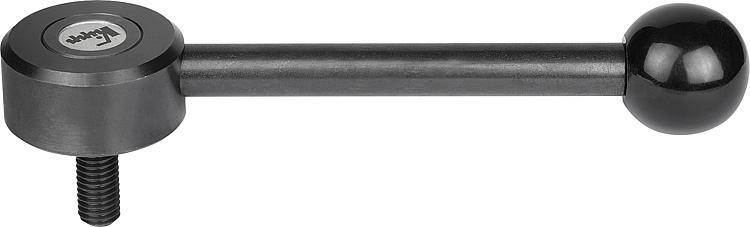

Tension levers, flat, external thread, 0°
B0250

Tension levers, flat, external thread, 0°

go back

Item description/product images

DescriptionMaterial:Steel parts grade 5.8.
Ball knob black plastic.
Version:Black oxidised.On request:Other threads, screw lengths and special versions.
Dimensions “H1” and “A” available in other lengths at extra charge.
Drawing reference:
1) flat point DIN EN ISO 4753
Special features:
RoHS
DownloadHere is all the information as a PDF datasheet:

Are you looking for CAD data? These can be found directly in the product table.
 Datasheet B0250 Tension levers, flat, external thread, 0° 121 kB

Drawings

Tension levers, flat, external thread, 0°

Overview of items (compressed)

Item selection/filter
Order No.FormXA=Handle lengthDD1D2D3HH1H2H3LNo. of
teeth
Filter
B0250.1081X15M810213,5332510192122315/20/25/30/40/50/6020
B0250.1101X15M1010213,5332510192122315/20/25/30/40/50/6020
B0250.2101X20M101311941301222213,52620/25/30/40/50/6024
B0250.2121X20M121311941301222213,52620/25/30/40/50/6024
B0250.3121X20M1214823453714282173320/25/30/40/50/6026
B0250.3161X20M1614823453714282173320/25/30/40/50/6026
