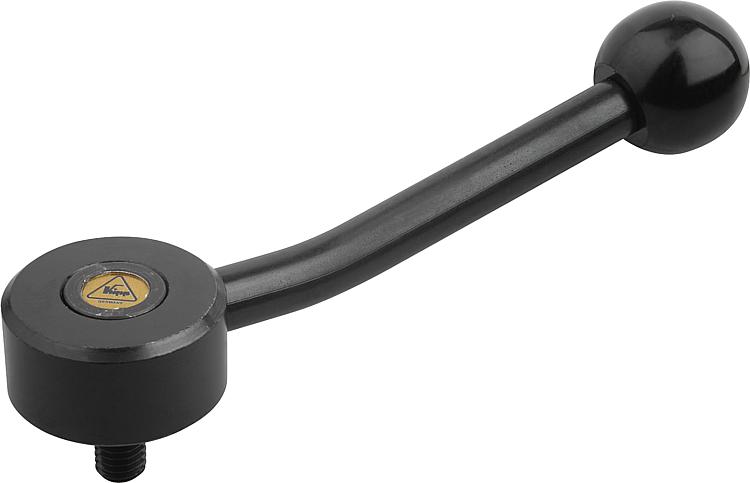

Tension levers, flat, external thread, 15°
 B0250

Tension levers, flat, external thread, 15°

 go back

Item description/product images
DescriptionMaterial:Steel parts grade 5.8.
Ball knob black plastic.Version:Black oxidised.On request:Other threads, screw lengths and special versions.
Dimensions “H1” and “A” available in other lengths at extra charge.Drawing reference:
1) flat point DIN EN ISO 4753
Special features:
RoHS
DownloadHere is all the information as a PDF datasheet:

Are you looking for CAD data? These can be found directly in the product table.
Datasheet B0250 Tension levers, flat, external thread, 15° 127 kB

Drawings

Tension levers, flat, external thread, 15°

Overview of items (compressed)

 Item selection/filter
Order No.FormXA=Handle lengthA2DD1D2D3HH1H2H3H4No. of
teeth
LFilter
B0250.1082X1515°M81001513,53325101921223292015/20/25/30/40/50/60
B0250.1102X1515°M101001513,53325101921223292015/20/25/30/40/50/60
B0250.2102X2015°M10127151941301222213,526382420/25/30/40/50/60
B0250.2122X2015°M12127151941301222213,526382420/25/30/40/50/60
B0250.3122X2015°M1214515234537142821733482620/25/30/40/50/60
B0250.3162X2015°M1614515234537142821733482620/25/30/40/50/60
