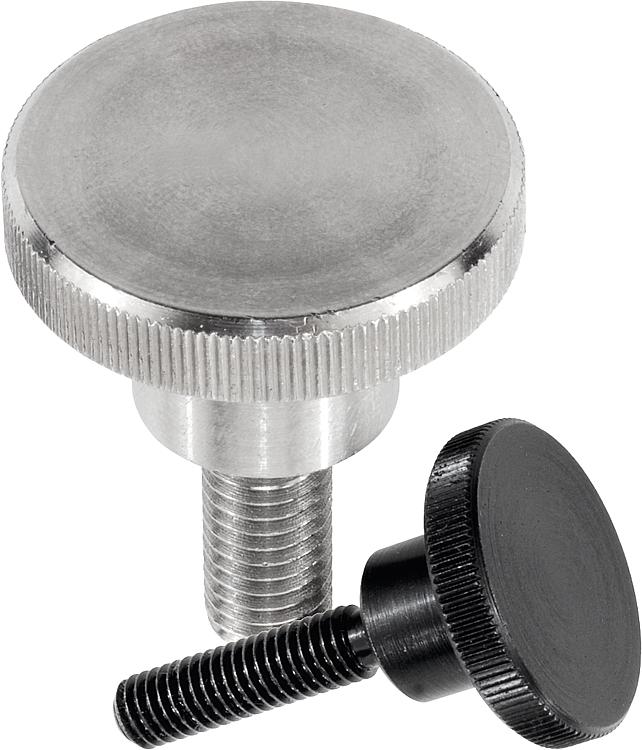

B0276Knurled screws high form steel and stainless steel, DIN 464 |
go back |
|
Item description/product images |
|
|
DescriptionMaterial:Steel.
Stainless steel 1.4305. Version:Steel, black oxidised.
Stainless steel, bright.Note:* Threads with these lengths have no undercut at the shoulder.Special features: DownloadHere is all the information as a PDF datasheet:
Are you looking for CAD data? These can be found directly in the product table.
|

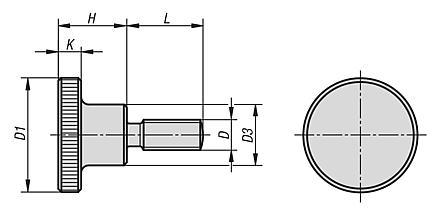

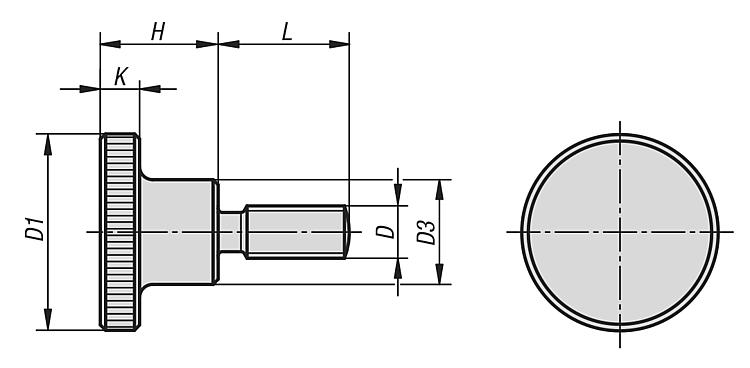

| Order No. | Main
material | D | D1 | D3 | H | K | L | CAD | Acc. | Price | Order |
|---|
| B0276.04X10 | steel | M4 | 16 | 8 | 9,5 | 3,5 | 10 |  | | 0.93 € | | | B0276.04X16 | steel | M4 | 16 | 8 | 9,5 | 3,5 | 16 | | | 1.06 € | | | B0276.04X20 | steel | M4 | 16 | 8 | 9,5 | 3,5 | 20* | | | 1.23 € | | | B0276.05X10 | steel | M5 | 20 | 10 | 11,5 | 4 | 10 | | | 1.15 € | | | B0276.05X16 | steel | M5 | 20 | 10 | 11,5 | 4 | 16 | | | 1.24 € | | | B0276.05X20 | steel | M5 | 20 | 10 | 11,5 | 4 | 20* | | | 1.35 € | | | B0276.06X10 | steel | M6 | 24 | 12 | 15 | 5 | 10 | | | 1.46 € | | | B0276.06X16 | steel | M6 | 24 | 12 | 15 | 5 | 16 | | | 1.63 € | | | B0276.06X20 | steel | M6 | 24 | 12 | 15 | 5 | 20 | | | 1.78 € | | | B0276.06X25 | steel | M6 | 24 | 12 | 15 | 5 | 25* | | | 1.93 € | | | B0276.08X16 | steel | M8 | 30 | 16 | 18 | 6 | 16 | | | 2.28 € | | | B0276.08X20 | steel | M8 | 30 | 16 | 18 | 6 | 20 | | | 2.44 € | | | B0276.08X25 | steel | M8 | 30 | 16 | 18 | 6 | 25 | | | 2.72 € | | | B0276.08X30 | steel | M8 | 30 | 16 | 18 | 6 | 30* | | | 3.21 € | | | B0276.10X20 | steel | M10 | 36 | 20 | 23 | 8 | 20 | | | 3.48 € | | | B0276.10X25 | steel | M10 | 36 | 20 | 23 | 8 | 25 | | | 3.78 € | | | B0276.10X30 | steel | M10 | 36 | 20 | 23 | 8 | 30 | | | 3.94 € | | | B0276.10X40 | steel | M10 | 36 | 20 | 23 | 8 | 40* | | | 4.50 € | | | B0276.042X10 | stainless steel | M4 | 16 | 8 | 9,5 | 3,5 | 10 | | | 2.01 € | | | B0276.042X16 | stainless steel | M4 | 16 | 8 | 9,5 | 3,5 | 16 | | | 2.26 € | | | B0276.042X20 | stainless steel | M4 | 16 | 8 | 9,5 | 3,5 | 20* | | | 2.58 € | | | B0276.052X10 | stainless steel | M5 | 20 | 10 | 11,5 | 4 | 10 | | | 2.41 € | | | B0276.052X16 | stainless steel | M5 | 20 | 10 | 11,5 | 4 | 16 | | | 2.64 € | | | B0276.052X20 | stainless steel | M5 | 20 | 10 | 11,5 | 4 | 20* | | | 2.89 € | | | B0276.062X10 | stainless steel | M6 | 24 | 12 | 15 | 5 | 10 | | | 3.14 € | | | B0276.062X16 | stainless steel | M6 | 24 | 12 | 15 | 5 | 16 | | | 3.41 € | | | B0276.062X20 | stainless steel | M6 | 24 | 12 | 15 | 5 | 20 | | | 3.76 € | | | B0276.062X25 | stainless steel | M6 | 24 | 12 | 15 | 5 | 25* | | | 4.08 € | | | B0276.082X16 | stainless steel | M8 | 30 | 16 | 18 | 6 | 16 | | | 4.87 € | | | B0276.082X20 | stainless steel | M8 | 30 | 16 | 18 | 6 | 20 | | | 5.21 € | | | B0276.082X25 | stainless steel | M8 | 30 | 16 | 18 | 6 | 25 | | | 5.72 € | | | B0276.082X30 | stainless steel | M8 | 30 | 16 | 18 | 6 | 30* | | | 6.22 € | | | B0276.102X20 | stainless steel | M10 | 36 | 20 | 23 | 8 | 20 | | | 7.37 € | | | B0276.102X25 | stainless steel | M10 | 36 | 20 | 23 | 8 | 25 | | | 8.03 € | | | B0276.102X30 | stainless steel | M10 | 36 | 20 | 23 | 8 | 30 | | | 8.72 € | | | B0276.102X40 | stainless steel | M10 | 36 | 20 | 23 | 8 | 40* | | | 11.07 € | |
