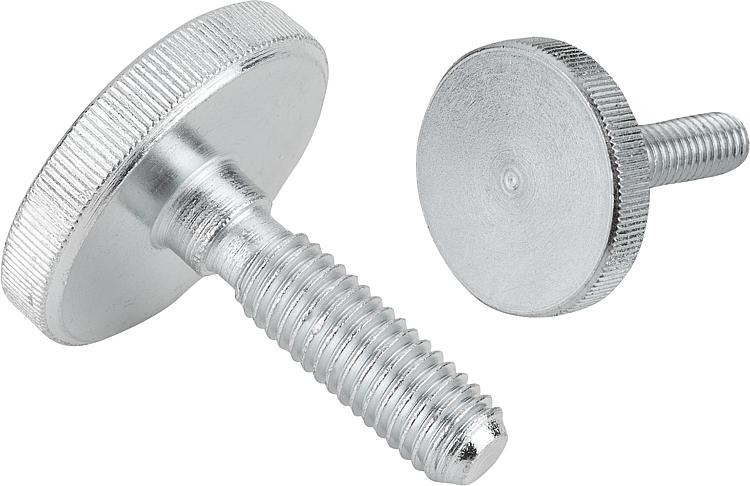

B0275Knurled screws low head steel and stainless steel, DIN 653 |
go back |
|
Item description/product images |
|
|
DescriptionMaterial:Steel or stainless steel (A1).Version:Steel grade 5.8, bright;
Stainless steel, bright.Note:Delivery is according to DIN 653 or DIN 653-A.Special features: DownloadHere is all the information as a PDF datasheet:
Are you looking for CAD data? These can be found directly in the product table.
|

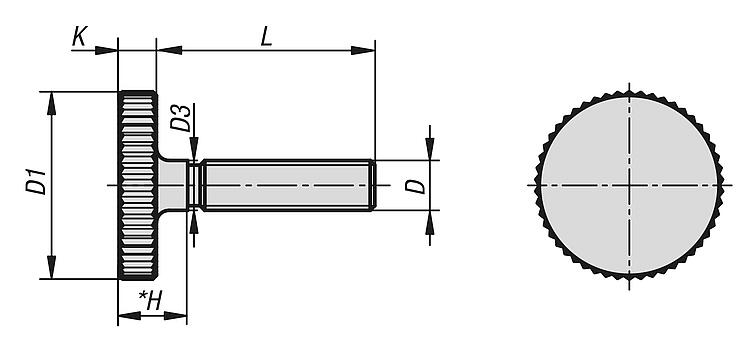

| Order No. | Main
material | D | D1 | D3 | H | K | L | CAD | Acc. | Price | Order |
|---|
| B0275.03X10 | steel | M3 | 12 | 3 | 4,5 | 2,5 | 10 |  | | 0.68 € | | | B0275.03X12 | steel | M3 | 12 | 3 | 4,5 | 2,5 | 12 | | | 0.73 € | | | B0275.03X16 | steel | M3 | 12 | 3 | 4,5 | 2,5 | 16 | | | 0.72 € | | | B0275.04X8 | steel | M4 | 16 | 4 | 6,5 | 3,5 | 8 | | | 0.74 € | | | B0275.04X10 | steel | M4 | 16 | 4 | 6,5 | 3,5 | 10 | | | 0.80 € | | | B0275.04X12 | steel | M4 | 16 | 4 | 6,5 | 3,5 | 12 | | | 0.81 € | | | B0275.04X16 | steel | M4 | 16 | 4 | 6,5 | 3,5 | 16 | | | 0.87 € | | | B0275.04X20 | steel | M4 | 16 | 4 | 6,5 | 3,5 | 20 | | | 0.99 € | | | B0275.05X10 | steel | M5 | 20 | 5 | 7 | 4 | 10 | | | 1.00 € | | | B0275.05X12 | steel | M5 | 20 | 5 | 7 | 4 | 12 | | | 1.00 € | | | B0275.05X16 | steel | M5 | 20 | 5 | 7 | 4 | 16 | | | 1.05 € | | | B0275.05X20 | steel | M5 | 20 | 5 | 7 | 4 | 20 | | | 1.22 € | | | B0275.05X25 | steel | M5 | 20 | 5 | 7 | 4 | 25 | | | 1.28 € | | | B0275.05X30 | steel | M5 | 20 | 5 | 7 | 4 | 30 | | | 1.38 € | | | B0275.06X12 | steel | M6 | 24 | 6 | 9 | 5 | 12 | | | 1.36 € | | | B0275.06X16 | steel | M6 | 24 | 6 | 9 | 5 | 16 | | | 1.40 € | | | B0275.06X20 | steel | M6 | 24 | 6 | 9 | 5 | 20 | | | 1.45 € | | | B0275.06X25 | steel | M6 | 24 | 6 | 9 | 5 | 25 | | | 1.60 € | | | B0275.06X30 | steel | M6 | 24 | 6 | 9 | 5 | 30 | | | 1.86 € | | | B0275.06X35 | steel | M6 | 24 | 6 | 9 | 5 | 35 | | | 1.96 € | | | B0275.06X40 | steel | M6 | 24 | 6 | 9 | 5 | 40 | | | 2.12 € | | | B0275.08X16 | steel | M8 | 30 | 8 | 11 | 6 | 16 | | | 1.86 € | | | B0275.08X20 | steel | M8 | 30 | 8 | 11 | 6 | 20 | | | 1.97 € | | | B0275.08X25 | steel | M8 | 30 | 8 | 11 | 6 | 25 | | | 2.13 € | | | B0275.08X30 | steel | M8 | 30 | 8 | 11 | 6 | 30 | | | 2.38 € | | | B0275.08X35 | steel | M8 | 30 | 8 | 11 | 6 | 35 | | | 2.62 € | | | B0275.08X40 | steel | M8 | 30 | 8 | 11 | 6 | 40 | | | 2.93 € | | | B0275.10X20 | steel | M10 | 36 | 10 | 14 | 8 | 20 | | | 3.16 € | | | B0275.10X25 | steel | M10 | 36 | 10 | 14 | 8 | 25 | | | 3.41 € | | | B0275.10X30 | steel | M10 | 36 | 10 | 14 | 8 | 30 | | | 4.15 € | | | B0275.10X35 | steel | M10 | 36 | 10 | 14 | 8 | 35 | | | 4.42 € | | | B0275.10X40 | steel | M10 | 36 | 10 | 14 | 8 | 40 | | | 4.92 € | | | B0275.032X10 | stainless steel | M3 | 12 | 3 | 4,5 | 2,5 | 10 | | | 1.65 € | | | B0275.032X12 | stainless steel | M3 | 12 | 3 | 4,5 | 2,5 | 12 | | | 1.86 € | | | B0275.032X16 | stainless steel | M3 | 12 | 3 | 4,5 | 2,5 | 16 | | | 2.05 € | | | B0275.042X8 | stainless steel | M4 | 16 | 4 | 6,5 | 3,5 | 8 | | | 1.55 € | | | B0275.042X10 | stainless steel | M4 | 16 | 4 | 6,5 | 3,5 | 10 | | | 1.65 € | | | B0275.042X12 | stainless steel | M4 | 16 | 4 | 6,5 | 3,5 | 12 | | | 1.68 € | | | B0275.042X16 | stainless steel | M4 | 16 | 4 | 6,5 | 3,5 | 16 | | | 1.80 € | | | B0275.042X20 | stainless steel | M4 | 16 | 4 | 6,5 | 3,5 | 20 | | | 2.31 € | | | B0275.052X10 | stainless steel | M5 | 20 | 5 | 7 | 4 | 10 | | | 2.12 € | | | B0275.052X12 | stainless steel | M5 | 20 | 5 | 7 | 4 | 12 | | | 2.28 € | | | B0275.052X16 | stainless steel | M5 | 20 | 5 | 7 | 4 | 16 | | | 2.46 € | | | B0275.052X20 | stainless steel | M5 | 20 | 5 | 7 | 4 | 20 | | | 2.80 € | | | B0275.052X25 | stainless steel | M5 | 20 | 5 | 7 | 4 | 25 | | | 3.27 € | | | B0275.052X30 | stainless steel | M5 | 20 | 5 | 7 | 4 | 30 | | | 3.65 € | | | B0275.062X12 | stainless steel | M6 | 24 | 6 | 9 | 5 | 12 | | | 2.87 € | | | B0275.062X16 | stainless steel | M6 | 24 | 6 | 9 | 5 | 16 | | | 2.97 € | | | B0275.062X20 | stainless steel | M6 | 24 | 6 | 9 | 5 | 20 | | | 3.24 € | | | B0275.062X25 | stainless steel | M6 | 24 | 6 | 9 | 5 | 25 | | | 3.81 € | | | B0275.062X30 | stainless steel | M6 | 24 | 6 | 9 | 5 | 30 | | | 4.38 € | | | B0275.062X35 | stainless steel | M6 | 24 | 6 | 9 | 5 | 35 | | | 6.39 € | | | B0275.062X40 | stainless steel | M6 | 24 | 6 | 9 | 5 | 40 | | | 6.55 € | | | B0275.082X16 | stainless steel | M8 | 30 | 8 | 11 | 6 | 16 | | | 4.26 € | | | B0275.082X20 | stainless steel | M8 | 30 | 8 | 11 | 6 | 20 | | | 4.82 € | | | B0275.082X25 | stainless steel | M8 | 30 | 8 | 11 | 6 | 25 | | | 5.36 € | | | B0275.082X30 | stainless steel | M8 | 30 | 8 | 11 | 6 | 30 | | | 6.51 € | | | B0275.102X20 | stainless steel | M10 | 36 | 10 | 14 | 8 | 20 | | | 7.25 € | | | B0275.102X25 | stainless steel | M10 | 36 | 10 | 14 | 8 | 25 | | | 7.76 € | | | B0275.102X30 | stainless steel | M10 | 36 | 10 | 14 | 8 | 30 | | | 8.33 € | | | B0275.102X40 | stainless steel | M10 | 36 | 10 | 14 | 8 | 40 | | | 11.15 € | |
