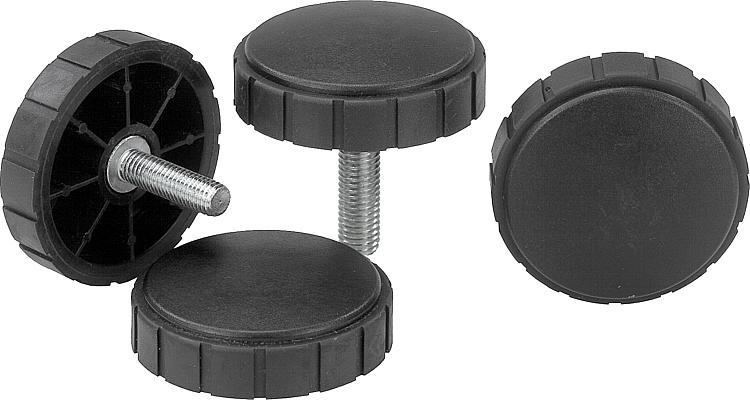

DescriptionProduct description:Due to their extremely flat design, these grips can be used in very cramped spaces. The fluting around the edge improves gripping.Material, version:Grip black hard thermoplastic.
Coating black soft thermoplastic.
Tapped bush brass.
Screw electro zinc-plated steel grade 5.8.
Note:SYMPA TOUCH Knurled screws are available in one grip size with internal and external threads.On request:Other screw sizes, screw lengths, versions and colours.Special features:
 RoHS
DownloadHere is all the information as a PDF datasheet:

Are you looking for CAD data? These can be found directly in the product table.
 Datasheet B0274 Knurled screws 172 kB

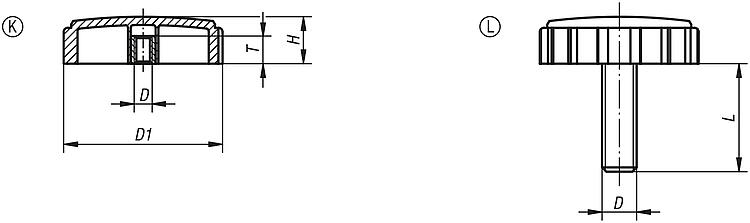

Drawings (total overview)

Knurled screws

Knurled screws with internal thread

More information

Drawings

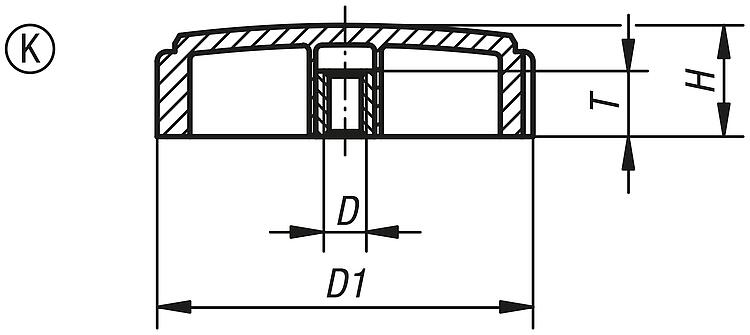

Knurled screws with internal thread

Item selection/filter

Order No.

FormDD1HTCADAcc.PriceOrder
B0274.5705KM557,41712,5 1.91 €
B0274.5706KM657,41712,5 1.91 €
B0274.5708KM857,41712,5 1.96 €
B0274.5710KM1057,41712,5 1.96 €

Knurled screws with external thread

More information

Drawings

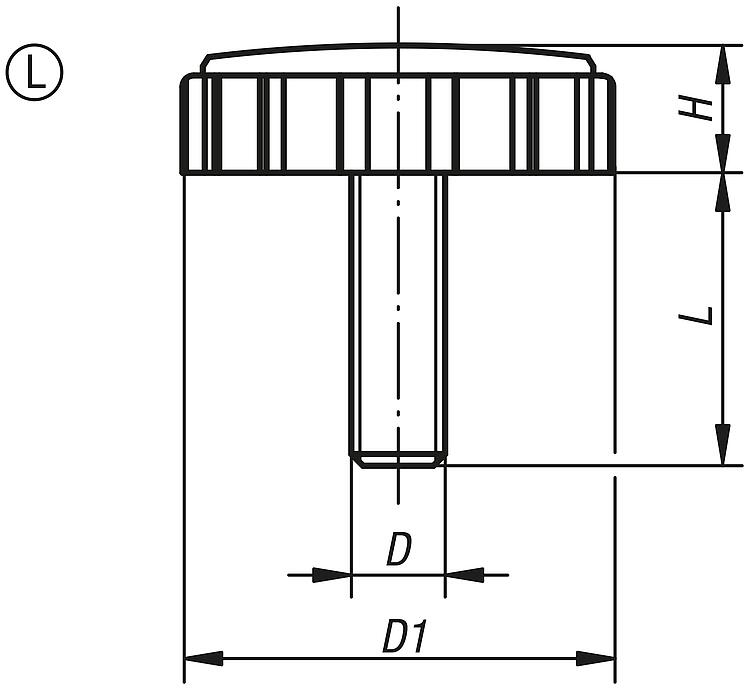

Knurled screws with external thread

Item selection/filter

Order No.FormDD1HLCADAcc.PriceOrder
B0274.5706X15LM657,41715 1.83 €
B0274.5706X20LM657,41720 1.83 €
B0274.5706X25LM657,41725 1.83 €
B0274.5706X35LM657,41735 1.87 €
B0274.5708X16LM857,41716 2.12 €
B0274.5708X25LM857,41725 2.18 €
B0274.5708X30LM857,41730 2.18 €
B0274.5708X35LM857,41735 2.19 €
B0274.5710X30LM1057,41730 2.21 €
B0274.5710X40LM1057,41740 2.22 €
B0274.5710X50LM1057,41750 2.27 €
