B0281

Knurled knobs

go back

Products
- Product overview
  - Handles and knobs
    - knurled nut, knurled screws, knurled knobs
      - Knurled knobs

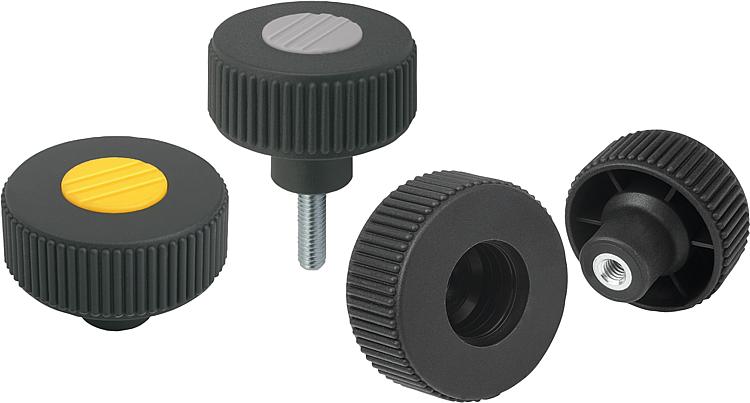

Item description/product images

Show/filter all items

DescriptionMaterial:Black thermoplastic.
Bush and screw grade 5.8 steel.Version:Steel trivalent blue-passivated.Drawing reference:

Form D: tapped bush without cap
Form K: tapped bush with cap
Form E: reamed bush without cap
Form H: reamed bush with cap
Form L: external thread

Special features:

DownloadHere is all the information as a PDF datasheet:

Are you looking for CAD data? These can be found directly in the product table.

Datasheet B0281 Knurled knobs

253 kB

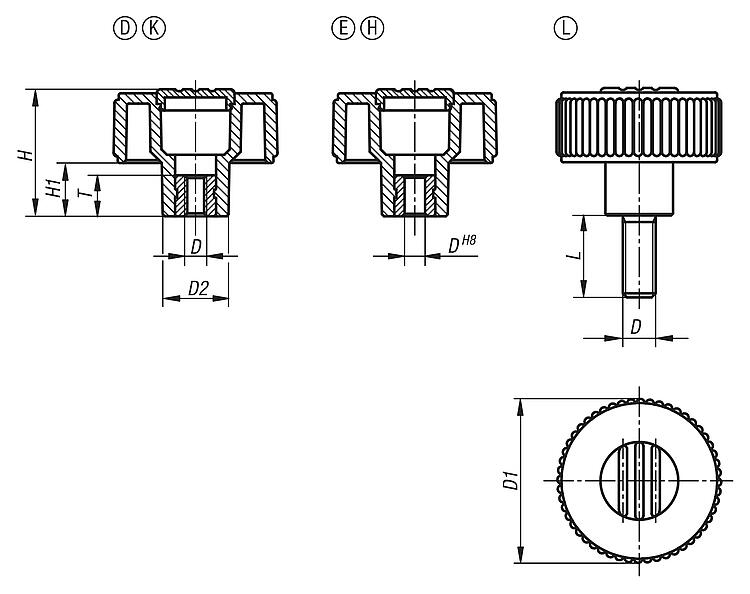

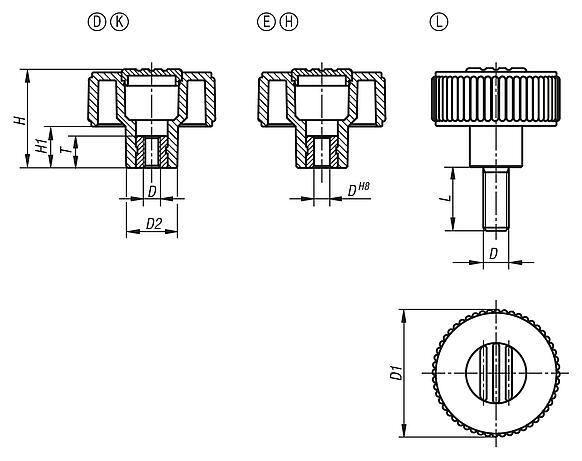

Drawings (total overview)

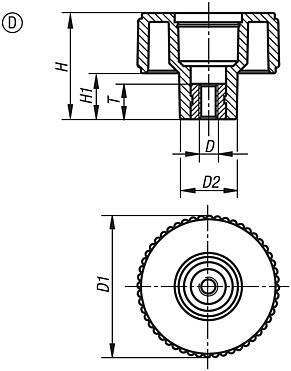

Knurled knobs Form D, with tapped bush, without cap

More information

Drawings

Knurled knobs Form D, with tapped bush, without cap

Item selection/filter

Order No.	Form	D	D1	D2	H	H1	T	Price
B0281.1105	D	M5	40	16,5	30	13	10	1.67 €
B0281.1106	D	M6	40	16,5	30	13	10	1.67 €
B0281.1108	D	M8	40	16,5	30	13	14	1.87 €
B0281.1208	D	M8	50	18	35	15	14	2.22 €
B0281.1210	D	M10	50	18	35	15	14	2.25 €
B0281.1310	D	M10	63	22	40	17	14	2.72 €
B0281.1312	D	M12	63	22	40	17	18	3.00 €

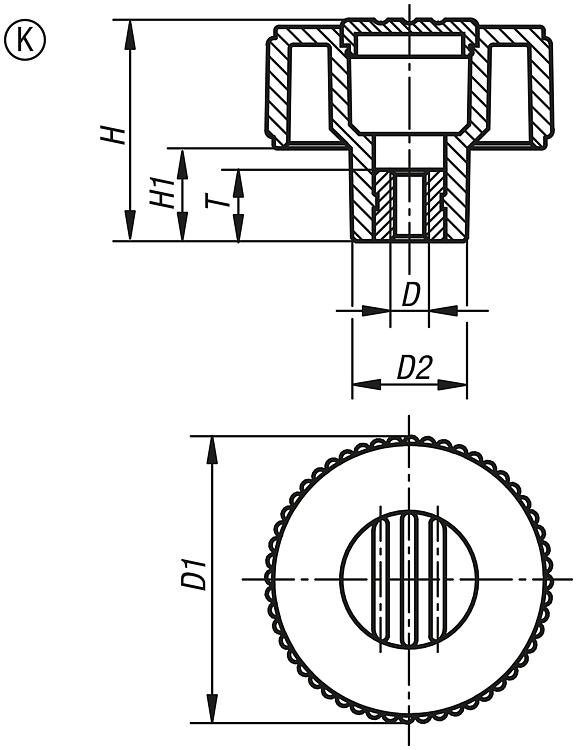

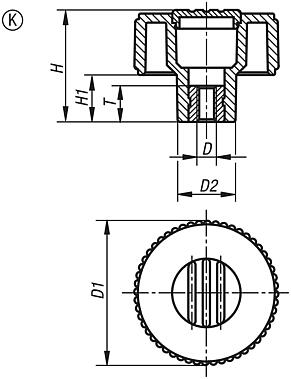

Knurled knobs Form K, with tapped bush, with cap

More information

Drawings

Knurled knobs Form K, with tapped bush, with cap

Item selection/filter

Order No.	Form	Colour Cap	Size	D	D1	D2	H	H1	T	Price
B0281.2105	K	black grey RAL 7021	1	M5	40	16,5	31	13	10	1.83 €
B0281.21051	K	orange RAL 2004	1	M5	40	16,5	31	13	10	1.83 €
B0281.21052	K	signal green RAL6032	1	M5	40	16,5	31	13	10	1.83 €
B0281.21053	K	blue RAL5017	1	M5	40	16,5	31	13	10	1.83 €
B0281.21055	K	light grey RAL 7035	1	M5	40	16,5	31	13	10	1.83 €
B0281.21056	K	traffic red RAL 3020	1	M5	40	16,5	31	13	10	1.83 €
B0281.21057	K	colza yellow RAL 1021	1	M5	40	16,5	31	13	10	1.83 €
B0281.2106	K	black grey RAL 7021	1	M6	40	16,5	31	13	10	1.83 €
B0281.21061	K	orange RAL 2004	1	M6	40	16,5	31	13	10	1.83 €
B0281.21062	K	signal green RAL6032	1	M6	40	16,5	31	13	10	1.83 €
B0281.21063	K	blue RAL5017	1	M6	40	16,5	31	13	10	1.83 €
B0281.21065	K	light grey RAL 7035	1	M6	40	16,5	31	13	10	1.83 €
B0281.21066	K	traffic red RAL 3020	1	M6	40	16,5	31	13	10	1.83 €
B0281.21067	K	colza yellow RAL 1021	1	M6	40	16,5	31	13	10	1.83 €
B0281.2108	K	black grey RAL 7021	1	M8	40	16,5	31	13	14	2.01 €
B0281.21081	K	orange RAL 2004	1	M8	40	16,5	31	13	14	2.01 €
B0281.21082	K	signal green RAL6032	1	M8	40	16,5	31	13	14	2.01 €
B0281.21083	K	blue RAL5017	1	M8	40	16,5	31	13	14	2.01 €
B0281.21085	K	light grey RAL 7035	1	M8	40	16,5	31	13	14	2.01 €
B0281.21086	K	traffic red RAL 3020	1	M8	40	16,5	31	13	14	2.01 €
B0281.21087	K	colza yellow RAL 1021	1	M8	40	16,5	31	13	14	2.01 €
B0281.2208	K	black grey RAL 7021	2	M8	50	18	36	15	14	2.42 €
B0281.22081	K	orange RAL 2004	2	M8	50	18	36	15	14	2.42 €
B0281.22082	K	signal green RAL6032	2	M8	50	18	36	15	14	2.42 €
B0281.22083	K	blue RAL5017	2	M8	50	18	36	15	14	2.42 €
B0281.22085	K	light grey RAL 7035	2	M8	50	18	36	15	14	2.42 €
B0281.22086	K	traffic red RAL 3020	2	M8	50	18	36	15	14	2.42 €
B0281.22087	K	colza yellow RAL 1021	2	M8	50	18	36	15	14	2.42 €
B0281.2210	K	black grey RAL 7021	2	M10	50	18	36	15	14	2.44 €
B0281.22101	K	orange RAL 2004	2	M10	50	18	36	15	14	2.44 €
B0281.22102	K	signal green RAL6032	2	M10	50	18	36	15	14	2.44 €
B0281.22103	K	blue RAL5017	2	M10	50	18	36	15	14	2.44 €
B0281.22105	K	light grey RAL 7035	2	M10	50	18	36	15	14	2.44 €
B0281.22106	K	traffic red RAL 3020	2	M10	50	18	36	15	14	2.44 €
B0281.22107	K	colza yellow RAL 1021	2	M10	50	18	36	15	14	2.44 €
B0281.2310	K	black grey RAL 7021	3	M10	63	22	41	17	14	2.96 €
B0281.23101	K	orange RAL 2004	3	M10	63	22	41	17	14	2.96 €
B0281.23102	K	signal green RAL6032	3	M10	63	22	41	17	14	2.96 €
B0281.23103	K	blue RAL5017	3	M10	63	22	41	17	14	2.96 €
B0281.23105	K	light grey RAL 7035	3	M10	63	22	41	17	14	2.96 €
B0281.23106	K	traffic red RAL 3020	3	M10	63	22	41	17	14	2.96 €
B0281.23107	K	colza yellow RAL 1021	3	M10	63	22	41	17	14	2.96 €
B0281.2312	K	black grey RAL 7021	3	M12	63	22	41	17	18	3.22 €
B0281.23121	K	orange RAL 2004	3	M12	63	22	41	17	18	3.22 €
B0281.23122	K	signal green RAL6032	3	M12	63	22	41	17	18	3.22 €
B0281.23123	K	blue RAL5017	3	M12	63	22	41	17	18	3.22 €
B0281.23125	K	light grey RAL 7035	3	M12	63	22	41	17	18	3.22 €
B0281.23126	K	traffic red RAL 3020	3	M12	63	22	41	17	18	3.22 €
B0281.23127	K	colza yellow RAL 1021	3	M12	63	22	41	17	18	3.22 €

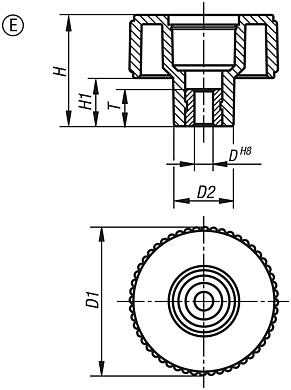

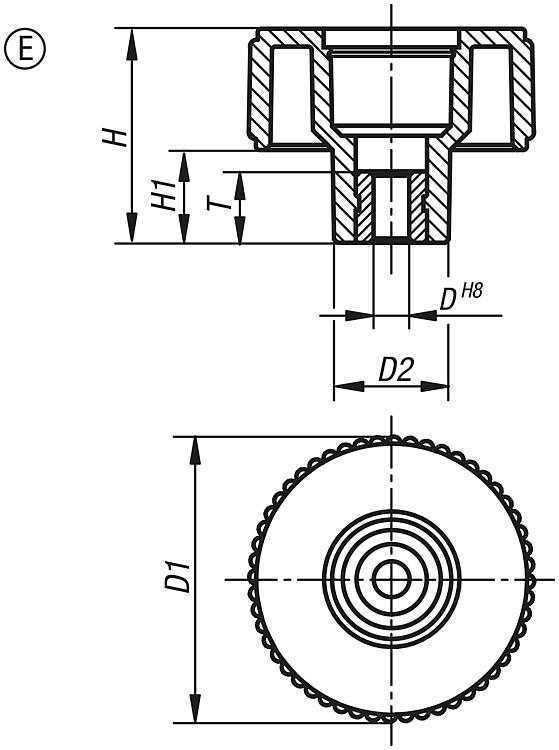

Knurled knobs Form E, with reamed bush, without cap

More information

Drawings

Knurled knobs Form E, with reamed bush, without cap

Item selection/filter

Order No.	Form	D	D1	D2	H	H1	T	Price
B0281.3106	E	6	40	16,5	30	13	10	1.78 €
B0281.3208	E	8	50	18	35	15	14	2.41 €
B0281.3310	E	10	63	22	40	17	14	3.47 €

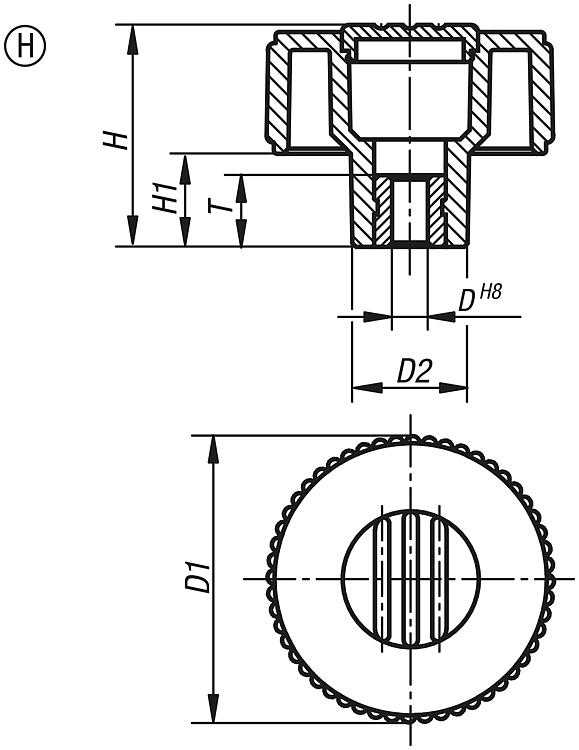

Knurled knobs Form H, with reamed bush, with cap

More information

Drawings

Knurled knobs Form H, with reamed bush, with cap

Item selection/filter

Order No.	Form	Colour Cap	Size	D	D1	D2	H	H1	T	Price
B0281.4106	H	black grey RAL 7021	1	6	40	16,5	31	13	10	1.92 €
B0281.41061	H	orange RAL 2004	1	6	40	16,5	31	13	10	1.92 €
B0281.41062	H	signal green RAL6032	1	6	40	16,5	31	13	10	1.92 €
B0281.41063	H	blue RAL5017	1	6	40	16,5	31	13	10	1.92 €
B0281.41065	H	light grey RAL 7035	1	6	40	16,5	31	13	10	1.92 €
B0281.41066	H	traffic red RAL 3020	1	6	40	16,5	31	13	10	1.92 €
B0281.41067	H	colza yellow RAL 1021	1	6	40	16,5	31	13	10	1.92 €
B0281.4208	H	black grey RAL 7021	2	8	50	18	36	15	14	2.61 €
B0281.42081	H	orange RAL 2004	2	8	50	18	36	15	14	2.61 €
B0281.42082	H	signal green RAL6032	2	8	50	18	36	15	14	2.61 €
B0281.42083	H	blue RAL5017	2	8	50	18	36	15	14	2.61 €
B0281.42085	H	light grey RAL 7035	2	8	50	18	36	15	14	2.61 €
B0281.42086	H	traffic red RAL 3020	2	8	50	18	36	15	14	2.61 €
B0281.42087	H	colza yellow RAL 1021	2	8	50	18	36	15	14	2.61 €
B0281.4310	H	black grey RAL 7021	3	10	63	22	41	17	14	3.76 €
B0281.43101	H	orange RAL 2004	3	10	63	22	41	17	14	3.76 €
B0281.43102	H	signal green RAL6032	3	10	63	22	41	17	14	3.76 €
B0281.43103	H	blue RAL5017	3	10	63	22	41	17	14	3.76 €
B0281.43105	H	light grey RAL 7035	3	10	63	22	41	17	14	3.76 €
B0281.43106	H	traffic red RAL 3020	3	10	63	22	41	17	14	3.76 €
B0281.43107	H	colza yellow RAL 1021	3	10	63	22	41	17	14	3.76 €

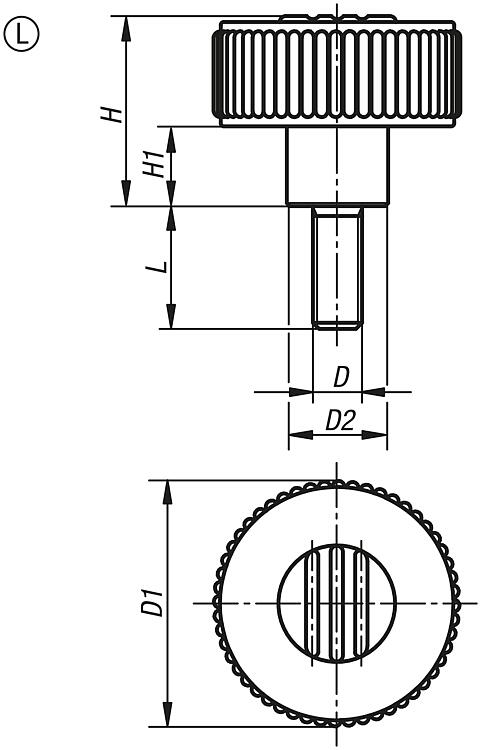

Knurled knobs Form L, with external thread

More information

Drawings

Knurled knobs Form L, with external thread

Item selection/filter

Order No.	Form	Colour Cap	Size	D	D1	D2	H	H1	L	Price
B0281.5105X10	L	black grey RAL 7021	1	M5	40	16,5	31	13	10	1.76 €
B0281.51051X10	L	orange RAL 2004	1	M5	40	16,5	31	13	10	1.76 €
B0281.51052X10	L	signal green RAL6032	1	M5	40	16,5	31	13	10	1.76 €
B0281.51053X10	L	blue RAL5017	1	M5	40	16,5	31	13	10	1.76 €
B0281.51055X10	L	light grey RAL 7035	1	M5	40	16,5	31	13	10	1.76 €
B0281.51056X10	L	traffic red RAL 3020	1	M5	40	16,5	31	13	10	1.76 €
B0281.51057X10	L	colza yellow RAL 1021	1	M5	40	16,5	31	13	10	1.76 €
B0281.5105X20	L	black grey RAL 7021	1	M5	40	16,5	31	13	20	1.76 €
B0281.51051X20	L	orange RAL 2004	1	M5	40	16,5	31	13	20	1.76 €
B0281.51052X20	L	signal green RAL6032	1	M5	40	16,5	31	13	20	1.76 €
B0281.51053X20	L	blue RAL5017	1	M5	40	16,5	31	13	20	1.76 €
B0281.51055X20	L	light grey RAL 7035	1	M5	40	16,5	31	13	20	1.76 €
B0281.51056X20	L	traffic red RAL 3020	1	M5	40	16,5	31	13	20	1.76 €
B0281.51057X20	L	colza yellow RAL 1021	1	M5	40	16,5	31	13	20	1.76 €
B0281.5105X40	L	black grey RAL 7021	1	M5	40	16,5	31	13	40	1.85 €
B0281.51051X40	L	orange RAL 2004	1	M5	40	16,5	31	13	40	1.85 €
B0281.51052X40	L	signal green RAL6032	1	M5	40	16,5	31	13	40	1.85 €
B0281.51053X40	L	blue RAL5017	1	M5	40	16,5	31	13	40	1.85 €
B0281.51055X40	L	light grey RAL 7035	1	M5	40	16,5	31	13	40	1.85 €
B0281.51056X40	L	traffic red RAL 3020	1	M5	40	16,5	31	13	40	1.85 €
B0281.51057X40	L	colza yellow RAL 1021	1	M5	40	16,5	31	13	40	1.85 €
B0281.5106X10	L	black grey RAL 7021	1	M6	40	16,5	31	13	10	1.76 €
B0281.51061X10	L	orange RAL 2004	1	M6	40	16,5	31	13	10	1.76 €
B0281.51062X10	L	signal green RAL6032	1	M6	40	16,5	31	13	10	1.76 €
B0281.51063X10	L	blue RAL5017	1	M6	40	16,5	31	13	10	1.76 €
B0281.51065X10	L	light grey RAL 7035	1	M6	40	16,5	31	13	10	1.76 €
B0281.51066X10	L	traffic red RAL 3020	1	M6	40	16,5	31	13	10	1.76 €
B0281.51067X10	L	colza yellow RAL 1021	1	M6	40	16,5	31	13	10	1.76 €
B0281.5106X20	L	black grey RAL 7021	1	M6	40	16,5	31	13	20	1.76 €
B0281.51061X20	L	orange RAL 2004	1	M6	40	16,5	31	13	20	1.76 €
B0281.51062X20	L	signal green RAL6032	1	M6	40	16,5	31	13	20	1.76 €
B0281.51063X20	L	blue RAL5017	1	M6	40	16,5	31	13	20	1.76 €
B0281.51065X20	L	light grey RAL 7035	1	M6	40	16,5	31	13	20	1.76 €
B0281.51066X20	L	traffic red RAL 3020	1	M6	40	16,5	31	13	20	1.76 €
B0281.51067X20	L	colza yellow RAL 1021	1	M6	40	16,5	31	13	20	1.76 €
B0281.5106X40	L	black grey RAL 7021	1	M6	40	16,5	31	13	40	1.85 €
B0281.51061X40	L	orange RAL 2004	1	M6	40	16,5	31	13	40	1.85 €
B0281.51062X40	L	signal green RAL6032	1	M6	40	16,5	31	13	40	1.85 €
B0281.51063X40	L	blue RAL5017	1	M6	40	16,5	31	13	40	1.85 €
B0281.51065X40	L	light grey RAL 7035	1	M6	40	16,5	31	13	40	1.85 €
B0281.51066X40	L	traffic red RAL 3020	1	M6	40	16,5	31	13	40	1.85 €
B0281.51067X40	L	colza yellow RAL 1021	1	M6	40	16,5	31	13	40	1.85 €
B0281.5108X15	L	black grey RAL 7021	1	M8	40	16,5	31	13	15	1.80 €
B0281.51081X15	L	orange RAL 2004	1	M8	40	16,5	31	13	15	1.80 €
B0281.51082X15	L	signal green RAL6032	1	M8	40	16,5	31	13	15	1.80 €
B0281.51083X15	L	blue RAL5017	1	M8	40	16,5	31	13	15	1.80 €
B0281.51085X15	L	light grey RAL 7035	1	M8	40	16,5	31	13	15	1.80 €
B0281.51086X15	L	traffic red RAL 3020	1	M8	40	16,5	31	13	15	1.80 €
B0281.51087X15	L	colza yellow RAL 1021	1	M8	40	16,5	31	13	15	1.80 €
B0281.5108X30	L	black grey RAL 7021	1	M8	40	16,5	31	13	30	1.85 €
B0281.51081X30	L	orange RAL 2004	1	M8	40	16,5	31	13	30	1.85 €
B0281.51082X30	L	signal green RAL6032	1	M8	40	16,5	31	13	30	1.85 €
B0281.51083X30	L	blue RAL5017	1	M8	40	16,5	31	13	30	1.85 €
B0281.51085X30	L	light grey RAL 7035	1	M8	40	16,5	31	13	30	1.85 €
B0281.51086X30	L	traffic red RAL 3020	1	M8	40	16,5	31	13	30	1.85 €
B0281.51087X30	L	colza yellow RAL 1021	1	M8	40	16,5	31	13	30	1.85 €
B0281.5108X60	L	black grey RAL 7021	1	M8	40	16,5	31	13	60	1.87 €
B0281.51081X60	L	orange RAL 2004	1	M8	40	16,5	31	13	60	1.87 €
B0281.51082X60	L	signal green RAL6032	1	M8	40	16,5	31	13	60	1.87 €
B0281.51083X60	L	blue RAL5017	1	M8	40	16,5	31	13	60	1.87 €
B0281.51085X60	L	light grey RAL 7035	1	M8	40	16,5	31	13	60	1.87 €
B0281.51086X60	L	traffic red RAL 3020	1	M8	40	16,5	31	13	60	1.87 €
B0281.51087X60	L	colza yellow RAL 1021	1	M8	40	16,5	31	13	60	1.87 €
B0281.5208X15	L	black grey RAL 7021	2	M8	50	18	36	15	15	2.20 €
B0281.52081X15	L	orange RAL 2004	2	M8	50	18	36	15	15	2.20 €
B0281.52082X15	L	signal green RAL6032	2	M8	50	18	36	15	15	2.20 €
B0281.52083X15	L	blue RAL5017	2	M8	50	18	36	15	15	2.20 €
B0281.52085X15	L	light grey RAL 7035	2	M8	50	18	36	15	15	2.20 €
B0281.52086X15	L	traffic red RAL 3020	2	M8	50	18	36	15	15	2.20 €
B0281.52087X15	L	colza yellow RAL 1021	2	M8	50	18	36	15	15	2.20 €
B0281.5208X30	L	black grey RAL 7021	2	M8	50	18	36	15	30	2.25 €
B0281.52081X30	L	orange RAL 2004	2	M8	50	18	36	15	30	2.25 €
B0281.52082X30	L	signal green RAL6032	2	M8	50	18	36	15	30	2.25 €
B0281.52083X30	L	blue RAL5017	2	M8	50	18	36	15	30	2.25 €
B0281.52085X30	L	light grey RAL 7035	2	M8	50	18	36	15	30	2.25 €
B0281.52086X30	L	traffic red RAL 3020	2	M8	50	18	36	15	30	2.25 €
B0281.52087X30	L	colza yellow RAL 1021	2	M8	50	18	36	15	30	2.25 €
B0281.5208X60	L	black grey RAL 7021	2	M8	50	18	36	15	60	2.30 €
B0281.52081X60	L	orange RAL 2004	2	M8	50	18	36	15	60	2.30 €
B0281.52082X60	L	signal green RAL6032	2	M8	50	18	36	15	60	2.30 €
B0281.52083X60	L	blue RAL5017	2	M8	50	18	36	15	60	2.30 €
B0281.52085X60	L	light grey RAL 7035	2	M8	50	18	36	15	60	2.30 €
B0281.52086X60	L	traffic red RAL 3020	2	M8	50	18	36	15	60	2.30 €
B0281.52087X60	L	colza yellow RAL 1021	2	M8	50	18	36	15	60	2.30 €
B0281.5210X20	L	black grey RAL 7021	2	M10	50	18	36	15	20	2.31 €
B0281.52101X20	L	orange RAL 2004	2	M10	50	18	36	15	20	2.31 €
B0281.52102X20	L	signal green RAL6032	2	M10	50	18	36	15	20	2.31 €
B0281.52103X20	L	blue RAL5017	2	M10	50	18	36	15	20	2.31 €
B0281.52105X20	L	light grey RAL 7035	2	M10	50	18	36	15	20	2.31 €
B0281.52106X20	L	traffic red RAL 3020	2	M10	50	18	36	15	20	2.31 €
B0281.52107X20	L	colza yellow RAL 1021	2	M10	50	18	36	15	20	2.31 €
B0281.5210X30	L	black grey RAL 7021	2	M10	50	18	36	15	30	2.33 €
B0281.52101X30	L	orange RAL 2004	2	M10	50	18	36	15	30	2.33 €
B0281.52102X30	L	signal green RAL6032	2	M10	50	18	36	15	30	2.33 €
B0281.52103X30	L	blue RAL5017	2	M10	50	18	36	15	30	2.33 €
B0281.52105X30	L	light grey RAL 7035	2	M10	50	18	36	15	30	2.33 €
B0281.52106X30	L	traffic red RAL 3020	2	M10	50	18	36	15	30	2.33 €
B0281.52107X30	L	colza yellow RAL 1021	2	M10	50	18	36	15	30	2.33 €
B0281.5210X60	L	black grey RAL 7021	2	M10	50	18	36	15	60	2.59 €
B0281.52101X60	L	orange RAL 2004	2	M10	50	18	36	15	60	2.59 €
B0281.52102X60	L	signal green RAL6032	2	M10	50	18	36	15	60	2.59 €
B0281.52103X60	L	blue RAL5017	2	M10	50	18	36	15	60	2.59 €
B0281.52105X60	L	light grey RAL 7035	2	M10	50	18	36	15	60	2.59 €
B0281.52106X60	L	traffic red RAL 3020	2	M10	50	18	36	15	60	2.59 €
B0281.52107X60	L	colza yellow RAL 1021	2	M10	50	18	36	15	60	2.59 €
B0281.5310X20	L	black grey RAL 7021	3	M10	63	22	41	17	20	2.77 €
B0281.53101X20	L	orange RAL 2004	3	M10	63	22	41	17	20	2.77 €
B0281.53102X20	L	signal green RAL6032	3	M10	63	22	41	17	20	2.77 €
B0281.53103X20	L	blue RAL5017	3	M10	63	22	41	17	20	2.77 €
B0281.53105X20	L	light grey RAL 7035	3	M10	63	22	41	17	20	2.77 €
B0281.53106X20	L	traffic red RAL 3020	3	M10	63	22	41	17	20	2.77 €
B0281.53107X20	L	colza yellow RAL 1021	3	M10	63	22	41	17	20	2.77 €
B0281.5310X30	L	black grey RAL 7021	3	M10	63	22	41	17	30	2.79 €
B0281.53101X30	L	orange RAL 2004	3	M10	63	22	41	17	30	2.79 €
B0281.53102X30	L	signal green RAL6032	3	M10	63	22	41	17	30	2.79 €
B0281.53103X30	L	blue RAL5017	3	M10	63	22	41	17	30	2.79 €
B0281.53105X30	L	light grey RAL 7035	3	M10	63	22	41	17	30	2.79 €
B0281.53106X30	L	traffic red RAL 3020	3	M10	63	22	41	17	30	2.79 €
B0281.53107X30	L	colza yellow RAL 1021	3	M10	63	22	41	17	30	2.79 €
B0281.5310X60	L	black grey RAL 7021	3	M10	63	22	41	17	60	2.99 €
B0281.53101X60	L	orange RAL 2004	3	M10	63	22	41	17	60	2.99 €
B0281.53102X60	L	signal green RAL6032	3	M10	63	22	41	17	60	2.99 €
B0281.53103X60	L	blue RAL5017	3	M10	63	22	41	17	60	2.99 €
B0281.53105X60	L	light grey RAL 7035	3	M10	63	22	41	17	60	2.99 €
B0281.53106X60	L	traffic red RAL 3020	3	M10	63	22	41	17	60	2.99 €
B0281.53107X60	L	colza yellow RAL 1021	3	M10	63	22	41	17	60	2.99 €
B0281.5312X30	L	black grey RAL 7021	3	M12	63	22	41	17	30	3.15 €
B0281.53121X30	L	orange RAL 2004	3	M12	63	22	41	17	30	3.15 €
B0281.53122X30	L	signal green RAL6032	3	M12	63	22	41	17	30	3.15 €
B0281.53123X30	L	blue RAL5017	3	M12	63	22	41	17	30	3.15 €
B0281.53125X30	L	light grey RAL 7035	3	M12	63	22	41	17	30	3.15 €
B0281.53126X30	L	traffic red RAL 3020	3	M12	63	22	41	17	30	3.15 €
B0281.53127X30	L	colza yellow RAL 1021	3	M12	63	22	41	17	30	3.15 €
B0281.5312X60	L	black grey RAL 7021	3	M12	63	22	41	17	60	3.22 €
B0281.53121X60	L	orange RAL 2004	3	M12	63	22	41	17	60	3.22 €
B0281.53122X60	L	signal green RAL6032	3	M12	63	22	41	17	60	3.22 €
B0281.53123X60	L	blue RAL5017	3	M12	63	22	41	17	60	3.22 €
B0281.53125X60	L	light grey RAL 7035	3	M12	63	22	41	17	60	3.22 €
B0281.53126X60	L	traffic red RAL 3020	3	M12	63	22	41	17	60	3.22 €
B0281.53127X60	L	colza yellow RAL 1021	3	M12	63	22	41	17	60	3.22 €
