Item description/product images

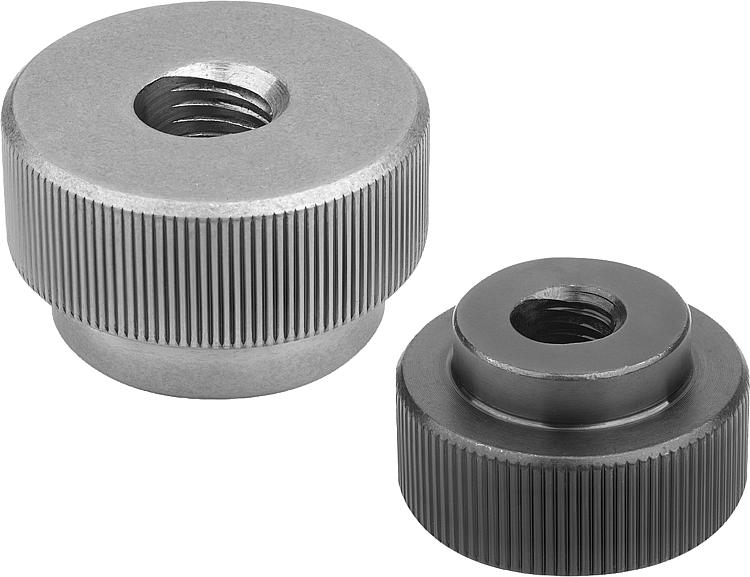

DescriptionProduct description:Quick-acting knurled nuts are mainly used in applications where no high clamping pressures are required.
Tilt the nut to slide on, then straighten it to engage the threads.
Material:

High carbon steel or stainless steel 1.4404.

Version:Steel tempered and black oxidised.
Stainless steel bright.

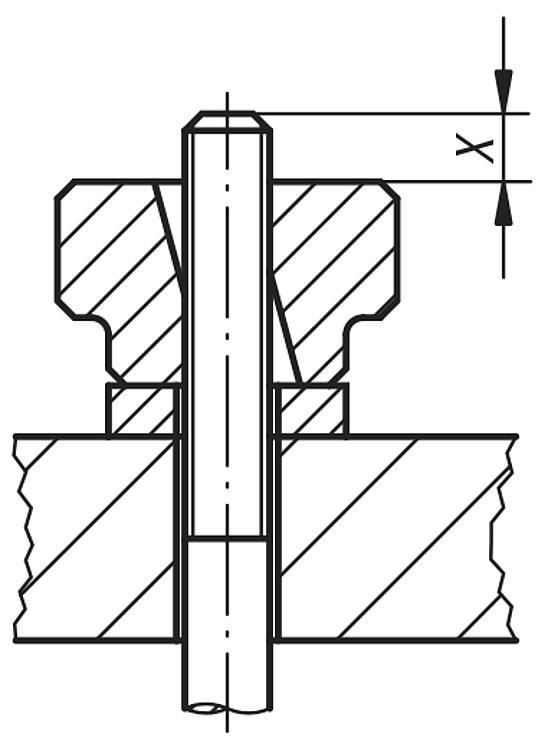

Drawing reference:
X: The stud should be several mm longer than height “H”
DownloadHere is all the information as a PDF datasheet:

Are you looking for CAD data? These can be found directly in the product table.
 Datasheet B0272 Knurled nuts quick-acting steel or stainless steel 276 kB

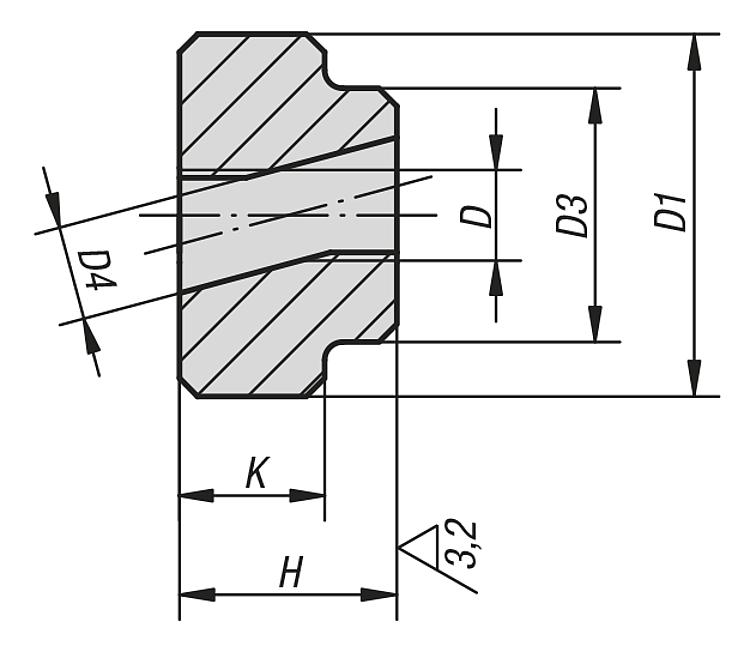

Drawings

Knurled nuts quick-acting

Item selection/filter

Order No.

Main
material
DD1D3D4HKCADAcc.PriceOrder
B0272.04QT steelM416114,2128 3.79 €
B0272.05QT steelM520145,2128 4.17 €
B0272.06QT steelM624166,21410 4.50 €
B0272.08QT steelM830208,31712 5.99 €
B0272.10QT steelM10362810,32014 6.81 €
B0272.12QT steelM12403212,72416 8.51 €
B0272.104stainless steelM416114,2128 4.99 €
B0272.105stainless steelM520145,2128 5.06 €
B0272.106stainless steelM624166,21410 6.26 €
B0272.108stainless steelM830208,31712 8.59 €
B0272.110stainless steelM10362810,32014 10.42 €
B0272.112stainless steelM12403212,72416 13.41 €
