B0278

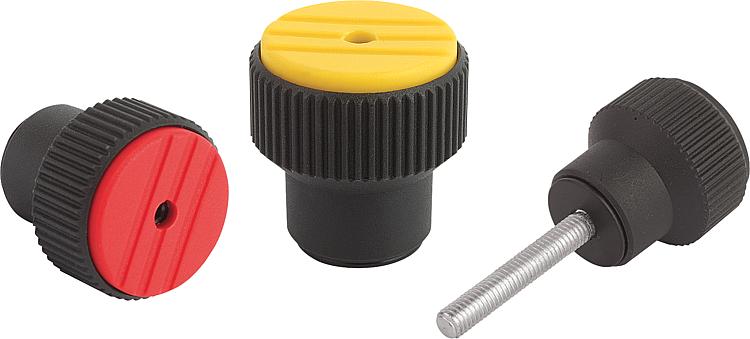

Knurled torque knobs

go back

Products
- Product overview
  - Handles and knobs
    - knurled nut, knurled screws, knurled knobs
      - Knurled torque knobs

Item description/product images

Show/filter all items

DescriptionMaterial:Thermoplastic, black grey.
Bush and screw steel 5.8.Version:Bush black oxidised.
Screw trivalent blue passivated.Note:The set screw sets the required torque. The knob de-clutches and turns freely when the desired torque is reached.Drawing reference:

1) adjusting screw for setting the torque

DownloadHere is all the information as a PDF datasheet:

Are you looking for CAD data? These can be found directly in the product table.

Datasheet B0278 Knurled torque knobs

249 kB

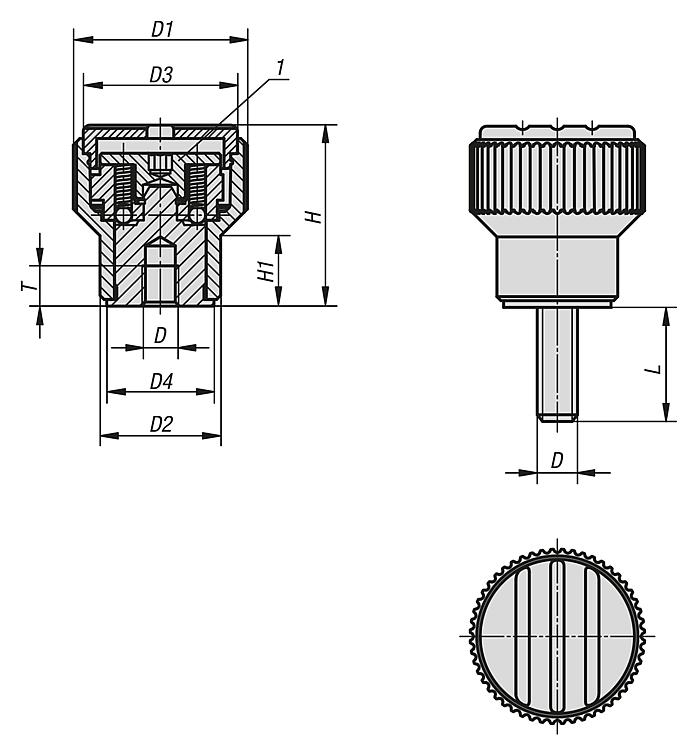

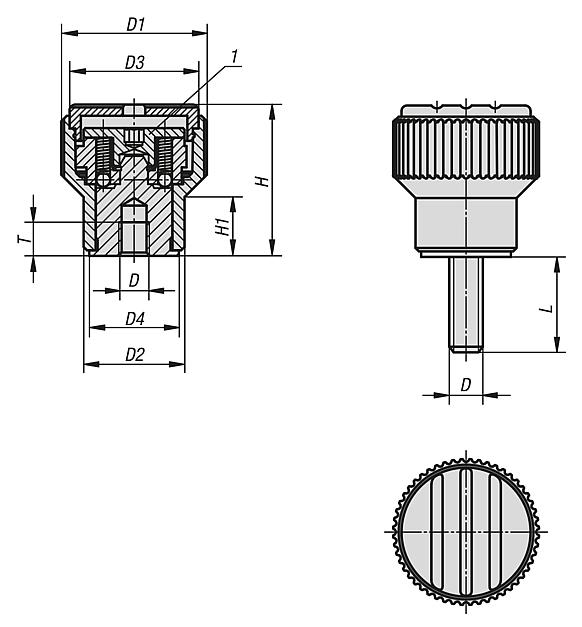

Drawings (total overview)

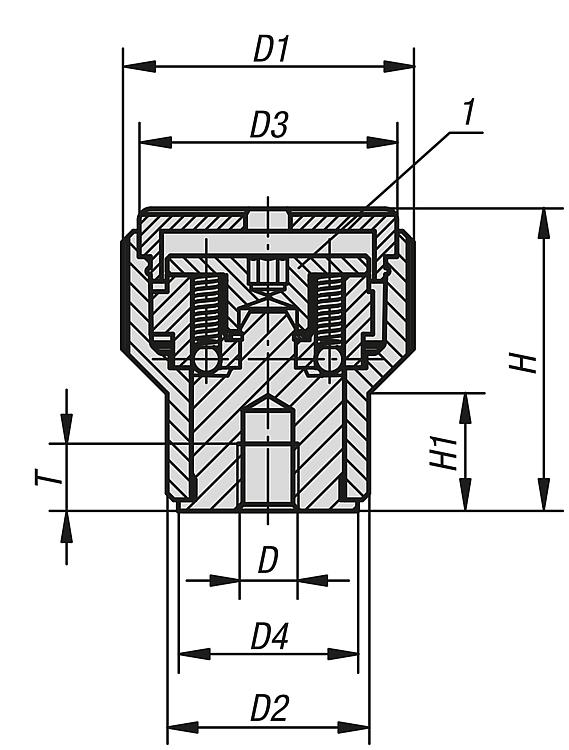

Knurled torque knobs internal thread

More information

Drawings

Item selection/filter

Order No.	Thread type	Component material	Colour Cap	Size	D	D1	D2	D3	D4	H	H1	T	Torque Nm	Price
B0278.205	internal thread	steel	black grey RAL 7021	2	M5	26	18	23	16	27	10,5	5	0,1 - 0,3	28.81 €
B0278.2051	internal thread	steel	orange RAL 2004	2	M5	26	18	23	16	27	10,5	5	0,1 - 0,3	28.81 €
B0278.2052	internal thread	steel	signal green RAL6032	2	M5	26	18	23	16	27	10,5	5	0,1 - 0,3	28.81 €
B0278.2053	internal thread	steel	blue RAL5017	2	M5	26	18	23	16	27	10,5	5	0,1 - 0,3	28.81 €
B0278.2055	internal thread	steel	light grey RAL 7035	2	M5	26	18	23	16	27	10,5	5	0,1 - 0,3	28.81 €
B0278.2056	internal thread	steel	traffic red RAL 3020	2	M5	26	18	23	16	27	10,5	5	0,1 - 0,3	28.81 €
B0278.2057	internal thread	steel	colza yellow RAL 1021	2	M5	26	18	23	16	27	10,5	5	0,1 - 0,3	28.81 €
B0278.206	internal thread	steel	black grey RAL 7021	2	M6	26	18	23	16	27	10,5	6	0,1 - 0,3	28.81 €
B0278.2061	internal thread	steel	orange RAL 2004	2	M6	26	18	23	16	27	10,5	6	0,1 - 0,3	28.81 €
B0278.2062	internal thread	steel	signal green RAL6032	2	M6	26	18	23	16	27	10,5	6	0,1 - 0,3	28.81 €
B0278.2063	internal thread	steel	blue RAL5017	2	M6	26	18	23	16	27	10,5	6	0,1 - 0,3	28.81 €
B0278.2065	internal thread	steel	light grey RAL 7035	2	M6	26	18	23	16	27	10,5	6	0,1 - 0,3	28.81 €
B0278.2066	internal thread	steel	traffic red RAL 3020	2	M6	26	18	23	16	27	10,5	6	0,1 - 0,3	28.81 €
B0278.2067	internal thread	steel	colza yellow RAL 1021	2	M6	26	18	23	16	27	10,5	6	0,1 - 0,3	28.81 €
B0278.306	internal thread	steel	black grey RAL 7021	3	M6	34	22	31	20	37,5	14,5	10	0,1 - 0,3	31.77 €
B0278.3061	internal thread	steel	orange RAL 2004	3	M6	34	22	31	20	37,5	14,5	10	0,1 - 0,3	31.77 €
B0278.3062	internal thread	steel	signal green RAL6032	3	M6	34	22	31	20	37,5	14,5	10	0,1 - 0,3	31.77 €
B0278.3063	internal thread	steel	blue RAL5017	3	M6	34	22	31	20	37,5	14,5	10	0,1 - 0,3	31.77 €
B0278.3065	internal thread	steel	light grey RAL 7035	3	M6	34	22	31	20	37,5	14,5	10	0,1 - 0,3	31.77 €
B0278.3066	internal thread	steel	traffic red RAL 3020	3	M6	34	22	31	20	37,5	14,5	10	0,1 - 0,3	31.77 €
B0278.3067	internal thread	steel	colza yellow RAL 1021	3	M6	34	22	31	20	37,5	14,5	10	0,1 - 0,3	31.77 €
B0278.308	internal thread	steel	black grey RAL 7021	3	M8	34	22	31	20	37,5	14,5	14	0,1 - 0,3	31.77 €
B0278.3081	internal thread	steel	orange RAL 2004	3	M8	34	22	31	20	37,5	14,5	14	0,1 - 0,3	31.77 €
B0278.3082	internal thread	steel	signal green RAL6032	3	M8	34	22	31	20	37,5	14,5	14	0,1 - 0,3	31.77 €
B0278.3083	internal thread	steel	blue RAL5017	3	M8	34	22	31	20	37,5	14,5	14	0,1 - 0,3	31.77 €
B0278.3085	internal thread	steel	light grey RAL 7035	3	M8	34	22	31	20	37,5	14,5	14	0,1 - 0,3	31.77 €
B0278.3086	internal thread	steel	traffic red RAL 3020	3	M8	34	22	31	20	37,5	14,5	14	0,1 - 0,3	31.77 €
B0278.3087	internal thread	steel	colza yellow RAL 1021	3	M8	34	22	31	20	37,5	14,5	14	0,1 - 0,3	31.77 €

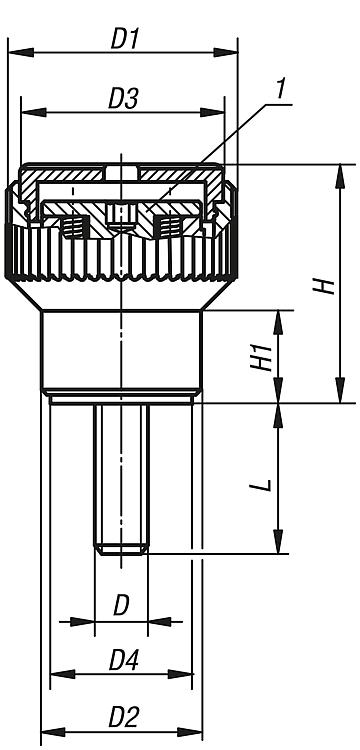

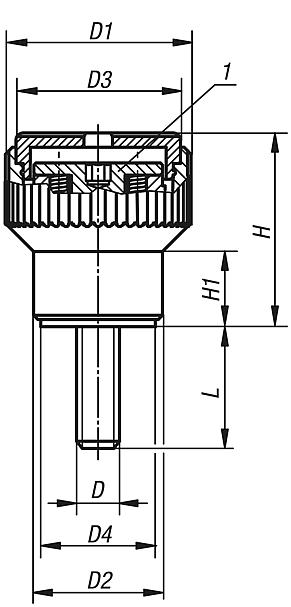

Knurled torque knobs external thread

More information

Drawings

Item selection/filter

Order No.	Thread type	Component material	Colour Cap	Size	D	D1	D2	D3	D4	H	H1	L	Torque Nm	Price
B0278.205X30	external thread	steel	black grey RAL 7021	2	M5	26	18	23	16	27	10,5	30	0,1 - 0,3	29.29 €
B0278.2051X30	external thread	steel	orange RAL 2004	2	M5	26	18	23	16	27	10,5	30	0,1 - 0,3	29.29 €
B0278.2052X30	external thread	steel	signal green RAL6032	2	M5	26	18	23	16	27	10,5	30	0,1 - 0,3	29.29 €
B0278.2053X30	external thread	steel	blue RAL5017	2	M5	26	18	23	16	27	10,5	30	0,1 - 0,3	29.29 €
B0278.2055X30	external thread	steel	light grey RAL 7035	2	M5	26	18	23	16	27	10,5	30	0,1 - 0,3	29.29 €
B0278.2056X30	external thread	steel	traffic red RAL 3020	2	M5	26	18	23	16	27	10,5	30	0,1 - 0,3	29.29 €
B0278.2057X30	external thread	steel	colza yellow RAL 1021	2	M5	26	18	23	16	27	10,5	30	0,1 - 0,3	29.29 €
B0278.205X50	external thread	steel	black grey RAL 7021	2	M5	26	18	23	16	27	10,5	50	0,1 - 0,3	29.47 €
B0278.2051X50	external thread	steel	orange RAL 2004	2	M5	26	18	23	16	27	10,5	50	0,1 - 0,3	29.47 €
B0278.2052X50	external thread	steel	signal green RAL6032	2	M5	26	18	23	16	27	10,5	50	0,1 - 0,3	29.47 €
B0278.2053X50	external thread	steel	blue RAL5017	2	M5	26	18	23	16	27	10,5	50	0,1 - 0,3	29.47 €
B0278.2055X50	external thread	steel	light grey RAL 7035	2	M5	26	18	23	16	27	10,5	50	0,1 - 0,3	29.47 €
B0278.2056X50	external thread	steel	traffic red RAL 3020	2	M5	26	18	23	16	27	10,5	50	0,1 - 0,3	29.47 €
B0278.2057X50	external thread	steel	colza yellow RAL 1021	2	M5	26	18	23	16	27	10,5	50	0,1 - 0,3	29.47 €
B0278.206X30	external thread	steel	black grey RAL 7021	2	M6	26	18	23	16	27	10,5	30	0,1 - 0,3	29.29 €
B0278.2061X30	external thread	steel	orange RAL 2004	2	M6	26	18	23	16	27	10,5	30	0,1 - 0,3	29.29 €
B0278.2062X30	external thread	steel	signal green RAL6032	2	M6	26	18	23	16	27	10,5	30	0,1 - 0,3	29.29 €
B0278.2063X30	external thread	steel	blue RAL5017	2	M6	26	18	23	16	27	10,5	30	0,1 - 0,3	29.29 €
B0278.2065X30	external thread	steel	light grey RAL 7035	2	M6	26	18	23	16	27	10,5	30	0,1 - 0,3	29.29 €
B0278.2066X30	external thread	steel	traffic red RAL 3020	2	M6	26	18	23	16	27	10,5	30	0,1 - 0,3	29.29 €
B0278.2067X30	external thread	steel	colza yellow RAL 1021	2	M6	26	18	23	16	27	10,5	30	0,1 - 0,3	29.29 €
B0278.206X50	external thread	steel	black grey RAL 7021	2	M6	26	18	23	16	27	10,5	50	0,1 - 0,3	29.47 €
B0278.2061X50	external thread	steel	orange RAL 2004	2	M6	26	18	23	16	27	10,5	50	0,1 - 0,3	29.47 €
B0278.2062X50	external thread	steel	signal green RAL6032	2	M6	26	18	23	16	27	10,5	50	0,1 - 0,3	29.47 €
B0278.2063X50	external thread	steel	blue RAL5017	2	M6	26	18	23	16	27	10,5	50	0,1 - 0,3	29.47 €
B0278.2065X50	external thread	steel	light grey RAL 7035	2	M6	26	18	23	16	27	10,5	50	0,1 - 0,3	29.47 €
B0278.2066X50	external thread	steel	traffic red RAL 3020	2	M6	26	18	23	16	27	10,5	50	0,1 - 0,3	29.47 €
B0278.2067X50	external thread	steel	colza yellow RAL 1021	2	M6	26	18	23	16	27	10,5	50	0,1 - 0,3	29.47 €
B0278.306X40	external thread	steel	black grey RAL 7021	3	M6	34	22	31	20	37,5	14,5	40	0,1 - 0,3	32.30 €
B0278.3061X40	external thread	steel	orange RAL 2004	3	M6	34	22	31	20	37,5	14,5	40	0,1 - 0,3	32.30 €
B0278.3062X40	external thread	steel	signal green RAL6032	3	M6	34	22	31	20	37,5	14,5	40	0,1 - 0,3	32.30 €
B0278.3063X40	external thread	steel	blue RAL5017	3	M6	34	22	31	20	37,5	14,5	40	0,1 - 0,3	32.30 €
B0278.3065X40	external thread	steel	light grey RAL 7035	3	M6	34	22	31	20	37,5	14,5	40	0,1 - 0,3	32.30 €
B0278.3066X40	external thread	steel	traffic red RAL 3020	3	M6	34	22	31	20	37,5	14,5	40	0,1 - 0,3	32.30 €
B0278.3067X40	external thread	steel	colza yellow RAL 1021	3	M6	34	22	31	20	37,5	14,5	40	0,1 - 0,3	32.30 €
B0278.306X60	external thread	steel	black grey RAL 7021	3	M6	34	22	31	20	37,5	14,5	60	0,1 - 0,3	32.55 €
B0278.3061X60	external thread	steel	orange RAL 2004	3	M6	34	22	31	20	37,5	14,5	60	0,1 - 0,3	32.55 €
B0278.3062X60	external thread	steel	signal green RAL6032	3	M6	34	22	31	20	37,5	14,5	60	0,1 - 0,3	32.55 €
B0278.3063X60	external thread	steel	blue RAL5017	3	M6	34	22	31	20	37,5	14,5	60	0,1 - 0,3	32.55 €
B0278.3065X60	external thread	steel	light grey RAL 7035	3	M6	34	22	31	20	37,5	14,5	60	0,1 - 0,3	32.55 €
B0278.3066X60	external thread	steel	traffic red RAL 3020	3	M6	34	22	31	20	37,5	14,5	60	0,1 - 0,3	32.55 €
B0278.3067X60	external thread	steel	colza yellow RAL 1021	3	M6	34	22	31	20	37,5	14,5	60	0,1 - 0,3	32.55 €
B0278.308X40	external thread	steel	black grey RAL 7021	3	M8	34	22	31	20	37,5	14,5	40	0,1 - 0,3	32.30 €
B0278.3081X40	external thread	steel	orange RAL 2004	3	M8	34	22	31	20	37,5	14,5	40	0,1 - 0,3	32.30 €
B0278.3082X40	external thread	steel	signal green RAL6032	3	M8	34	22	31	20	37,5	14,5	40	0,1 - 0,3	32.30 €
B0278.3083X40	external thread	steel	blue RAL5017	3	M8	34	22	31	20	37,5	14,5	40	0,1 - 0,3	32.30 €
B0278.3085X40	external thread	steel	light grey RAL 7035	3	M8	34	22	31	20	37,5	14,5	40	0,1 - 0,3	32.30 €
B0278.3086X40	external thread	steel	traffic red RAL 3020	3	M8	34	22	31	20	37,5	14,5	40	0,1 - 0,3	32.30 €
B0278.3087X40	external thread	steel	colza yellow RAL 1021	3	M8	34	22	31	20	37,5	14,5	40	0,1 - 0,3	32.30 €
B0278.308X60	external thread	steel	black grey RAL 7021	3	M8	34	22	31	20	37,5	14,5	60	0,1 - 0,3	32.55 €
B0278.3081X60	external thread	steel	orange RAL 2004	3	M8	34	22	31	20	37,5	14,5	60	0,1 - 0,3	32.55 €
B0278.3082X60	external thread	steel	signal green RAL6032	3	M8	34	22	31	20	37,5	14,5	60	0,1 - 0,3	32.55 €
B0278.3083X60	external thread	steel	blue RAL5017	3	M8	34	22	31	20	37,5	14,5	60	0,1 - 0,3	32.55 €
B0278.3085X60	external thread	steel	light grey RAL 7035	3	M8	34	22	31	20	37,5	14,5	60	0,1 - 0,3	32.55 €
B0278.3086X60	external thread	steel	traffic red RAL 3020	3	M8	34	22	31	20	37,5	14,5	60	0,1 - 0,3	32.55 €
B0278.3087X60	external thread	steel	colza yellow RAL 1021	3	M8	34	22	31	20	37,5	14,5	60	0,1 - 0,3	32.55 €
