B0214

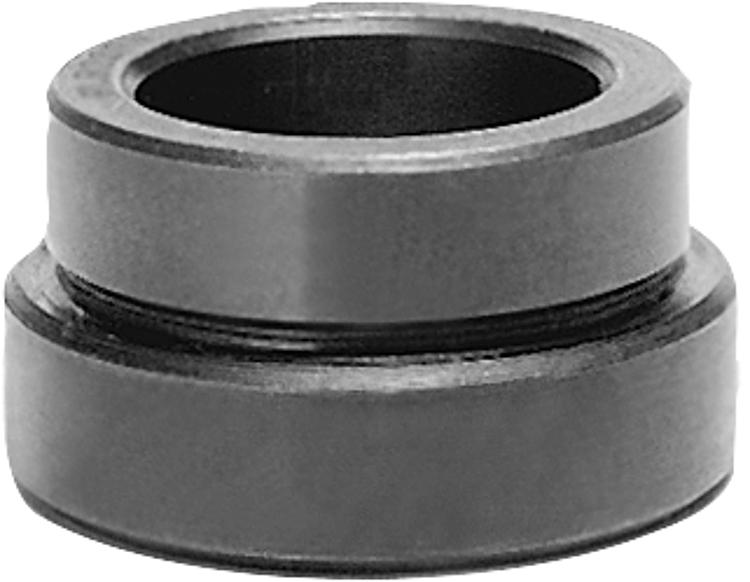

Locating bushes Form A (pressed in from rear)

Item description/product images

DescriptionMaterial:Carbon steel.Version:Tempered and black oxidised.Drawing reference:

1) grid plate

Special features:

DownloadHere is all the information as a PDF datasheet:

Are you looking for CAD data? These can be found directly in the product table.

Order No.	D	D1	D2	D3	L	L1	L2	D5	D6	T	Min. grid plate thickness H	Price
B0214.13	13	17,3	25	20,03	12,1	6,6	5,58	20	26	6,92	20	26.29 €
B0214.16	16	20,7	28,6	22,03	12,1	6,9	6,6	22	29	7,24	20	26.29 €
B0214.20	20	24,8	32,2	28,03	17,1	8,42	8,13	28	33	8,74	25	27.32 €
B0214.25	25	30,4	40,2	35,03	21	10,22	10,16	35	41	10,54	25	31.36 €
B0214.30	30	36,2	48,2	42,03	21,8	10,63	11,18	42	49	10,95	30	33.34 €
B0214.35	35	41,3	54,2	48,03	25,1	12,18	14,78	48	55	12,5	32	41.40 €
B0214.50	50	58,4	75,2	67,03	31,1	15,43	18,67	67	76	15,75	45	62.85 €
