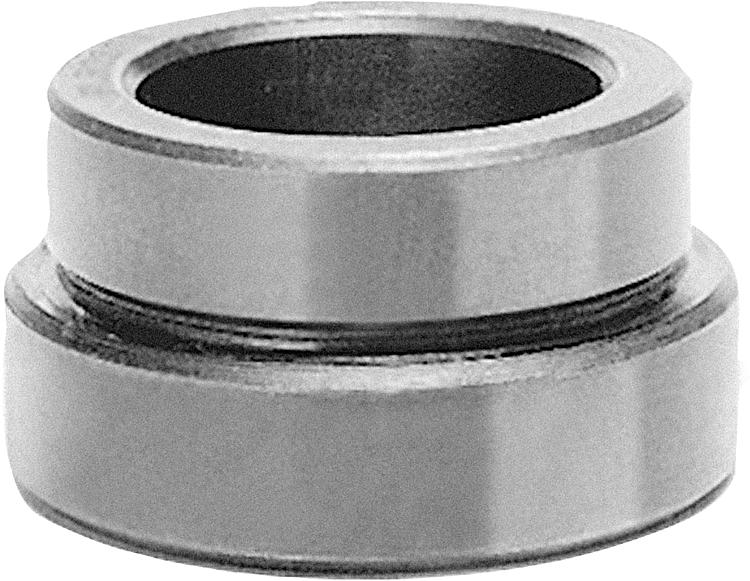

B0215Locating bushes, stainless steel Form A (pressed in from rear) |
go back |
|
Item description/product images |
|
|
DescriptionMaterial:Stainless steel 1.4548. Version:Hardened to min. 40 HRC, bright.Drawing reference:Special features: DownloadHere is all the information as a PDF datasheet:
Are you looking for CAD data? These can be found directly in the product table.
|
Order No.
| D | D1 | D2 | D3 | L | L1 | L2 | D5 | D6 | T | Min.
grid plate
thickness H | CAD | Acc. | Price | Order |
|---|
| B0215.13 | 13 | 17,3 | 25 | 20,03 | 12,1 | 6,6 | 5,58 | 20 | 26 | 6,92 | 20 |  | | 56.53 € | | | B0215.16 | 16 | 20,7 | 28,6 | 22,03 | 12,1 | 6,9 | 6,6 | 22 | 29 | 7,24 | 20 | | | 48.29 € | | | B0215.20 | 20 | 24,8 | 32,2 | 28,03 | 17,1 | 8,42 | 8,13 | 28 | 33 | 8,74 | 25 | | | 46.54 € | | | B0215.25 | 25 | 30,4 | 40,2 | 35,03 | 21 | 10,22 | 10,16 | 35 | 41 | 10,54 | 25 | | | 53.57 € | | | B0215.30 | 30 | 36,2 | 48,2 | 42,03 | 21,8 | 10,63 | 11,18 | 42 | 49 | 10,95 | 30 | | | 65.20 € | | | B0215.35 | 35 | 41,3 | 54,2 | 48,03 | 25,1 | 12,18 | 14,78 | 48 | 55 | 12,5 | 32 | | | 44.71 € | | | B0215.50 | 50 | 58,4 | 75,2 | 67,03 | 31,1 | 15,43 | 18,67 | 67 | 76 | 15,75 | 45 | | | 99.11 € | |
