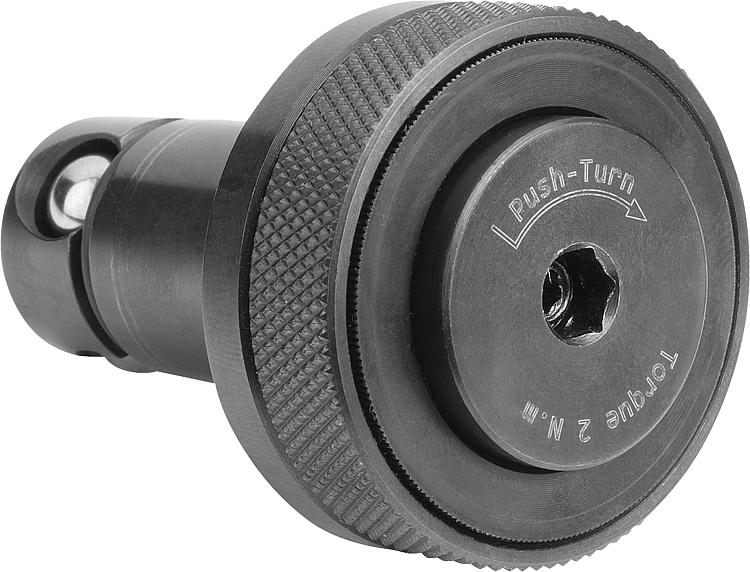

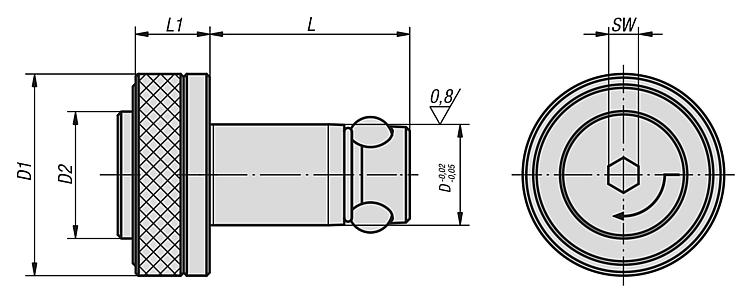

B0211Locating cylinder with quick clamping system |
go back |
|
Item description/product images |
|
|
DescriptionMaterial:Locating cylinder carbon steel.
Balls roller bearing steel.Version:Locating cylinder tempered, black oxidised.
Balls hardened, bright.Note:Locating cylinder with quick-clamp system for extra timesaving during setups.
Insert the locating cylinder into the receiving hole and press the button. The three balls are pushed out and position the components. By tightening the set screw a 1/4 turn using an hexagonal key, the components are positively and securely held. DownloadHere is all the information as a PDF datasheet:
Are you looking for CAD data? These can be found directly in the product table.
|
