B0212

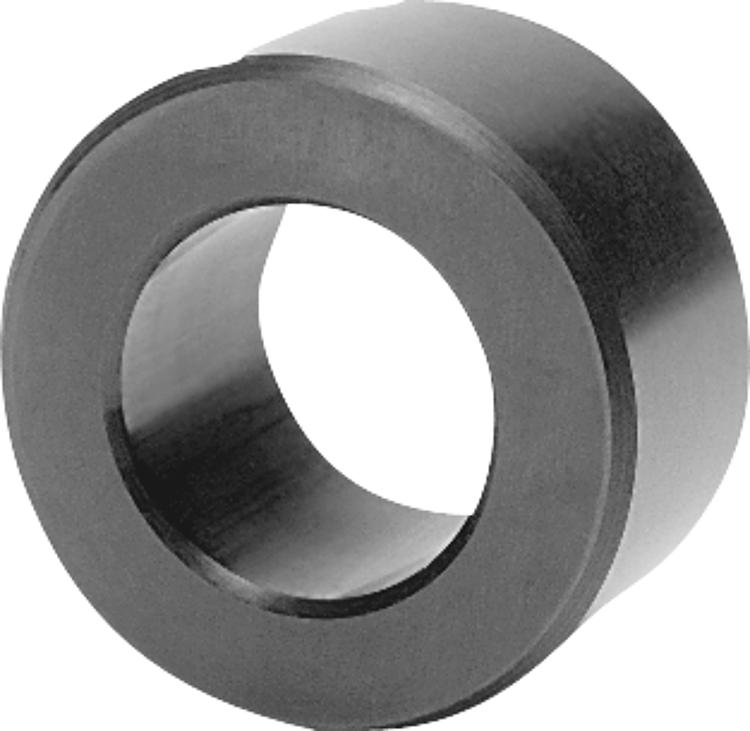

Centring bushes

go back

Products
- Product overview
  - Locating elements, stop elements, support elements
    - Positioning and clamping system
      - Centring bushes

Item description/product images

DescriptionMaterial:Ball bearing steelVersion:Hardened, black oxidised.Note:By a centre distance tolerance of ±0.005 mm and two grade I centring bushes a repeat accuracy of ±0.013 mm is possible.
By a centre distance tolerance of ±0.03 mm and one grade I and one grade II centring bush a repeat accuracy of 0.04 mm is possible.
The centring bushes are pressed into the receiver holes of the tooling plates using a light pressure.
For further details see “General information”.Special features:

DownloadHere is all the information as a PDF datasheet:

Are you looking for CAD data? These can be found directly in the product table.

Datasheet B0212 Centring bushes

258 kB

Drawings

Item selection/filter

Order No.	Version 1	D	T=tolerance	D1	L	Bore size for centring bush Ø +0.01	Price
B0212.113013	grade I	13	+0,005 - +0,018	19,04	13	19,016	15.04 €
B0212.113020	grade I	13	+0,005 - +0,018	19,04	20	19,016	15.70 €
B0212.116020	grade I	16	+0,005 - +0,018	25,042	20	25,016	15.04 €
B0212.116025	grade I	16	+0,005 - +0,018	25,042	25	25,016	15.70 €
B0212.120020	grade I	20	+0,005 - +0,018	35,042	20	35,018	16.34 €
B0212.120025	grade I	20	+0,005 - +0,018	35,042	25	35,018	18.52 €
B0212.125020	grade I	25	+0,005 - +0,018	35,042	20	35,018	16.34 €
B0212.125025	grade I	25	+0,005 - +0,018	35,042	25	35,018	18.52 €
B0212.130020	grade I	30	+0,005 - +0,018	45,042	20	45,018	22.29 €
B0212.130025	grade I	30	+0,005 - +0,018	45,042	25	45,018	24.48 €
B0212.135020	grade I	35	+0,005 - +0,018	45,042	20	45,018	22.29 €
B0212.135025	grade I	35	+0,005 - +0,018	45,042	25	45,018	24.48 €
B0212.135040	grade I	35	+0,005 - +0,018	45,042	40	45,018	26.45 €
B0212.135050	grade I	35	+0,005 - +0,018	45,042	50	45,018	28.07 €
B0212.150020	grade I	50	+0,005 - +0,018	63,546	20	63,521	42.55 €
B0212.150040	grade I	50	+0,005 - +0,018	63,546	40	63,521	48.68 €
B0212.150050	grade I	50	+0,005 - +0,018	63,546	50	63,521	52.27 €
B0212.213013	grade II	13	+0,025 - +0,050	19,04	13	19,016	15.04 €
B0212.213020	grade II	13	+0,025 - +0,050	19,04	20	19,016	15.70 €
B0212.216020	grade II	16	+0,025 - +0,050	25,042	20	25,016	15.04 €
B0212.216025	grade II	16	+0,025 - +0,050	25,042	25	25,016	15.70 €
B0212.220020	grade II	20	+0,025 - +0,050	35,042	20	35,018	16.34 €
B0212.220025	grade II	20	+0,025 - +0,050	35,042	25	35,018	18.52 €
B0212.225020	grade II	25	+0,025 - +0,050	35,042	20	35,018	16.34 €
B0212.225025	grade II	25	+0,025 - +0,050	35,042	25	35,018	18.52 €
B0212.230020	grade II	30	+0,025 - +0,050	45,042	20	45,018	22.29 €
B0212.235025	grade II	35	+0,025 - +0,050	45,042	25	45,018	24.48 €
B0212.235040	grade II	35	+0,025 - +0,050	45,042	40	45,018	26.45 €
B0212.235050	grade II	35	+0,025 - +0,050	45,042	50	45,018	28.07 €
B0212.250025	grade II	50	+0,025 - +0,050	63,546	25	63,521	45.19 €
B0212.250050	grade II	50	+0,025 - +0,050	63,546	50	63,521	52.27 €
