B0599_ACam-action indexing plungers, stainless steel with internal... |
go back |
|
Item description/product images |
|
|

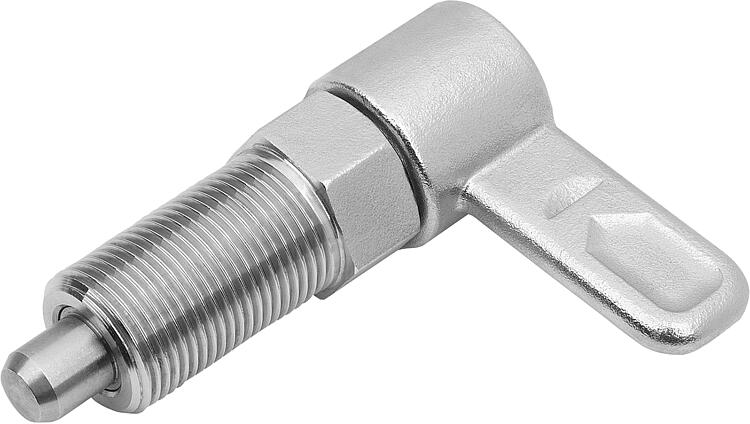

DescriptionProduct description:Cam-action indexing plungers are used where any change in locking position due to lateral forces should be prevented. Turning the grip through 180° retracts the indexing pin, enabling a change in the indexed position. The notch ensures that the grip remains in this position and the indexing pin remains retracted.Material:Threaded sleeve and grip 1.4308.
Indexing pin 1.4305.
Spring 1.4310. Version:Threaded sleeve, spring and grip bright.
Indexing pin ground and bright.Application:The closed construction of these indexing plungers with internal guide permits them to be installed in places subject to heavy soiling e.g. dust and airborn sparks.Advantages:- The indexing pin is retracted by rotating the grip through 180°.
- The closed design prevents dirt from entering the threaded sleeve.
- The hexagon on the sleeve facilitates easy installation of the indexing plunger.On request:Special versions.Accessory:Mounting bracket B0065, B0066.
Positioning bush B0063.
Special features: DownloadHere is all the information as a PDF datasheet:
Are you looking for CAD data? These can be found directly in the product table.
|
| Order No. | Form | D | D1 | D2 | L | L1 | L3 | B | B1 | H | SW1 | Fx30° | Spring force
initial pressure
F1 approx. N | Spring force
final pressure
F2 approx. N | CAD | Acc. | Price | Order |
|---|
| B0599.10405101 | A | 5 | M10x1 | 16 | 45,8 | 25 | 15 | 9 | 3 | 6 | 13 | 1,3 | 8 | 14 |  | | 16.29 € | | | B0599.10406121 | A | 6 | M12x1,5 | 17,4 | 55,4 | 30 | 19 | 10,2 | 3,6 | 8 | 14 | 1,8 | 8 | 15 | | | 17.79 € | | | B0599.10408161 | A | 8 | M16x1,5 | 21,6 | 71 | 40 | 26 | 14,4 | 4,8 | 10 | 19 | 2,3 | 15 | 35 | | | 19.54 € | | | B0599.10410201 | A | 10 | M20x1,5 | 24,8 | 80,5 | 50 | 30 | 17 | 6 | 12 | 22 | 2,8 | 20 | 60 | | | 23.21 € | |
