B0599_CCam-action indexing plungers, stainless steel with internal... |
go back |
|
Item description/product images |
|
|

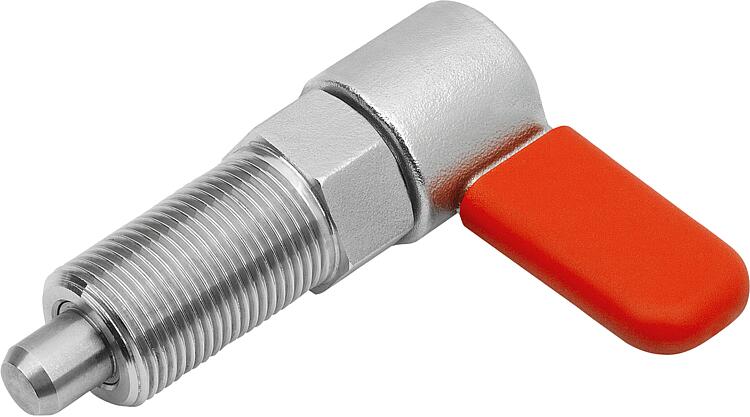

DescriptionProduct description:Cam-action indexing plungers are used where any change in locking position due to lateral forces should be prevented. Turning the grip through 180° retracts the indexing pin, enabling a change in the indexed position. The notch ensures that the grip remains in this position and the indexing pin remains retracted.Material:Threaded sleeve and grip 1.4308.
Indexing pin 1.4305.
Spring 1.4310.
Grip cap thermoplastic PA. Version:Threaded sleeve, spring and grip bright.
Indexing pin ground and bright.
Grip cap in various colours:
- black grey RAL 7021.
- pure orange RAL 2004.
- colza yellow RAL 1021.
- traffic red RAL 3020.
- signal green RAL 6032.
- traffic blue RAL 5017.
- light grey RAL 7035.
Application:The closed construction of these indexing plungers with internal guide permits them to be installed in places subject to heavy soiling e.g. dust and airborn sparks.Advantages:- The indexing pin is retracted by rotating the grip through 180°.
- The closed design prevents dirt from entering the threaded sleeve.
- The hexagon on the sleeve facilitates easy installation of the indexing plunger.On request:Special versions.Accessory:Mounting bracket B0065, B0066.
Positioning bush B0063.
Special features: DownloadHere is all the information as a PDF datasheet:
Are you looking for CAD data? These can be found directly in the product table.
|
| Order No. | Form | Component
colour | D | D1 | D2 | L | L1 | L3 | B | B1 | H | SW1 | Fx30° | Spring force
initial pressure
F1 approx. N | Spring force
final pressure
F2 approx. N | CAD | Acc. | Price | Order |
|---|
| B0599.10605101 | C | black grey RAL 7021 | 5 | M10x1 | 16 | 46,7 | 26,3 | 15 | 10,9 | 4,9 | 6 | 13 | 1,3 | 8 | 14 |  | | 14.16 € | | | B0599.10606121 | C | black grey RAL 7021 | 6 | M12x1,5 | 17,4 | 56,5 | 31,5 | 19 | 13 | 5,8 | 8 | 14 | 1,8 | 8 | 15 | | | 15.41 € | | | B0599.10608161 | C | black grey RAL 7021 | 8 | M16x1,5 | 21,6 | 72,6 | 42 | 26 | 17,7 | 8,1 | 10 | 19 | 2,3 | 15 | 35 | | | 16.89 € | | | B0599.10610201 | C | black grey RAL 7021 | 10 | M20x1,5 | 24,8 | 82,3 | 51,6 | 30 | 21,5 | 9,5 | 12 | 22 | 2,8 | 20 | 60 | | | 19.94 € | | | B0599.106051012 | C | orange | 5 | M10x1 | 16 | 46,7 | 26,3 | 15 | 10,9 | 4,9 | 6 | 13 | 1,3 | 8 | 14 | | | 14.16 € | | | B0599.106061212 | C | orange | 6 | M12x1,5 | 17,4 | 56,5 | 31,5 | 19 | 13 | 5,8 | 8 | 14 | 1,8 | 8 | 15 | | | 15.41 € | | | B0599.106081612 | C | orange | 8 | M16x1,5 | 21,6 | 72,6 | 42 | 26 | 17,7 | 8,1 | 10 | 19 | 2,3 | 15 | 35 | | | 16.89 € | | | B0599.106102012 | C | orange | 10 | M20x1,5 | 24,8 | 82,3 | 51,6 | 30 | 21,5 | 9,5 | 12 | 22 | 2,8 | 20 | 60 | | | 19.94 € | | | B0599.1060510116 | C | rape yellow RAL 1021 | 5 | M10x1 | 16 | 46,7 | 26,3 | 15 | 10,9 | 4,9 | 6 | 13 | 1,3 | 8 | 14 | | | 14.16 € | | | B0599.1060612116 | C | rape yellow RAL 1021 | 6 | M12x1,5 | 17,4 | 56,5 | 31,5 | 19 | 13 | 5,8 | 8 | 14 | 1,8 | 8 | 15 | | | 15.41 € | | | B0599.1060816116 | C | rape yellow RAL 1021 | 8 | M16x1,5 | 21,6 | 72,6 | 42 | 26 | 17,7 | 8,1 | 10 | 19 | 2,3 | 15 | 35 | | | 16.89 € | | | B0599.1061020116 | C | rape yellow RAL 1021 | 10 | M20x1,5 | 24,8 | 82,3 | 51,6 | 30 | 21,5 | 9,5 | 12 | 22 | 2,8 | 20 | 60 | | | 19.94 € | | | B0599.1060510148 | C | red | 5 | M10x1 | 16 | 46,7 | 26,3 | 15 | 10,9 | 4,9 | 6 | 13 | 1,3 | 8 | 14 | | | 14.16 € | | | B0599.1060612148 | C | red | 6 | M12x1,5 | 17,4 | 56,5 | 31,5 | 19 | 13 | 5,8 | 8 | 14 | 1,8 | 8 | 15 | | | 15.41 € | | | B0599.1060816148 | C | red | 8 | M16x1,5 | 21,6 | 72,6 | 42 | 26 | 17,7 | 8,1 | 10 | 19 | 2,3 | 15 | 35 | | | 16.89 € | | | B0599.1061020148 | C | red | 10 | M20x1,5 | 24,8 | 82,3 | 51,6 | 30 | 21,5 | 9,5 | 12 | 22 | 2,8 | 20 | 60 | | | 19.94 € | | | B0599.1060510186 | C | signal green RAL 6032 | 5 | M10x1 | 16 | 46,7 | 26,3 | 15 | 10,9 | 4,9 | 6 | 13 | 1,3 | 8 | 14 | | | 14.16 € | | | B0599.1060612186 | C | signal green RAL 6032 | 6 | M12x1,5 | 17,4 | 56,5 | 31,5 | 19 | 13 | 5,8 | 8 | 14 | 1,8 | 8 | 15 | | | 15.41 € | | | B0599.1060816186 | C | signal green RAL 6032 | 8 | M16x1,5 | 21,6 | 72,6 | 42 | 26 | 17,7 | 8,1 | 10 | 19 | 2,3 | 15 | 35 | | | 16.89 € | | | B0599.1061020186 | C | signal green RAL 6032 | 10 | M20x1,5 | 24,8 | 82,3 | 51,6 | 30 | 21,5 | 9,5 | 12 | 22 | 2,8 | 20 | 60 | | | 19.94 € | | | B0599.1060510187 | C | traffic blue RAL 5017 | 5 | M10x1 | 16 | 46,7 | 26,3 | 15 | 10,9 | 4,9 | 6 | 13 | 1,3 | 8 | 14 | | | 14.16 € | | | B0599.1060612187 | C | traffic blue RAL 5017 | 6 | M12x1,5 | 17,4 | 56,5 | 31,5 | 19 | 13 | 5,8 | 8 | 14 | 1,8 | 8 | 15 | | | 15.41 € | | | B0599.1060816187 | C | traffic blue RAL 5017 | 8 | M16x1,5 | 21,6 | 72,6 | 42 | 26 | 17,7 | 8,1 | 10 | 19 | 2,3 | 15 | 35 | | | 16.89 € | | | B0599.1061020187 | C | traffic blue RAL 5017 | 10 | M20x1,5 | 24,8 | 82,3 | 51,6 | 30 | 21,5 | 9,5 | 12 | 22 | 2,8 | 20 | 60 | | | 19.94 € | | | B0599.1060510188 | C | light grey RAL 7035 | 5 | M10x1 | 16 | 46,7 | 26,3 | 15 | 10,9 | 4,9 | 6 | 13 | 1,3 | 8 | 14 | | | 14.16 € | | | B0599.1060612188 | C | light grey RAL 7035 | 6 | M12x1,5 | 17,4 | 56,5 | 31,5 | 19 | 13 | 5,8 | 8 | 14 | 1,8 | 8 | 15 | | | 15.41 € | | | B0599.1060816188 | C | light grey RAL 7035 | 8 | M16x1,5 | 21,6 | 72,6 | 42 | 26 | 17,7 | 8,1 | 10 | 19 | 2,3 | 15 | 35 | | | 16.89 € | | | B0599.1061020188 | C | light grey RAL 7035 | 10 | M20x1,5 | 24,8 | 82,3 | 51,6 | 30 | 21,5 | 9,5 | 12 | 22 | 2,8 | 20 | 60 | | | 19.94 € | |
