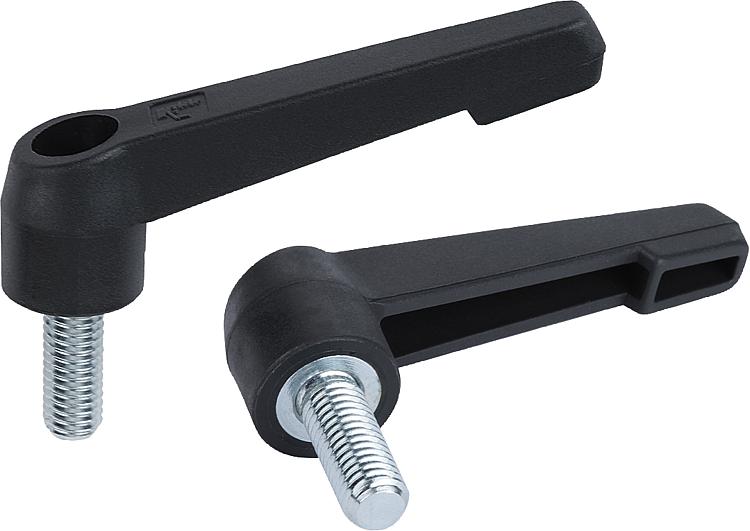

B0228Clamping levers, plastic, non-adjustable with external thread,... |
go back |
|
Item description/product images |
|
|
DescriptionMaterial:Handle fibreglass reinforced plastic.
Steel parts grade 5.8.Version:Handle black grey, steel parts blue-passivated.Note:Non-adjustable clamping levers can be used for simple applications. Generally, there must be enough space so that the lever can be rotated through 360°.On request:Special versions.Special features: DownloadHere is all the information as a PDF datasheet:
Are you looking for CAD data? These can be found directly in the product table.
|
| Order No. | Thread type | Size | X | D1 | D2 | H | H1 | H3 | A | A1 | B | L | CAD | Acc. | Price | Order |
|---|
| B0228.105X20 | male thread | 1 | M5 | 13,8 | 14 | 17 | 11 | 27 | 40 | 47 | 8 | 20 |  | | 2.83 € | | | B0228.106X20 | male thread | 1 | M6 | 13,8 | 14 | 17 | 11 | 27 | 40 | 47 | 8 | 20 | | | 2.83 € | | | B0228.208X15 | male thread | 2 | M8 | 18,3 | 18,5 | 18 | 11 | 36,5 | 65 | 75 | 9 | 15 | | | 3.28 € | | | B0228.208X20 | male thread | 2 | M8 | 18,3 | 18,5 | 18 | 11 | 36,5 | 65 | 75 | 9 | 20 | | | 3.28 € | | | B0228.208X30 | male thread | 2 | M8 | 18,3 | 18,5 | 18 | 11 | 36,5 | 65 | 75 | 9 | 30 | | | 3.28 € | | | B0228.310X30 | male thread | 3 | M10 | 21,8 | 22 | 22 | 14 | 45 | 80 | 91 | 11 | 30 | | | 4.30 € | | | B0228.412X30 | male thread | 4 | M12 | 25,8 | 26 | 26 | 17 | 54 | 95 | 108 | 13 | 30 | | | 5.68 € | | | B0228.516X40 | male thread | 5 | M16 | 30,8 | 31 | 31 | 21 | 63 | 110 | 126 | 16 | 40 | | | 7.79 € | |
