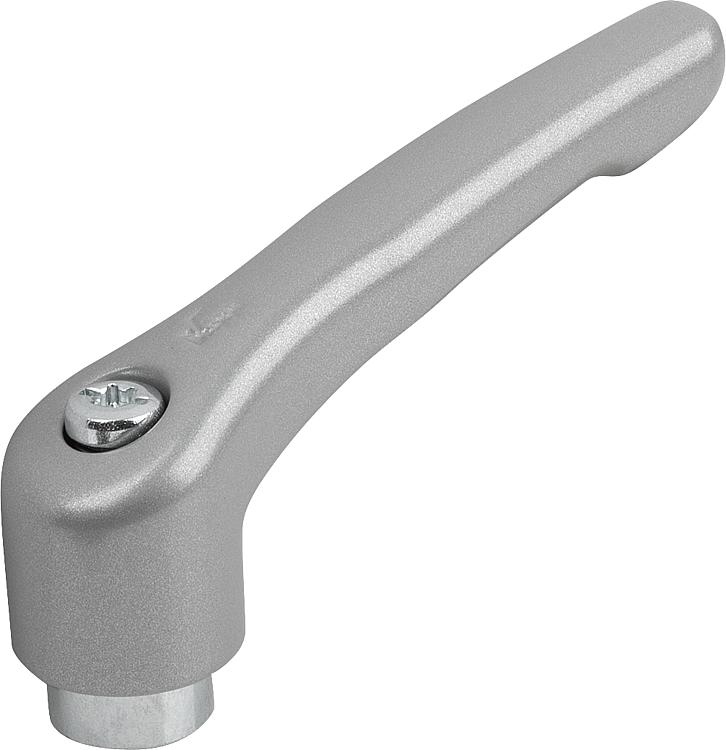

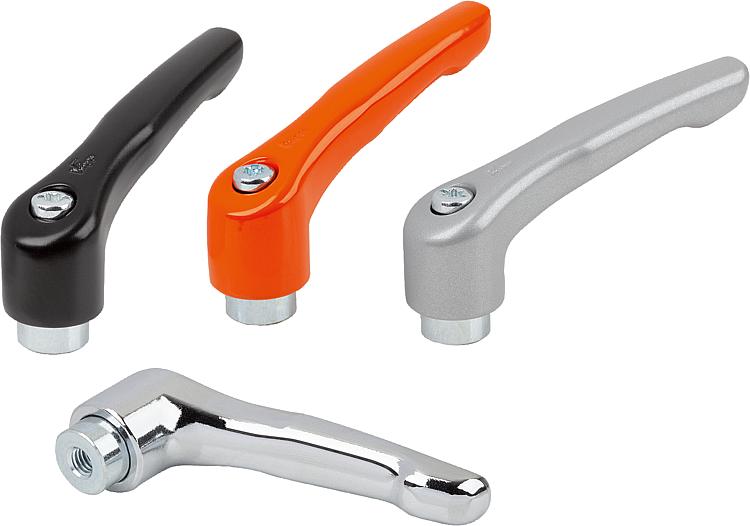

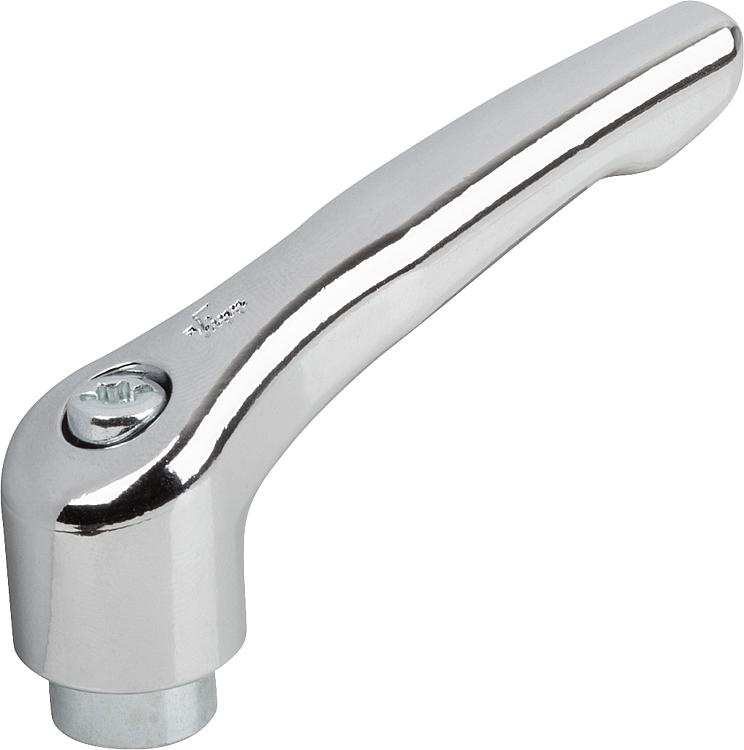

B0233Clamping levers, die-cast zinc with internal thread, threaded... |
go back |
|
Item description/product images |
|
|
DescriptionMaterial:Handle die-cast zinc DIN EN 12844.
Steel parts grade 5.8.Version:Handle plastic-coated or high-gloss chromed.
Steel parts trivalent blue-passivated.Note:Standard colours are:
black satin finish, orange RAL 2004, silver metallic, high gloss chromed.On request:Other threads, colours and special versions.
Dimension “H1” available in other lengths at extra charge.Special features: DownloadHere is all the information as a PDF datasheet:
Are you looking for CAD data? These can be found directly in the product table.
|
| Order No. | Main
colour | Surface finish
body | Size | X | T | D | D1 | D2 | H | H1 | H2 | H3 | H4 | A | A1 | B | No. of
teeth
| CAD | Acc. | Price | Order |
|---|
| B0233.0031 | jet black RAL 9005 | satin finish | 0 | M3 | 9 | 10 | 13 | 14 | 24,5 | 4 | 14,5 | 30 | 33 | 30 | 37 | 7 | 16 |  | | 4.47 € | | | B0233.0032 | orange RAL 2004 | plastic-coated | 0 | M3 | 9 | 10 | 13 | 14 | 24,5 | 4 | 14,5 | 30 | 33 | 30 | 37 | 7 | 16 | | | 4.47 € | | | B0233.0033 | silver metallic | plastic-coated | 0 | M3 | 9 | 10 | 13 | 14 | 24,5 | 4 | 14,5 | 30 | 33 | 30 | 37 | 7 | 16 | | | 4.47 € | | | B0233.0036 | silver | high-gloss chromed | 0 | M3 | 9 | 10 | 13 | 14 | 24,5 | 4 | 14,5 | 30 | 33 | 30 | 37 | 7 | 16 | | | 5.84 € | | | B0233.0041 | jet black RAL 9005 | satin finish | 0 | M4 | 9 | 10 | 13 | 14 | 24,5 | 4 | 14,5 | 30 | 33 | 30 | 37 | 7 | 16 | | | 4.47 € | | | B0233.0042 | orange RAL 2004 | plastic-coated | 0 | M4 | 9 | 10 | 13 | 14 | 24,5 | 4 | 14,5 | 30 | 33 | 30 | 37 | 7 | 16 | | | 4.47 € | | | B0233.0043 | silver metallic | plastic-coated | 0 | M4 | 9 | 10 | 13 | 14 | 24,5 | 4 | 14,5 | 30 | 33 | 30 | 37 | 7 | 16 | | | 4.47 € | | | B0233.0046 | silver | high-gloss chromed | 0 | M4 | 9 | 10 | 13 | 14 | 24,5 | 4 | 14,5 | 30 | 33 | 30 | 37 | 7 | 16 | | | 5.84 € | | | B0233.0051 | jet black RAL 9005 | satin finish | 0 | M5 | 9 | 10 | 13 | 14 | 24,5 | 4 | 14,5 | 30 | 33 | 30 | 37 | 7 | 16 | | | 4.47 € | | | B0233.0052 | orange RAL 2004 | plastic-coated | 0 | M5 | 9 | 10 | 13 | 14 | 24,5 | 4 | 14,5 | 30 | 33 | 30 | 37 | 7 | 16 | | | 4.47 € | | | B0233.0053 | silver metallic | plastic-coated | 0 | M5 | 9 | 10 | 13 | 14 | 24,5 | 4 | 14,5 | 30 | 33 | 30 | 37 | 7 | 16 | | | 4.47 € | | | B0233.0056 | silver | high-gloss chromed | 0 | M5 | 9 | 10 | 13 | 14 | 24,5 | 4 | 14,5 | 30 | 33 | 30 | 37 | 7 | 16 | | | 5.84 € | | | B0233.1041 | jet black RAL 9005 | satin finish | 1 | M4 | 9 | 10 | 13 | 14 | 24,5 | 4 | 14,5 | 31 | 34 | 40 | 47 | 7 | 16 | | | 4.47 € | | | B0233.1042 | orange RAL 2004 | plastic-coated | 1 | M4 | 9 | 10 | 13 | 14 | 24,5 | 4 | 14,5 | 31 | 34 | 40 | 47 | 7 | 16 | | | 4.47 € | | | B0233.1043 | silver metallic | plastic-coated | 1 | M4 | 9 | 10 | 13 | 14 | 24,5 | 4 | 14,5 | 31 | 34 | 40 | 47 | 7 | 16 | | | 4.47 € | | | B0233.1046 | silver | high-gloss chromed | 1 | M4 | 9 | 10 | 13 | 14 | 24,5 | 4 | 14,5 | 31 | 34 | 40 | 47 | 7 | 16 | | | 5.84 € | | | B0233.1051 | jet black RAL 9005 | satin finish | 1 | M5 | 9 | 10 | 13 | 14 | 24,5 | 4 | 14,5 | 31 | 34 | 40 | 47 | 7 | 16 | | | 4.47 € | | | B0233.1052 | orange RAL 2004 | plastic-coated | 1 | M5 | 9 | 10 | 13 | 14 | 24,5 | 4 | 14,5 | 31 | 34 | 40 | 47 | 7 | 16 | | | 4.47 € | | | B0233.1053 | silver metallic | plastic-coated | 1 | M5 | 9 | 10 | 13 | 14 | 24,5 | 4 | 14,5 | 31 | 34 | 40 | 47 | 7 | 16 | | | 4.47 € | | | B0233.1056 | silver | high-gloss chromed | 1 | M5 | 9 | 10 | 13 | 14 | 24,5 | 4 | 14,5 | 31 | 34 | 40 | 47 | 7 | 16 | | | 5.84 € | | | B0233.1061 | jet black RAL 9005 | satin finish | 1 | M6 | 9 | 10 | 13 | 14 | 24,5 | 4 | 14,5 | 31 | 34 | 40 | 47 | 7 | 16 | | | 4.47 € | | | B0233.1062 | orange RAL 2004 | plastic-coated | 1 | M6 | 9 | 10 | 13 | 14 | 24,5 | 4 | 14,5 | 31 | 34 | 40 | 47 | 7 | 16 | | | 4.47 € | | | B0233.1063 | silver metallic | plastic-coated | 1 | M6 | 9 | 10 | 13 | 14 | 24,5 | 4 | 14,5 | 31 | 34 | 40 | 47 | 7 | 16 | | | 4.47 € | | | B0233.1066 | silver | high-gloss chromed | 1 | M6 | 9 | 10 | 13 | 14 | 24,5 | 4 | 14,5 | 31 | 34 | 40 | 47 | 7 | 16 | | | 5.84 € | | | B0233.2061 | jet black RAL 9005 | satin finish | 2 | M6 | 12 | 13,5 | 18,5 | 19 | 28,5 | 6,5 | 17,5 | 42,5 | 45,5 | 65 | 74,5 | 9,5 | 20 | | | 5.65 € | | | B0233.2062 | orange RAL 2004 | plastic-coated | 2 | M6 | 12 | 13,5 | 18,5 | 19 | 28,5 | 6,5 | 17,5 | 42,5 | 45,5 | 65 | 74,5 | 9,5 | 20 | | | 5.65 € | | | B0233.2063 | silver metallic | plastic-coated | 2 | M6 | 12 | 13,5 | 18,5 | 19 | 28,5 | 6,5 | 17,5 | 42,5 | 45,5 | 65 | 74,5 | 9,5 | 20 | | | 5.65 € | | | B0233.2066 | silver | high-gloss chromed | 2 | M6 | 12 | 13,5 | 18,5 | 19 | 28,5 | 6,5 | 17,5 | 42,5 | 45,5 | 65 | 74,5 | 9,5 | 20 | | | 7.35 € | | | B0233.2081 | jet black RAL 9005 | satin finish | 2 | M8 | 12 | 13,5 | 18,5 | 19 | 28,5 | 6,5 | 17,5 | 42,5 | 45,5 | 65 | 74,5 | 9,5 | 20 | | | 5.65 € | | | B0233.2082 | orange RAL 2004 | plastic-coated | 2 | M8 | 12 | 13,5 | 18,5 | 19 | 28,5 | 6,5 | 17,5 | 42,5 | 45,5 | 65 | 74,5 | 9,5 | 20 | | | 5.65 € | | | B0233.2083 | silver metallic | plastic-coated | 2 | M8 | 12 | 13,5 | 18,5 | 19 | 28,5 | 6,5 | 17,5 | 42,5 | 45,5 | 65 | 74,5 | 9,5 | 20 | | | 5.65 € | | | B0233.2086 | silver | high-gloss chromed | 2 | M8 | 12 | 13,5 | 18,5 | 19 | 28,5 | 6,5 | 17,5 | 42,5 | 45,5 | 65 | 74,5 | 9,5 | 20 | | | 7.35 € | | | B0233.3081 | jet black RAL 9005 | satin finish | 3 | M8 | 14 | 16 | 21 | 22 | 37 | 10 | 24 | 54,5 | 58,5 | 80 | 91 | 11 | 22 | | | 6.19 € | | | B0233.3082 | orange RAL 2004 | plastic-coated | 3 | M8 | 14 | 16 | 21 | 22 | 37 | 10 | 24 | 54,5 | 58,5 | 80 | 91 | 11 | 22 | | | 6.19 € | | | B0233.3083 | silver metallic | plastic-coated | 3 | M8 | 14 | 16 | 21 | 22 | 37 | 10 | 24 | 54,5 | 58,5 | 80 | 91 | 11 | 22 | | | 6.19 € | | | B0233.3086 | silver | high-gloss chromed | 3 | M8 | 14 | 16 | 21 | 22 | 37 | 10 | 24 | 54,5 | 58,5 | 80 | 91 | 11 | 22 | | | 8.06 € | | | B0233.3101 | jet black RAL 9005 | satin finish | 3 | M10 | 14 | 16 | 21 | 22 | 37 | 10 | 24 | 54,5 | 58,5 | 80 | 91 | 11 | 22 | | | 6.19 € | | | B0233.3102 | orange RAL 2004 | plastic-coated | 3 | M10 | 14 | 16 | 21 | 22 | 37 | 10 | 24 | 54,5 | 58,5 | 80 | 91 | 11 | 22 | | | 6.19 € | | | B0233.3103 | silver metallic | plastic-coated | 3 | M10 | 14 | 16 | 21 | 22 | 37 | 10 | 24 | 54,5 | 58,5 | 80 | 91 | 11 | 22 | | | 6.19 € | | | B0233.3106 | silver | high-gloss chromed | 3 | M10 | 14 | 16 | 21 | 22 | 37 | 10 | 24 | 54,5 | 58,5 | 80 | 91 | 11 | 22 | | | 8.06 € | | | B0233.4101 | jet black RAL 9005 | satin finish | 4 | M10 | 17 | 19 | 27 | 27,5 | 43 | 10 | 27 | 63 | 67,5 | 95 | 109 | 13 | 24 | | | 7.23 € | | | B0233.4102 | orange RAL 2004 | plastic-coated | 4 | M10 | 17 | 19 | 27 | 27,5 | 43 | 10 | 27 | 63 | 67,5 | 95 | 109 | 13 | 24 | | | 7.23 € | | | B0233.4103 | silver metallic | plastic-coated | 4 | M10 | 17 | 19 | 27 | 27,5 | 43 | 10 | 27 | 63 | 67,5 | 95 | 109 | 13 | 24 | | | 7.23 € | | | B0233.4106 | silver | high-gloss chromed | 4 | M10 | 17 | 19 | 27 | 27,5 | 43 | 10 | 27 | 63 | 67,5 | 95 | 109 | 13 | 24 | | | 9.41 € | | | B0233.4121 | jet black RAL 9005 | satin finish | 4 | M12 | 17 | 19 | 27 | 27,5 | 43 | 10 | 27 | 63 | 67,5 | 95 | 109 | 13 | 24 | | | 7.23 € | | | B0233.4122 | orange RAL 2004 | plastic-coated | 4 | M12 | 17 | 19 | 27 | 27,5 | 43 | 10 | 27 | 63 | 67,5 | 95 | 109 | 13 | 24 | | | 7.23 € | | | B0233.4123 | silver metallic | plastic-coated | 4 | M12 | 17 | 19 | 27 | 27,5 | 43 | 10 | 27 | 63 | 67,5 | 95 | 109 | 13 | 24 | | | 7.23 € | | | B0233.4126 | silver | high-gloss chromed | 4 | M12 | 17 | 19 | 27 | 27,5 | 43 | 10 | 27 | 63 | 67,5 | 95 | 109 | 13 | 24 | | | 9.41 € | | | B0233.5121 | jet black RAL 9005 | satin finish | 5 | M12 | 23 | 23 | 31 | 32 | 49 | 12 | 31,5 | 73 | 77,5 | 110 | 126 | 15 | 26 | | | 9.05 € | | | B0233.5122 | orange RAL 2004 | plastic-coated | 5 | M12 | 23 | 23 | 31 | 32 | 49 | 12 | 31,5 | 73 | 77,5 | 110 | 126 | 15 | 26 | | | 9.05 € | | | B0233.5123 | silver metallic | plastic-coated | 5 | M12 | 23 | 23 | 31 | 32 | 49 | 12 | 31,5 | 73 | 77,5 | 110 | 126 | 15 | 26 | | | 9.05 € | | | B0233.5126 | silver | high-gloss chromed | 5 | M12 | 23 | 23 | 31 | 32 | 49 | 12 | 31,5 | 73 | 77,5 | 110 | 126 | 15 | 26 | | | 11.79 € | | | B0233.5161 | jet black RAL 9005 | satin finish | 5 | M16 | 23 | 23 | 31 | 32 | 49 | 12 | 31,5 | 73 | 77,5 | 110 | 126 | 15 | 26 | | | 9.05 € | | | B0233.5162 | orange RAL 2004 | plastic-coated | 5 | M16 | 23 | 23 | 31 | 32 | 49 | 12 | 31,5 | 73 | 77,5 | 110 | 126 | 15 | 26 | | | 9.05 € | | | B0233.5163 | silver metallic | plastic-coated | 5 | M16 | 23 | 23 | 31 | 32 | 49 | 12 | 31,5 | 73 | 77,5 | 110 | 126 | 15 | 26 | | | 9.05 € | | | B0233.5166 | silver | high-gloss chromed | 5 | M16 | 23 | 23 | 31 | 32 | 49 | 12 | 31,5 | 73 | 77,5 | 110 | 126 | 15 | 26 | | | 11.79 € | |
