B0222Clamping levers with push button, internal thread |
go back |
|
Item description/product images |
|
|

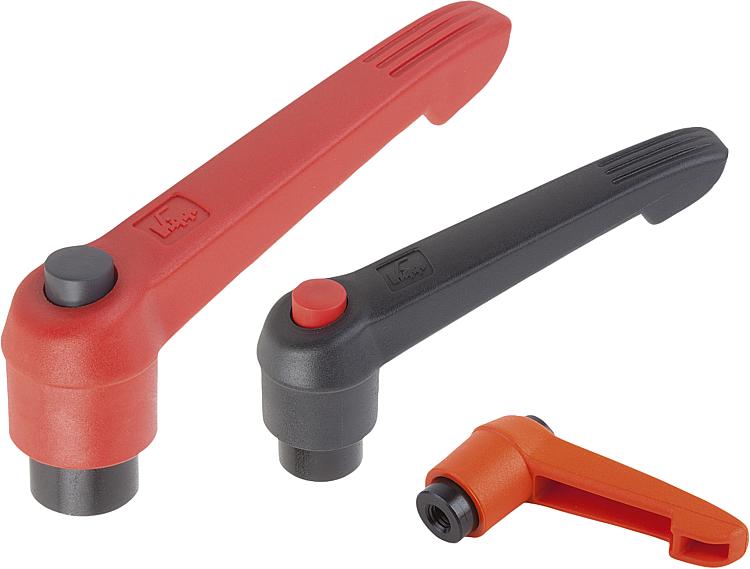

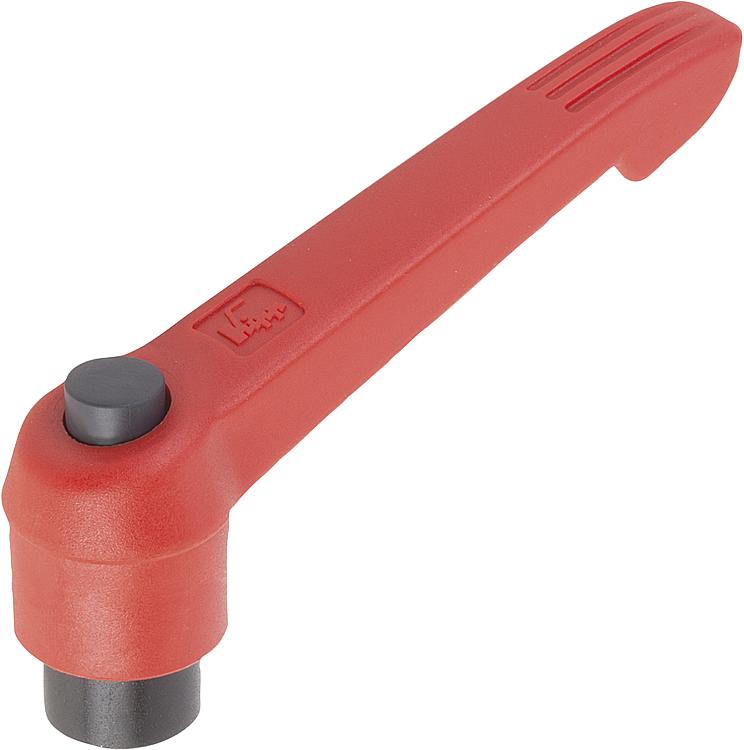

DescriptionMaterial:Handle fibreglass reinforced plastic, toothed ring die-cast zinc.
Steel parts grade 5.8.
Push button plastic (POM).Version:Steel parts black oxidised.Note:The standard colours are:
Black grey clamping lever, traffic red push button.
Orange clamping lever, black grey push button.
Traffic red clamping lever, black grey push button.
On request:Other threads and special versions.
Dimension “H1” available in other lengths at extra charge.Special features: DownloadHere is all the information as a PDF datasheet:
Are you looking for CAD data? These can be found directly in the product table.
|
| Order No. | Main
colour | Size | X | T | D | D1 | D2 | H | H1 | H2 | H3 | H4 | A | A1 | B | No. of
teeth
| CAD | Acc. | Price | Order |
|---|

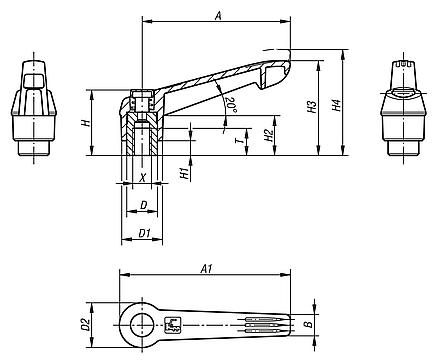

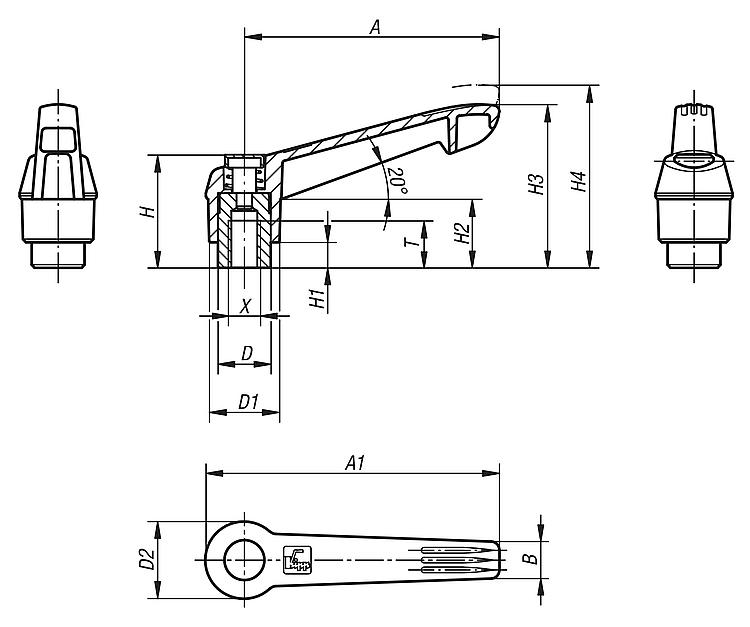

| B0222.71104 | black grey RAL 7021 | 1 | M4 | 9 | 10 | 13 | 14,5 | 25,5 | 4 | 15 | 30 | 33,5 | 40 | 47 | 7,5 | 16 |  | | 3.30 € | | | B0222.72104 | orange RAL 2004 | 1 | M4 | 9 | 10 | 13 | 14,5 | 25,5 | 4 | 15 | 30 | 33,5 | 40 | 47 | 7,5 | 16 | | | 3.30 € | | | B0222.73104 | traffic red RAL 3020 | 1 | M4 | 9 | 10 | 13 | 14,5 | 25,5 | 4 | 15 | 30 | 33,5 | 40 | 47 | 7,5 | 16 | | | 3.30 € | | | B0222.71105 | black grey RAL 7021 | 1 | M5 | 9 | 10 | 13 | 14,5 | 25,5 | 4 | 15 | 30 | 33,5 | 40 | 47 | 7,5 | 16 | | | 3.30 € | | | B0222.72105 | orange RAL 2004 | 1 | M5 | 9 | 10 | 13 | 14,5 | 25,5 | 4 | 15 | 30 | 33,5 | 40 | 47 | 7,5 | 16 | | | 3.30 € | | | B0222.73105 | traffic red RAL 3020 | 1 | M5 | 9 | 10 | 13 | 14,5 | 25,5 | 4 | 15 | 30 | 33,5 | 40 | 47 | 7,5 | 16 | | | 3.30 € | | | B0222.71106 | black grey RAL 7021 | 1 | M6 | 9 | 10 | 13 | 14,5 | 25,5 | 4 | 15 | 30 | 33,5 | 40 | 47 | 7,5 | 16 | | | 3.30 € | | | B0222.72106 | orange RAL 2004 | 1 | M6 | 9 | 10 | 13 | 14,5 | 25,5 | 4 | 15 | 30 | 33,5 | 40 | 47 | 7,5 | 16 | | | 3.30 € | | | B0222.73106 | traffic red RAL 3020 | 1 | M6 | 9 | 10 | 13 | 14,5 | 25,5 | 4 | 15 | 30 | 33,5 | 40 | 47 | 7,5 | 16 | | | 3.30 € | | | B0222.71206 | black grey RAL 7021 | 2 | M6 | 12 | 13,5 | 18 | 19,5 | 29,5 | 6,5 | 17,5 | 41,5 | 45,5 | 65 | 75 | 9,5 | 20 | | | 3.90 € | | | B0222.72206 | orange RAL 2004 | 2 | M6 | 12 | 13,5 | 18 | 19,5 | 29,5 | 6,5 | 17,5 | 41,5 | 45,5 | 65 | 75 | 9,5 | 20 | | | 3.90 € | | | B0222.73206 | traffic red RAL 3020 | 2 | M6 | 12 | 13,5 | 18 | 19,5 | 29,5 | 6,5 | 17,5 | 41,5 | 45,5 | 65 | 75 | 9,5 | 20 | | | 3.90 € | | | B0222.71208 | black grey RAL 7021 | 2 | M8 | 12 | 13,5 | 18 | 19,5 | 29,5 | 6,5 | 17,5 | 41,5 | 45,5 | 65 | 75 | 9,5 | 20 | | | 3.90 € | | | B0222.72208 | orange RAL 2004 | 2 | M8 | 12 | 13,5 | 18 | 19,5 | 29,5 | 6,5 | 17,5 | 41,5 | 45,5 | 65 | 75 | 9,5 | 20 | | | 3.90 € | | | B0222.73208 | traffic red RAL 3020 | 2 | M8 | 12 | 13,5 | 18 | 19,5 | 29,5 | 6,5 | 17,5 | 41,5 | 45,5 | 65 | 75 | 9,5 | 20 | | | 3.90 € | | | B0222.71308 | black grey RAL 7021 | 3 | M8 | 14 | 16 | 21,5 | 23 | 38,5 | 10 | 24 | 53,5 | 58 | 80 | 91,5 | 11 | 22 | | | 4.83 € | | | B0222.72308 | orange RAL 2004 | 3 | M8 | 14 | 16 | 21,5 | 23 | 38,5 | 10 | 24 | 53,5 | 58 | 80 | 91,5 | 11 | 22 | | | 4.83 € | | | B0222.73308 | traffic red RAL 3020 | 3 | M8 | 14 | 16 | 21,5 | 23 | 38,5 | 10 | 24 | 53,5 | 58 | 80 | 91,5 | 11 | 22 | | | 4.83 € | | | B0222.71310 | black grey RAL 7021 | 3 | M10 | 14 | 16 | 21,5 | 23 | 38,5 | 10 | 24 | 53,5 | 58 | 80 | 91,5 | 11 | 22 | | | 4.83 € | | | B0222.72310 | orange RAL 2004 | 3 | M10 | 14 | 16 | 21,5 | 23 | 38,5 | 10 | 24 | 53,5 | 58 | 80 | 91,5 | 11 | 22 | | | 4.83 € | | | B0222.73310 | traffic red RAL 3020 | 3 | M10 | 14 | 16 | 21,5 | 23 | 38,5 | 10 | 24 | 53,5 | 58 | 80 | 91,5 | 11 | 22 | | | 4.83 € | | | B0222.71410 | black grey RAL 7021 | 4 | M10 | 17 | 19 | 25,5 | 27,5 | 44,6 | 10 | 26 | 61 | 66 | 95 | 109 | 13 | 24 | | | 6.14 € | | | B0222.72410 | orange RAL 2004 | 4 | M10 | 17 | 19 | 25,5 | 27,5 | 44,6 | 10 | 26 | 61 | 66 | 95 | 109 | 13 | 24 | | | 6.14 € | | | B0222.73410 | traffic red RAL 3020 | 4 | M10 | 17 | 19 | 25,5 | 27,5 | 44,6 | 10 | 26 | 61 | 66 | 95 | 109 | 13 | 24 | | | 6.14 € | | | B0222.71412 | black grey RAL 7021 | 4 | M12 | 17 | 19 | 25,5 | 27,5 | 44,6 | 10 | 26 | 61 | 66 | 95 | 109 | 13 | 24 | | | 6.14 € | | | B0222.72412 | orange RAL 2004 | 4 | M12 | 17 | 19 | 25,5 | 27,5 | 44,6 | 10 | 26 | 61 | 66 | 95 | 109 | 13 | 24 | | | 6.14 € | | | B0222.73412 | traffic red RAL 3020 | 4 | M12 | 17 | 19 | 25,5 | 27,5 | 44,6 | 10 | 26 | 61 | 66 | 95 | 109 | 13 | 24 | | | 6.14 € | | | B0222.71512 | black grey RAL 7021 | 5 | M12 | 23 | 23 | 30 | 32,5 | 50,6 | 12 | 33 | 72 | 77 | 110 | 126 | 15,5 | 26 | | | 7.42 € | | | B0222.72512 | orange RAL 2004 | 5 | M12 | 23 | 23 | 30 | 32,5 | 50,6 | 12 | 33 | 72 | 77 | 110 | 126 | 15,5 | 26 | | | 7.42 € | | | B0222.73512 | traffic red RAL 3020 | 5 | M12 | 23 | 23 | 30 | 32,5 | 50,6 | 12 | 33 | 72 | 77 | 110 | 126 | 15,5 | 26 | | | 7.42 € | | | B0222.71516 | black grey RAL 7021 | 5 | M16 | 23 | 23 | 30 | 32,5 | 50,6 | 12 | 33 | 72 | 77 | 110 | 126 | 15,5 | 26 | | | 7.42 € | | | B0222.72516 | orange RAL 2004 | 5 | M16 | 23 | 23 | 30 | 32,5 | 50,6 | 12 | 33 | 72 | 77 | 110 | 126 | 15,5 | 26 | | | 7.42 € | | | B0222.73516 | traffic red RAL 3020 | 5 | M16 | 23 | 23 | 30 | 32,5 | 50,6 | 12 | 33 | 72 | 77 | 110 | 126 | 15,5 | 26 | | | 7.42 € | |
