B0230

Clamping levers, die-cast zinc with internal thread and...

go back

Products
- Product overview
  - Clamping levers, tension levers, cam levers
    - Clamping levers

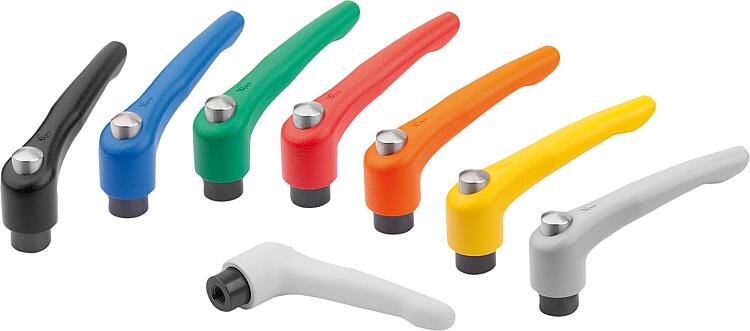

      - Clamping levers, die-cast zinc with internal thread and protective cap, threaded insert black oxidised steel

Item description/product images

Show/filter all items

DescriptionMaterial:

Handle die-cast zinc DIN EN 12844.
Steel parts grade 5.8.
Protective cap stainless steel 1.4305.

Version:Handle powder-coated.
Steel parts black oxidised.
Caps bright stainless steel.On request:Other threads, colours and special versions.
Dimension “H1” available in other lengths at extra charge.Special features:

DownloadHere is all the information as a PDF datasheet:

Are you looking for CAD data? These can be found directly in the product table.

Datasheet B0230 Clamping levers, die-cast zinc with internal thread and protective cap, threaded insert black oxidised steel

270 kB

Drawings (total overview)

Clamping levers with protective cap and internal thread, satin finish

More information

Drawings

Clamping levers with protective cap and internal thread, satin finish

Item selection/filter

Order No.	Main colour	Surface finish body	Size	X	T	D	D1	D2	H	H1	H2	H3	H4	A	A1	B	No. of teeth	Price
B0230.92061	jet black RAL 9005	satin finish	2	M6	12	13,5	18,5	19	32	6,5	17,5	42,5	45,5	65	74,5	9,5	20	7.34 €
B0230.92081	jet black RAL 9005	satin finish	2	M8	12	13,5	18,5	19	32	6,5	17,5	42,5	45,5	65	74,5	9,5	20	7.34 €
B0230.93081	jet black RAL 9005	satin finish	3	M8	14	16	21	22	41,5	10	24	54,5	58,5	80	91	11	22	8.12 €
B0230.93101	jet black RAL 9005	satin finish	3	M10	14	16	21	22	41,5	10	24	54,5	58,5	80	91	11	22	8.12 €

Clamping levers with protective cap and internal thread, matt textured

More information

Drawings

Clamping levers with protective cap and internal thread, matt textured

Item selection/filter

Order No.	Main colour	Surface finish body	Size	X	T	D	D1	D2	H	H1	H2	H3	H4	A	A1	B	No. of teeth	Price

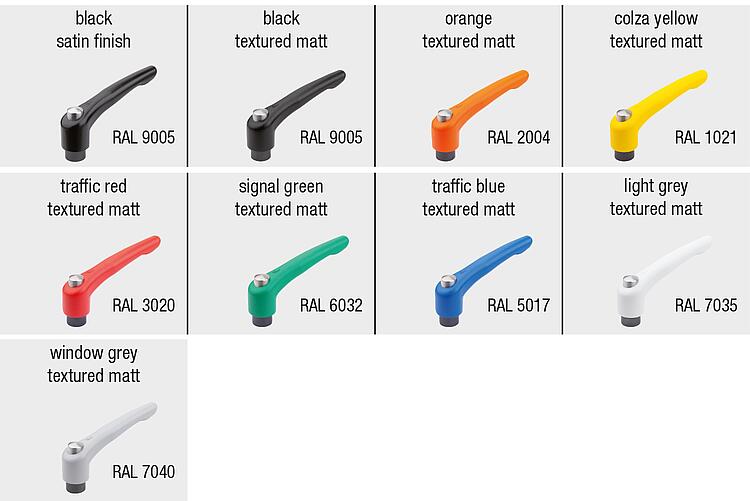

B0230.9206181	jet black RAL 9005	textured matt	2	M6	12	13,5	18,5	19	32	6,5	17,5	42,5	45,5	65	74,5	9,5	20	7.34 €
B0230.9206182	orange RAL 2004	textured matt	2	M6	12	13,5	18,5	19	32	6,5	17,5	42,5	45,5	65	74,5	9,5	20	7.34 €
B0230.9206183	colza yellow RAL 1021	textured matt	2	M6	12	13,5	18,5	19	32	6,5	17,5	42,5	45,5	65	74,5	9,5	20	7.34 €
B0230.9206184	traffic red RAL 3020	textured matt	2	M6	12	13,5	18,5	19	32	6,5	17,5	42,5	45,5	65	74,5	9,5	20	7.34 €
B0230.9206185	signal green RAL 6032	textured matt	2	M6	12	13,5	18,5	19	32	6,5	17,5	42,5	45,5	65	74,5	9,5	20	7.34 €
B0230.9206186	traffic blue RAL 5017	textured matt	2	M6	12	13,5	18,5	19	32	6,5	17,5	42,5	45,5	65	74,5	9,5	20	7.34 €
B0230.9206187	light grey RAL 7035	textured matt	2	M6	12	13,5	18,5	19	32	6,5	17,5	42,5	45,5	65	74,5	9,5	20	7.34 €
B0230.9206188	window grey RAL 7040	textured matt	2	M6	12	13,5	18,5	19	32	6,5	17,5	42,5	45,5	65	74,5	9,5	20	7.34 €
B0230.9208181	jet black RAL 9005	textured matt	2	M8	12	13,5	18,5	19	32	6,5	17,5	42,5	45,5	65	74,5	9,5	20	7.34 €
B0230.9208182	orange RAL 2004	textured matt	2	M8	12	13,5	18,5	19	32	6,5	17,5	42,5	45,5	65	74,5	9,5	20	7.34 €
B0230.9208183	colza yellow RAL 1021	textured matt	2	M8	12	13,5	18,5	19	32	6,5	17,5	42,5	45,5	65	74,5	9,5	20	7.34 €
B0230.9208184	traffic red RAL 3020	textured matt	2	M8	12	13,5	18,5	19	32	6,5	17,5	42,5	45,5	65	74,5	9,5	20	7.34 €
B0230.9208185	signal green RAL 6032	textured matt	2	M8	12	13,5	18,5	19	32	6,5	17,5	42,5	45,5	65	74,5	9,5	20	7.34 €
B0230.9208186	traffic blue RAL 5017	textured matt	2	M8	12	13,5	18,5	19	32	6,5	17,5	42,5	45,5	65	74,5	9,5	20	7.34 €
B0230.9208187	light grey RAL 7035	textured matt	2	M8	12	13,5	18,5	19	32	6,5	17,5	42,5	45,5	65	74,5	9,5	20	7.34 €
B0230.9208188	window grey RAL 7040	textured matt	2	M8	12	13,5	18,5	19	32	6,5	17,5	42,5	45,5	65	74,5	9,5	20	7.34 €
B0230.9308181	jet black RAL 9005	textured matt	3	M8	14	16	21	22	41,5	10	24	54,5	58,5	80	91	11	22	8.12 €
B0230.9308182	orange RAL 2004	textured matt	3	M8	14	16	21	22	41,5	10	24	54,5	58,5	80	91	11	22	8.12 €
B0230.9308183	colza yellow RAL 1021	textured matt	3	M8	14	16	21	22	41,5	10	24	54,5	58,5	80	91	11	22	8.12 €
B0230.9308184	traffic red RAL 3020	textured matt	3	M8	14	16	21	22	41,5	10	24	54,5	58,5	80	91	11	22	8.12 €
B0230.9308185	signal green RAL 6032	textured matt	3	M8	14	16	21	22	41,5	10	24	54,5	58,5	80	91	11	22	8.12 €
B0230.9308186	traffic blue RAL 5017	textured matt	3	M8	14	16	21	22	41,5	10	24	54,5	58,5	80	91	11	22	8.12 €
B0230.9308187	light grey RAL 7035	textured matt	3	M8	14	16	21	22	41,5	10	24	54,5	58,5	80	91	11	22	8.12 €
B0230.9308188	window grey RAL 7040	textured matt	3	M8	14	16	21	22	41,5	10	24	54,5	58,5	80	91	11	22	8.12 €
B0230.9310181	jet black RAL 9005	textured matt	3	M10	14	16	21	22	41,5	10	24	54,5	58,5	80	91	11	22	8.12 €
B0230.9310182	orange RAL 2004	textured matt	3	M10	14	16	21	22	41,5	10	24	54,5	58,5	80	91	11	22	8.12 €
B0230.9310183	colza yellow RAL 1021	textured matt	3	M10	14	16	21	22	41,5	10	24	54,5	58,5	80	91	11	22	8.12 €
B0230.9310184	traffic red RAL 3020	textured matt	3	M10	14	16	21	22	41,5	10	24	54,5	58,5	80	91	11	22	8.12 €
B0230.9310185	signal green RAL 6032	textured matt	3	M10	14	16	21	22	41,5	10	24	54,5	58,5	80	91	11	22	8.12 €
B0230.9310186	traffic blue RAL 5017	textured matt	3	M10	14	16	21	22	41,5	10	24	54,5	58,5	80	91	11	22	8.12 €
B0230.9310187	light grey RAL 7035	textured matt	3	M10	14	16	21	22	41,5	10	24	54,5	58,5	80	91	11	22	8.12 €
B0230.9310188	window grey RAL 7040	textured matt	3	M10	14	16	21	22	41,5	10	24	54,5	58,5	80	91	11	22	8.12 €
