B0234Clamping levers, die-cast zinc with external thread, threaded... |
go back |
|
Item description/product images |
|
|
DescriptionMaterial:Handle die-cast zinc DIN EN 12844.
Steel parts grade 5.8.Version:Handle plastic-coated or high-gloss chromed.
Steel parts trivalent blue-passivated.Note:Standard colours are:

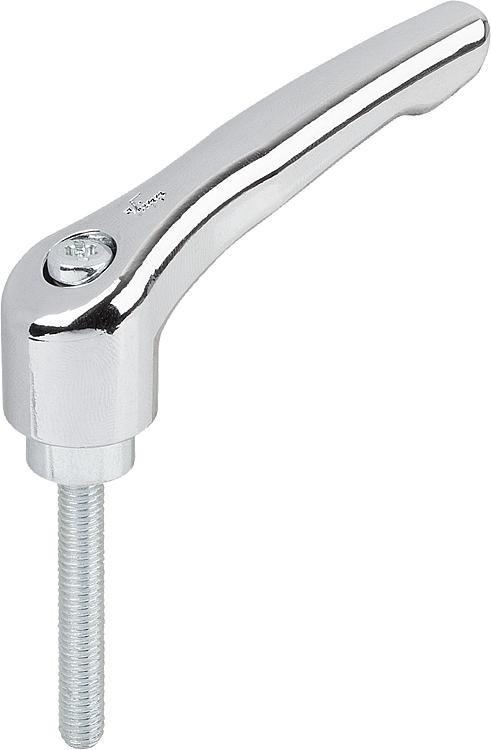

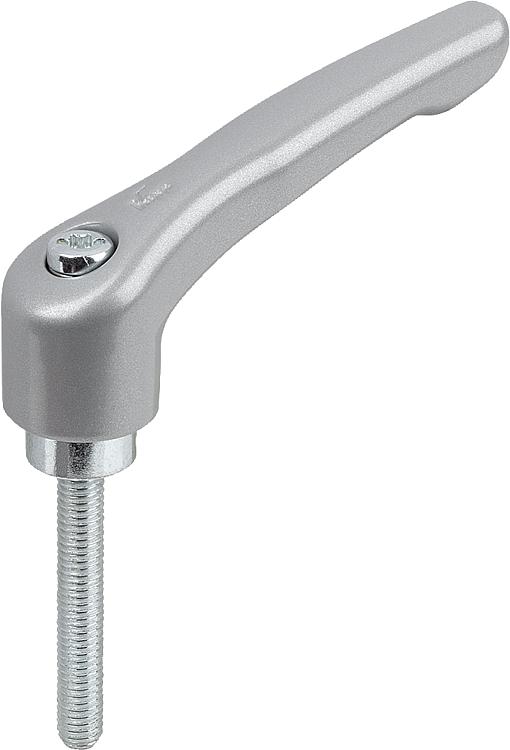

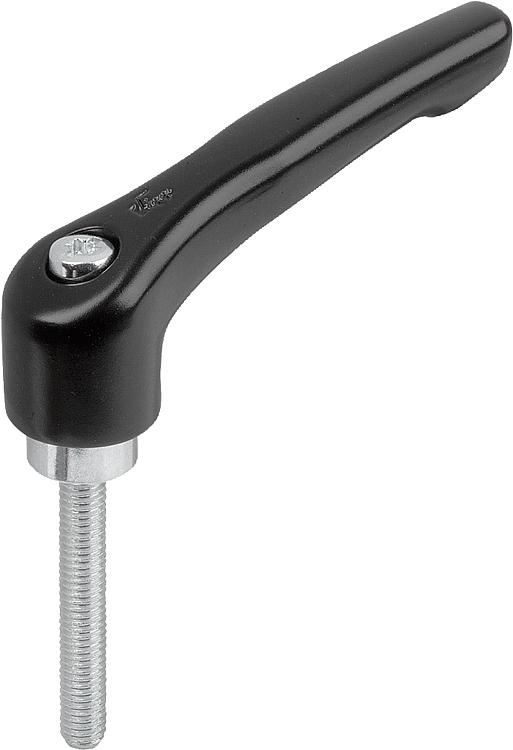

black satin finish, orange RAL 2004, silver metallic, high gloss chromed.
Where L ≥ 60 mm the thread length is 60 mm.On request:Other threads, colours and special versions.

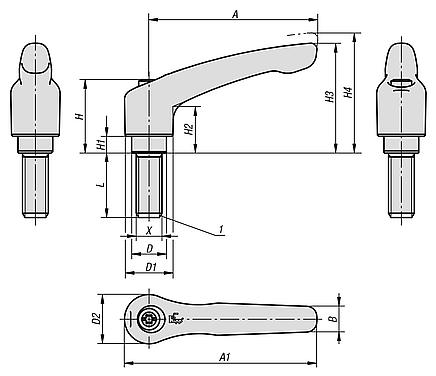

Dimension “H1” available in other lengths at extra charge.Drawing reference:1) flat point DIN EN ISO 4753 DownloadHere is all the information as a PDF datasheet:
Are you looking for CAD data? These can be found directly in the product table.
|
| Order No. | Main
colour | Surface finish
body | Size | X | D | D1 | D2 | H | H1 | H2 | H3 | H4 | A | A1 | B | No. of
teeth
| L | CAD | Acc. | Price | Order |
|---|
| B0234.0041X10 | jet black RAL 9005 | satin finish | 0 | M4 | 10 | 13 | 14 | 24,5 | 4 | 14,5 | 30 | 33 | 30 | 37 | 7 | 16 | 10 |  | | 4.77 € | | | B0234.0041X15 | jet black RAL 9005 | satin finish | 0 | M4 | 10 | 13 | 14 | 24,5 | 4 | 14,5 | 30 | 33 | 30 | 37 | 7 | 16 | 15 | | | 4.77 € | | | B0234.0041X20 | jet black RAL 9005 | satin finish | 0 | M4 | 10 | 13 | 14 | 24,5 | 4 | 14,5 | 30 | 33 | 30 | 37 | 7 | 16 | 20 | | | 4.77 € | | | B0234.0041X25 | jet black RAL 9005 | satin finish | 0 | M4 | 10 | 13 | 14 | 24,5 | 4 | 14,5 | 30 | 33 | 30 | 37 | 7 | 16 | 25 | | | 4.77 € | | | B0234.0041X30 | jet black RAL 9005 | satin finish | 0 | M4 | 10 | 13 | 14 | 24,5 | 4 | 14,5 | 30 | 33 | 30 | 37 | 7 | 16 | 30 | | | 4.77 € | | | B0234.0041X35 | jet black RAL 9005 | satin finish | 0 | M4 | 10 | 13 | 14 | 24,5 | 4 | 14,5 | 30 | 33 | 30 | 37 | 7 | 16 | 35 | | | 5.20 € | | | B0234.0041X40 | jet black RAL 9005 | satin finish | 0 | M4 | 10 | 13 | 14 | 24,5 | 4 | 14,5 | 30 | 33 | 30 | 37 | 7 | 16 | 40 | | | 5.20 € | | | B0234.0041X45 | jet black RAL 9005 | satin finish | 0 | M4 | 10 | 13 | 14 | 24,5 | 4 | 14,5 | 30 | 33 | 30 | 37 | 7 | 16 | 45 | | | 5.20 € | | | B0234.0041X50 | jet black RAL 9005 | satin finish | 0 | M4 | 10 | 13 | 14 | 24,5 | 4 | 14,5 | 30 | 33 | 30 | 37 | 7 | 16 | 50 | | | 5.20 € | | | B0234.0042X10 | orange RAL 2004 | plastic-coated | 0 | M4 | 10 | 13 | 14 | 24,5 | 4 | 14,5 | 30 | 33 | 30 | 37 | 7 | 16 | 10 | | | 4.77 € | | | B0234.0042X15 | orange RAL 2004 | plastic-coated | 0 | M4 | 10 | 13 | 14 | 24,5 | 4 | 14,5 | 30 | 33 | 30 | 37 | 7 | 16 | 15 | | | 4.77 € | | | B0234.0042X20 | orange RAL 2004 | plastic-coated | 0 | M4 | 10 | 13 | 14 | 24,5 | 4 | 14,5 | 30 | 33 | 30 | 37 | 7 | 16 | 20 | | | 4.77 € | | | B0234.0042X25 | orange RAL 2004 | plastic-coated | 0 | M4 | 10 | 13 | 14 | 24,5 | 4 | 14,5 | 30 | 33 | 30 | 37 | 7 | 16 | 25 | | | 4.77 € | | | B0234.0042X30 | orange RAL 2004 | plastic-coated | 0 | M4 | 10 | 13 | 14 | 24,5 | 4 | 14,5 | 30 | 33 | 30 | 37 | 7 | 16 | 30 | | | 4.77 € | | | B0234.0042X35 | orange RAL 2004 | plastic-coated | 0 | M4 | 10 | 13 | 14 | 24,5 | 4 | 14,5 | 30 | 33 | 30 | 37 | 7 | 16 | 35 | | | 5.20 € | | | B0234.0042X40 | orange RAL 2004 | plastic-coated | 0 | M4 | 10 | 13 | 14 | 24,5 | 4 | 14,5 | 30 | 33 | 30 | 37 | 7 | 16 | 40 | | | 5.20 € | | | B0234.0042X45 | orange RAL 2004 | plastic-coated | 0 | M4 | 10 | 13 | 14 | 24,5 | 4 | 14,5 | 30 | 33 | 30 | 37 | 7 | 16 | 45 | | | 5.20 € | | | B0234.0042X50 | orange RAL 2004 | plastic-coated | 0 | M4 | 10 | 13 | 14 | 24,5 | 4 | 14,5 | 30 | 33 | 30 | 37 | 7 | 16 | 50 | | | 5.20 € | | | B0234.0043X10 | silver metallic | plastic-coated | 0 | M4 | 10 | 13 | 14 | 24,5 | 4 | 14,5 | 30 | 33 | 30 | 37 | 7 | 16 | 10 | | | 4.77 € | | | B0234.0043X15 | silver metallic | plastic-coated | 0 | M4 | 10 | 13 | 14 | 24,5 | 4 | 14,5 | 30 | 33 | 30 | 37 | 7 | 16 | 15 | | | 4.77 € | | | B0234.0043X20 | silver metallic | plastic-coated | 0 | M4 | 10 | 13 | 14 | 24,5 | 4 | 14,5 | 30 | 33 | 30 | 37 | 7 | 16 | 20 | | | 4.77 € | | | B0234.0043X25 | silver metallic | plastic-coated | 0 | M4 | 10 | 13 | 14 | 24,5 | 4 | 14,5 | 30 | 33 | 30 | 37 | 7 | 16 | 25 | | | 4.77 € | | | B0234.0043X30 | silver metallic | plastic-coated | 0 | M4 | 10 | 13 | 14 | 24,5 | 4 | 14,5 | 30 | 33 | 30 | 37 | 7 | 16 | 30 | | | 4.77 € | | | B0234.0043X35 | silver metallic | plastic-coated | 0 | M4 | 10 | 13 | 14 | 24,5 | 4 | 14,5 | 30 | 33 | 30 | 37 | 7 | 16 | 35 | | | 5.20 € | | | B0234.0043X40 | silver metallic | plastic-coated | 0 | M4 | 10 | 13 | 14 | 24,5 | 4 | 14,5 | 30 | 33 | 30 | 37 | 7 | 16 | 40 | | | 5.20 € | | | B0234.0043X45 | silver metallic | plastic-coated | 0 | M4 | 10 | 13 | 14 | 24,5 | 4 | 14,5 | 30 | 33 | 30 | 37 | 7 | 16 | 45 | | | 5.20 € | | | B0234.0043X50 | silver metallic | plastic-coated | 0 | M4 | 10 | 13 | 14 | 24,5 | 4 | 14,5 | 30 | 33 | 30 | 37 | 7 | 16 | 50 | | | 5.20 € | | | B0234.0046X10 | silver | high-gloss chromed | 0 | M4 | 10 | 13 | 14 | 24,5 | 4 | 14,5 | 30 | 33 | 30 | 37 | 7 | 16 | 10 | | | 6.21 € | | | B0234.0046X15 | silver | high-gloss chromed | 0 | M4 | 10 | 13 | 14 | 24,5 | 4 | 14,5 | 30 | 33 | 30 | 37 | 7 | 16 | 15 | | | 6.21 € | | | B0234.0046X20 | silver | high-gloss chromed | 0 | M4 | 10 | 13 | 14 | 24,5 | 4 | 14,5 | 30 | 33 | 30 | 37 | 7 | 16 | 20 | | | 6.21 € | | | B0234.0046X25 | silver | high-gloss chromed | 0 | M4 | 10 | 13 | 14 | 24,5 | 4 | 14,5 | 30 | 33 | 30 | 37 | 7 | 16 | 25 | | | 6.21 € | | | B0234.0046X30 | silver | high-gloss chromed | 0 | M4 | 10 | 13 | 14 | 24,5 | 4 | 14,5 | 30 | 33 | 30 | 37 | 7 | 16 | 30 | | | 6.21 € | | | B0234.0046X35 | silver | high-gloss chromed | 0 | M4 | 10 | 13 | 14 | 24,5 | 4 | 14,5 | 30 | 33 | 30 | 37 | 7 | 16 | 35 | | | 6.77 € | | | B0234.0046X40 | silver | high-gloss chromed | 0 | M4 | 10 | 13 | 14 | 24,5 | 4 | 14,5 | 30 | 33 | 30 | 37 | 7 | 16 | 40 | | | 6.77 € | | | B0234.0046X45 | silver | high-gloss chromed | 0 | M4 | 10 | 13 | 14 | 24,5 | 4 | 14,5 | 30 | 33 | 30 | 37 | 7 | 16 | 45 | | | 6.77 € | | | B0234.0046X50 | silver | high-gloss chromed | 0 | M4 | 10 | 13 | 14 | 24,5 | 4 | 14,5 | 30 | 33 | 30 | 37 | 7 | 16 | 50 | | | 6.77 € | | | B0234.0051X10 | jet black RAL 9005 | satin finish | 0 | M5 | 10 | 13 | 14 | 24,5 | 4 | 14,5 | 30 | 33 | 30 | 37 | 7 | 16 | 10 | | | 4.77 € | | | B0234.0051X15 | jet black RAL 9005 | satin finish | 0 | M5 | 10 | 13 | 14 | 24,5 | 4 | 14,5 | 30 | 33 | 30 | 37 | 7 | 16 | 15 | | | 4.77 € | | | B0234.0051X20 | jet black RAL 9005 | satin finish | 0 | M5 | 10 | 13 | 14 | 24,5 | 4 | 14,5 | 30 | 33 | 30 | 37 | 7 | 16 | 20 | | | 4.77 € | | | B0234.0051X25 | jet black RAL 9005 | satin finish | 0 | M5 | 10 | 13 | 14 | 24,5 | 4 | 14,5 | 30 | 33 | 30 | 37 | 7 | 16 | 25 | | | 4.77 € | | | B0234.0051X30 | jet black RAL 9005 | satin finish | 0 | M5 | 10 | 13 | 14 | 24,5 | 4 | 14,5 | 30 | 33 | 30 | 37 | 7 | 16 | 30 | | | 4.77 € | | | B0234.0051X35 | jet black RAL 9005 | satin finish | 0 | M5 | 10 | 13 | 14 | 24,5 | 4 | 14,5 | 30 | 33 | 30 | 37 | 7 | 16 | 35 | | | 5.20 € | | | B0234.0051X40 | jet black RAL 9005 | satin finish | 0 | M5 | 10 | 13 | 14 | 24,5 | 4 | 14,5 | 30 | 33 | 30 | 37 | 7 | 16 | 40 | | | 5.20 € | | | B0234.0051X45 | jet black RAL 9005 | satin finish | 0 | M5 | 10 | 13 | 14 | 24,5 | 4 | 14,5 | 30 | 33 | 30 | 37 | 7 | 16 | 45 | | | 5.20 € | | | B0234.0051X50 | jet black RAL 9005 | satin finish | 0 | M5 | 10 | 13 | 14 | 24,5 | 4 | 14,5 | 30 | 33 | 30 | 37 | 7 | 16 | 50 | | | 5.20 € | | | B0234.0052X10 | orange RAL 2004 | plastic-coated | 0 | M5 | 10 | 13 | 14 | 24,5 | 4 | 14,5 | 30 | 33 | 30 | 37 | 7 | 16 | 10 | | | 4.77 € | | | B0234.0052X15 | orange RAL 2004 | plastic-coated | 0 | M5 | 10 | 13 | 14 | 24,5 | 4 | 14,5 | 30 | 33 | 30 | 37 | 7 | 16 | 15 | | | 4.77 € | | | B0234.0052X20 | orange RAL 2004 | plastic-coated | 0 | M5 | 10 | 13 | 14 | 24,5 | 4 | 14,5 | 30 | 33 | 30 | 37 | 7 | 16 | 20 | | | 4.77 € | | | B0234.0052X25 | orange RAL 2004 | plastic-coated | 0 | M5 | 10 | 13 | 14 | 24,5 | 4 | 14,5 | 30 | 33 | 30 | 37 | 7 | 16 | 25 | | | 4.77 € | | | B0234.0052X30 | orange RAL 2004 | plastic-coated | 0 | M5 | 10 | 13 | 14 | 24,5 | 4 | 14,5 | 30 | 33 | 30 | 37 | 7 | 16 | 30 | | | 4.77 € | | | B0234.0052X35 | orange RAL 2004 | plastic-coated | 0 | M5 | 10 | 13 | 14 | 24,5 | 4 | 14,5 | 30 | 33 | 30 | 37 | 7 | 16 | 35 | | | 5.20 € | | | B0234.0052X40 | orange RAL 2004 | plastic-coated | 0 | M5 | 10 | 13 | 14 | 24,5 | 4 | 14,5 | 30 | 33 | 30 | 37 | 7 | 16 | 40 | | | 5.20 € | | | B0234.0052X45 | orange RAL 2004 | plastic-coated | 0 | M5 | 10 | 13 | 14 | 24,5 | 4 | 14,5 | 30 | 33 | 30 | 37 | 7 | 16 | 45 | | | 5.20 € | | | B0234.0052X50 | orange RAL 2004 | plastic-coated | 0 | M5 | 10 | 13 | 14 | 24,5 | 4 | 14,5 | 30 | 33 | 30 | 37 | 7 | 16 | 50 | | | 5.20 € | | | B0234.0053X10 | silver metallic | plastic-coated | 0 | M5 | 10 | 13 | 14 | 24,5 | 4 | 14,5 | 30 | 33 | 30 | 37 | 7 | 16 | 10 | | | 4.77 € | | | B0234.0053X15 | silver metallic | plastic-coated | 0 | M5 | 10 | 13 | 14 | 24,5 | 4 | 14,5 | 30 | 33 | 30 | 37 | 7 | 16 | 15 | | | 4.77 € | | | B0234.0053X20 | silver metallic | plastic-coated | 0 | M5 | 10 | 13 | 14 | 24,5 | 4 | 14,5 | 30 | 33 | 30 | 37 | 7 | 16 | 20 | | | 4.77 € | | | B0234.0053X25 | silver metallic | plastic-coated | 0 | M5 | 10 | 13 | 14 | 24,5 | 4 | 14,5 | 30 | 33 | 30 | 37 | 7 | 16 | 25 | | | 4.77 € | | | B0234.0053X30 | silver metallic | plastic-coated | 0 | M5 | 10 | 13 | 14 | 24,5 | 4 | 14,5 | 30 | 33 | 30 | 37 | 7 | 16 | 30 | | | 4.77 € | | | B0234.0053X35 | silver metallic | plastic-coated | 0 | M5 | 10 | 13 | 14 | 24,5 | 4 | 14,5 | 30 | 33 | 30 | 37 | 7 | 16 | 35 | | | 5.20 € | | | B0234.0053X40 | silver metallic | plastic-coated | 0 | M5 | 10 | 13 | 14 | 24,5 | 4 | 14,5 | 30 | 33 | 30 | 37 | 7 | 16 | 40 | | | 5.20 € | | | B0234.0053X45 | silver metallic | plastic-coated | 0 | M5 | 10 | 13 | 14 | 24,5 | 4 | 14,5 | 30 | 33 | 30 | 37 | 7 | 16 | 45 | | | 5.20 € | | | B0234.0053X50 | silver metallic | plastic-coated | 0 | M5 | 10 | 13 | 14 | 24,5 | 4 | 14,5 | 30 | 33 | 30 | 37 | 7 | 16 | 50 | | | 5.20 € | | | B0234.0056X10 | silver | high-gloss chromed | 0 | M5 | 10 | 13 | 14 | 24,5 | 4 | 14,5 | 30 | 33 | 30 | 37 | 7 | 16 | 10 | | | 6.21 € | | | B0234.0056X15 | silver | high-gloss chromed | 0 | M5 | 10 | 13 | 14 | 24,5 | 4 | 14,5 | 30 | 33 | 30 | 37 | 7 | 16 | 15 | | | 6.21 € | | | B0234.0056X20 | silver | high-gloss chromed | 0 | M5 | 10 | 13 | 14 | 24,5 | 4 | 14,5 | 30 | 33 | 30 | 37 | 7 | 16 | 20 | | | 6.21 € | | | B0234.0056X25 | silver | high-gloss chromed | 0 | M5 | 10 | 13 | 14 | 24,5 | 4 | 14,5 | 30 | 33 | 30 | 37 | 7 | 16 | 25 | | | 6.21 € | | | B0234.0056X30 | silver | high-gloss chromed | 0 | M5 | 10 | 13 | 14 | 24,5 | 4 | 14,5 | 30 | 33 | 30 | 37 | 7 | 16 | 30 | | | 6.21 € | | | B0234.0056X35 | silver | high-gloss chromed | 0 | M5 | 10 | 13 | 14 | 24,5 | 4 | 14,5 | 30 | 33 | 30 | 37 | 7 | 16 | 35 | | | 6.77 € | | | B0234.0056X40 | silver | high-gloss chromed | 0 | M5 | 10 | 13 | 14 | 24,5 | 4 | 14,5 | 30 | 33 | 30 | 37 | 7 | 16 | 40 | | | 6.77 € | | | B0234.0056X45 | silver | high-gloss chromed | 0 | M5 | 10 | 13 | 14 | 24,5 | 4 | 14,5 | 30 | 33 | 30 | 37 | 7 | 16 | 45 | | | 6.77 € | | | B0234.0056X50 | silver | high-gloss chromed | 0 | M5 | 10 | 13 | 14 | 24,5 | 4 | 14,5 | 30 | 33 | 30 | 37 | 7 | 16 | 50 | | | 6.77 € | | | B0234.1051X10 | jet black RAL 9005 | satin finish | 1 | M5 | 10 | 13 | 14 | 24,5 | 4 | 14,5 | 31 | 34 | 40 | 47 | 7 | 16 | 10 | | | 4.77 € | | | B0234.1051X15 | jet black RAL 9005 | satin finish | 1 | M5 | 10 | 13 | 14 | 24,5 | 4 | 14,5 | 31 | 34 | 40 | 47 | 7 | 16 | 15 | | | 4.77 € | | | B0234.1051X20 | jet black RAL 9005 | satin finish | 1 | M5 | 10 | 13 | 14 | 24,5 | 4 | 14,5 | 31 | 34 | 40 | 47 | 7 | 16 | 20 | | | 4.77 € | | | B0234.1051X25 | jet black RAL 9005 | satin finish | 1 | M5 | 10 | 13 | 14 | 24,5 | 4 | 14,5 | 31 | 34 | 40 | 47 | 7 | 16 | 25 | | | 4.77 € | | | B0234.1051X30 | jet black RAL 9005 | satin finish | 1 | M5 | 10 | 13 | 14 | 24,5 | 4 | 14,5 | 31 | 34 | 40 | 47 | 7 | 16 | 30 | | | 4.77 € | | | B0234.1051X35 | jet black RAL 9005 | satin finish | 1 | M5 | 10 | 13 | 14 | 24,5 | 4 | 14,5 | 31 | 34 | 40 | 47 | 7 | 16 | 35 | | | 5.20 € | | | B0234.1051X40 | jet black RAL 9005 | satin finish | 1 | M5 | 10 | 13 | 14 | 24,5 | 4 | 14,5 | 31 | 34 | 40 | 47 | 7 | 16 | 40 | | | 5.20 € | | | B0234.1051X45 | jet black RAL 9005 | satin finish | 1 | M5 | 10 | 13 | 14 | 24,5 | 4 | 14,5 | 31 | 34 | 40 | 47 | 7 | 16 | 45 | | | 5.20 € | | | B0234.1051X50 | jet black RAL 9005 | satin finish | 1 | M5 | 10 | 13 | 14 | 24,5 | 4 | 14,5 | 31 | 34 | 40 | 47 | 7 | 16 | 50 | | | 5.20 € | | | B0234.1052X10 | orange RAL 2004 | plastic-coated | 1 | M5 | 10 | 13 | 14 | 24,5 | 4 | 14,5 | 31 | 34 | 40 | 47 | 7 | 16 | 10 | | | 4.77 € | | | B0234.1052X15 | orange RAL 2004 | plastic-coated | 1 | M5 | 10 | 13 | 14 | 24,5 | 4 | 14,5 | 31 | 34 | 40 | 47 | 7 | 16 | 15 | | | 4.77 € | | | B0234.1052X20 | orange RAL 2004 | plastic-coated | 1 | M5 | 10 | 13 | 14 | 24,5 | 4 | 14,5 | 31 | 34 | 40 | 47 | 7 | 16 | 20 | | | 4.77 € | | | B0234.1052X25 | orange RAL 2004 | plastic-coated | 1 | M5 | 10 | 13 | 14 | 24,5 | 4 | 14,5 | 31 | 34 | 40 | 47 | 7 | 16 | 25 | | | 4.77 € | | | B0234.1052X30 | orange RAL 2004 | plastic-coated | 1 | M5 | 10 | 13 | 14 | 24,5 | 4 | 14,5 | 31 | 34 | 40 | 47 | 7 | 16 | 30 | | | 4.77 € | | | B0234.1052X35 | orange RAL 2004 | plastic-coated | 1 | M5 | 10 | 13 | 14 | 24,5 | 4 | 14,5 | 31 | 34 | 40 | 47 | 7 | 16 | 35 | | | 5.20 € | | | B0234.1052X40 | orange RAL 2004 | plastic-coated | 1 | M5 | 10 | 13 | 14 | 24,5 | 4 | 14,5 | 31 | 34 | 40 | 47 | 7 | 16 | 40 | | | 5.20 € | | | B0234.1052X45 | orange RAL 2004 | plastic-coated | 1 | M5 | 10 | 13 | 14 | 24,5 | 4 | 14,5 | 31 | 34 | 40 | 47 | 7 | 16 | 45 | | | 5.20 € | | | B0234.1052X50 | orange RAL 2004 | plastic-coated | 1 | M5 | 10 | 13 | 14 | 24,5 | 4 | 14,5 | 31 | 34 | 40 | 47 | 7 | 16 | 50 | | | 5.20 € | | | B0234.1053X10 | silver metallic | plastic-coated | 1 | M5 | 10 | 13 | 14 | 24,5 | 4 | 14,5 | 31 | 34 | 40 | 47 | 7 | 16 | 10 | | | 4.77 € | | | B0234.1053X15 | silver metallic | plastic-coated | 1 | M5 | 10 | 13 | 14 | 24,5 | 4 | 14,5 | 31 | 34 | 40 | 47 | 7 | 16 | 15 | | | 4.77 € | | | B0234.1053X20 | silver metallic | plastic-coated | 1 | M5 | 10 | 13 | 14 | 24,5 | 4 | 14,5 | 31 | 34 | 40 | 47 | 7 | 16 | 20 | | | 4.77 € | | | B0234.1053X25 | silver metallic | plastic-coated | 1 | M5 | 10 | 13 | 14 | 24,5 | 4 | 14,5 | 31 | 34 | 40 | 47 | 7 | 16 | 25 | | | 4.77 € | | | B0234.1053X30 | silver metallic | plastic-coated | 1 | M5 | 10 | 13 | 14 | 24,5 | 4 | 14,5 | 31 | 34 | 40 | 47 | 7 | 16 | 30 | | | 4.77 € | | | B0234.1053X35 | silver metallic | plastic-coated | 1 | M5 | 10 | 13 | 14 | 24,5 | 4 | 14,5 | 31 | 34 | 40 | 47 | 7 | 16 | 35 | | | 5.20 € | | | B0234.1053X40 | silver metallic | plastic-coated | 1 | M5 | 10 | 13 | 14 | 24,5 | 4 | 14,5 | 31 | 34 | 40 | 47 | 7 | 16 | 40 | | | 5.20 € | | | B0234.1053X45 | silver metallic | plastic-coated | 1 | M5 | 10 | 13 | 14 | 24,5 | 4 | 14,5 | 31 | 34 | 40 | 47 | 7 | 16 | 45 | | | 5.20 € | | | B0234.1053X50 | silver metallic | plastic-coated | 1 | M5 | 10 | 13 | 14 | 24,5 | 4 | 14,5 | 31 | 34 | 40 | 47 | 7 | 16 | 50 | | | 5.20 € | | | B0234.1056X10 | silver | high-gloss chromed | 1 | M5 | 10 | 13 | 14 | 24,5 | 4 | 14,5 | 31 | 34 | 40 | 47 | 7 | 16 | 10 | | | 6.21 € | | | B0234.1056X15 | silver | high-gloss chromed | 1 | M5 | 10 | 13 | 14 | 24,5 | 4 | 14,5 | 31 | 34 | 40 | 47 | 7 | 16 | 15 | | | 6.21 € | | | B0234.1056X20 | silver | high-gloss chromed | 1 | M5 | 10 | 13 | 14 | 24,5 | 4 | 14,5 | 31 | 34 | 40 | 47 | 7 | 16 | 20 | | | 6.21 € | | | B0234.1056X25 | silver | high-gloss chromed | 1 | M5 | 10 | 13 | 14 | 24,5 | 4 | 14,5 | 31 | 34 | 40 | 47 | 7 | 16 | 25 | | | 6.21 € | | | B0234.1056X30 | silver | high-gloss chromed | 1 | M5 | 10 | 13 | 14 | 24,5 | 4 | 14,5 | 31 | 34 | 40 | 47 | 7 | 16 | 30 | | | 6.21 € | | | B0234.1056X35 | silver | high-gloss chromed | 1 | M5 | 10 | 13 | 14 | 24,5 | 4 | 14,5 | 31 | 34 | 40 | 47 | 7 | 16 | 35 | | | 6.77 € | | | B0234.1056X40 | silver | high-gloss chromed | 1 | M5 | 10 | 13 | 14 | 24,5 | 4 | 14,5 | 31 | 34 | 40 | 47 | 7 | 16 | 40 | | | 6.77 € | | | B0234.1056X45 | silver | high-gloss chromed | 1 | M5 | 10 | 13 | 14 | 24,5 | 4 | 14,5 | 31 | 34 | 40 | 47 | 7 | 16 | 45 | | | 6.77 € | | | B0234.1056X50 | silver | high-gloss chromed | 1 | M5 | 10 | 13 | 14 | 24,5 | 4 | 14,5 | 31 | 34 | 40 | 47 | 7 | 16 | 50 | | | 6.77 € | | | B0234.1061X10 | jet black RAL 9005 | satin finish | 1 | M6 | 10 | 13 | 14 | 24,5 | 4 | 14,5 | 31 | 34 | 40 | 47 | 7 | 16 | 10 | | | 4.77 € | | | B0234.1061X15 | jet black RAL 9005 | satin finish | 1 | M6 | 10 | 13 | 14 | 24,5 | 4 | 14,5 | 31 | 34 | 40 | 47 | 7 | 16 | 15 | | | 4.77 € | | | B0234.1061X20 | jet black RAL 9005 | satin finish | 1 | M6 | 10 | 13 | 14 | 24,5 | 4 | 14,5 | 31 | 34 | 40 | 47 | 7 | 16 | 20 | | | 4.77 € | | | B0234.1061X25 | jet black RAL 9005 | satin finish | 1 | M6 | 10 | 13 | 14 | 24,5 | 4 | 14,5 | 31 | 34 | 40 | 47 | 7 | 16 | 25 | | | 4.77 € | | | B0234.1061X30 | jet black RAL 9005 | satin finish | 1 | M6 | 10 | 13 | 14 | 24,5 | 4 | 14,5 | 31 | 34 | 40 | 47 | 7 | 16 | 30 | | | 4.77 € | | | B0234.1061X35 | jet black RAL 9005 | satin finish | 1 | M6 | 10 | 13 | 14 | 24,5 | 4 | 14,5 | 31 | 34 | 40 | 47 | 7 | 16 | 35 | | | 5.20 € | | | B0234.1061X40 | jet black RAL 9005 | satin finish | 1 | M6 | 10 | 13 | 14 | 24,5 | 4 | 14,5 | 31 | 34 | 40 | 47 | 7 | 16 | 40 | | | 5.20 € | | | B0234.1061X45 | jet black RAL 9005 | satin finish | 1 | M6 | 10 | 13 | 14 | 24,5 | 4 | 14,5 | 31 | 34 | 40 | 47 | 7 | 16 | 45 | | | 5.20 € | | | B0234.1061X50 | jet black RAL 9005 | satin finish | 1 | M6 | 10 | 13 | 14 | 24,5 | 4 | 14,5 | 31 | 34 | 40 | 47 | 7 | 16 | 50 | | | 5.20 € | | | B0234.1062X10 | orange RAL 2004 | plastic-coated | 1 | M6 | 10 | 13 | 14 | 24,5 | 4 | 14,5 | 31 | 34 | 40 | 47 | 7 | 16 | 10 | | | 4.77 € | | | B0234.1062X15 | orange RAL 2004 | plastic-coated | 1 | M6 | 10 | 13 | 14 | 24,5 | 4 | 14,5 | 31 | 34 | 40 | 47 | 7 | 16 | 15 | | | 4.77 € | | | B0234.1062X20 | orange RAL 2004 | plastic-coated | 1 | M6 | 10 | 13 | 14 | 24,5 | 4 | 14,5 | 31 | 34 | 40 | 47 | 7 | 16 | 20 | | | 4.77 € | | | B0234.1062X25 | orange RAL 2004 | plastic-coated | 1 | M6 | 10 | 13 | 14 | 24,5 | 4 | 14,5 | 31 | 34 | 40 | 47 | 7 | 16 | 25 | | | 4.77 € | | | B0234.1062X30 | orange RAL 2004 | plastic-coated | 1 | M6 | 10 | 13 | 14 | 24,5 | 4 | 14,5 | 31 | 34 | 40 | 47 | 7 | 16 | 30 | | | 4.77 € | | | B0234.1062X35 | orange RAL 2004 | plastic-coated | 1 | M6 | 10 | 13 | 14 | 24,5 | 4 | 14,5 | 31 | 34 | 40 | 47 | 7 | 16 | 35 | | | 5.20 € | | | B0234.1062X40 | orange RAL 2004 | plastic-coated | 1 | M6 | 10 | 13 | 14 | 24,5 | 4 | 14,5 | 31 | 34 | 40 | 47 | 7 | 16 | 40 | | | 5.20 € | | | B0234.1062X45 | orange RAL 2004 | plastic-coated | 1 | M6 | 10 | 13 | 14 | 24,5 | 4 | 14,5 | 31 | 34 | 40 | 47 | 7 | 16 | 45 | | | 5.20 € | | | B0234.1062X50 | orange RAL 2004 | plastic-coated | 1 | M6 | 10 | 13 | 14 | 24,5 | 4 | 14,5 | 31 | 34 | 40 | 47 | 7 | 16 | 50 | | | 5.20 € | | | B0234.1063X10 | silver metallic | plastic-coated | 1 | M6 | 10 | 13 | 14 | 24,5 | 4 | 14,5 | 31 | 34 | 40 | 47 | 7 | 16 | 10 | | | 4.77 € | | | B0234.1063X15 | silver metallic | plastic-coated | 1 | M6 | 10 | 13 | 14 | 24,5 | 4 | 14,5 | 31 | 34 | 40 | 47 | 7 | 16 | 15 | | | 4.77 € | | | B0234.1063X20 | silver metallic | plastic-coated | 1 | M6 | 10 | 13 | 14 | 24,5 | 4 | 14,5 | 31 | 34 | 40 | 47 | 7 | 16 | 20 | | | 4.77 € | | | B0234.1063X25 | silver metallic | plastic-coated | 1 | M6 | 10 | 13 | 14 | 24,5 | 4 | 14,5 | 31 | 34 | 40 | 47 | 7 | 16 | 25 | | | 4.77 € | | | B0234.1063X30 | silver metallic | plastic-coated | 1 | M6 | 10 | 13 | 14 | 24,5 | 4 | 14,5 | 31 | 34 | 40 | 47 | 7 | 16 | 30 | | | 4.77 € | | | B0234.1063X35 | silver metallic | plastic-coated | 1 | M6 | 10 | 13 | 14 | 24,5 | 4 | 14,5 | 31 | 34 | 40 | 47 | 7 | 16 | 35 | | | 5.20 € | | | B0234.1063X40 | silver metallic | plastic-coated | 1 | M6 | 10 | 13 | 14 | 24,5 | 4 | 14,5 | 31 | 34 | 40 | 47 | 7 | 16 | 40 | | | 5.20 € | | | B0234.1063X45 | silver metallic | plastic-coated | 1 | M6 | 10 | 13 | 14 | 24,5 | 4 | 14,5 | 31 | 34 | 40 | 47 | 7 | 16 | 45 | | | 5.20 € | | | B0234.1063X50 | silver metallic | plastic-coated | 1 | M6 | 10 | 13 | 14 | 24,5 | 4 | 14,5 | 31 | 34 | 40 | 47 | 7 | 16 | 50 | | | 5.20 € | | | B0234.1066X10 | silver | high-gloss chromed | 1 | M6 | 10 | 13 | 14 | 24,5 | 4 | 14,5 | 31 | 34 | 40 | 47 | 7 | 16 | 10 | | | 6.21 € | | | B0234.1066X15 | silver | high-gloss chromed | 1 | M6 | 10 | 13 | 14 | 24,5 | 4 | 14,5 | 31 | 34 | 40 | 47 | 7 | 16 | 15 | | | 6.21 € | | | B0234.1066X20 | silver | high-gloss chromed | 1 | M6 | 10 | 13 | 14 | 24,5 | 4 | 14,5 | 31 | 34 | 40 | 47 | 7 | 16 | 20 | | | 6.21 € | | | B0234.1066X25 | silver | high-gloss chromed | 1 | M6 | 10 | 13 | 14 | 24,5 | 4 | 14,5 | 31 | 34 | 40 | 47 | 7 | 16 | 25 | | | 6.21 € | | | B0234.1066X30 | silver | high-gloss chromed | 1 | M6 | 10 | 13 | 14 | 24,5 | 4 | 14,5 | 31 | 34 | 40 | 47 | 7 | 16 | 30 | | | 6.21 € | | | B0234.1066X35 | silver | high-gloss chromed | 1 | M6 | 10 | 13 | 14 | 24,5 | 4 | 14,5 | 31 | 34 | 40 | 47 | 7 | 16 | 35 | | | 6.77 € | | | B0234.1066X40 | silver | high-gloss chromed | 1 | M6 | 10 | 13 | 14 | 24,5 | 4 | 14,5 | 31 | 34 | 40 | 47 | 7 | 16 | 40 | | | 6.77 € | | | B0234.1066X45 | silver | high-gloss chromed | 1 | M6 | 10 | 13 | 14 | 24,5 | 4 | 14,5 | 31 | 34 | 40 | 47 | 7 | 16 | 45 | | | 6.77 € | | | B0234.1066X50 | silver | high-gloss chromed | 1 | M6 | 10 | 13 | 14 | 24,5 | 4 | 14,5 | 31 | 34 | 40 | 47 | 7 | 16 | 50 | | | 6.77 € | | | B0234.2061X15 | jet black RAL 9005 | satin finish | 2 | M6 | 13,5 | 18,5 | 19 | 28,5 | 6,5 | 17,5 | 42,5 | 45,5 | 65 | 74,5 | 9,5 | 20 | 15 | | | 6.02 € | | | B0234.2061X20 | jet black RAL 9005 | satin finish | 2 | M6 | 13,5 | 18,5 | 19 | 28,5 | 6,5 | 17,5 | 42,5 | 45,5 | 65 | 74,5 | 9,5 | 20 | 20 | | | 6.02 € | | | B0234.2061X25 | jet black RAL 9005 | satin finish | 2 | M6 | 13,5 | 18,5 | 19 | 28,5 | 6,5 | 17,5 | 42,5 | 45,5 | 65 | 74,5 | 9,5 | 20 | 25 | | | 6.02 € | | | B0234.2061X30 | jet black RAL 9005 | satin finish | 2 | M6 | 13,5 | 18,5 | 19 | 28,5 | 6,5 | 17,5 | 42,5 | 45,5 | 65 | 74,5 | 9,5 | 20 | 30 | | | 6.02 € | | | B0234.2061X35 | jet black RAL 9005 | satin finish | 2 | M6 | 13,5 | 18,5 | 19 | 28,5 | 6,5 | 17,5 | 42,5 | 45,5 | 65 | 74,5 | 9,5 | 20 | 35 | | | 6.43 € | | | B0234.2061X40 | jet black RAL 9005 | satin finish | 2 | M6 | 13,5 | 18,5 | 19 | 28,5 | 6,5 | 17,5 | 42,5 | 45,5 | 65 | 74,5 | 9,5 | 20 | 40 | | | 6.43 € | | | B0234.2061X45 | jet black RAL 9005 | satin finish | 2 | M6 | 13,5 | 18,5 | 19 | 28,5 | 6,5 | 17,5 | 42,5 | 45,5 | 65 | 74,5 | 9,5 | 20 | 45 | | | 6.43 € | | | B0234.2061X50 | jet black RAL 9005 | satin finish | 2 | M6 | 13,5 | 18,5 | 19 | 28,5 | 6,5 | 17,5 | 42,5 | 45,5 | 65 | 74,5 | 9,5 | 20 | 50 | | | 6.43 € | | | B0234.2061X55 | jet black RAL 9005 | satin finish | 2 | M6 | 13,5 | 18,5 | 19 | 28,5 | 6,5 | 17,5 | 42,5 | 45,5 | 65 | 74,5 | 9,5 | 20 | 55 | | | 6.43 € | | | B0234.2061X60 | jet black RAL 9005 | satin finish | 2 | M6 | 13,5 | 18,5 | 19 | 28,5 | 6,5 | 17,5 | 42,5 | 45,5 | 65 | 74,5 | 9,5 | 20 | 60 | | | 6.43 € | | | B0234.2062X15 | orange RAL 2004 | plastic-coated | 2 | M6 | 13,5 | 18,5 | 19 | 28,5 | 6,5 | 17,5 | 42,5 | 45,5 | 65 | 74,5 | 9,5 | 20 | 15 | | | 6.02 € | | | B0234.2062X20 | orange RAL 2004 | plastic-coated | 2 | M6 | 13,5 | 18,5 | 19 | 28,5 | 6,5 | 17,5 | 42,5 | 45,5 | 65 | 74,5 | 9,5 | 20 | 20 | | | 6.02 € | | | B0234.2062X25 | orange RAL 2004 | plastic-coated | 2 | M6 | 13,5 | 18,5 | 19 | 28,5 | 6,5 | 17,5 | 42,5 | 45,5 | 65 | 74,5 | 9,5 | 20 | 25 | | | 6.02 € | | | B0234.2062X30 | orange RAL 2004 | plastic-coated | 2 | M6 | 13,5 | 18,5 | 19 | 28,5 | 6,5 | 17,5 | 42,5 | 45,5 | 65 | 74,5 | 9,5 | 20 | 30 | | | 6.02 € | | | B0234.2062X35 | orange RAL 2004 | plastic-coated | 2 | M6 | 13,5 | 18,5 | 19 | 28,5 | 6,5 | 17,5 | 42,5 | 45,5 | 65 | 74,5 | 9,5 | 20 | 35 | | | 6.43 € | | | B0234.2062X40 | orange RAL 2004 | plastic-coated | 2 | M6 | 13,5 | 18,5 | 19 | 28,5 | 6,5 | 17,5 | 42,5 | 45,5 | 65 | 74,5 | 9,5 | 20 | 40 | | | 6.43 € | | | B0234.2062X45 | orange RAL 2004 | plastic-coated | 2 | M6 | 13,5 | 18,5 | 19 | 28,5 | 6,5 | 17,5 | 42,5 | 45,5 | 65 | 74,5 | 9,5 | 20 | 45 | | | 6.43 € | | | B0234.2062X50 | orange RAL 2004 | plastic-coated | 2 | M6 | 13,5 | 18,5 | 19 | 28,5 | 6,5 | 17,5 | 42,5 | 45,5 | 65 | 74,5 | 9,5 | 20 | 50 | | | 6.43 € | | | B0234.2062X55 | orange RAL 2004 | plastic-coated | 2 | M6 | 13,5 | 18,5 | 19 | 28,5 | 6,5 | 17,5 | 42,5 | 45,5 | 65 | 74,5 | 9,5 | 20 | 55 | | | 6.43 € | | | B0234.2062X60 | orange RAL 2004 | plastic-coated | 2 | M6 | 13,5 | 18,5 | 19 | 28,5 | 6,5 | 17,5 | 42,5 | 45,5 | 65 | 74,5 | 9,5 | 20 | 60 | | | 6.43 € | | | B0234.2063X15 | silver metallic | plastic-coated | 2 | M6 | 13,5 | 18,5 | 19 | 28,5 | 6,5 | 17,5 | 42,5 | 45,5 | 65 | 74,5 | 9,5 | 20 | 15 | | | 6.02 € | | | B0234.2063X20 | silver metallic | plastic-coated | 2 | M6 | 13,5 | 18,5 | 19 | 28,5 | 6,5 | 17,5 | 42,5 | 45,5 | 65 | 74,5 | 9,5 | 20 | 20 | | | 6.02 € | | | B0234.2063X25 | silver metallic | plastic-coated | 2 | M6 | 13,5 | 18,5 | 19 | 28,5 | 6,5 | 17,5 | 42,5 | 45,5 | 65 | 74,5 | 9,5 | 20 | 25 | | | 6.02 € | | | B0234.2063X30 | silver metallic | plastic-coated | 2 | M6 | 13,5 | 18,5 | 19 | 28,5 | 6,5 | 17,5 | 42,5 | 45,5 | 65 | 74,5 | 9,5 | 20 | 30 | | | 6.02 € | | | B0234.2063X35 | silver metallic | plastic-coated | 2 | M6 | 13,5 | 18,5 | 19 | 28,5 | 6,5 | 17,5 | 42,5 | 45,5 | 65 | 74,5 | 9,5 | 20 | 35 | | | 6.43 € | | | B0234.2063X40 | silver metallic | plastic-coated | 2 | M6 | 13,5 | 18,5 | 19 | 28,5 | 6,5 | 17,5 | 42,5 | 45,5 | 65 | 74,5 | 9,5 | 20 | 40 | | | 6.43 € | | | B0234.2063X45 | silver metallic | plastic-coated | 2 | M6 | 13,5 | 18,5 | 19 | 28,5 | 6,5 | 17,5 | 42,5 | 45,5 | 65 | 74,5 | 9,5 | 20 | 45 | | | 6.43 € | | | B0234.2063X50 | silver metallic | plastic-coated | 2 | M6 | 13,5 | 18,5 | 19 | 28,5 | 6,5 | 17,5 | 42,5 | 45,5 | 65 | 74,5 | 9,5 | 20 | 50 | | | 6.43 € | | | B0234.2063X55 | silver metallic | plastic-coated | 2 | M6 | 13,5 | 18,5 | 19 | 28,5 | 6,5 | 17,5 | 42,5 | 45,5 | 65 | 74,5 | 9,5 | 20 | 55 | | | 6.43 € | | | B0234.2063X60 | silver metallic | plastic-coated | 2 | M6 | 13,5 | 18,5 | 19 | 28,5 | 6,5 | 17,5 | 42,5 | 45,5 | 65 | 74,5 | 9,5 | 20 | 60 | | | 6.43 € | | | B0234.2066X15 | silver | high-gloss chromed | 2 | M6 | 13,5 | 18,5 | 19 | 28,5 | 6,5 | 17,5 | 42,5 | 45,5 | 65 | 74,5 | 9,5 | 20 | 15 | | | 7.83 € | | | B0234.2066X20 | silver | high-gloss chromed | 2 | M6 | 13,5 | 18,5 | 19 | 28,5 | 6,5 | 17,5 | 42,5 | 45,5 | 65 | 74,5 | 9,5 | 20 | 20 | | | 7.83 € | | | B0234.2066X25 | silver | high-gloss chromed | 2 | M6 | 13,5 | 18,5 | 19 | 28,5 | 6,5 | 17,5 | 42,5 | 45,5 | 65 | 74,5 | 9,5 | 20 | 25 | | | 7.83 € | | | B0234.2066X30 | silver | high-gloss chromed | 2 | M6 | 13,5 | 18,5 | 19 | 28,5 | 6,5 | 17,5 | 42,5 | 45,5 | 65 | 74,5 | 9,5 | 20 | 30 | | | 7.83 € | | | B0234.2066X35 | silver | high-gloss chromed | 2 | M6 | 13,5 | 18,5 | 19 | 28,5 | 6,5 | 17,5 | 42,5 | 45,5 | 65 | 74,5 | 9,5 | 20 | 35 | | | 8.36 € | | | B0234.2066X40 | silver | high-gloss chromed | 2 | M6 | 13,5 | 18,5 | 19 | 28,5 | 6,5 | 17,5 | 42,5 | 45,5 | 65 | 74,5 | 9,5 | 20 | 40 | | | 8.36 € | | | B0234.2066X45 | silver | high-gloss chromed | 2 | M6 | 13,5 | 18,5 | 19 | 28,5 | 6,5 | 17,5 | 42,5 | 45,5 | 65 | 74,5 | 9,5 | 20 | 45 | | | 8.36 € | | | B0234.2066X50 | silver | high-gloss chromed | 2 | M6 | 13,5 | 18,5 | 19 | 28,5 | 6,5 | 17,5 | 42,5 | 45,5 | 65 | 74,5 | 9,5 | 20 | 50 | | | 8.36 € | | | B0234.2066X55 | silver | high-gloss chromed | 2 | M6 | 13,5 | 18,5 | 19 | 28,5 | 6,5 | 17,5 | 42,5 | 45,5 | 65 | 74,5 | 9,5 | 20 | 55 | | | 8.36 € | | | B0234.2066X60 | silver | high-gloss chromed | 2 | M6 | 13,5 | 18,5 | 19 | 28,5 | 6,5 | 17,5 | 42,5 | 45,5 | 65 | 74,5 | 9,5 | 20 | 60 | | | 8.36 € | | | B0234.2081X15 | jet black RAL 9005 | satin finish | 2 | M8 | 13,5 | 18,5 | 19 | 28,5 | 6,5 | 17,5 | 42,5 | 45,5 | 65 | 74,5 | 9,5 | 20 | 15 | | | 6.02 € | | | B0234.2081X20 | jet black RAL 9005 | satin finish | 2 | M8 | 13,5 | 18,5 | 19 | 28,5 | 6,5 | 17,5 | 42,5 | 45,5 | 65 | 74,5 | 9,5 | 20 | 20 | | | 6.02 € | | | B0234.2081X25 | jet black RAL 9005 | satin finish | 2 | M8 | 13,5 | 18,5 | 19 | 28,5 | 6,5 | 17,5 | 42,5 | 45,5 | 65 | 74,5 | 9,5 | 20 | 25 | | | 6.02 € | | | B0234.2081X30 | jet black RAL 9005 | satin finish | 2 | M8 | 13,5 | 18,5 | 19 | 28,5 | 6,5 | 17,5 | 42,5 | 45,5 | 65 | 74,5 | 9,5 | 20 | 30 | | | 6.02 € | | | B0234.2081X35 | jet black RAL 9005 | satin finish | 2 | M8 | 13,5 | 18,5 | 19 | 28,5 | 6,5 | 17,5 | 42,5 | 45,5 | 65 | 74,5 | 9,5 | 20 | 35 | | | 6.43 € | | | B0234.2081X40 | jet black RAL 9005 | satin finish | 2 | M8 | 13,5 | 18,5 | 19 | 28,5 | 6,5 | 17,5 | 42,5 | 45,5 | 65 | 74,5 | 9,5 | 20 | 40 | | | 6.43 € | | | B0234.2081X45 | jet black RAL 9005 | satin finish | 2 | M8 | 13,5 | 18,5 | 19 | 28,5 | 6,5 | 17,5 | 42,5 | 45,5 | 65 | 74,5 | 9,5 | 20 | 45 | | | 6.43 € | | | B0234.2081X50 | jet black RAL 9005 | satin finish | 2 | M8 | 13,5 | 18,5 | 19 | 28,5 | 6,5 | 17,5 | 42,5 | 45,5 | 65 | 74,5 | 9,5 | 20 | 50 | | | 6.43 € | | | B0234.2081X55 | jet black RAL 9005 | satin finish | 2 | M8 | 13,5 | 18,5 | 19 | 28,5 | 6,5 | 17,5 | 42,5 | 45,5 | 65 | 74,5 | 9,5 | 20 | 55 | | | 6.43 € | | | B0234.2081X60 | jet black RAL 9005 | satin finish | 2 | M8 | 13,5 | 18,5 | 19 | 28,5 | 6,5 | 17,5 | 42,5 | 45,5 | 65 | 74,5 | 9,5 | 20 | 60 | | | 6.43 € | | | B0234.2082X15 | orange RAL 2004 | plastic-coated | 2 | M8 | 13,5 | 18,5 | 19 | 28,5 | 6,5 | 17,5 | 42,5 | 45,5 | 65 | 74,5 | 9,5 | 20 | 15 | | | 6.02 € | | | B0234.2082X20 | orange RAL 2004 | plastic-coated | 2 | M8 | 13,5 | 18,5 | 19 | 28,5 | 6,5 | 17,5 | 42,5 | 45,5 | 65 | 74,5 | 9,5 | 20 | 20 | | | 6.02 € | | | B0234.2082X25 | orange RAL 2004 | plastic-coated | 2 | M8 | 13,5 | 18,5 | 19 | 28,5 | 6,5 | 17,5 | 42,5 | 45,5 | 65 | 74,5 | 9,5 | 20 | 25 | | | 6.02 € | | | B0234.2082X30 | orange RAL 2004 | plastic-coated | 2 | M8 | 13,5 | 18,5 | 19 | 28,5 | 6,5 | 17,5 | 42,5 | 45,5 | 65 | 74,5 | 9,5 | 20 | 30 | | | 6.02 € | | | B0234.2082X35 | orange RAL 2004 | plastic-coated | 2 | M8 | 13,5 | 18,5 | 19 | 28,5 | 6,5 | 17,5 | 42,5 | 45,5 | 65 | 74,5 | 9,5 | 20 | 35 | | | 6.43 € | | | B0234.2082X40 | orange RAL 2004 | plastic-coated | 2 | M8 | 13,5 | 18,5 | 19 | 28,5 | 6,5 | 17,5 | 42,5 | 45,5 | 65 | 74,5 | 9,5 | 20 | 40 | | | 6.43 € | | | B0234.2082X45 | orange RAL 2004 | plastic-coated | 2 | M8 | 13,5 | 18,5 | 19 | 28,5 | 6,5 | 17,5 | 42,5 | 45,5 | 65 | 74,5 | 9,5 | 20 | 45 | | | 6.43 € | | | B0234.2082X50 | orange RAL 2004 | plastic-coated | 2 | M8 | 13,5 | 18,5 | 19 | 28,5 | 6,5 | 17,5 | 42,5 | 45,5 | 65 | 74,5 | 9,5 | 20 | 50 | | | 6.43 € | | | B0234.2082X55 | orange RAL 2004 | plastic-coated | 2 | M8 | 13,5 | 18,5 | 19 | 28,5 | 6,5 | 17,5 | 42,5 | 45,5 | 65 | 74,5 | 9,5 | 20 | 55 | | | 6.43 € | | | B0234.2082X60 | orange RAL 2004 | plastic-coated | 2 | M8 | 13,5 | 18,5 | 19 | 28,5 | 6,5 | 17,5 | 42,5 | 45,5 | 65 | 74,5 | 9,5 | 20 | 60 | | | 6.43 € | | | B0234.2083X15 | silver metallic | plastic-coated | 2 | M8 | 13,5 | 18,5 | 19 | 28,5 | 6,5 | 17,5 | 42,5 | 45,5 | 65 | 74,5 | 9,5 | 20 | 15 | | | 6.02 € | | | B0234.2083X20 | silver metallic | plastic-coated | 2 | M8 | 13,5 | 18,5 | 19 | 28,5 | 6,5 | 17,5 | 42,5 | 45,5 | 65 | 74,5 | 9,5 | 20 | 20 | | | 6.02 € | | | B0234.2083X25 | silver metallic | plastic-coated | 2 | M8 | 13,5 | 18,5 | 19 | 28,5 | 6,5 | 17,5 | 42,5 | 45,5 | 65 | 74,5 | 9,5 | 20 | 25 | | | 6.02 € | | | B0234.2083X30 | silver metallic | plastic-coated | 2 | M8 | 13,5 | 18,5 | 19 | 28,5 | 6,5 | 17,5 | 42,5 | 45,5 | 65 | 74,5 | 9,5 | 20 | 30 | | | 6.02 € | | | B0234.2083X35 | silver metallic | plastic-coated | 2 | M8 | 13,5 | 18,5 | 19 | 28,5 | 6,5 | 17,5 | 42,5 | 45,5 | 65 | 74,5 | 9,5 | 20 | 35 | | | 6.43 € | | | B0234.2083X40 | silver metallic | plastic-coated | 2 | M8 | 13,5 | 18,5 | 19 | 28,5 | 6,5 | 17,5 | 42,5 | 45,5 | 65 | 74,5 | 9,5 | 20 | 40 | | | 6.43 € | | | B0234.2083X45 | silver metallic | plastic-coated | 2 | M8 | 13,5 | 18,5 | 19 | 28,5 | 6,5 | 17,5 | 42,5 | 45,5 | 65 | 74,5 | 9,5 | 20 | 45 | | | 6.43 € | | | B0234.2083X50 | silver metallic | plastic-coated | 2 | M8 | 13,5 | 18,5 | 19 | 28,5 | 6,5 | 17,5 | 42,5 | 45,5 | 65 | 74,5 | 9,5 | 20 | 50 | | | 6.43 € | | | B0234.2083X55 | silver metallic | plastic-coated | 2 | M8 | 13,5 | 18,5 | 19 | 28,5 | 6,5 | 17,5 | 42,5 | 45,5 | 65 | 74,5 | 9,5 | 20 | 55 | | | 6.43 € | | | B0234.2083X60 | silver metallic | plastic-coated | 2 | M8 | 13,5 | 18,5 | 19 | 28,5 | 6,5 | 17,5 | 42,5 | 45,5 | 65 | 74,5 | 9,5 | 20 | 60 | | | 6.43 € | | | B0234.2086X15 | silver | high-gloss chromed | 2 | M8 | 13,5 | 18,5 | 19 | 28,5 | 6,5 | 17,5 | 42,5 | 45,5 | 65 | 74,5 | 9,5 | 20 | 15 | | | 7.83 € | | | B0234.2086X20 | silver | high-gloss chromed | 2 | M8 | 13,5 | 18,5 | 19 | 28,5 | 6,5 | 17,5 | 42,5 | 45,5 | 65 | 74,5 | 9,5 | 20 | 20 | | | 7.83 € | | | B0234.2086X25 | silver | high-gloss chromed | 2 | M8 | 13,5 | 18,5 | 19 | 28,5 | 6,5 | 17,5 | 42,5 | 45,5 | 65 | 74,5 | 9,5 | 20 | 25 | | | 7.83 € | | | B0234.2086X30 | silver | high-gloss chromed | 2 | M8 | 13,5 | 18,5 | 19 | 28,5 | 6,5 | 17,5 | 42,5 | 45,5 | 65 | 74,5 | 9,5 | 20 | 30 | | | 7.83 € | | | B0234.2086X35 | silver | high-gloss chromed | 2 | M8 | 13,5 | 18,5 | 19 | 28,5 | 6,5 | 17,5 | 42,5 | 45,5 | 65 | 74,5 | 9,5 | 20 | 35 | | | 8.36 € | | | B0234.2086X40 | silver | high-gloss chromed | 2 | M8 | 13,5 | 18,5 | 19 | 28,5 | 6,5 | 17,5 | 42,5 | 45,5 | 65 | 74,5 | 9,5 | 20 | 40 | | | 8.36 € | | | B0234.2086X45 | silver | high-gloss chromed | 2 | M8 | 13,5 | 18,5 | 19 | 28,5 | 6,5 | 17,5 | 42,5 | 45,5 | 65 | 74,5 | 9,5 | 20 | 45 | | | 8.36 € | | | B0234.2086X50 | silver | high-gloss chromed | 2 | M8 | 13,5 | 18,5 | 19 | 28,5 | 6,5 | 17,5 | 42,5 | 45,5 | 65 | 74,5 | 9,5 | 20 | 50 | | | 8.36 € | | | B0234.2086X55 | silver | high-gloss chromed | 2 | M8 | 13,5 | 18,5 | 19 | 28,5 | 6,5 | 17,5 | 42,5 | 45,5 | 65 | 74,5 | 9,5 | 20 | 55 | | | 8.36 € | | | B0234.2086X60 | silver | high-gloss chromed | 2 | M8 | 13,5 | 18,5 | 19 | 28,5 | 6,5 | 17,5 | 42,5 | 45,5 | 65 | 74,5 | 9,5 | 20 | 60 | | | 8.36 € | | | B0234.2101X15 | jet black RAL 9005 | satin finish | 2 | M10 | 13,5 | 18,5 | 19 | 28,5 | 6,5 | 17,5 | 42,5 | 45,5 | 65 | 74,5 | 9,5 | 20 | 15 | | | 6.02 € | | | B0234.2101X20 | jet black RAL 9005 | satin finish | 2 | M10 | 13,5 | 18,5 | 19 | 28,5 | 6,5 | 17,5 | 42,5 | 45,5 | 65 | 74,5 | 9,5 | 20 | 20 | | | 6.02 € | | | B0234.2101X25 | jet black RAL 9005 | satin finish | 2 | M10 | 13,5 | 18,5 | 19 | 28,5 | 6,5 | 17,5 | 42,5 | 45,5 | 65 | 74,5 | 9,5 | 20 | 25 | | | 6.02 € | | | B0234.2101X30 | jet black RAL 9005 | satin finish | 2 | M10 | 13,5 | 18,5 | 19 | 28,5 | 6,5 | 17,5 | 42,5 | 45,5 | 65 | 74,5 | 9,5 | 20 | 30 | | | 6.02 € | | | B0234.2101X35 | jet black RAL 9005 | satin finish | 2 | M10 | 13,5 | 18,5 | 19 | 28,5 | 6,5 | 17,5 | 42,5 | 45,5 | 65 | 74,5 | 9,5 | 20 | 35 | | | 6.43 € | | | B0234.2101X40 | jet black RAL 9005 | satin finish | 2 | M10 | 13,5 | 18,5 | 19 | 28,5 | 6,5 | 17,5 | 42,5 | 45,5 | 65 | 74,5 | 9,5 | 20 | 40 | | | 6.43 € | | | B0234.2101X45 | jet black RAL 9005 | satin finish | 2 | M10 | 13,5 | 18,5 | 19 | 28,5 | 6,5 | 17,5 | 42,5 | 45,5 | 65 | 74,5 | 9,5 | 20 | 45 | | | 6.43 € | | | B0234.2101X50 | jet black RAL 9005 | satin finish | 2 | M10 | 13,5 | 18,5 | 19 | 28,5 | 6,5 | 17,5 | 42,5 | 45,5 | 65 | 74,5 | 9,5 | 20 | 50 | | | 6.43 € | | | B0234.2101X55 | jet black RAL 9005 | satin finish | 2 | M10 | 13,5 | 18,5 | 19 | 28,5 | 6,5 | 17,5 | 42,5 | 45,5 | 65 | 74,5 | 9,5 | 20 | 55 | | | 6.43 € | | | B0234.2101X60 | jet black RAL 9005 | satin finish | 2 | M10 | 13,5 | 18,5 | 19 | 28,5 | 6,5 | 17,5 | 42,5 | 45,5 | 65 | 74,5 | 9,5 | 20 | 60 | | | 6.43 € | | | B0234.2102X15 | orange RAL 2004 | plastic-coated | 2 | M10 | 13,5 | 18,5 | 19 | 28,5 | 6,5 | 17,5 | 42,5 | 45,5 | 65 | 74,5 | 9,5 | 20 | 15 | | | 6.02 € | | | B0234.2102X20 | orange RAL 2004 | plastic-coated | 2 | M10 | 13,5 | 18,5 | 19 | 28,5 | 6,5 | 17,5 | 42,5 | 45,5 | 65 | 74,5 | 9,5 | 20 | 20 | | | 6.02 € | | | B0234.2102X25 | orange RAL 2004 | plastic-coated | 2 | M10 | 13,5 | 18,5 | 19 | 28,5 | 6,5 | 17,5 | 42,5 | 45,5 | 65 | 74,5 | 9,5 | 20 | 25 | | | 6.02 € | | | B0234.2102X30 | orange RAL 2004 | plastic-coated | 2 | M10 | 13,5 | 18,5 | 19 | 28,5 | 6,5 | 17,5 | 42,5 | 45,5 | 65 | 74,5 | 9,5 | 20 | 30 | | | 6.02 € | | | B0234.2102X35 | orange RAL 2004 | plastic-coated | 2 | M10 | 13,5 | 18,5 | 19 | 28,5 | 6,5 | 17,5 | 42,5 | 45,5 | 65 | 74,5 | 9,5 | 20 | 35 | | | 6.43 € | | | B0234.2102X40 | orange RAL 2004 | plastic-coated | 2 | M10 | 13,5 | 18,5 | 19 | 28,5 | 6,5 | 17,5 | 42,5 | 45,5 | 65 | 74,5 | 9,5 | 20 | 40 | | | 6.43 € | | | B0234.2102X45 | orange RAL 2004 | plastic-coated | 2 | M10 | 13,5 | 18,5 | 19 | 28,5 | 6,5 | 17,5 | 42,5 | 45,5 | 65 | 74,5 | 9,5 | 20 | 45 | | | 6.43 € | | | B0234.2102X50 | orange RAL 2004 | plastic-coated | 2 | M10 | 13,5 | 18,5 | 19 | 28,5 | 6,5 | 17,5 | 42,5 | 45,5 | 65 | 74,5 | 9,5 | 20 | 50 | | | 6.43 € | | | B0234.2102X55 | orange RAL 2004 | plastic-coated | 2 | M10 | 13,5 | 18,5 | 19 | 28,5 | 6,5 | 17,5 | 42,5 | 45,5 | 65 | 74,5 | 9,5 | 20 | 55 | | | 6.43 € | | | B0234.2102X60 | orange RAL 2004 | plastic-coated | 2 | M10 | 13,5 | 18,5 | 19 | 28,5 | 6,5 | 17,5 | 42,5 | 45,5 | 65 | 74,5 | 9,5 | 20 | 60 | | | 6.43 € | | | B0234.2103X15 | silver metallic | plastic-coated | 2 | M10 | 13,5 | 18,5 | 19 | 28,5 | 6,5 | 17,5 | 42,5 | 45,5 | 65 | 74,5 | 9,5 | 20 | 15 | | | 6.02 € | | | B0234.2103X20 | silver metallic | plastic-coated | 2 | M10 | 13,5 | 18,5 | 19 | 28,5 | 6,5 | 17,5 | 42,5 | 45,5 | 65 | 74,5 | 9,5 | 20 | 20 | | | 6.02 € | | | B0234.2103X25 | silver metallic | plastic-coated | 2 | M10 | 13,5 | 18,5 | 19 | 28,5 | 6,5 | 17,5 | 42,5 | 45,5 | 65 | 74,5 | 9,5 | 20 | 25 | | | 6.02 € | | | B0234.2103X30 | silver metallic | plastic-coated | 2 | M10 | 13,5 | 18,5 | 19 | 28,5 | 6,5 | 17,5 | 42,5 | 45,5 | 65 | 74,5 | 9,5 | 20 | 30 | | | 6.02 € | | | B0234.2103X35 | silver metallic | plastic-coated | 2 | M10 | 13,5 | 18,5 | 19 | 28,5 | 6,5 | 17,5 | 42,5 | 45,5 | 65 | 74,5 | 9,5 | 20 | 35 | | | 6.43 € | | | B0234.2103X40 | silver metallic | plastic-coated | 2 | M10 | 13,5 | 18,5 | 19 | 28,5 | 6,5 | 17,5 | 42,5 | 45,5 | 65 | 74,5 | 9,5 | 20 | 40 | | | 6.43 € | | | B0234.2103X45 | silver metallic | plastic-coated | 2 | M10 | 13,5 | 18,5 | 19 | 28,5 | 6,5 | 17,5 | 42,5 | 45,5 | 65 | 74,5 | 9,5 | 20 | 45 | | | 6.43 € | | | B0234.2103X50 | silver metallic | plastic-coated | 2 | M10 | 13,5 | 18,5 | 19 | 28,5 | 6,5 | 17,5 | 42,5 | 45,5 | 65 | 74,5 | 9,5 | 20 | 50 | | | 6.43 € | | | B0234.2103X55 | silver metallic | plastic-coated | 2 | M10 | 13,5 | 18,5 | 19 | 28,5 | 6,5 | 17,5 | 42,5 | 45,5 | 65 | 74,5 | 9,5 | 20 | 55 | | | 6.43 € | | | B0234.2103X60 | silver metallic | plastic-coated | 2 | M10 | 13,5 | 18,5 | 19 | 28,5 | 6,5 | 17,5 | 42,5 | 45,5 | 65 | 74,5 | 9,5 | 20 | 60 | | | 6.43 € | | | B0234.2106X15 | silver | high-gloss chromed | 2 | M10 | 13,5 | 18,5 | 19 | 28,5 | 6,5 | 17,5 | 42,5 | 45,5 | 65 | 74,5 | 9,5 | 20 | 15 | | | 7.83 € | | | B0234.2106X20 | silver | high-gloss chromed | 2 | M10 | 13,5 | 18,5 | 19 | 28,5 | 6,5 | 17,5 | 42,5 | 45,5 | 65 | 74,5 | 9,5 | 20 | 20 | | | 7.83 € | | | B0234.2106X25 | silver | high-gloss chromed | 2 | M10 | 13,5 | 18,5 | 19 | 28,5 | 6,5 | 17,5 | 42,5 | 45,5 | 65 | 74,5 | 9,5 | 20 | 25 | | | 7.83 € | | | B0234.2106X30 | silver | high-gloss chromed | 2 | M10 | 13,5 | 18,5 | 19 | 28,5 | 6,5 | 17,5 | 42,5 | 45,5 | 65 | 74,5 | 9,5 | 20 | 30 | | | 7.83 € | | | B0234.2106X35 | silver | high-gloss chromed | 2 | M10 | 13,5 | 18,5 | 19 | 28,5 | 6,5 | 17,5 | 42,5 | 45,5 | 65 | 74,5 | 9,5 | 20 | 35 | | | 8.36 € | | | B0234.2106X40 | silver | high-gloss chromed | 2 | M10 | 13,5 | 18,5 | 19 | 28,5 | 6,5 | 17,5 | 42,5 | 45,5 | 65 | 74,5 | 9,5 | 20 | 40 | | | 8.36 € | | | B0234.2106X45 | silver | high-gloss chromed | 2 | M10 | 13,5 | 18,5 | 19 | 28,5 | 6,5 | 17,5 | 42,5 | 45,5 | 65 | 74,5 | 9,5 | 20 | 45 | | | 8.36 € | | | B0234.2106X50 | silver | high-gloss chromed | 2 | M10 | 13,5 | 18,5 | 19 | 28,5 | 6,5 | 17,5 | 42,5 | 45,5 | 65 | 74,5 | 9,5 | 20 | 50 | | | 8.36 € | | | B0234.2106X55 | silver | high-gloss chromed | 2 | M10 | 13,5 | 18,5 | 19 | 28,5 | 6,5 | 17,5 | 42,5 | 45,5 | 65 | 74,5 | 9,5 | 20 | 55 | | | 8.36 € | | | B0234.2106X60 | silver | high-gloss chromed | 2 | M10 | 13,5 | 18,5 | 19 | 28,5 | 6,5 | 17,5 | 42,5 | 45,5 | 65 | 74,5 | 9,5 | 20 | 60 | | | 8.36 € | | | B0234.3081X15 | jet black RAL 9005 | satin finish | 3 | M8 | 16 | 21 | 22 | 37 | 10 | 24 | 54,5 | 58,5 | 80 | 91 | 11 | 22 | 15 | | | 6.63 € | | | B0234.3081X20 | jet black RAL 9005 | satin finish | 3 | M8 | 16 | 21 | 22 | 37 | 10 | 24 | 54,5 | 58,5 | 80 | 91 | 11 | 22 | 20 | | | 6.63 € | | | B0234.3081X25 | jet black RAL 9005 | satin finish | 3 | M8 | 16 | 21 | 22 | 37 | 10 | 24 | 54,5 | 58,5 | 80 | 91 | 11 | 22 | 25 | | | 6.63 € | | | B0234.3081X30 | jet black RAL 9005 | satin finish | 3 | M8 | 16 | 21 | 22 | 37 | 10 | 24 | 54,5 | 58,5 | 80 | 91 | 11 | 22 | 30 | | | 6.63 € | | | B0234.3081X35 | jet black RAL 9005 | satin finish | 3 | M8 | 16 | 21 | 22 | 37 | 10 | 24 | 54,5 | 58,5 | 80 | 91 | 11 | 22 | 35 | | | 7.10 € | | | B0234.3081X40 | jet black RAL 9005 | satin finish | 3 | M8 | 16 | 21 | 22 | 37 | 10 | 24 | 54,5 | 58,5 | 80 | 91 | 11 | 22 | 40 | | | 7.10 € | | | B0234.3081X45 | jet black RAL 9005 | satin finish | 3 | M8 | 16 | 21 | 22 | 37 | 10 | 24 | 54,5 | 58,5 | 80 | 91 | 11 | 22 | 45 | | | 7.10 € | | | B0234.3081X50 | jet black RAL 9005 | satin finish | 3 | M8 | 16 | 21 | 22 | 37 | 10 | 24 | 54,5 | 58,5 | 80 | 91 | 11 | 22 | 50 | | | 7.10 € | | | B0234.3081X55 | jet black RAL 9005 | satin finish | 3 | M8 | 16 | 21 | 22 | 37 | 10 | 24 | 54,5 | 58,5 | 80 | 91 | 11 | 22 | 55 | | | 7.10 € | | | B0234.3081X60 | jet black RAL 9005 | satin finish | 3 | M8 | 16 | 21 | 22 | 37 | 10 | 24 | 54,5 | 58,5 | 80 | 91 | 11 | 22 | 60 | | | 7.10 € | | | B0234.3082X15 | orange RAL 2004 | plastic-coated | 3 | M8 | 16 | 21 | 22 | 37 | 10 | 24 | 54,5 | 58,5 | 80 | 91 | 11 | 22 | 15 | | | 6.63 € | | | B0234.3082X20 | orange RAL 2004 | plastic-coated | 3 | M8 | 16 | 21 | 22 | 37 | 10 | 24 | 54,5 | 58,5 | 80 | 91 | 11 | 22 | 20 | | | 6.63 € | | | B0234.3082X25 | orange RAL 2004 | plastic-coated | 3 | M8 | 16 | 21 | 22 | 37 | 10 | 24 | 54,5 | 58,5 | 80 | 91 | 11 | 22 | 25 | | | 6.63 € | | | B0234.3082X30 | orange RAL 2004 | plastic-coated | 3 | M8 | 16 | 21 | 22 | 37 | 10 | 24 | 54,5 | 58,5 | 80 | 91 | 11 | 22 | 30 | | | 6.63 € | | | B0234.3082X35 | orange RAL 2004 | plastic-coated | 3 | M8 | 16 | 21 | 22 | 37 | 10 | 24 | 54,5 | 58,5 | 80 | 91 | 11 | 22 | 35 | | | 7.10 € | | | B0234.3082X40 | orange RAL 2004 | plastic-coated | 3 | M8 | 16 | 21 | 22 | 37 | 10 | 24 | 54,5 | 58,5 | 80 | 91 | 11 | 22 | 40 | | | 7.10 € | | | B0234.3082X45 | orange RAL 2004 | plastic-coated | 3 | M8 | 16 | 21 | 22 | 37 | 10 | 24 | 54,5 | 58,5 | 80 | 91 | 11 | 22 | 45 | | | 7.10 € | | | B0234.3082X50 | orange RAL 2004 | plastic-coated | 3 | M8 | 16 | 21 | 22 | 37 | 10 | 24 | 54,5 | 58,5 | 80 | 91 | 11 | 22 | 50 | | | 7.10 € | | | B0234.3082X55 | orange RAL 2004 | plastic-coated | 3 | M8 | 16 | 21 | 22 | 37 | 10 | 24 | 54,5 | 58,5 | 80 | 91 | 11 | 22 | 55 | | | 7.10 € | | | B0234.3082X60 | orange RAL 2004 | plastic-coated | 3 | M8 | 16 | 21 | 22 | 37 | 10 | 24 | 54,5 | 58,5 | 80 | 91 | 11 | 22 | 60 | | | 7.10 € | | | B0234.3083X15 | silver metallic | plastic-coated | 3 | M8 | 16 | 21 | 22 | 37 | 10 | 24 | 54,5 | 58,5 | 80 | 91 | 11 | 22 | 15 | | | 6.63 € | | | B0234.3083X20 | silver metallic | plastic-coated | 3 | M8 | 16 | 21 | 22 | 37 | 10 | 24 | 54,5 | 58,5 | 80 | 91 | 11 | 22 | 20 | | | 6.63 € | | | B0234.3083X25 | silver metallic | plastic-coated | 3 | M8 | 16 | 21 | 22 | 37 | 10 | 24 | 54,5 | 58,5 | 80 | 91 | 11 | 22 | 25 | | | 6.63 € | | | B0234.3083X30 | silver metallic | plastic-coated | 3 | M8 | 16 | 21 | 22 | 37 | 10 | 24 | 54,5 | 58,5 | 80 | 91 | 11 | 22 | 30 | | | 6.63 € | | | B0234.3083X35 | silver metallic | plastic-coated | 3 | M8 | 16 | 21 | 22 | 37 | 10 | 24 | 54,5 | 58,5 | 80 | 91 | 11 | 22 | 35 | | | 7.10 € | | | B0234.3083X40 | silver metallic | plastic-coated | 3 | M8 | 16 | 21 | 22 | 37 | 10 | 24 | 54,5 | 58,5 | 80 | 91 | 11 | 22 | 40 | | | 7.10 € | | | B0234.3083X45 | silver metallic | plastic-coated | 3 | M8 | 16 | 21 | 22 | 37 | 10 | 24 | 54,5 | 58,5 | 80 | 91 | 11 | 22 | 45 | | | 7.10 € | | | B0234.3083X50 | silver metallic | plastic-coated | 3 | M8 | 16 | 21 | 22 | 37 | 10 | 24 | 54,5 | 58,5 | 80 | 91 | 11 | 22 | 50 | | | 7.10 € | | | B0234.3083X55 | silver metallic | plastic-coated | 3 | M8 | 16 | 21 | 22 | 37 | 10 | 24 | 54,5 | 58,5 | 80 | 91 | 11 | 22 | 55 | | | 7.10 € | | | B0234.3083X60 | silver metallic | plastic-coated | 3 | M8 | 16 | 21 | 22 | 37 | 10 | 24 | 54,5 | 58,5 | 80 | 91 | 11 | 22 | 60 | | | 7.10 € | | | B0234.3086X15 | silver | high-gloss chromed | 3 | M8 | 16 | 21 | 22 | 37 | 10 | 24 | 54,5 | 58,5 | 80 | 91 | 11 | 22 | 15 | | | 8.64 € | | | B0234.3086X20 | silver | high-gloss chromed | 3 | M8 | 16 | 21 | 22 | 37 | 10 | 24 | 54,5 | 58,5 | 80 | 91 | 11 | 22 | 20 | | | 8.64 € | | | B0234.3086X25 | silver | high-gloss chromed | 3 | M8 | 16 | 21 | 22 | 37 | 10 | 24 | 54,5 | 58,5 | 80 | 91 | 11 | 22 | 25 | | | 8.64 € | | | B0234.3086X30 | silver | high-gloss chromed | 3 | M8 | 16 | 21 | 22 | 37 | 10 | 24 | 54,5 | 58,5 | 80 | 91 | 11 | 22 | 30 | | | 8.64 € | | | B0234.3086X35 | silver | high-gloss chromed | 3 | M8 | 16 | 21 | 22 | 37 | 10 | 24 | 54,5 | 58,5 | 80 | 91 | 11 | 22 | 35 | | | 9.21 € | | | B0234.3086X40 | silver | high-gloss chromed | 3 | M8 | 16 | 21 | 22 | 37 | 10 | 24 | 54,5 | 58,5 | 80 | 91 | 11 | 22 | 40 | | | 9.21 € | | | B0234.3086X45 | silver | high-gloss chromed | 3 | M8 | 16 | 21 | 22 | 37 | 10 | 24 | 54,5 | 58,5 | 80 | 91 | 11 | 22 | 45 | | | 9.21 € | | | B0234.3086X50 | silver | high-gloss chromed | 3 | M8 | 16 | 21 | 22 | 37 | 10 | 24 | 54,5 | 58,5 | 80 | 91 | 11 | 22 | 50 | | | 9.21 € | | | B0234.3086X55 | silver | high-gloss chromed | 3 | M8 | 16 | 21 | 22 | 37 | 10 | 24 | 54,5 | 58,5 | 80 | 91 | 11 | 22 | 55 | | | 9.21 € | | | B0234.3086X60 | silver | high-gloss chromed | 3 | M8 | 16 | 21 | 22 | 37 | 10 | 24 | 54,5 | 58,5 | 80 | 91 | 11 | 22 | 60 | | | 9.21 € | | | B0234.3101X15 | jet black RAL 9005 | satin finish | 3 | M10 | 16 | 21 | 22 | 37 | 10 | 24 | 54,5 | 58,5 | 80 | 91 | 11 | 22 | 15 | | | 6.63 € | | | B0234.3101X20 | jet black RAL 9005 | satin finish | 3 | M10 | 16 | 21 | 22 | 37 | 10 | 24 | 54,5 | 58,5 | 80 | 91 | 11 | 22 | 20 | | | 6.63 € | | | B0234.3101X25 | jet black RAL 9005 | satin finish | 3 | M10 | 16 | 21 | 22 | 37 | 10 | 24 | 54,5 | 58,5 | 80 | 91 | 11 | 22 | 25 | | | 6.63 € | | | B0234.3101X30 | jet black RAL 9005 | satin finish | 3 | M10 | 16 | 21 | 22 | 37 | 10 | 24 | 54,5 | 58,5 | 80 | 91 | 11 | 22 | 30 | | | 6.63 € | | | B0234.3101X35 | jet black RAL 9005 | satin finish | 3 | M10 | 16 | 21 | 22 | 37 | 10 | 24 | 54,5 | 58,5 | 80 | 91 | 11 | 22 | 35 | | | 7.10 € | | | B0234.3101X40 | jet black RAL 9005 | satin finish | 3 | M10 | 16 | 21 | 22 | 37 | 10 | 24 | 54,5 | 58,5 | 80 | 91 | 11 | 22 | 40 | | | 7.10 € | | | B0234.3101X45 | jet black RAL 9005 | satin finish | 3 | M10 | 16 | 21 | 22 | 37 | 10 | 24 | 54,5 | 58,5 | 80 | 91 | 11 | 22 | 45 | | | 7.10 € | | | B0234.3101X50 | jet black RAL 9005 | satin finish | 3 | M10 | 16 | 21 | 22 | 37 | 10 | 24 | 54,5 | 58,5 | 80 | 91 | 11 | 22 | 50 | | | 7.10 € | | | B0234.3101X55 | jet black RAL 9005 | satin finish | 3 | M10 | 16 | 21 | 22 | 37 | 10 | 24 | 54,5 | 58,5 | 80 | 91 | 11 | 22 | 55 | | | 7.10 € | | | B0234.3101X60 | jet black RAL 9005 | satin finish | 3 | M10 | 16 | 21 | 22 | 37 | 10 | 24 | 54,5 | 58,5 | 80 | 91 | 11 | 22 | 60 | | | 7.10 € | | | B0234.3102X15 | orange RAL 2004 | plastic-coated | 3 | M10 | 16 | 21 | 22 | 37 | 10 | 24 | 54,5 | 58,5 | 80 | 91 | 11 | 22 | 15 | | | 6.63 € | | | B0234.3102X20 | orange RAL 2004 | plastic-coated | 3 | M10 | 16 | 21 | 22 | 37 | 10 | 24 | 54,5 | 58,5 | 80 | 91 | 11 | 22 | 20 | | | 6.63 € | | | B0234.3102X25 | orange RAL 2004 | plastic-coated | 3 | M10 | 16 | 21 | 22 | 37 | 10 | 24 | 54,5 | 58,5 | 80 | 91 | 11 | 22 | 25 | | | 6.63 € | | | B0234.3102X30 | orange RAL 2004 | plastic-coated | 3 | M10 | 16 | 21 | 22 | 37 | 10 | 24 | 54,5 | 58,5 | 80 | 91 | 11 | 22 | 30 | | | 6.63 € | | | B0234.3102X35 | orange RAL 2004 | plastic-coated | 3 | M10 | 16 | 21 | 22 | 37 | 10 | 24 | 54,5 | 58,5 | 80 | 91 | 11 | 22 | 35 | | | 7.10 € | | | B0234.3102X40 | orange RAL 2004 | plastic-coated | 3 | M10 | 16 | 21 | 22 | 37 | 10 | 24 | 54,5 | 58,5 | 80 | 91 | 11 | 22 | 40 | | | 7.10 € | | | B0234.3102X45 | orange RAL 2004 | plastic-coated | 3 | M10 | 16 | 21 | 22 | 37 | 10 | 24 | 54,5 | 58,5 | 80 | 91 | 11 | 22 | 45 | | | 7.10 € | | | B0234.3102X50 | orange RAL 2004 | plastic-coated | 3 | M10 | 16 | 21 | 22 | 37 | 10 | 24 | 54,5 | 58,5 | 80 | 91 | 11 | 22 | 50 | | | 7.10 € | | | B0234.3102X55 | orange RAL 2004 | plastic-coated | 3 | M10 | 16 | 21 | 22 | 37 | 10 | 24 | 54,5 | 58,5 | 80 | 91 | 11 | 22 | 55 | | | 7.10 € | | | B0234.3102X60 | orange RAL 2004 | plastic-coated | 3 | M10 | 16 | 21 | 22 | 37 | 10 | 24 | 54,5 | 58,5 | 80 | 91 | 11 | 22 | 60 | | | 7.10 € | | | B0234.3103X15 | silver metallic | plastic-coated | 3 | M10 | 16 | 21 | 22 | 37 | 10 | 24 | 54,5 | 58,5 | 80 | 91 | 11 | 22 | 15 | | | 6.63 € | | | B0234.3103X20 | silver metallic | plastic-coated | 3 | M10 | 16 | 21 | 22 | 37 | 10 | 24 | 54,5 | 58,5 | 80 | 91 | 11 | 22 | 20 | | | 6.63 € | | | B0234.3103X25 | silver metallic | plastic-coated | 3 | M10 | 16 | 21 | 22 | 37 | 10 | 24 | 54,5 | 58,5 | 80 | 91 | 11 | 22 | 25 | | | 6.63 € | | | B0234.3103X30 | silver metallic | plastic-coated | 3 | M10 | 16 | 21 | 22 | 37 | 10 | 24 | 54,5 | 58,5 | 80 | 91 | 11 | 22 | 30 | | | 6.63 € | | | B0234.3103X35 | silver metallic | plastic-coated | 3 | M10 | 16 | 21 | 22 | 37 | 10 | 24 | 54,5 | 58,5 | 80 | 91 | 11 | 22 | 35 | | | 7.10 € | | | B0234.3103X40 | silver metallic | plastic-coated | 3 | M10 | 16 | 21 | 22 | 37 | 10 | 24 | 54,5 | 58,5 | 80 | 91 | 11 | 22 | 40 | | | 7.10 € | | | B0234.3103X45 | silver metallic | plastic-coated | 3 | M10 | 16 | 21 | 22 | 37 | 10 | 24 | 54,5 | 58,5 | 80 | 91 | 11 | 22 | 45 | | | 7.10 € | | | B0234.3103X50 | silver metallic | plastic-coated | 3 | M10 | 16 | 21 | 22 | 37 | 10 | 24 | 54,5 | 58,5 | 80 | 91 | 11 | 22 | 50 | | | 7.10 € | | | B0234.3103X55 | silver metallic | plastic-coated | 3 | M10 | 16 | 21 | 22 | 37 | 10 | 24 | 54,5 | 58,5 | 80 | 91 | 11 | 22 | 55 | | | 7.10 € | | | B0234.3103X60 | silver metallic | plastic-coated | 3 | M10 | 16 | 21 | 22 | 37 | 10 | 24 | 54,5 | 58,5 | 80 | 91 | 11 | 22 | 60 | | | 7.10 € | | | B0234.3106X15 | silver | high-gloss chromed | 3 | M10 | 16 | 21 | 22 | 37 | 10 | 24 | 54,5 | 58,5 | 80 | 91 | 11 | 22 | 15 | | | 8.64 € | | | B0234.3106X20 | silver | high-gloss chromed | 3 | M10 | 16 | 21 | 22 | 37 | 10 | 24 | 54,5 | 58,5 | 80 | 91 | 11 | 22 | 20 | | | 8.64 € | | | B0234.3106X25 | silver | high-gloss chromed | 3 | M10 | 16 | 21 | 22 | 37 | 10 | 24 | 54,5 | 58,5 | 80 | 91 | 11 | 22 | 25 | | | 8.64 € | | | B0234.3106X30 | silver | high-gloss chromed | 3 | M10 | 16 | 21 | 22 | 37 | 10 | 24 | 54,5 | 58,5 | 80 | 91 | 11 | 22 | 30 | | | 8.64 € | | | B0234.3106X35 | silver | high-gloss chromed | 3 | M10 | 16 | 21 | 22 | 37 | 10 | 24 | 54,5 | 58,5 | 80 | 91 | 11 | 22 | 35 | | | 9.21 € | | | B0234.3106X40 | silver | high-gloss chromed | 3 | M10 | 16 | 21 | 22 | 37 | 10 | 24 | 54,5 | 58,5 | 80 | 91 | 11 | 22 | 40 | | | 9.21 € | | | B0234.3106X45 | silver | high-gloss chromed | 3 | M10 | 16 | 21 | 22 | 37 | 10 | 24 | 54,5 | 58,5 | 80 | 91 | 11 | 22 | 45 | | | 9.21 € | | | B0234.3106X50 | silver | high-gloss chromed | 3 | M10 | 16 | 21 | 22 | 37 | 10 | 24 | 54,5 | 58,5 | 80 | 91 | 11 | 22 | 50 | | | 9.21 € | | | B0234.3106X55 | silver | high-gloss chromed | 3 | M10 | 16 | 21 | 22 | 37 | 10 | 24 | 54,5 | 58,5 | 80 | 91 | 11 | 22 | 55 | | | 9.21 € | | | B0234.3106X60 | silver | high-gloss chromed | 3 | M10 | 16 | 21 | 22 | 37 | 10 | 24 | 54,5 | 58,5 | 80 | 91 | 11 | 22 | 60 | | | 9.21 € | | | B0234.4101X20 | jet black RAL 9005 | satin finish | 4 | M10 | 19 | 27 | 27,5 | 43 | 10 | 27 | 63 | 67,5 | 95 | 109 | 13 | 24 | 20 | | | 7.82 € | | | B0234.4101X25 | jet black RAL 9005 | satin finish | 4 | M10 | 19 | 27 | 27,5 | 43 | 10 | 27 | 63 | 67,5 | 95 | 109 | 13 | 24 | 25 | | | 7.82 € | | | B0234.4101X30 | jet black RAL 9005 | satin finish | 4 | M10 | 19 | 27 | 27,5 | 43 | 10 | 27 | 63 | 67,5 | 95 | 109 | 13 | 24 | 30 | | | 7.82 € | | | B0234.4101X35 | jet black RAL 9005 | satin finish | 4 | M10 | 19 | 27 | 27,5 | 43 | 10 | 27 | 63 | 67,5 | 95 | 109 | 13 | 24 | 35 | | | 8.20 € | | | B0234.4101X40 | jet black RAL 9005 | satin finish | 4 | M10 | 19 | 27 | 27,5 | 43 | 10 | 27 | 63 | 67,5 | 95 | 109 | 13 | 24 | 40 | | | 8.20 € | | | B0234.4101X45 | jet black RAL 9005 | satin finish | 4 | M10 | 19 | 27 | 27,5 | 43 | 10 | 27 | 63 | 67,5 | 95 | 109 | 13 | 24 | 45 | | | 8.20 € | | | B0234.4101X50 | jet black RAL 9005 | satin finish | 4 | M10 | 19 | 27 | 27,5 | 43 | 10 | 27 | 63 | 67,5 | 95 | 109 | 13 | 24 | 50 | | | 8.20 € | | | B0234.4101X55 | jet black RAL 9005 | satin finish | 4 | M10 | 19 | 27 | 27,5 | 43 | 10 | 27 | 63 | 67,5 | 95 | 109 | 13 | 24 | 55 | | | 8.20 € | | | B0234.4101X60 | jet black RAL 9005 | satin finish | 4 | M10 | 19 | 27 | 27,5 | 43 | 10 | 27 | 63 | 67,5 | 95 | 109 | 13 | 24 | 60 | | | 8.20 € | | | B0234.4101X70 | jet black RAL 9005 | satin finish | 4 | M10 | 19 | 27 | 27,5 | 43 | 10 | 27 | 63 | 67,5 | 95 | 109 | 13 | 24 | 70 | | | 8.77 € | | | B0234.4101X80 | jet black RAL 9005 | satin finish | 4 | M10 | 19 | 27 | 27,5 | 43 | 10 | 27 | 63 | 67,5 | 95 | 109 | 13 | 24 | 80 | | | 8.77 € | | | B0234.4101X90 | jet black RAL 9005 | satin finish | 4 | M10 | 19 | 27 | 27,5 | 43 | 10 | 27 | 63 | 67,5 | 95 | 109 | 13 | 24 | 90 | | | 8.77 € | | | B0234.4102X20 | orange RAL 2004 | plastic-coated | 4 | M10 | 19 | 27 | 27,5 | 43 | 10 | 27 | 63 | 67,5 | 95 | 109 | 13 | 24 | 20 | | | 7.82 € | | | B0234.4102X25 | orange RAL 2004 | plastic-coated | 4 | M10 | 19 | 27 | 27,5 | 43 | 10 | 27 | 63 | 67,5 | 95 | 109 | 13 | 24 | 25 | | | 7.82 € | | | B0234.4102X30 | orange RAL 2004 | plastic-coated | 4 | M10 | 19 | 27 | 27,5 | 43 | 10 | 27 | 63 | 67,5 | 95 | 109 | 13 | 24 | 30 | | | 7.82 € | | | B0234.4102X35 | orange RAL 2004 | plastic-coated | 4 | M10 | 19 | 27 | 27,5 | 43 | 10 | 27 | 63 | 67,5 | 95 | 109 | 13 | 24 | 35 | | | 8.20 € | | | B0234.4102X40 | orange RAL 2004 | plastic-coated | 4 | M10 | 19 | 27 | 27,5 | 43 | 10 | 27 | 63 | 67,5 | 95 | 109 | 13 | 24 | 40 | | | 8.20 € | | | B0234.4102X45 | orange RAL 2004 | plastic-coated | 4 | M10 | 19 | 27 | 27,5 | 43 | 10 | 27 | 63 | 67,5 | 95 | 109 | 13 | 24 | 45 | | | 8.20 € | | | B0234.4102X50 | orange RAL 2004 | plastic-coated | 4 | M10 | 19 | 27 | 27,5 | 43 | 10 | 27 | 63 | 67,5 | 95 | 109 | 13 | 24 | 50 | | | 8.20 € | | | B0234.4102X55 | orange RAL 2004 | plastic-coated | 4 | M10 | 19 | 27 | 27,5 | 43 | 10 | 27 | 63 | 67,5 | 95 | 109 | 13 | 24 | 55 | | | 8.20 € | | | B0234.4102X60 | orange RAL 2004 | plastic-coated | 4 | M10 | 19 | 27 | 27,5 | 43 | 10 | 27 | 63 | 67,5 | 95 | 109 | 13 | 24 | 60 | | | 8.20 € | | | B0234.4102X70 | orange RAL 2004 | plastic-coated | 4 | M10 | 19 | 27 | 27,5 | 43 | 10 | 27 | 63 | 67,5 | 95 | 109 | 13 | 24 | 70 | | | 8.77 € | | | B0234.4102X80 | orange RAL 2004 | plastic-coated | 4 | M10 | 19 | 27 | 27,5 | 43 | 10 | 27 | 63 | 67,5 | 95 | 109 | 13 | 24 | 80 | | | 8.77 € | | | B0234.4102X90 | orange RAL 2004 | plastic-coated | 4 | M10 | 19 | 27 | 27,5 | 43 | 10 | 27 | 63 | 67,5 | 95 | 109 | 13 | 24 | 90 | | | 8.77 € | | | B0234.4103X20 | silver metallic | plastic-coated | 4 | M10 | 19 | 27 | 27,5 | 43 | 10 | 27 | 63 | 67,5 | 95 | 109 | 13 | 24 | 20 | | | 7.82 € | | | B0234.4103X25 | silver metallic | plastic-coated | 4 | M10 | 19 | 27 | 27,5 | 43 | 10 | 27 | 63 | 67,5 | 95 | 109 | 13 | 24 | 25 | | | 7.82 € | | | B0234.4103X30 | silver metallic | plastic-coated | 4 | M10 | 19 | 27 | 27,5 | 43 | 10 | 27 | 63 | 67,5 | 95 | 109 | 13 | 24 | 30 | | | 7.82 € | | | B0234.4103X35 | silver metallic | plastic-coated | 4 | M10 | 19 | 27 | 27,5 | 43 | 10 | 27 | 63 | 67,5 | 95 | 109 | 13 | 24 | 35 | | | 8.20 € | | | B0234.4103X40 | silver metallic | plastic-coated | 4 | M10 | 19 | 27 | 27,5 | 43 | 10 | 27 | 63 | 67,5 | 95 | 109 | 13 | 24 | 40 | | | 8.20 € | | | B0234.4103X45 | silver metallic | plastic-coated | 4 | M10 | 19 | 27 | 27,5 | 43 | 10 | 27 | 63 | 67,5 | 95 | 109 | 13 | 24 | 45 | | | 8.20 € | | | B0234.4103X50 | silver metallic | plastic-coated | 4 | M10 | 19 | 27 | 27,5 | 43 | 10 | 27 | 63 | 67,5 | 95 | 109 | 13 | 24 | 50 | | | 8.20 € | | | B0234.4103X55 | silver metallic | plastic-coated | 4 | M10 | 19 | 27 | 27,5 | 43 | 10 | 27 | 63 | 67,5 | 95 | 109 | 13 | 24 | 55 | | | 8.20 € | | | B0234.4103X60 | silver metallic | plastic-coated | 4 | M10 | 19 | 27 | 27,5 | 43 | 10 | 27 | 63 | 67,5 | 95 | 109 | 13 | 24 | 60 | | | 8.20 € | | | B0234.4103X70 | silver metallic | plastic-coated | 4 | M10 | 19 | 27 | 27,5 | 43 | 10 | 27 | 63 | 67,5 | 95 | 109 | 13 | 24 | 70 | | | 8.77 € | | | B0234.4103X80 | silver metallic | plastic-coated | 4 | M10 | 19 | 27 | 27,5 | 43 | 10 | 27 | 63 | 67,5 | 95 | 109 | 13 | 24 | 80 | | | 8.77 € | | | B0234.4103X90 | silver metallic | plastic-coated | 4 | M10 | 19 | 27 | 27,5 | 43 | 10 | 27 | 63 | 67,5 | 95 | 109 | 13 | 24 | 90 | | | 8.77 € | | | B0234.4106X20 | silver | high-gloss chromed | 4 | M10 | 19 | 27 | 27,5 | 43 | 10 | 27 | 63 | 67,5 | 95 | 109 | 13 | 24 | 20 | | | 10.15 € | | | B0234.4106X25 | silver | high-gloss chromed | 4 | M10 | 19 | 27 | 27,5 | 43 | 10 | 27 | 63 | 67,5 | 95 | 109 | 13 | 24 | 25 | | | 10.15 € | | | B0234.4106X30 | silver | high-gloss chromed | 4 | M10 | 19 | 27 | 27,5 | 43 | 10 | 27 | 63 | 67,5 | 95 | 109 | 13 | 24 | 30 | | | 10.15 € | | | B0234.4106X35 | silver | high-gloss chromed | 4 | M10 | 19 | 27 | 27,5 | 43 | 10 | 27 | 63 | 67,5 | 95 | 109 | 13 | 24 | 35 | | | 10.67 € | | | B0234.4106X40 | silver | high-gloss chromed | 4 | M10 | 19 | 27 | 27,5 | 43 | 10 | 27 | 63 | 67,5 | 95 | 109 | 13 | 24 | 40 | | | 10.67 € | | | B0234.4106X45 | silver | high-gloss chromed | 4 | M10 | 19 | 27 | 27,5 | 43 | 10 | 27 | 63 | 67,5 | 95 | 109 | 13 | 24 | 45 | | | 10.67 € | | | B0234.4106X50 | silver | high-gloss chromed | 4 | M10 | 19 | 27 | 27,5 | 43 | 10 | 27 | 63 | 67,5 | 95 | 109 | 13 | 24 | 50 | | | 10.67 € | | | B0234.4106X55 | silver | high-gloss chromed | 4 | M10 | 19 | 27 | 27,5 | 43 | 10 | 27 | 63 | 67,5 | 95 | 109 | 13 | 24 | 55 | | | 10.67 € | | | B0234.4106X60 | silver | high-gloss chromed | 4 | M10 | 19 | 27 | 27,5 | 43 | 10 | 27 | 63 | 67,5 | 95 | 109 | 13 | 24 | 60 | | | 10.67 € | | | B0234.4106X70 | silver | high-gloss chromed | 4 | M10 | 19 | 27 | 27,5 | 43 | 10 | 27 | 63 | 67,5 | 95 | 109 | 13 | 24 | 70 | | | 11.39 € | | | B0234.4106X80 | silver | high-gloss chromed | 4 | M10 | 19 | 27 | 27,5 | 43 | 10 | 27 | 63 | 67,5 | 95 | 109 | 13 | 24 | 80 | | | 11.39 € | | | B0234.4106X90 | silver | high-gloss chromed | 4 | M10 | 19 | 27 | 27,5 | 43 | 10 | 27 | 63 | 67,5 | 95 | 109 | 13 | 24 | 90 | | | 11.39 € | | | B0234.4121X20 | jet black RAL 9005 | satin finish | 4 | M12 | 19 | 27 | 27,5 | 43 | 10 | 27 | 63 | 67,5 | 95 | 109 | 13 | 24 | 20 | | | 7.82 € | | | B0234.4121X25 | jet black RAL 9005 | satin finish | 4 | M12 | 19 | 27 | 27,5 | 43 | 10 | 27 | 63 | 67,5 | 95 | 109 | 13 | 24 | 25 | | | 7.82 € | | | B0234.4121X30 | jet black RAL 9005 | satin finish | 4 | M12 | 19 | 27 | 27,5 | 43 | 10 | 27 | 63 | 67,5 | 95 | 109 | 13 | 24 | 30 | | | 7.82 € | | | B0234.4121X35 | jet black RAL 9005 | satin finish | 4 | M12 | 19 | 27 | 27,5 | 43 | 10 | 27 | 63 | 67,5 | 95 | 109 | 13 | 24 | 35 | | | 8.20 € | | | B0234.4121X40 | jet black RAL 9005 | satin finish | 4 | M12 | 19 | 27 | 27,5 | 43 | 10 | 27 | 63 | 67,5 | 95 | 109 | 13 | 24 | 40 | | | 8.20 € | | | B0234.4121X45 | jet black RAL 9005 | satin finish | 4 | M12 | 19 | 27 | 27,5 | 43 | 10 | 27 | 63 | 67,5 | 95 | 109 | 13 | 24 | 45 | | | 8.20 € | | | B0234.4121X50 | jet black RAL 9005 | satin finish | 4 | M12 | 19 | 27 | 27,5 | 43 | 10 | 27 | 63 | 67,5 | 95 | 109 | 13 | 24 | 50 | | | 8.20 € | | | B0234.4121X55 | jet black RAL 9005 | satin finish | 4 | M12 | 19 | 27 | 27,5 | 43 | 10 | 27 | 63 | 67,5 | 95 | 109 | 13 | 24 | 55 | | | 8.20 € | | | B0234.4121X60 | jet black RAL 9005 | satin finish | 4 | M12 | 19 | 27 | 27,5 | 43 | 10 | 27 | 63 | 67,5 | 95 | 109 | 13 | 24 | 60 | | | 8.20 € | | | B0234.4121X70 | jet black RAL 9005 | satin finish | 4 | M12 | 19 | 27 | 27,5 | 43 | 10 | 27 | 63 | 67,5 | 95 | 109 | 13 | 24 | 70 | | | 8.77 € | | | B0234.4121X80 | jet black RAL 9005 | satin finish | 4 | M12 | 19 | 27 | 27,5 | 43 | 10 | 27 | 63 | 67,5 | 95 | 109 | 13 | 24 | 80 | | | 8.77 € | | | B0234.4121X90 | jet black RAL 9005 | satin finish | 4 | M12 | 19 | 27 | 27,5 | 43 | 10 | 27 | 63 | 67,5 | 95 | 109 | 13 | 24 | 90 | | | 8.77 € | | | B0234.4122X20 | orange RAL 2004 | plastic-coated | 4 | M12 | 19 | 27 | 27,5 | 43 | 10 | 27 | 63 | 67,5 | 95 | 109 | 13 | 24 | 20 | | | 7.82 € | | | B0234.4122X25 | orange RAL 2004 | plastic-coated | 4 | M12 | 19 | 27 | 27,5 | 43 | 10 | 27 | 63 | 67,5 | 95 | 109 | 13 | 24 | 25 | | | 7.82 € | | | B0234.4122X30 | orange RAL 2004 | plastic-coated | 4 | M12 | 19 | 27 | 27,5 | 43 | 10 | 27 | 63 | 67,5 | 95 | 109 | 13 | 24 | 30 | | | 7.82 € | | | B0234.4122X35 | orange RAL 2004 | plastic-coated | 4 | M12 | 19 | 27 | 27,5 | 43 | 10 | 27 | 63 | 67,5 | 95 | 109 | 13 | 24 | 35 | | | 8.20 € | | | B0234.4122X40 | orange RAL 2004 | plastic-coated | 4 | M12 | 19 | 27 | 27,5 | 43 | 10 | 27 | 63 | 67,5 | 95 | 109 | 13 | 24 | 40 | | | 8.20 € | | | B0234.4122X45 | orange RAL 2004 | plastic-coated | 4 | M12 | 19 | 27 | 27,5 | 43 | 10 | 27 | 63 | 67,5 | 95 | 109 | 13 | 24 | 45 | | | 8.20 € | | | B0234.4122X50 | orange RAL 2004 | plastic-coated | 4 | M12 | 19 | 27 | 27,5 | 43 | 10 | 27 | 63 | 67,5 | 95 | 109 | 13 | 24 | 50 | | | 8.20 € | | | B0234.4122X55 | orange RAL 2004 | plastic-coated | 4 | M12 | 19 | 27 | 27,5 | 43 | 10 | 27 | 63 | 67,5 | 95 | 109 | 13 | 24 | 55 | | | 8.20 € | | | B0234.4122X60 | orange RAL 2004 | plastic-coated | 4 | M12 | 19 | 27 | 27,5 | 43 | 10 | 27 | 63 | 67,5 | 95 | 109 | 13 | 24 | 60 | | | 8.20 € | | | B0234.4122X70 | orange RAL 2004 | plastic-coated | 4 | M12 | 19 | 27 | 27,5 | 43 | 10 | 27 | 63 | 67,5 | 95 | 109 | 13 | 24 | 70 | | | 8.77 € | | | B0234.4122X80 | orange RAL 2004 | plastic-coated | 4 | M12 | 19 | 27 | 27,5 | 43 | 10 | 27 | 63 | 67,5 | 95 | 109 | 13 | 24 | 80 | | | 8.77 € | | | B0234.4122X90 | orange RAL 2004 | plastic-coated | 4 | M12 | 19 | 27 | 27,5 | 43 | 10 | 27 | 63 | 67,5 | 95 | 109 | 13 | 24 | 90 | | | 8.77 € | | | B0234.4123X20 | silver metallic | plastic-coated | 4 | M12 | 19 | 27 | 27,5 | 43 | 10 | 27 | 63 | 67,5 | 95 | 109 | 13 | 24 | 20 | | | 7.82 € | | | B0234.4123X25 | silver metallic | plastic-coated | 4 | M12 | 19 | 27 | 27,5 | 43 | 10 | 27 | 63 | 67,5 | 95 | 109 | 13 | 24 | 25 | | | 7.82 € | | | B0234.4123X30 | silver metallic | plastic-coated | 4 | M12 | 19 | 27 | 27,5 | 43 | 10 | 27 | 63 | 67,5 | 95 | 109 | 13 | 24 | 30 | | | 7.82 € | | | B0234.4123X35 | silver metallic | plastic-coated | 4 | M12 | 19 | 27 | 27,5 | 43 | 10 | 27 | 63 | 67,5 | 95 | 109 | 13 | 24 | 35 | | | 8.20 € | | | B0234.4123X40 | silver metallic | plastic-coated | 4 | M12 | 19 | 27 | 27,5 | 43 | 10 | 27 | 63 | 67,5 | 95 | 109 | 13 | 24 | 40 | | | 8.20 € | | | B0234.4123X45 | silver metallic | plastic-coated | 4 | M12 | 19 | 27 | 27,5 | 43 | 10 | 27 | 63 | 67,5 | 95 | 109 | 13 | 24 | 45 | | | 8.20 € | | | B0234.4123X50 | silver metallic | plastic-coated | 4 | M12 | 19 | 27 | 27,5 | 43 | 10 | 27 | 63 | 67,5 | 95 | 109 | 13 | 24 | 50 | | | 8.20 € | | | B0234.4123X55 | silver metallic | plastic-coated | 4 | M12 | 19 | 27 | 27,5 | 43 | 10 | 27 | 63 | 67,5 | 95 | 109 | 13 | 24 | 55 | | | 8.20 € | | | B0234.4123X60 | silver metallic | plastic-coated | 4 | M12 | 19 | 27 | 27,5 | 43 | 10 | 27 | 63 | 67,5 | 95 | 109 | 13 | 24 | 60 | | | 8.20 € | | | B0234.4123X70 | silver metallic | plastic-coated | 4 | M12 | 19 | 27 | 27,5 | 43 | 10 | 27 | 63 | 67,5 | 95 | 109 | 13 | 24 | 70 | | | 8.77 € | | | B0234.4123X80 | silver metallic | plastic-coated | 4 | M12 | 19 | 27 | 27,5 | 43 | 10 | 27 | 63 | 67,5 | 95 | 109 | 13 | 24 | 80 | | | 8.77 € | | | B0234.4123X90 | silver metallic | plastic-coated | 4 | M12 | 19 | 27 | 27,5 | 43 | 10 | 27 | 63 | 67,5 | 95 | 109 | 13 | 24 | 90 | | | 8.77 € | | | B0234.4126X20 | silver | high-gloss chromed | 4 | M12 | 19 | 27 | 27,5 | 43 | 10 | 27 | 63 | 67,5 | 95 | 109 | 13 | 24 | 20 | | | 10.15 € | | | B0234.4126X25 | silver | high-gloss chromed | 4 | M12 | 19 | 27 | 27,5 | 43 | 10 | 27 | 63 | 67,5 | 95 | 109 | 13 | 24 | 25 | | | 10.15 € | | | B0234.4126X30 | silver | high-gloss chromed | 4 | M12 | 19 | 27 | 27,5 | 43 | 10 | 27 | 63 | 67,5 | 95 | 109 | 13 | 24 | 30 | | | 10.15 € | | | B0234.4126X35 | silver | high-gloss chromed | 4 | M12 | 19 | 27 | 27,5 | 43 | 10 | 27 | 63 | 67,5 | 95 | 109 | 13 | 24 | 35 | | | 10.67 € | | | B0234.4126X40 | silver | high-gloss chromed | 4 | M12 | 19 | 27 | 27,5 | 43 | 10 | 27 | 63 | 67,5 | 95 | 109 | 13 | 24 | 40 | | | 10.67 € | | | B0234.4126X45 | silver | high-gloss chromed | 4 | M12 | 19 | 27 | 27,5 | 43 | 10 | 27 | 63 | 67,5 | 95 | 109 | 13 | 24 | 45 | | | 10.67 € | | | B0234.4126X50 | silver | high-gloss chromed | 4 | M12 | 19 | 27 | 27,5 | 43 | 10 | 27 | 63 | 67,5 | 95 | 109 | 13 | 24 | 50 | | | 10.67 € | | | B0234.4126X55 | silver | high-gloss chromed | 4 | M12 | 19 | 27 | 27,5 | 43 | 10 | 27 | 63 | 67,5 | 95 | 109 | 13 | 24 | 60 | | | 10.67 € | | | B0234.4126X60 | silver | high-gloss chromed | 4 | M12 | 19 | 27 | 27,5 | 43 | 10 | 27 | 63 | 67,5 | 95 | 109 | 13 | 24 | 55 | | | 10.67 € | | | B0234.4126X70 | silver | high-gloss chromed | 4 | M12 | 19 | 27 | 27,5 | 43 | 10 | 27 | 63 | 67,5 | 95 | 109 | 13 | 24 | 70 | | | 11.39 € | | | B0234.4126X80 | silver | high-gloss chromed | 4 | M12 | 19 | 27 | 27,5 | 43 | 10 | 27 | 63 | 67,5 | 95 | 109 | 13 | 24 | 80 | | | 11.39 € | | | B0234.4126X90 | silver | high-gloss chromed | 4 | M12 | 19 | 27 | 27,5 | 43 | 10 | 27 | 63 | 67,5 | 95 | 109 | 13 | 24 | 90 | | | 11.39 € | | | B0234.5121X25 | jet black RAL 9005 | satin finish | 5 | M12 | 23 | 31 | 32 | 49 | 12 | 31,5 | 73 | 77,5 | 110 | 126 | 15 | 26 | 25 | | | 9.81 € | | | B0234.5121X30 | jet black RAL 9005 | satin finish | 5 | M12 | 23 | 31 | 32 | 49 | 12 | 31,5 | 73 | 77,5 | 110 | 126 | 15 | 26 | 30 | | | 9.81 € | | | B0234.5121X35 | jet black RAL 9005 | satin finish | 5 | M12 | 23 | 31 | 32 | 49 | 12 | 31,5 | 73 | 77,5 | 110 | 126 | 15 | 26 | 35 | | | 10.41 € | | | B0234.5121X40 | jet black RAL 9005 | satin finish | 5 | M12 | 23 | 31 | 32 | 49 | 12 | 31,5 | 73 | 77,5 | 110 | 126 | 15 | 26 | 40 | | | 10.41 € | | | B0234.5121X45 | jet black RAL 9005 | satin finish | 5 | M12 | 23 | 31 | 32 | 49 | 12 | 31,5 | 73 | 77,5 | 110 | 126 | 15 | 26 | 45 | | | 10.41 € | | | B0234.5121X50 | jet black RAL 9005 | satin finish | 5 | M12 | 23 | 31 | 32 | 49 | 12 | 31,5 | 73 | 77,5 | 110 | 126 | 15 | 26 | 50 | | | 10.41 € | | | B0234.5121X55 | jet black RAL 9005 | satin finish | 5 | M12 | 23 | 31 | 32 | 49 | 12 | 31,5 | 73 | 77,5 | 110 | 126 | 15 | 26 | 55 | | | 10.41 € | | | B0234.5121X60 | jet black RAL 9005 | satin finish | 5 | M12 | 23 | 31 | 32 | 49 | 12 | 31,5 | 73 | 77,5 | 110 | 126 | 15 | 26 | 60 | | | 10.41 € | | | B0234.5121X70 | jet black RAL 9005 | satin finish | 5 | M12 | 23 | 31 | 32 | 49 | 12 | 31,5 | 73 | 77,5 | 110 | 126 | 15 | 26 | 70 | | | 11.10 € | | | B0234.5121X80 | jet black RAL 9005 | satin finish | 5 | M12 | 23 | 31 | 32 | 49 | 12 | 31,5 | 73 | 77,5 | 110 | 126 | 15 | 26 | 80 | | | 11.10 € | | | B0234.5121X90 | jet black RAL 9005 | satin finish | 5 | M12 | 23 | 31 | 32 | 49 | 12 | 31,5 | 73 | 77,5 | 110 | 126 | 15 | 26 | 90 | | | 11.10 € | | | B0234.5122X25 | orange RAL 2004 | plastic-coated | 5 | M12 | 23 | 31 | 32 | 49 | 12 | 31,5 | 73 | 77,5 | 110 | 126 | 15 | 26 | 25 | | | 9.81 € | | | B0234.5122X30 | orange RAL 2004 | plastic-coated | 5 | M12 | 23 | 31 | 32 | 49 | 12 | 31,5 | 73 | 77,5 | 110 | 126 | 15 | 26 | 30 | | | 9.81 € | | | B0234.5122X35 | orange RAL 2004 | plastic-coated | 5 | M12 | 23 | 31 | 32 | 49 | 12 | 31,5 | 73 | 77,5 | 110 | 126 | 15 | 26 | 35 | | | 10.41 € | | | B0234.5122X40 | orange RAL 2004 | plastic-coated | 5 | M12 | 23 | 31 | 32 | 49 | 12 | 31,5 | 73 | 77,5 | 110 | 126 | 15 | 26 | 40 | | | 10.41 € | | | B0234.5122X45 | orange RAL 2004 | plastic-coated | 5 | M12 | 23 | 31 | 32 | 49 | 12 | 31,5 | 73 | 77,5 | 110 | 126 | 15 | 26 | 45 | | | 10.41 € | | | B0234.5122X50 | orange RAL 2004 | plastic-coated | 5 | M12 | 23 | 31 | 32 | 49 | 12 | 31,5 | 73 | 77,5 | 110 | 126 | 15 | 26 | 50 | | | 10.41 € | | | B0234.5122X55 | orange RAL 2004 | plastic-coated | 5 | M12 | 23 | 31 | 32 | 49 | 12 | 31,5 | 73 | 77,5 | 110 | 126 | 15 | 26 | 55 | | | 10.41 € | | | B0234.5122X60 | orange RAL 2004 | plastic-coated | 5 | M12 | 23 | 31 | 32 | 49 | 12 | 31,5 | 73 | 77,5 | 110 | 126 | 15 | 26 | 60 | | | 10.41 € | | | B0234.5122X70 | orange RAL 2004 | plastic-coated | 5 | M12 | 23 | 31 | 32 | 49 | 12 | 31,5 | 73 | 77,5 | 110 | 126 | 15 | 26 | 70 | | | 11.10 € | | | B0234.5122X80 | orange RAL 2004 | plastic-coated | 5 | M12 | 23 | 31 | 32 | 49 | 12 | 31,5 | 73 | 77,5 | 110 | 126 | 15 | 26 | 80 | | | 11.10 € | | | B0234.5122X90 | orange RAL 2004 | plastic-coated | 5 | M12 | 23 | 31 | 32 | 49 | 12 | 31,5 | 73 | 77,5 | 110 | 126 | 15 | 26 | 90 | | | 11.10 € | | | B0234.5123X25 | silver metallic | plastic-coated | 5 | M12 | 23 | 31 | 32 | 49 | 12 | 31,5 | 73 | 77,5 | 110 | 126 | 15 | 26 | 25 | | | 9.81 € | | | B0234.5123X30 | silver metallic | plastic-coated | 5 | M12 | 23 | 31 | 32 | 49 | 12 | 31,5 | 73 | 77,5 | 110 | 126 | 15 | 26 | 30 | | | 9.81 € | | | B0234.5123X35 | silver metallic | plastic-coated | 5 | M12 | 23 | 31 | 32 | 49 | 12 | 31,5 | 73 | 77,5 | 110 | 126 | 15 | 26 | 35 | | | 10.41 € | | | B0234.5123X40 | silver metallic | plastic-coated | 5 | M12 | 23 | 31 | 32 | 49 | 12 | 31,5 | 73 | 77,5 | 110 | 126 | 15 | 26 | 40 | | | 10.41 € | | | B0234.5123X45 | silver metallic | plastic-coated | 5 | M12 | 23 | 31 | 32 | 49 | 12 | 31,5 | 73 | 77,5 | 110 | 126 | 15 | 26 | 45 | | | 10.41 € | | | B0234.5123X50 | silver metallic | plastic-coated | 5 | M12 | 23 | 31 | 32 | 49 | 12 | 31,5 | 73 | 77,5 | 110 | 126 | 15 | 26 | 50 | | | 10.41 € | | | B0234.5123X55 | silver metallic | plastic-coated | 5 | M12 | 23 | 31 | 32 | 49 | 12 | 31,5 | 73 | 77,5 | 110 | 126 | 15 | 26 | 55 | | | 10.41 € | | | B0234.5123X60 | silver metallic | plastic-coated | 5 | M12 | 23 | 31 | 32 | 49 | 12 | 31,5 | 73 | 77,5 | 110 | 126 | 15 | 26 | 60 | | | 10.41 € | | | B0234.5123X70 | silver metallic | plastic-coated | 5 | M12 | 23 | 31 | 32 | 49 | 12 | 31,5 | 73 | 77,5 | 110 | 126 | 15 | 26 | 70 | | | 11.10 € | | | B0234.5123X80 | silver metallic | plastic-coated | 5 | M12 | 23 | 31 | 32 | 49 | 12 | 31,5 | 73 | 77,5 | 110 | 126 | 15 | 26 | 80 | | | 11.10 € | | | B0234.5123X90 | silver metallic | plastic-coated | 5 | M12 | 23 | 31 | 32 | 49 | 12 | 31,5 | 73 | 77,5 | 110 | 126 | 15 | 26 | 90 | | | 11.10 € | | | B0234.5126X25 | silver | high-gloss chromed | 5 | M12 | 23 | 31 | 32 | 49 | 12 | 31,5 | 73 | 77,5 | 110 | 126 | 15 | 26 | 25 | | | 12.77 € | | | B0234.5126X30 | silver | high-gloss chromed | 5 | M12 | 23 | 31 | 32 | 49 | 12 | 31,5 | 73 | 77,5 | 110 | 126 | 15 | 26 | 30 | | | 12.77 € | | | B0234.5126X35 | silver | high-gloss chromed | 5 | M12 | 23 | 31 | 32 | 49 | 12 | 31,5 | 73 | 77,5 | 110 | 126 | 15 | 26 | 35 | | | 13.51 € | | | B0234.5126X40 | silver | high-gloss chromed | 5 | M12 | 23 | 31 | 32 | 49 | 12 | 31,5 | 73 | 77,5 | 110 | 126 | 15 | 26 | 40 | | | 13.51 € | | | B0234.5126X45 | silver | high-gloss chromed | 5 | M12 | 23 | 31 | 32 | 49 | 12 | 31,5 | 73 | 77,5 | 110 | 126 | 15 | 26 | 45 | | | 13.51 € | | | B0234.5126X50 | silver | high-gloss chromed | 5 | M12 | 23 | 31 | 32 | 49 | 12 | 31,5 | 73 | 77,5 | 110 | 126 | 15 | 26 | 50 | | | 13.51 € | | | B0234.5126X55 | silver | high-gloss chromed | 5 | M12 | 23 | 31 | 32 | 49 | 12 | 31,5 | 73 | 77,5 | 110 | 126 | 15 | 26 | 55 | | | 13.51 € | | | B0234.5126X60 | silver | high-gloss chromed | 5 | M12 | 23 | 31 | 32 | 49 | 12 | 31,5 | 73 | 77,5 | 110 | 126 | 15 | 26 | 60 | | | 13.51 € | | | B0234.5126X70 | silver | high-gloss chromed | 5 | M12 | 23 | 31 | 32 | 49 | 12 | 31,5 | 73 | 77,5 | 110 | 126 | 15 | 26 | 70 | | | 14.46 € | | | B0234.5126X80 | silver | high-gloss chromed | 5 | M12 | 23 | 31 | 32 | 49 | 12 | 31,5 | 73 | 77,5 | 110 | 126 | 15 | 26 | 80 | | | 14.46 € | | | B0234.5126X90 | silver | high-gloss chromed | 5 | M12 | 23 | 31 | 32 | 49 | 12 | 31,5 | 73 | 77,5 | 110 | 126 | 15 | 26 | 90 | | | 14.46 € | | | B0234.5161X25 | jet black RAL 9005 | satin finish | 5 | M16 | 23 | 31 | 32 | 49 | 12 | 31,10 | 73 | 77,10 | 110 | 126 | 15 | 26 | 25 | | | 9.81 € | | | B0234.5161X30 | jet black RAL 9005 | satin finish | 5 | M16 | 23 | 31 | 32 | 49 | 12 | 31,10 | 73 | 77,10 | 110 | 126 | 15 | 26 | 30 | | | 9.81 € | | | B0234.5161X35 | jet black RAL 9005 | satin finish | 5 | M16 | 23 | 31 | 32 | 49 | 12 | 31,10 | 73 | 77,10 | 110 | 126 | 15 | 26 | 35 | | | 10.41 € | | | B0234.5161X40 | jet black RAL 9005 | satin finish | 5 | M16 | 23 | 31 | 32 | 49 | 12 | 31,10 | 73 | 77,10 | 110 | 126 | 15 | 26 | 40 | | | 10.41 € | | | B0234.5161X45 | jet black RAL 9005 | satin finish | 5 | M16 | 23 | 31 | 32 | 49 | 12 | 31,10 | 73 | 77,10 | 110 | 126 | 15 | 26 | 45 | | | 10.41 € | | | B0234.5161X50 | jet black RAL 9005 | satin finish | 5 | M16 | 23 | 31 | 32 | 49 | 12 | 31,10 | 73 | 77,10 | 110 | 126 | 15 | 26 | 50 | | | 10.41 € | | | B0234.5161X55 | jet black RAL 9005 | satin finish | 5 | M16 | 23 | 31 | 32 | 49 | 12 | 31,10 | 73 | 77,10 | 110 | 126 | 15 | 26 | 55 | | | 10.41 € | | | B0234.5161X60 | jet black RAL 9005 | satin finish | 5 | M16 | 23 | 31 | 32 | 49 | 12 | 31,10 | 73 | 77,10 | 110 | 126 | 15 | 26 | 60 | | | 10.41 € | | | B0234.5161X70 | jet black RAL 9005 | satin finish | 5 | M16 | 23 | 31 | 32 | 49 | 12 | 31,10 | 73 | 77,10 | 110 | 126 | 15 | 26 | 70 | | | 11.10 € | | | B0234.5161X80 | jet black RAL 9005 | satin finish | 5 | M16 | 23 | 31 | 32 | 49 | 12 | 31,10 | 73 | 77,10 | 110 | 126 | 15 | 26 | 80 | | | 11.10 € | | | B0234.5161X90 | jet black RAL 9005 | satin finish | 5 | M16 | 23 | 31 | 32 | 49 | 12 | 31,10 | 73 | 77,10 | 110 | 126 | 15 | 26 | 90 | | | 11.10 € | | | B0234.5162X25 | orange RAL 2004 | plastic-coated | 5 | M16 | 23 | 31 | 32 | 49 | 12 | 31,10 | 73 | 77,10 | 110 | 126 | 15 | 26 | 25 | | | 9.81 € | | | B0234.5162X30 | orange RAL 2004 | plastic-coated | 5 | M16 | 23 | 31 | 32 | 49 | 12 | 31,10 | 73 | 77,10 | 110 | 126 | 15 | 26 | 30 | | | 9.81 € | | | B0234.5162X35 | orange RAL 2004 | plastic-coated | 5 | M16 | 23 | 31 | 32 | 49 | 12 | 31,10 | 73 | 77,10 | 110 | 126 | 15 | 26 | 35 | | | 10.41 € | | | B0234.5162X40 | orange RAL 2004 | plastic-coated | 5 | M16 | 23 | 31 | 32 | 49 | 12 | 31,10 | 73 | 77,10 | 110 | 126 | 15 | 26 | 40 | | | 10.41 € | | | B0234.5162X45 | orange RAL 2004 | plastic-coated | 5 | M16 | 23 | 31 | 32 | 49 | 12 | 31,10 | 73 | 77,10 | 110 | 126 | 15 | 26 | 45 | | | 10.41 € | | | B0234.5162X50 | orange RAL 2004 | plastic-coated | 5 | M16 | 23 | 31 | 32 | 49 | 12 | 31,10 | 73 | 77,10 | 110 | 126 | 15 | 26 | 50 | | | 10.41 € | | | B0234.5162X55 | orange RAL 2004 | plastic-coated | 5 | M16 | 23 | 31 | 32 | 49 | 12 | 31,10 | 73 | 77,10 | 110 | 126 | 15 | 26 | 55 | | | 10.41 € | | | B0234.5162X60 | orange RAL 2004 | plastic-coated | 5 | M16 | 23 | 31 | 32 | 49 | 12 | 31,10 | 73 | 77,10 | 110 | 126 | 15 | 26 | 60 | | | 10.41 € | | | B0234.5162X70 | orange RAL 2004 | plastic-coated | 5 | M16 | 23 | 31 | 32 | 49 | 12 | 31,10 | 73 | 77,10 | 110 | 126 | 15 | 26 | 70 | | | 11.10 € | | | B0234.5162X80 | orange RAL 2004 | plastic-coated | 5 | M16 | 23 | 31 | 32 | 49 | 12 | 31,10 | 73 | 77,10 | 110 | 126 | 15 | 26 | 80 | | | 11.10 € | | | B0234.5162X90 | orange RAL 2004 | plastic-coated | 5 | M16 | 23 | 31 | 32 | 49 | 12 | 31,10 | 73 | 77,10 | 110 | 126 | 15 | 26 | 90 | | | 11.10 € | | | B0234.5163X25 | silver metallic | plastic-coated | 5 | M16 | 23 | 31 | 32 | 49 | 12 | 31,10 | 73 | 77,10 | 110 | 126 | 15 | 26 | 25 | | | 9.81 € | | | B0234.5163X30 | silver metallic | plastic-coated | 5 | M16 | 23 | 31 | 32 | 49 | 12 | 31,10 | 73 | 77,10 | 110 | 126 | 15 | 26 | 30 | | | 9.81 € | | | B0234.5163X35 | silver metallic | plastic-coated | 5 | M16 | 23 | 31 | 32 | 49 | 12 | 31,10 | 73 | 77,10 | 110 | 126 | 15 | 26 | 35 | | | 10.41 € | | | B0234.5163X40 | silver metallic | plastic-coated | 5 | M16 | 23 | 31 | 32 | 49 | 12 | 31,10 | 73 | 77,10 | 110 | 126 | 15 | 26 | 40 | | | 10.41 € | | | B0234.5163X45 | silver metallic | plastic-coated | 5 | M16 | 23 | 31 | 32 | 49 | 12 | 31,10 | 73 | 77,10 | 110 | 126 | 15 | 26 | 45 | | | 10.41 € | | | B0234.5163X50 | silver metallic | plastic-coated | 5 | M16 | 23 | 31 | 32 | 49 | 12 | 31,10 | 73 | 77,10 | 110 | 126 | 15 | 26 | 50 | | | 10.41 € | | | B0234.5163X55 | silver metallic | plastic-coated | 5 | M16 | 23 | 31 | 32 | 49 | 12 | 31,10 | 73 | 77,10 | 110 | 126 | 15 | 26 | 55 | | | 10.41 € | | | B0234.5163X60 | silver metallic | plastic-coated | 5 | M16 | 23 | 31 | 32 | 49 | 12 | 31,10 | 73 | 77,10 | 110 | 126 | 15 | 26 | 60 | | | 10.41 € | | | B0234.5163X70 | silver metallic | plastic-coated | 5 | M16 | 23 | 31 | 32 | 49 | 12 | 31,10 | 73 | 77,10 | 110 | 126 | 15 | 26 | 70 | | | 11.10 € | | | B0234.5163X80 | silver metallic | plastic-coated | 5 | M16 | 23 | 31 | 32 | 49 | 12 | 31,10 | 73 | 77,10 | 110 | 126 | 15 | 26 | 80 | | | 11.10 € | | | B0234.5163X90 | silver metallic | plastic-coated | 5 | M16 | 23 | 31 | 32 | 49 | 12 | 31,10 | 73 | 77,10 | 110 | 126 | 15 | 26 | 90 | | | 11.10 € | | | B0234.5166X25 | silver | high-gloss chromed | 5 | M16 | 23 | 31 | 32 | 49 | 12 | 31,10 | 73 | 77,10 | 110 | 126 | 15 | 26 | 25 | | | 12.77 € | | | B0234.5166X30 | silver | high-gloss chromed | 5 | M16 | 23 | 31 | 32 | 49 | 12 | 31,10 | 73 | 77,10 | 110 | 126 | 15 | 26 | 30 | | | 12.77 € | | | B0234.5166X35 | silver | high-gloss chromed | 5 | M16 | 23 | 31 | 32 | 49 | 12 | 31,10 | 73 | 77,10 | 110 | 126 | 15 | 26 | 35 | | | 13.51 € | | | B0234.5166X40 | silver | high-gloss chromed | 5 | M16 | 23 | 31 | 32 | 49 | 12 | 31,10 | 73 | 77,10 | 110 | 126 | 15 | 26 | 40 | | | 13.51 € | | | B0234.5166X45 | silver | high-gloss chromed | 5 | M16 | 23 | 31 | 32 | 49 | 12 | 31,10 | 73 | 77,10 | 110 | 126 | 15 | 26 | 45 | | | 13.51 € | | | B0234.5166X50 | silver | high-gloss chromed | 5 | M16 | 23 | 31 | 32 | 49 | 12 | 31,10 | 73 | 77,10 | 110 | 126 | 15 | 26 | 50 | | | 13.51 € | | | B0234.5166X55 | silver | high-gloss chromed | 5 | M16 | 23 | 31 | 32 | 49 | 12 | 31,10 | 73 | 77,10 | 110 | 126 | 15 | 26 | 55 | | | 13.51 € | | | B0234.5166X60 | silver | high-gloss chromed | 5 | M16 | 23 | 31 | 32 | 49 | 12 | 31,10 | 73 | 77,10 | 110 | 126 | 15 | 26 | 60 | | | 13.51 € | | | B0234.5166X70 | silver | high-gloss chromed | 5 | M16 | 23 | 31 | 32 | 49 | 12 | 31,10 | 73 | 77,10 | 110 | 126 | 15 | 26 | 70 | | | 14.46 € | | | B0234.5166X80 | silver | high-gloss chromed | 5 | M16 | 23 | 31 | 32 | 49 | 12 | 31,10 | 73 | 77,10 | 110 | 126 | 15 | 26 | 80 | | | 14.46 € | | | B0234.5166X90 | silver | high-gloss chromed | 5 | M16 | 23 | 31 | 32 | 49 | 12 | 31,10 | 73 | 77,10 | 110 | 126 | 15 | 26 | 90 | | | 14.46 € | |
