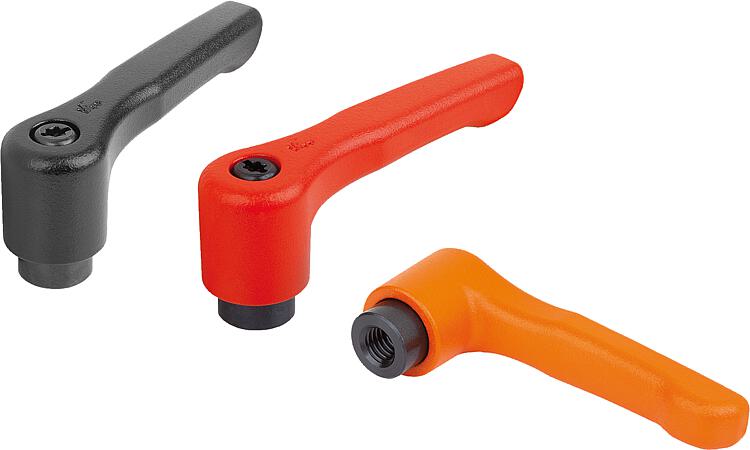

B0239Clamping levers, die-cast zinc, flat with internal thread,... |
go back |
|
Item description/product images |
|
|
DescriptionMaterial:Handle die-cast zinc DIN EN 12844.
Steel parts grade 5.8.Version:Handle powder-coated.
Steel parts black oxidised.On request:Other threads, colours and special versions.
Dimension “H1” available in other lengths at extra charge.Special features: DownloadHere is all the information as a PDF datasheet:
Are you looking for CAD data? These can be found directly in the product table.
|
| Order No. | Main
colour | Surface finish

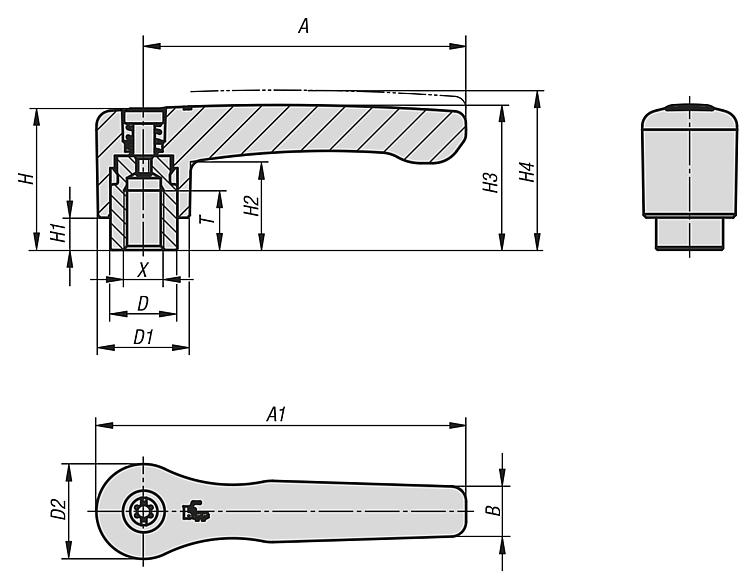

body | Size | X | T | D | D1 | D2 | H | H1 | H2 | H3 | H4 | A | A1 | B | No. of
teeth
| CAD | Acc. | Price | Order |
|---|
| B0239.2061 | jet black RAL 9005 | satin finish | 2 | M6 | 12 | 13,5 | 18,5 | 19,1 | 28,5 | 6,5 | 17,8 | 29,2 | 32,2 | 65 | 74,5 | 10,1 | 20 |  | | 6.16 € | | | B0239.2081 | jet black RAL 9005 | satin finish | 2 | M8 | 12 | 13,5 | 18,5 | 19,1 | 28,5 | 6,5 | 17,8 | 29,2 | 32,2 | 65 | 74,5 | 10,1 | 20 | | | 6.16 € | | | B0239.3081 | jet black RAL 9005 | satin finish | 3 | M8 | 14 | 16 | 21,2 | 22 | 37 | 10 | 23,8 | 38 | 42 | 80 | 91 | 11,7 | 22 | | | 6.72 € | | | B0239.3101 | jet black RAL 9005 | satin finish | 3 | M10 | 14 | 16 | 21,2 | 22 | 37 | 10 | 23,8 | 38 | 42 | 80 | 91 | 11,7 | 22 | | | 6.72 € | | | B0239.206181 | jet black RAL 9005 | textured matt | 2 | M6 | 12 | 13,5 | 18,5 | 19,1 | 28,5 | 6,5 | 17,8 | 29,2 | 32,2 | 65 | 74,5 | 10,1 | 20 | | | 6.16 € | | | B0239.208181 | jet black RAL 9005 | textured matt | 2 | M8 | 12 | 13,5 | 18,5 | 19,1 | 28,5 | 6,5 | 17,8 | 29,2 | 32,2 | 65 | 74,5 | 10,1 | 20 | | | 6.16 € | | | B0239.308181 | jet black RAL 9005 | textured matt | 3 | M8 | 14 | 16 | 21,2 | 22 | 37 | 10 | 23,8 | 38 | 42 | 80 | 91 | 11,7 | 22 | | | 6.72 € | | | B0239.310181 | jet black RAL 9005 | textured matt | 3 | M10 | 14 | 16 | 21,2 | 22 | 37 | 10 | 23,8 | 38 | 42 | 80 | 91 | 11,7 | 22 | | | 6.72 € | | | B0239.206182 | orange RAL 2004 | textured matt | 2 | M6 | 12 | 13,5 | 18,5 | 19,1 | 28,5 | 6,5 | 17,8 | 29,2 | 32,2 | 65 | 74,5 | 10,1 | 20 | | | 6.16 € | | | B0239.208182 | orange RAL 2004 | textured matt | 2 | M8 | 12 | 13,5 | 18,5 | 19,1 | 28,5 | 6,5 | 17,8 | 29,2 | 32,2 | 65 | 74,5 | 10,1 | 20 | | | 6.16 € | | | B0239.308182 | orange RAL 2004 | textured matt | 3 | M8 | 14 | 16 | 21,2 | 22 | 37 | 10 | 23,8 | 38 | 42 | 80 | 91 | 11,7 | 22 | | | 6.72 € | | | B0239.310182 | orange RAL 2004 | textured matt | 3 | M10 | 14 | 16 | 21,2 | 22 | 37 | 10 | 23,8 | 38 | 42 | 80 | 91 | 11,7 | 22 | | | 6.72 € | | | B0239.206184 | traffic red RAL 3020 | textured matt | 2 | M6 | 12 | 13,5 | 18,5 | 19,1 | 28,5 | 6,5 | 17,8 | 29,2 | 32,2 | 65 | 74,5 | 10,1 | 20 | | | 6.16 € | | | B0239.208184 | traffic red RAL 3020 | textured matt | 2 | M8 | 12 | 13,5 | 18,5 | 19,1 | 28,5 | 6,5 | 17,8 | 29,2 | 32,2 | 65 | 74,5 | 10,1 | 20 | | | 6.16 € | | | B0239.308184 | traffic red RAL 3020 | textured matt | 3 | M8 | 14 | 16 | 21,2 | 22 | 37 | 10 | 23,8 | 38 | 42 | 80 | 91 | 11,7 | 22 | | | 6.72 € | | | B0239.310184 | traffic red RAL 3020 | textured matt | 3 | M10 | 14 | 16 | 21,2 | 22 | 37 | 10 | 23,8 | 38 | 42 | 80 | 91 | 11,7 | 22 | | | 6.72 € | |
