B0281

Knurled knobs Form L, with external thread

go back

Products
- Product overview
  - Handles and knobs
    - knurled nut, knurled screws, knurled knobs
      - Knurled knobs

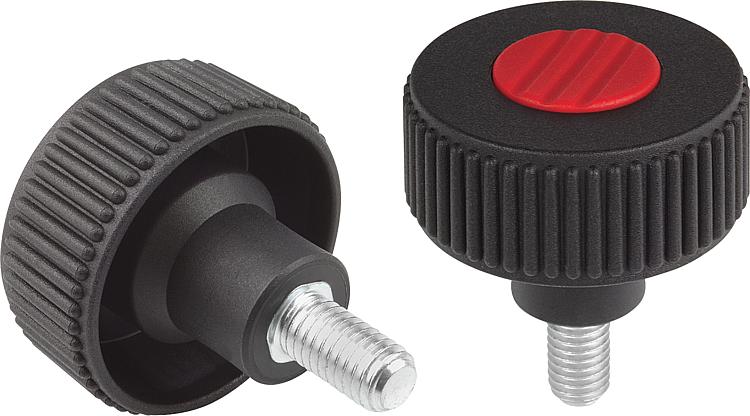

        Knurled knobs Form L, with external thread

Item description/product images

DescriptionMaterial:Black grey thermoplastic.
Threaded pin steel 5.8.Version:Steel trivalent blue-passivated.Special features:

DownloadHere is all the information as a PDF datasheet:

Are you looking for CAD data? These can be found directly in the product table.

Datasheet B0281 Knurled knobs Form L, with external thread

265 kB

Drawings

Item selection/filter

Order No.	Form	Colour Cap	Size	D	D1	D2	H	H1	L	Price
B0281.5105X10	L	black grey RAL 7021	1	M5	40	16,5	31	13	10	1.76 €
B0281.51051X10	L	orange RAL 2004	1	M5	40	16,5	31	13	10	1.76 €
B0281.51052X10	L	signal green RAL6032	1	M5	40	16,5	31	13	10	1.76 €
B0281.51053X10	L	blue RAL5017	1	M5	40	16,5	31	13	10	1.76 €
B0281.51055X10	L	light grey RAL 7035	1	M5	40	16,5	31	13	10	1.76 €
B0281.51056X10	L	traffic red RAL 3020	1	M5	40	16,5	31	13	10	1.76 €
B0281.51057X10	L	colza yellow RAL 1021	1	M5	40	16,5	31	13	10	1.76 €
B0281.5105X20	L	black grey RAL 7021	1	M5	40	16,5	31	13	20	1.76 €
B0281.51051X20	L	orange RAL 2004	1	M5	40	16,5	31	13	20	1.76 €
B0281.51052X20	L	signal green RAL6032	1	M5	40	16,5	31	13	20	1.76 €
B0281.51053X20	L	blue RAL5017	1	M5	40	16,5	31	13	20	1.76 €
B0281.51055X20	L	light grey RAL 7035	1	M5	40	16,5	31	13	20	1.76 €
B0281.51056X20	L	traffic red RAL 3020	1	M5	40	16,5	31	13	20	1.76 €
B0281.51057X20	L	colza yellow RAL 1021	1	M5	40	16,5	31	13	20	1.76 €
B0281.5105X40	L	black grey RAL 7021	1	M5	40	16,5	31	13	40	1.85 €
B0281.51051X40	L	orange RAL 2004	1	M5	40	16,5	31	13	40	1.85 €
B0281.51052X40	L	signal green RAL6032	1	M5	40	16,5	31	13	40	1.85 €
B0281.51053X40	L	blue RAL5017	1	M5	40	16,5	31	13	40	1.85 €
B0281.51055X40	L	light grey RAL 7035	1	M5	40	16,5	31	13	40	1.85 €
B0281.51056X40	L	traffic red RAL 3020	1	M5	40	16,5	31	13	40	1.85 €
B0281.51057X40	L	colza yellow RAL 1021	1	M5	40	16,5	31	13	40	1.85 €
B0281.5106X10	L	black grey RAL 7021	1	M6	40	16,5	31	13	10	1.76 €
B0281.51061X10	L	orange RAL 2004	1	M6	40	16,5	31	13	10	1.76 €
B0281.51062X10	L	signal green RAL6032	1	M6	40	16,5	31	13	10	1.76 €
B0281.51063X10	L	blue RAL5017	1	M6	40	16,5	31	13	10	1.76 €
B0281.51065X10	L	light grey RAL 7035	1	M6	40	16,5	31	13	10	1.76 €
B0281.51066X10	L	traffic red RAL 3020	1	M6	40	16,5	31	13	10	1.76 €
B0281.51067X10	L	colza yellow RAL 1021	1	M6	40	16,5	31	13	10	1.76 €
B0281.5106X20	L	black grey RAL 7021	1	M6	40	16,5	31	13	20	1.76 €
B0281.51061X20	L	orange RAL 2004	1	M6	40	16,5	31	13	20	1.76 €
B0281.51062X20	L	signal green RAL6032	1	M6	40	16,5	31	13	20	1.76 €
B0281.51063X20	L	blue RAL5017	1	M6	40	16,5	31	13	20	1.76 €
B0281.51065X20	L	light grey RAL 7035	1	M6	40	16,5	31	13	20	1.76 €
B0281.51066X20	L	traffic red RAL 3020	1	M6	40	16,5	31	13	20	1.76 €
B0281.51067X20	L	colza yellow RAL 1021	1	M6	40	16,5	31	13	20	1.76 €
B0281.5106X40	L	black grey RAL 7021	1	M6	40	16,5	31	13	40	1.85 €
B0281.51061X40	L	orange RAL 2004	1	M6	40	16,5	31	13	40	1.85 €
B0281.51062X40	L	signal green RAL6032	1	M6	40	16,5	31	13	40	1.85 €
B0281.51063X40	L	blue RAL5017	1	M6	40	16,5	31	13	40	1.85 €
B0281.51065X40	L	light grey RAL 7035	1	M6	40	16,5	31	13	40	1.85 €
B0281.51066X40	L	traffic red RAL 3020	1	M6	40	16,5	31	13	40	1.85 €
B0281.51067X40	L	colza yellow RAL 1021	1	M6	40	16,5	31	13	40	1.85 €
B0281.5108X15	L	black grey RAL 7021	1	M8	40	16,5	31	13	15	1.80 €
B0281.51081X15	L	orange RAL 2004	1	M8	40	16,5	31	13	15	1.80 €
B0281.51082X15	L	signal green RAL6032	1	M8	40	16,5	31	13	15	1.80 €
B0281.51083X15	L	blue RAL5017	1	M8	40	16,5	31	13	15	1.80 €
B0281.51085X15	L	light grey RAL 7035	1	M8	40	16,5	31	13	15	1.80 €
B0281.51086X15	L	traffic red RAL 3020	1	M8	40	16,5	31	13	15	1.80 €
B0281.51087X15	L	colza yellow RAL 1021	1	M8	40	16,5	31	13	15	1.80 €
B0281.5108X30	L	black grey RAL 7021	1	M8	40	16,5	31	13	30	1.85 €
B0281.51081X30	L	orange RAL 2004	1	M8	40	16,5	31	13	30	1.85 €
B0281.51082X30	L	signal green RAL6032	1	M8	40	16,5	31	13	30	1.85 €
B0281.51083X30	L	blue RAL5017	1	M8	40	16,5	31	13	30	1.85 €
B0281.51085X30	L	light grey RAL 7035	1	M8	40	16,5	31	13	30	1.85 €
B0281.51086X30	L	traffic red RAL 3020	1	M8	40	16,5	31	13	30	1.85 €
B0281.51087X30	L	colza yellow RAL 1021	1	M8	40	16,5	31	13	30	1.85 €
B0281.5108X60	L	black grey RAL 7021	1	M8	40	16,5	31	13	60	1.87 €
B0281.51081X60	L	orange RAL 2004	1	M8	40	16,5	31	13	60	1.87 €
B0281.51082X60	L	signal green RAL6032	1	M8	40	16,5	31	13	60	1.87 €
B0281.51083X60	L	blue RAL5017	1	M8	40	16,5	31	13	60	1.87 €
B0281.51085X60	L	light grey RAL 7035	1	M8	40	16,5	31	13	60	1.87 €
B0281.51086X60	L	traffic red RAL 3020	1	M8	40	16,5	31	13	60	1.87 €
B0281.51087X60	L	colza yellow RAL 1021	1	M8	40	16,5	31	13	60	1.87 €
B0281.5208X15	L	black grey RAL 7021	2	M8	50	18	36	15	15	2.20 €
B0281.52081X15	L	orange RAL 2004	2	M8	50	18	36	15	15	2.20 €
B0281.52082X15	L	signal green RAL6032	2	M8	50	18	36	15	15	2.20 €
B0281.52083X15	L	blue RAL5017	2	M8	50	18	36	15	15	2.20 €
B0281.52085X15	L	light grey RAL 7035	2	M8	50	18	36	15	15	2.20 €
B0281.52086X15	L	traffic red RAL 3020	2	M8	50	18	36	15	15	2.20 €
B0281.52087X15	L	colza yellow RAL 1021	2	M8	50	18	36	15	15	2.20 €
B0281.5208X30	L	black grey RAL 7021	2	M8	50	18	36	15	30	2.25 €
B0281.52081X30	L	orange RAL 2004	2	M8	50	18	36	15	30	2.25 €
B0281.52082X30	L	signal green RAL6032	2	M8	50	18	36	15	30	2.25 €
B0281.52083X30	L	blue RAL5017	2	M8	50	18	36	15	30	2.25 €
B0281.52085X30	L	light grey RAL 7035	2	M8	50	18	36	15	30	2.25 €
B0281.52086X30	L	traffic red RAL 3020	2	M8	50	18	36	15	30	2.25 €
B0281.52087X30	L	colza yellow RAL 1021	2	M8	50	18	36	15	30	2.25 €
B0281.5208X60	L	black grey RAL 7021	2	M8	50	18	36	15	60	2.30 €
B0281.52081X60	L	orange RAL 2004	2	M8	50	18	36	15	60	2.30 €
B0281.52082X60	L	signal green RAL6032	2	M8	50	18	36	15	60	2.30 €
B0281.52083X60	L	blue RAL5017	2	M8	50	18	36	15	60	2.30 €
B0281.52085X60	L	light grey RAL 7035	2	M8	50	18	36	15	60	2.30 €
B0281.52086X60	L	traffic red RAL 3020	2	M8	50	18	36	15	60	2.30 €
B0281.52087X60	L	colza yellow RAL 1021	2	M8	50	18	36	15	60	2.30 €
B0281.5210X20	L	black grey RAL 7021	2	M10	50	18	36	15	20	2.31 €
B0281.52101X20	L	orange RAL 2004	2	M10	50	18	36	15	20	2.31 €
B0281.52102X20	L	signal green RAL6032	2	M10	50	18	36	15	20	2.31 €
B0281.52103X20	L	blue RAL5017	2	M10	50	18	36	15	20	2.31 €
B0281.52105X20	L	light grey RAL 7035	2	M10	50	18	36	15	20	2.31 €
B0281.52106X20	L	traffic red RAL 3020	2	M10	50	18	36	15	20	2.31 €
B0281.52107X20	L	colza yellow RAL 1021	2	M10	50	18	36	15	20	2.31 €
B0281.5210X30	L	black grey RAL 7021	2	M10	50	18	36	15	30	2.33 €
B0281.52101X30	L	orange RAL 2004	2	M10	50	18	36	15	30	2.33 €
B0281.52102X30	L	signal green RAL6032	2	M10	50	18	36	15	30	2.33 €
B0281.52103X30	L	blue RAL5017	2	M10	50	18	36	15	30	2.33 €
B0281.52105X30	L	light grey RAL 7035	2	M10	50	18	36	15	30	2.33 €
B0281.52106X30	L	traffic red RAL 3020	2	M10	50	18	36	15	30	2.33 €
B0281.52107X30	L	colza yellow RAL 1021	2	M10	50	18	36	15	30	2.33 €
B0281.5210X60	L	black grey RAL 7021	2	M10	50	18	36	15	60	2.59 €
B0281.52101X60	L	orange RAL 2004	2	M10	50	18	36	15	60	2.59 €
B0281.52102X60	L	signal green RAL6032	2	M10	50	18	36	15	60	2.59 €
B0281.52103X60	L	blue RAL5017	2	M10	50	18	36	15	60	2.59 €
B0281.52105X60	L	light grey RAL 7035	2	M10	50	18	36	15	60	2.59 €
B0281.52106X60	L	traffic red RAL 3020	2	M10	50	18	36	15	60	2.59 €
B0281.52107X60	L	colza yellow RAL 1021	2	M10	50	18	36	15	60	2.59 €
B0281.5310X20	L	black grey RAL 7021	3	M10	63	22	41	17	20	2.77 €
B0281.53101X20	L	orange RAL 2004	3	M10	63	22	41	17	20	2.77 €
B0281.53102X20	L	signal green RAL6032	3	M10	63	22	41	17	20	2.77 €
B0281.53103X20	L	blue RAL5017	3	M10	63	22	41	17	20	2.77 €
B0281.53105X20	L	light grey RAL 7035	3	M10	63	22	41	17	20	2.77 €
B0281.53106X20	L	traffic red RAL 3020	3	M10	63	22	41	17	20	2.77 €
B0281.53107X20	L	colza yellow RAL 1021	3	M10	63	22	41	17	20	2.77 €
B0281.5310X30	L	black grey RAL 7021	3	M10	63	22	41	17	30	2.79 €
B0281.53101X30	L	orange RAL 2004	3	M10	63	22	41	17	30	2.79 €
B0281.53102X30	L	signal green RAL6032	3	M10	63	22	41	17	30	2.79 €
B0281.53103X30	L	blue RAL5017	3	M10	63	22	41	17	30	2.79 €
B0281.53105X30	L	light grey RAL 7035	3	M10	63	22	41	17	30	2.79 €
B0281.53106X30	L	traffic red RAL 3020	3	M10	63	22	41	17	30	2.79 €
B0281.53107X30	L	colza yellow RAL 1021	3	M10	63	22	41	17	30	2.79 €
B0281.5310X60	L	black grey RAL 7021	3	M10	63	22	41	17	60	2.99 €
B0281.53101X60	L	orange RAL 2004	3	M10	63	22	41	17	60	2.99 €
B0281.53102X60	L	signal green RAL6032	3	M10	63	22	41	17	60	2.99 €
B0281.53103X60	L	blue RAL5017	3	M10	63	22	41	17	60	2.99 €
B0281.53105X60	L	light grey RAL 7035	3	M10	63	22	41	17	60	2.99 €
B0281.53106X60	L	traffic red RAL 3020	3	M10	63	22	41	17	60	2.99 €
B0281.53107X60	L	colza yellow RAL 1021	3	M10	63	22	41	17	60	2.99 €
B0281.5312X30	L	black grey RAL 7021	3	M12	63	22	41	17	30	3.15 €
B0281.53121X30	L	orange RAL 2004	3	M12	63	22	41	17	30	3.15 €
B0281.53122X30	L	signal green RAL6032	3	M12	63	22	41	17	30	3.15 €
B0281.53123X30	L	blue RAL5017	3	M12	63	22	41	17	30	3.15 €
B0281.53125X30	L	light grey RAL 7035	3	M12	63	22	41	17	30	3.15 €
B0281.53126X30	L	traffic red RAL 3020	3	M12	63	22	41	17	30	3.15 €
B0281.53127X30	L	colza yellow RAL 1021	3	M12	63	22	41	17	30	3.15 €
B0281.5312X60	L	black grey RAL 7021	3	M12	63	22	41	17	60	3.22 €
B0281.53121X60	L	orange RAL 2004	3	M12	63	22	41	17	60	3.22 €
B0281.53122X60	L	signal green RAL6032	3	M12	63	22	41	17	60	3.22 €
B0281.53123X60	L	blue RAL5017	3	M12	63	22	41	17	60	3.22 €
B0281.53125X60	L	light grey RAL 7035	3	M12	63	22	41	17	60	3.22 €
B0281.53126X60	L	traffic red RAL 3020	3	M12	63	22	41	17	60	3.22 €
B0281.53127X60	L	colza yellow RAL 1021	3	M12	63	22	41	17	60	3.22 €
