Knurled nuts, steel DIN 6303 Form B, with pinhole
B0269

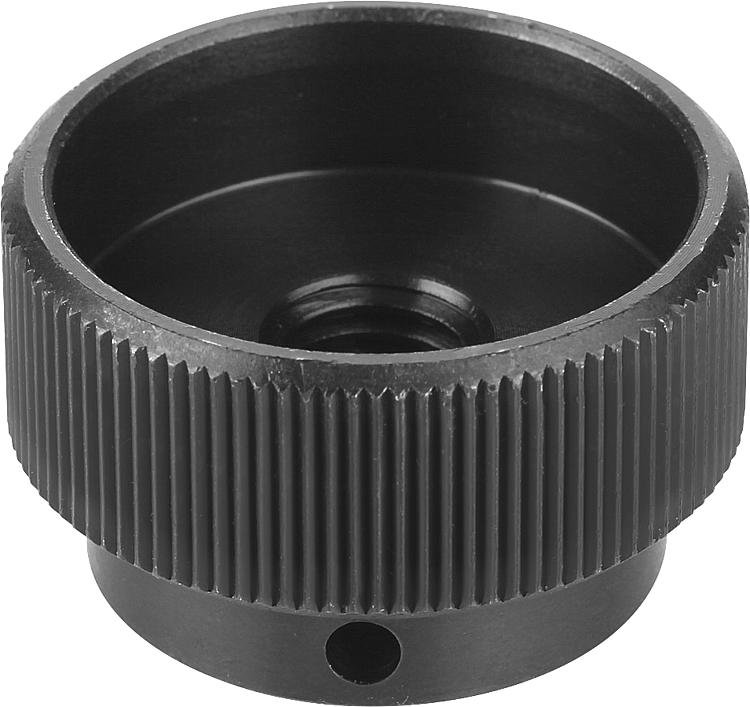

Knurled nuts, steel DIN 6303 Form B, with pinhole

go back

Item description/product images

DescriptionMaterial:Free-cutting steel black oxidised.Note:Due to the better haptics, a larger pitch was chosen contrary to DIN.Drawing reference:
Form B: with pin hole
- Drill through and ream pin hole on assembly.
Special features:
RoHS
DownloadHere is all the information as a PDF datasheet:

Are you looking for CAD data? These can be found directly in the product table.
 Datasheet B0269 Knurled nuts, steel DIN 6303 Form B, with pinhole 208 kB

Drawings

Knurled nuts, steel DIN 6303 Form B, with pinhole

Item selection/filter

Order No.

FormMain
material
DD1D3D4D5
predrilled
EHKTsuitable
dowel pin
ISO 2338
CADAcc.PriceOrder
B0269.205BsteelM52014151,42,512871,5 1.59 €
B0269.206BsteelM62416181,42,5141081,5 1.85 €
B0269.208BsteelM83020241,931712102 2.52 €
B0269.210BsteelM103628302,942014123 3.68 €
B0269.212BsteelM124032343,942416144 4.89 €
