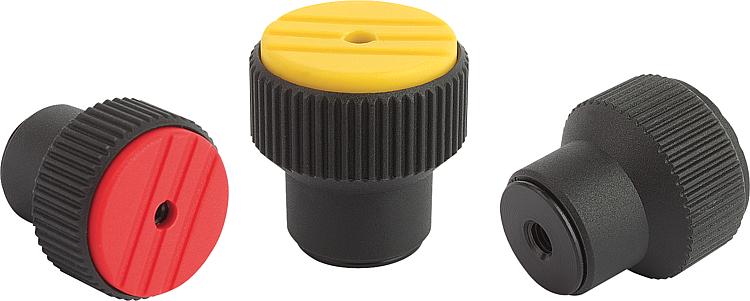

B0278Knurled torque knobs internal thread |
go back |
|
Item description/product images |
|
|
DescriptionMaterial:Thermoplastic, black grey.
Bush steel.Version:Bush black oxidised.Note:The set screw sets the required torque. The knob de-clutches and turns freely when the desired torque is reached.Drawing reference:1) adjusting screw for setting the torque DownloadHere is all the information as a PDF datasheet:
Are you looking for CAD data? These can be found directly in the product table.
|
| Order No. | Thread type | Component
material | Colour
Cap
| Size | D
| D1 | D2 | D3 | D4 | H | H1 | T | Torque
Nm
| CAD | Acc. | Price | Order |
|---|
| B0278.205 | internal thread | steel | black grey RAL 7021 | 2 | M5 | 26 | 18 | 23 | 16 | 27 | 10,5 | 5 | 0,1 - 0,3 |  | | 28.81 € | | | B0278.2051 | internal thread | steel | orange RAL 2004 | 2 | M5 | 26 | 18 | 23 | 16 | 27 | 10,5 | 5 | 0,1 - 0,3 | | | 28.81 € | | | B0278.2052 | internal thread | steel | signal green RAL6032 | 2 | M5 | 26 | 18 | 23 | 16 | 27 | 10,5 | 5 | 0,1 - 0,3 | | | 28.81 € | | | B0278.2053 | internal thread | steel | blue RAL5017 | 2 | M5 | 26 | 18 | 23 | 16 | 27 | 10,5 | 5 | 0,1 - 0,3 | | | 28.81 € | | | B0278.2055 | internal thread | steel | light grey RAL 7035 | 2 | M5 | 26 | 18 | 23 | 16 | 27 | 10,5 | 5 | 0,1 - 0,3 | | | 28.81 € | | | B0278.2056 | internal thread | steel | traffic red RAL 3020 | 2 | M5 | 26 | 18 | 23 | 16 | 27 | 10,5 | 5 | 0,1 - 0,3 | | | 28.81 € | | | B0278.2057 | internal thread | steel | colza yellow RAL 1021 | 2 | M5 | 26 | 18 | 23 | 16 | 27 | 10,5 | 5 | 0,1 - 0,3 | | | 28.81 € | | | B0278.206 | internal thread | steel | black grey RAL 7021 | 2 | M6 | 26 | 18 | 23 | 16 | 27 | 10,5 | 6 | 0,1 - 0,3 | | | 28.81 € | | | B0278.2061 | internal thread | steel | orange RAL 2004 | 2 | M6 | 26 | 18 | 23 | 16 | 27 | 10,5 | 6 | 0,1 - 0,3 | | | 28.81 € | | | B0278.2062 | internal thread | steel | signal green RAL6032 | 2 | M6 | 26 | 18 | 23 | 16 | 27 | 10,5 | 6 | 0,1 - 0,3 | | | 28.81 € | | | B0278.2063 | internal thread | steel | blue RAL5017 | 2 | M6 | 26 | 18 | 23 | 16 | 27 | 10,5 | 6 | 0,1 - 0,3 | | | 28.81 € | | | B0278.2065 | internal thread | steel | light grey RAL 7035 | 2 | M6 | 26 | 18 | 23 | 16 | 27 | 10,5 | 6 | 0,1 - 0,3 | | | 28.81 € | | | B0278.2066 | internal thread | steel | traffic red RAL 3020 | 2 | M6 | 26 | 18 | 23 | 16 | 27 | 10,5 | 6 | 0,1 - 0,3 | | | 28.81 € | | | B0278.2067 | internal thread | steel | colza yellow RAL 1021 | 2 | M6 | 26 | 18 | 23 | 16 | 27 | 10,5 | 6 | 0,1 - 0,3 | | | 28.81 € | | | B0278.306 | internal thread | steel | black grey RAL 7021 | 3 | M6 | 34 | 22 | 31 | 20 | 37,5 | 14,5 | 10 | 0,1 - 0,3 | | | 31.77 € | | | B0278.3061 | internal thread | steel | orange RAL 2004 | 3 | M6 | 34 | 22 | 31 | 20 | 37,5 | 14,5 | 10 | 0,1 - 0,3 | | | 31.77 € | | | B0278.3062 | internal thread | steel | signal green RAL6032 | 3 | M6 | 34 | 22 | 31 | 20 | 37,5 | 14,5 | 10 | 0,1 - 0,3 | | | 31.77 € | | | B0278.3063 | internal thread | steel | blue RAL5017 | 3 | M6 | 34 | 22 | 31 | 20 | 37,5 | 14,5 | 10 | 0,1 - 0,3 | | | 31.77 € | | | B0278.3065 | internal thread | steel | light grey RAL 7035 | 3 | M6 | 34 | 22 | 31 | 20 | 37,5 | 14,5 | 10 | 0,1 - 0,3 | | | 31.77 € | | | B0278.3066 | internal thread | steel | traffic red RAL 3020 | 3 | M6 | 34 | 22 | 31 | 20 | 37,5 | 14,5 | 10 | 0,1 - 0,3 | | | 31.77 € | | | B0278.3067 | internal thread | steel | colza yellow RAL 1021 | 3 | M6 | 34 | 22 | 31 | 20 | 37,5 | 14,5 | 10 | 0,1 - 0,3 | | | 31.77 € | | | B0278.308 | internal thread | steel | black grey RAL 7021 | 3 | M8 | 34 | 22 | 31 | 20 | 37,5 | 14,5 | 14 | 0,1 - 0,3 | | | 31.77 € | | | B0278.3081 | internal thread | steel | orange RAL 2004 | 3 | M8 | 34 | 22 | 31 | 20 | 37,5 | 14,5 | 14 | 0,1 - 0,3 | | | 31.77 € | | | B0278.3082 | internal thread | steel | signal green RAL6032 | 3 | M8 | 34 | 22 | 31 | 20 | 37,5 | 14,5 | 14 | 0,1 - 0,3 | | | 31.77 € | | | B0278.3083 | internal thread | steel | blue RAL5017 | 3 | M8 | 34 | 22 | 31 | 20 | 37,5 | 14,5 | 14 | 0,1 - 0,3 | | | 31.77 € | | | B0278.3085 | internal thread | steel | light grey RAL 7035 | 3 | M8 | 34 | 22 | 31 | 20 | 37,5 | 14,5 | 14 | 0,1 - 0,3 | | | 31.77 € | | | B0278.3086 | internal thread | steel | traffic red RAL 3020 | 3 | M8 | 34 | 22 | 31 | 20 | 37,5 | 14,5 | 14 | 0,1 - 0,3 | | | 31.77 € | | | B0278.3087 | internal thread | steel | colza yellow RAL 1021 | 3 | M8 | 34 | 22 | 31 | 20 | 37,5 | 14,5 | 14 | 0,1 - 0,3 | | | 31.77 € | |
