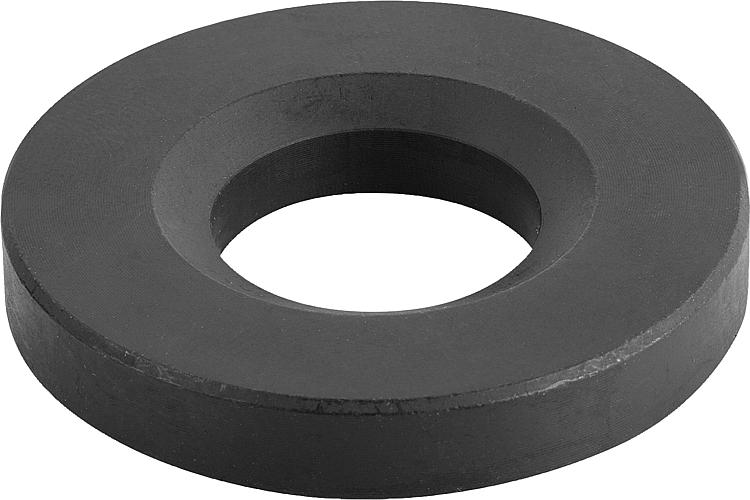

B0197Conical seats Form G, D4>D3, DIN 6319, edition 10/01 |
go back |
|
Item description/product images |
|
|
DescriptionMaterial:Carbon steel or stainless steel.Version:Steel version tempered to HV 390 ±40.
Stainless steel version not hardened, bright.Note:Conical seat Form G should be used over slots. DownloadHere is all the information as a PDF datasheet:
Are you looking for CAD data? These can be found directly in the product table.
|
| Order No. | Main
material | Form | D1 | D2 | D5 | H | H2 | Load rating
max. kN
(static load only) | CAD | Acc. | Price | Order |
|---|
| B0197.305 | QT steel | G | 6 | 15 | 9,25 | 2,5 | 3,5 | 6,5 |  | | 0.42 € | | | B0197.306 | QT steel | G | 7,1 | 17 | 11 | 4 | 5,4 | 9 | | | 0.67 € | | | B0197.308 | QT steel | G | 9,6 | 24 | 14,5 | 5 | 7,1 | 17 | | | 1.01 € | | | B0197.310 | QT steel | G | 12 | 30 | 18,5 | 5 | 7,3 | 26 | | | 1.28 € | | | B0197.312 | QT steel | G | 14,2 | 36 | 20 | 6 | 9 | 38 | | | 1.77 € | | | B0197.314 | QT steel | G | 16,5 | 40 | 24,8 | 6 | 9,5 | 53 | | | 2.33 € | | | B0197.316 | QT steel | G | 19 | 44 | 26 | 7 | 10,4 | 73 | | | 2.64 € | | | B0197.320 | QT steel | G | 23,2 | 50 | 31 | 8 | 12,2 | 117 | | | 3.69 € | | | B0197.324 | QT steel | G | 28 | 60 | 37 | 10 | 15,7 | 168 | | | 5.94 € | | | B0197.330 | QT steel | G | 35 | 68 | 49 | 12 | 19,7 | 269 | | | 11.04 € | | | B0197.336 | QT steel | G | 42 | 80 | 60 | 12 | 20,3 | 394 | | | 13.59 € | | | B0197.0306 | stainless steel | G | 7,1 | 17 | 11 | 4 | 5,4 | 6 | | | 1.56 € | | | B0197.0308 | stainless steel | G | 9,6 | 24 | 14,5 | 5 | 7,1 | 12 | | | 2.26 € | | | B0197.0310 | stainless steel | G | 12 | 30 | 18,5 | 5 | 7,3 | 16 | | | 3.68 € | | | B0197.0312 | stainless steel | G | 14,2 | 36 | 20 | 6 | 9 | 24 | | | 4.97 € | | | B0197.0316 | stainless steel | G | 19 | 44 | 26 | 7 | 10,4 | 45 | | | 8.18 € | | | B0197.0320 | stainless steel | G | 23,2 | 50 | 31 | 8 | 12,2 | 71 | | | 12.21 € | | | B0197.0324 | stainless steel | G | 28 | 60 | 37 | 10 | 15,7 | 105 | | | 16.30 € | | | B0197.0330 | stainless steel | G | 35 | 68 | 49 | 12 | 19,7 | 191 | | | 20.85 € | |
