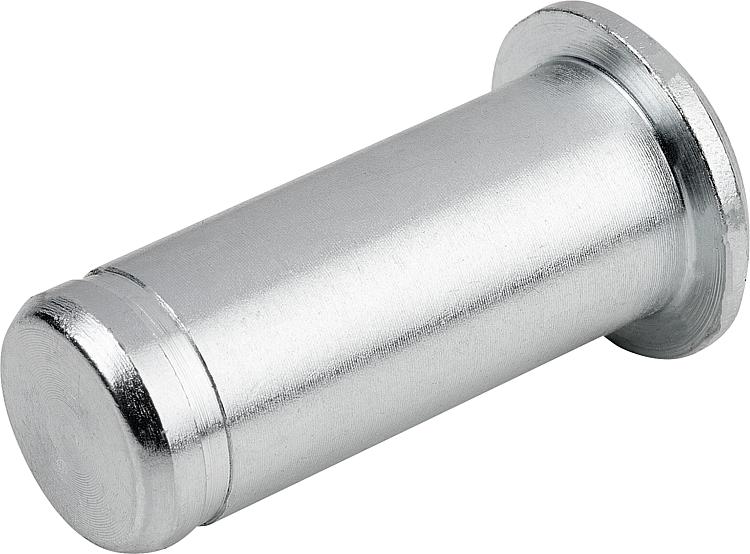

B0438Pins with circlip groove suitable for clevis |
go back |
|
Item description/product images |
|
|
DescriptionMaterial:Steel or stainless steel 1.4301. Version:Electro zinc-plated steel.
Bright stainless steel.Note:Pins with groove suitable for DIN 71752 clevis. Secured with a DIN 471 circlip.
When combined with a suitable clevis and tang, forms a fully functional clevis joint.Special features: DownloadHere is all the information as a PDF datasheet:
Are you looking for CAD data? These can be found directly in the product table.
|

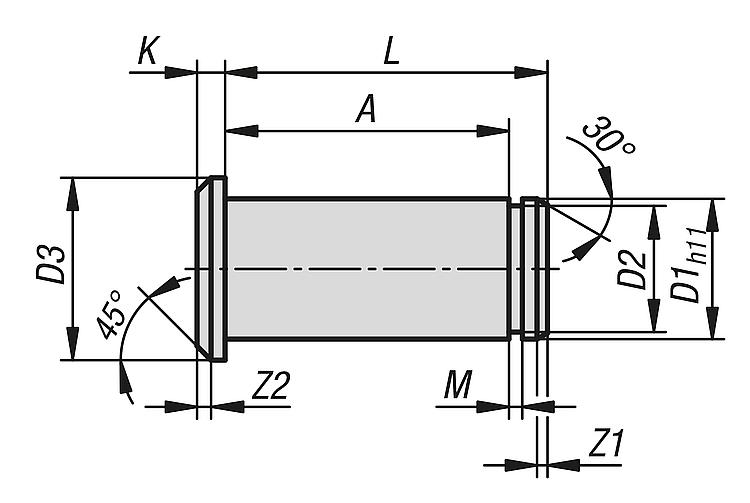

| Order No. | Main
material | D1
| D2 | D3 | A | K | L | M | Z1 | Z2 | CAD | Acc. | Price | Order |
|---|
| B0438.004085 | steel | 4 | 3,8 | 6 | 8,5 | 1 | 10 | 0,5 | 0,5 | 0,5 |  | | 4.18 € | | | B0438.005105 | steel | 5 | 4,8 | 8 | 10,5 | 1,5 | 12,5 | 0,7 | 0,5 | 0,5 | | | 4.45 € | | | B0438.006125 | steel | 6 | 5,7 | 9 | 12,5 | 1,5 | 15,5 | 0,8 | 0,75 | 0,5 | | | 3.84 € | | | B0438.008165 | steel | 8 | 7,6 | 12 | 16,5 | 2 | 20,5 | 0,9 | 1 | 1 | | | 5.38 € | | | B0438.010205 | steel | 10 | 9,6 | 14 | 20,5 | 2 | 24 | 1,1 | 1 | 1 | | | 4.38 € | | | B0438.012245 | steel | 12 | 11,5 | 17 | 24,5 | 3 | 28 | 1,1 | 1,25 | 1,5 | | | 6.46 € | | | B0438.014275 | steel | 14 | 13,4 | 19 | 27,5 | 3 | 32 | 1,1 | 1,25 | 1,5 | | | 7.58 € | | | B0438.016325 | steel | 16 | 15,2 | 21 | 32,5 | 3 | 37 | 1,1 | 1,5 | 1,5 | | | 5.34 € | | | B0438.020405 | steel | 20 | 19 | 26 | 40,5 | 4 | 46 | 1,3 | 1,5 | 2 | | | 7.77 € | | | B0438.104085 | stainless steel | 4 | 3,8 | 6 | 8,5 | 1 | 10 | 0,5 | 0,5 | 0,5 | | | 5.57 € | | | B0438.105105 | stainless steel | 5 | 4,8 | 8 | 10,5 | 1,5 | 12,5 | 0,7 | 0,5 | 0,5 | | | 2.04 € | | | B0438.106125 | stainless steel | 6 | 5,7 | 9 | 12,5 | 1,5 | 15,5 | 0,8 | 0,75 | 0,5 | | | 5.73 € | | | B0438.108165 | stainless steel | 8 | 7,6 | 12 | 16,5 | 2 | 20,5 | 0,9 | 1 | 1 | | | 4.28 € | | | B0438.110205 | stainless steel | 10 | 9,6 | 14 | 20,5 | 2 | 24 | 1,1 | 1 | 1 | | | 3.40 € | | | B0438.112245 | stainless steel | 12 | 11,5 | 17 | 24,5 | 3 | 28 | 1,1 | 1,25 | 1,5 | | | 7.26 € | | | B0438.116325 | stainless steel | 16 | 15,2 | 21 | 32,5 | 3 | 37 | 1,1 | 1,5 | 1,5 | | | 7.01 € | | | B0438.120405 | stainless steel | 20 | 19 | 26 | 40,5 | 4 | 46 | 1,3 | 1,5 | 2 | | | 12.70 € | |
