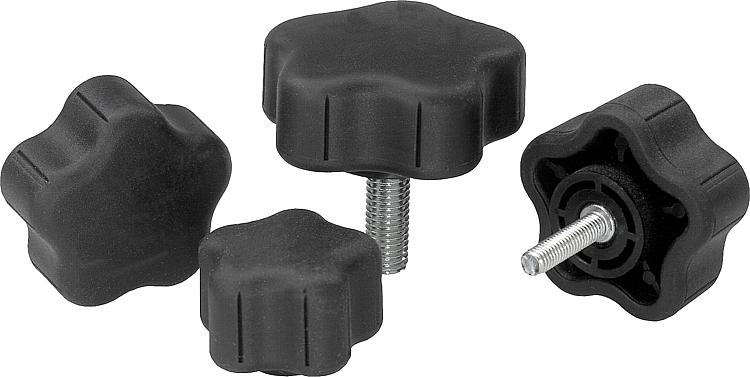

DescriptionProduct description:The material and form lend this grip a natural and secure gripping effect.Material, version:Grip black hard thermoplastic.
Coating black soft thermoplastic.
Tapped bush brass.
Screw electro zinc-plated steel grade 5.8.Note:SYMPA TOUCH five lobe grips are available in 3 sizes with internal and external threads.On request:Other screw sizes, screw lengths, versions and colours.Special features: DownloadHere is all the information as a PDF datasheet:
Are you looking for CAD data? These can be found directly in the product table.
|

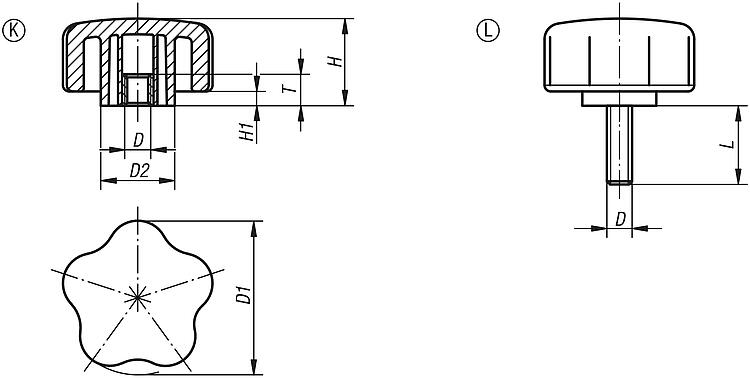

Drawings (total overview) |

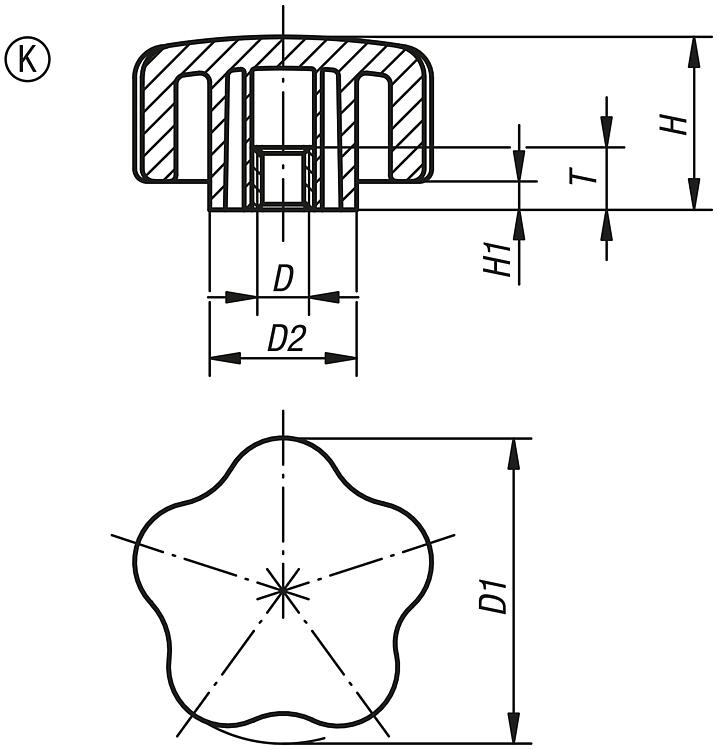

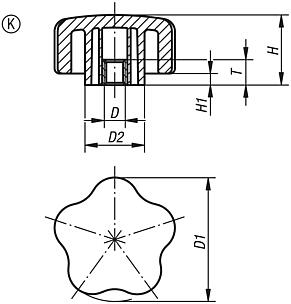

Order No.
| Form | D | D1 | D2 | H | H1 | T | CAD | Acc. | Price | Order |
|---|
| B0296.4005 | K | M5 | 40 | 19 | 27,7 | 4,6 | 12,5 |  | | 1.99 € | | | B0296.4006 | K | M6 | 40 | 19 | 27,7 | 4,6 | 12,5 | | | 1.99 € | | | B0296.4008 | K | M8 | 40 | 19 | 27,7 | 4,6 | 12,5 | | | 2.09 € | | | B0296.4010 | K | M10 | 40 | 19 | 27,7 | 4,6 | 12,5 | | | 2.09 € | | | B0296.5006 | K | M6 | 50 | 23,5 | 27,7 | 4,6 | 12,5 | | | 2.12 € | | | B0296.5008 | K | M8 | 50 | 23,5 | 27,7 | 4,6 | 12,5 | | | 2.15 € | | | B0296.5010 | K | M10 | 50 | 23,5 | 27,7 | 4,6 | 12,5 | | | 2.19 € | | | B0296.6006 | K | M6 | 60 | 31,8 | 27,7 | 4,6 | 12,5 | | | 2.59 € | | | B0296.6008 | K | M8 | 60 | 31,8 | 27,7 | 4,6 | 12,5 | | | 2.64 € | | | B0296.6010 | K | M10 | 60 | 31,8 | 27,7 | 4,6 | 12,5 | | | 2.64 € | |
|

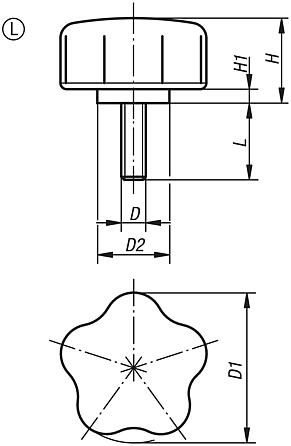

| Order No. | Form | D | D1 | D2 | H | H1 | L | CAD | Acc. | Price | Order |
|---|
| B0296.4006X15 | L | M6 | 40 | 19 | 27,7 | 4,6 | 15 | | | 1.94 € | | | B0296.4006X20 | L | M6 | 40 | 19 | 27,7 | 4,6 | 20 | | | 2.06 € | | | B0296.4006X25 | L | M6 | 40 | 19 | 27,7 | 4,6 | 25 | | | 2.06 € | | | B0296.4006X35 | L | M6 | 40 | 19 | 27,7 | 4,6 | 35 | | | 2.06 € | | | B0296.4008X16 | L | M8 | 40 | 19 | 27,7 | 4,6 | 16 | | | 2.22 € | | | B0296.4008X25 | L | M8 | 40 | 19 | 27,7 | 4,6 | 25 | | | 2.25 € | | | B0296.4008X35 | L | M8 | 40 | 19 | 27,7 | 4,6 | 35 | | | 2.25 € | | | B0296.4010X20 | L | M10 | 40 | 19 | 27,7 | 4,6 | 20 | | | 2.26 € | | | B0296.4010X30 | L | M10 | 40 | 19 | 27,7 | 4,6 | 30 | | | 2.26 € | | | B0296.4010X40 | L | M10 | 40 | 19 | 27,7 | 4,6 | 40 | | | 2.35 € | | | B0296.4010X50 | L | M10 | 40 | 19 | 27,7 | 4,6 | 50 | | | 2.40 € | | | B0296.5006X15 | L | M6 | 50 | 23,5 | 27,7 | 4,6 | 15 | | | 2.21 € | | | B0296.5006X20 | L | M6 | 50 | 23,5 | 27,7 | 4,6 | 20 | | | 2.22 € | | | B0296.5006X25 | L | M6 | 50 | 23,5 | 27,7 | 4,6 | 25 | | | 2.22 € | | | B0296.5006X35 | L | M6 | 50 | 23,5 | 27,7 | 4,6 | 35 | | | 2.22 € | | | B0296.5008X16 | L | M8 | 50 | 23,5 | 27,7 | 4,6 | 16 | | | 2.40 € | | | B0296.5008X25 | L | M8 | 50 | 23,5 | 27,7 | 4,6 | 25 | | | 2.41 € | | | B0296.5008X35 | L | M8 | 50 | 23,5 | 27,7 | 4,6 | 35 | | | 2.41 € | | | B0296.5010X30 | L | M10 | 50 | 23,5 | 27,7 | 4,6 | 30 | | | 2.47 € | | | B0296.5010X40 | L | M10 | 50 | 23,5 | 27,7 | 4,6 | 40 | | | 2.47 € | | | B0296.5010X50 | L | M10 | 50 | 23,5 | 27,7 | 4,6 | 50 | | | 2.47 € | | | B0296.6006X15 | L | M6 | 60 | 31,8 | 27,7 | 4,6 | 15 | | | 2.51 € | | | B0296.6006X20 | L | M6 | 60 | 31,8 | 27,7 | 4,6 | 20 | | | 2.51 € | | | B0296.6006X25 | L | M6 | 60 | 31,8 | 27,7 | 4,6 | 25 | | | 2.51 € | | | B0296.6006X35 | L | M6 | 60 | 31,8 | 27,7 | 4,6 | 35 | | | 2.67 € | | | B0296.6008X16 | L | M8 | 60 | 31,8 | 27,7 | 4,6 | 16 | | | 2.72 € | | | B0296.6008X25 | L | M8 | 60 | 31,8 | 27,7 | 4,6 | 25 | | | 2.74 € | | | B0296.6008X35 | L | M8 | 60 | 31,8 | 27,7 | 4,6 | 35 | | | 2.94 € | | | B0296.6010X20 | L | M10 | 60 | 31,8 | 27,7 | 4,6 | 20 | | | 2.93 € | | | B0296.6010X30 | L | M10 | 60 | 31,8 | 27,7 | 4,6 | 30 | | | 2.93 € | | | B0296.6010X40 | L | M10 | 60 | 31,8 | 27,7 | 4,6 | 40 | | | 2.93 € | | | B0296.6010X50 | L | M10 | 60 | 31,8 | 27,7 | 4,6 | 50 | | | 3.02 € | |
|
