B0286

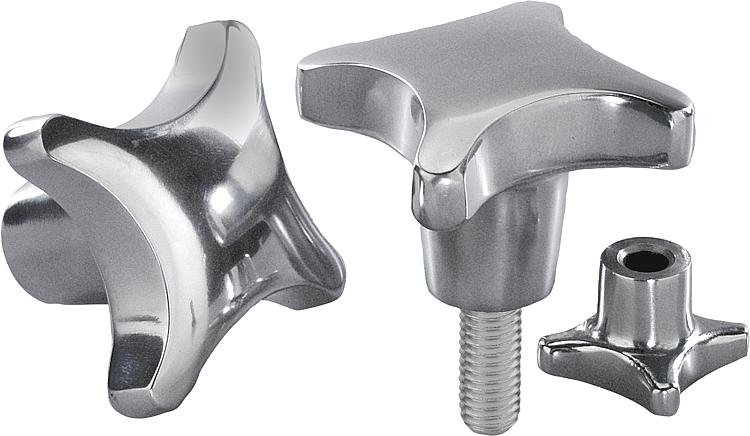

Palm grips aluminium, similar to DIN 6335

go back

Products
- Product overview
  - Handles and knobs
    - Palm grips, star grips, clamping grips
      - Palm grips aluminium, similar to DIN 6335

Item description/product images

Show/filter all items

DescriptionMaterial:

Aluminium.
Grub screw stainless steel 1.4305.
Pin stainless steel 1.4310.

Version:Vibratory ground or ground and polished.
Grub screw and pin bright.On request:Blank palm grips (not tumbled).Drawing reference:

Form A: blank
Form B: drilled through
Form C: blind hole
Form D: tapped and counterbored
Form E: tapped blind hole
Form L: external thread

Special features:

DownloadHere is all the information as a PDF datasheet:

Are you looking for CAD data? These can be found directly in the product table.

Datasheet B0286 Palm gripsaluminium, similar to DIN 6335

196 kB

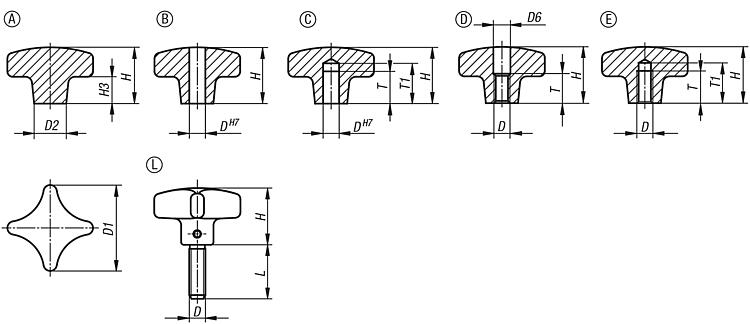

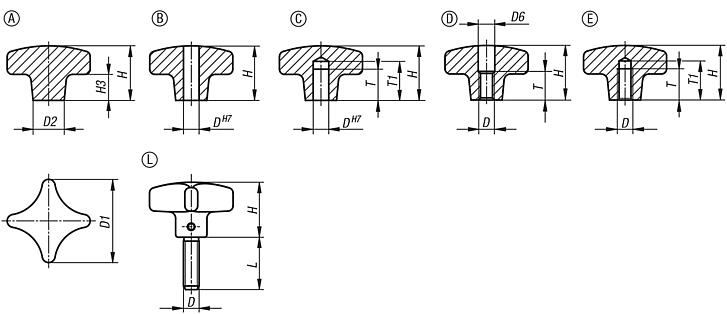

Drawings (total overview)

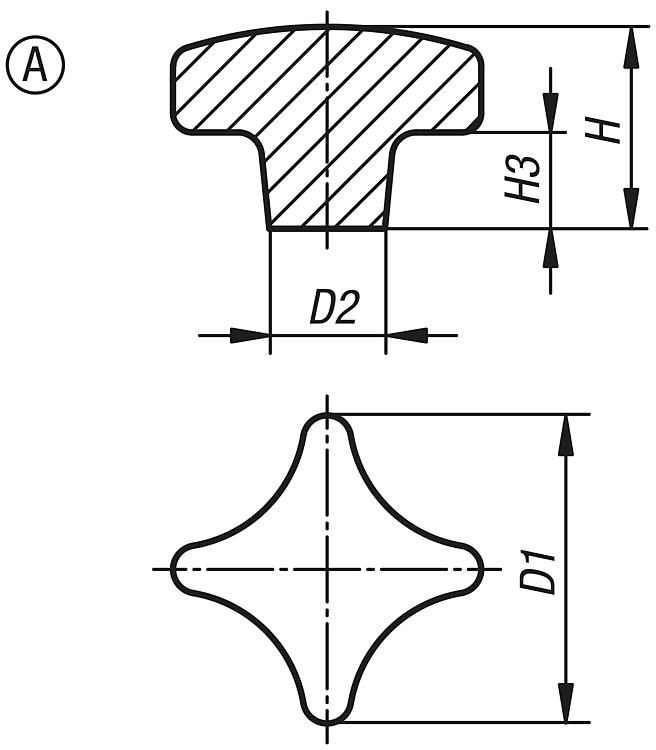

Palm grips similar to DIN 6335, aluminium, Form A, blank

More information

Drawings

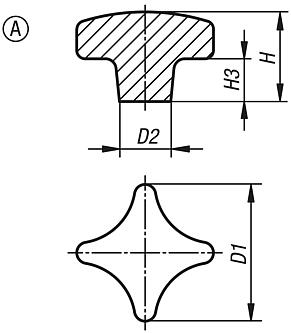

Palm grips similar to DIN 6335, aluminium, Form A, blank

Item selection/filter

Order No.	Form	Surface finish body	D1	D2	H	H3	Price
B0286.104008	A	tumbled	40	14	26	14	2.44 €
B0286.105010	A	tumbled	50	18	34	20	3.01 €
B0286.106312	A	tumbled	63	25	42	25	4.68 €
B0286.108016	A	tumbled	80	25	52	30	6.92 €

Palm grips similar to DIN 6335, aluminium, Form B, drilled through

More information

Drawings

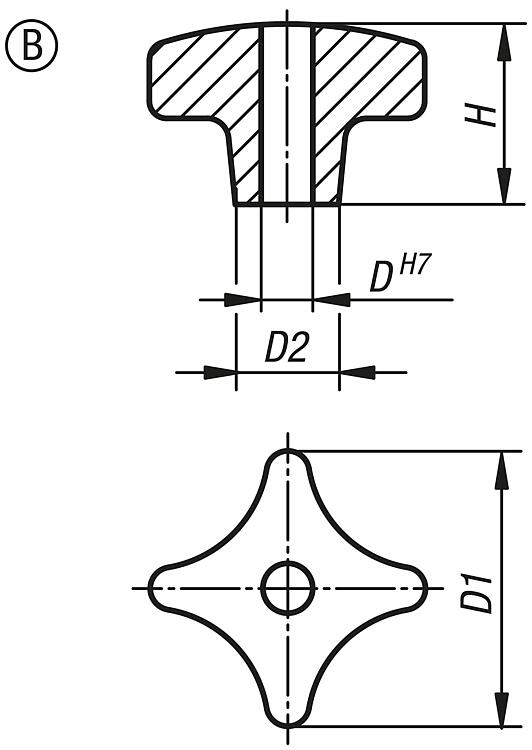

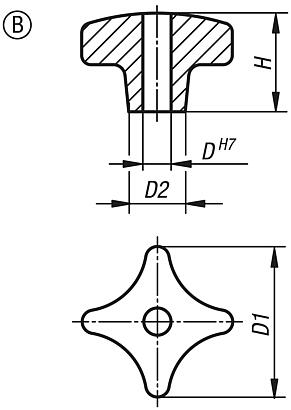

Palm grips similar to DIN 6335, aluminium, Form B, drilled through

Item selection/filter

Order No.	Form	Finish	D1	D	D2	H	Price
B0286.2080162	B	polished	80	16	25	50	15.01 €
B0286.2040082	B	polished	40	8	14	25	7.52 €
B0286.2050102	B	polished	50	10	18	32	8.56 €
B0286.2063122	B	polished	63	12	25	40	11.06 €
B0286.205010	B	tumbled	50	10	18	32	5.07 €
B0286.206312	B	tumbled	63	12	25	40	7.09 €
B0286.204008	B	tumbled	40	8	14	25	4.34 €
B0286.208016	B	tumbled	80	16	25	50	10.61 €

Palm grips similar to DIN 6335, aluminium, Form C, blind hole

More information

Drawings

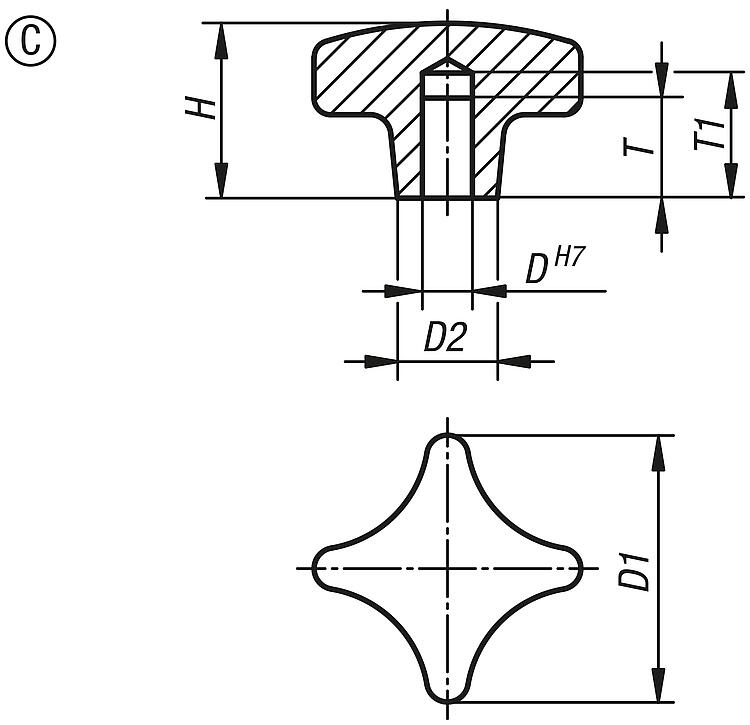

Palm grips similar to DIN 6335, aluminium, Form C, blind hole

Item selection/filter

Order No.	Form	Finish	D	D1	D2	H	T	T1	Price
B0286.3080162	C	polished	16	80	25	50	28	32	15.01 €
B0286.3040082	C	polished	8	40	14	25	15	18	7.52 €
B0286.3050102	C	polished	10	50	18	32	18	21	8.56 €
B0286.3063122	C	polished	12	63	25	40	22	25	11.06 €
B0286.305010	C	tumbled	10	50	18	32	18	21	5.07 €
B0286.306312	C	tumbled	12	63	25	40	22	25	7.09 €
B0286.304008	C	tumbled	8	40	14	25	15	18	4.34 €
B0286.308016	C	tumbled	16	80	25	50	28	32	10.61 €

Palm grips similar to DIN 6335, aluminium, Form D, thread countersunk

More information

Drawings

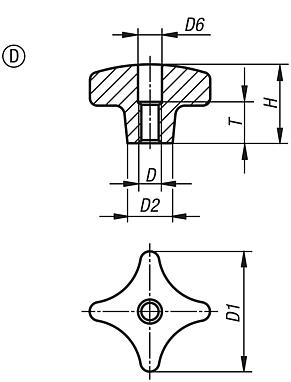

Palm grips similar to DIN 6335, aluminium, Form D, thread countersunk

Item selection/filter

Order No.	Form	Finish	D	D1	D2	D6	H	T	Price
B0286.404008	D	tumbled	M8	40	14	8,4	25	15	4.68 €
B0286.405010	D	tumbled	M10	50	18	10,5	32	18	5.43 €
B0286.406312	D	tumbled	M12	63	25	13	40	22	7.41 €
B0286.408016	D	tumbled	M16	80	25	17	50	28	10.95 €
B0286.4040082	D	polished	M8	40	14	8,4	25	15	7.86 €
B0286.4050102	D	polished	M10	50	18	10,5	32	18	8.89 €
B0286.4063122	D	polished	M12	63	25	13	40	22	11.41 €
B0286.4080162	D	polished	M16	80	25	17	50	28	15.32 €

Palm grips similar to DIN 6335, aluminium, Form E, blind tapped hole

More information

Drawings

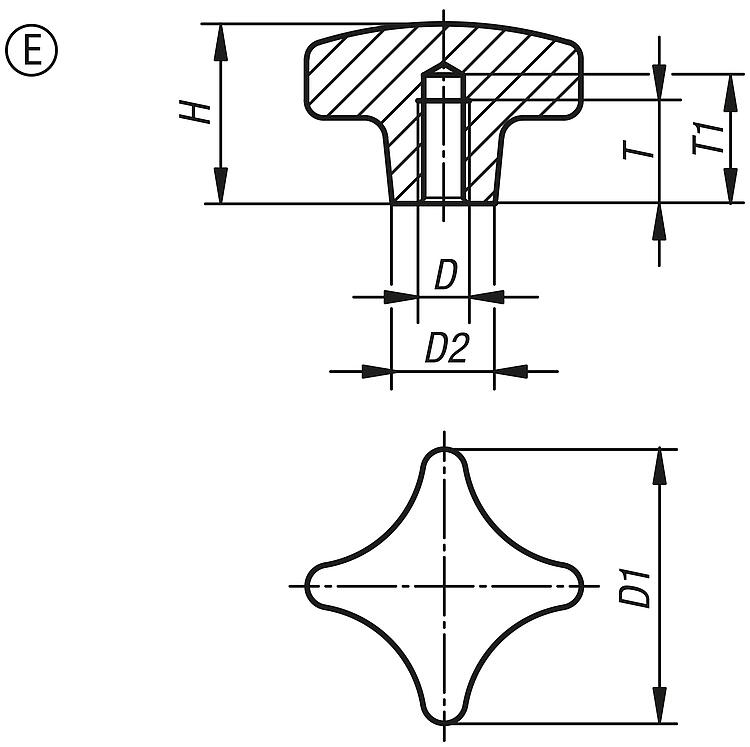

Palm grips similar to DIN 6335, aluminium, Form E, blind tapped hole

Item selection/filter

Order No.	Form	Finish	D	D1	D2	H	T	T1	Price
B0286.504008	E	tumbled	M8	40	14	25	15	18	4.34 €
B0286.505010	E	tumbled	M10	50	18	32	18	21	5.07 €
B0286.506312	E	tumbled	M12	63	25	40	22	25	7.09 €
B0286.508016	E	tumbled	M16	80	25	50	28	32	10.61 €
B0286.5040082	E	polished	M8	40	14	25	15	18	7.52 €
B0286.5050102	E	polished	M10	50	18	32	18	21	8.56 €
B0286.5063122	E	polished	M12	63	25	40	22	25	11.06 €
B0286.5080162	E	polished	M16	80	25	50	28	32	15.01 €

Palm grips similar to DIN 6335, aluminium, Form L, with external thread

More information

Drawings

Palm grips similar to DIN 6335, aluminium, Form L, with external thread

Item selection/filter

Order No.	Form	Surface finish body	D	D1	D2	H	L	Price
B0286.604008X20	L	tumbled	M8	40	14	25	20	8.81 €
B0286.604008X25	L	tumbled	M8	40	14	25	25	8.91 €
B0286.604008X30	L	tumbled	M8	40	14	25	30	8.99 €
B0286.604008X40	L	tumbled	M8	40	14	25	40	9.27 €
B0286.604008X50	L	tumbled	M8	40	14	25	50	9.39 €
B0286.605010X20	L	tumbled	M10	50	18	32	20	10.01 €
B0286.605010X25	L	tumbled	M10	50	18	32	25	10.03 €
B0286.605010X30	L	tumbled	M10	50	18	32	30	10.16 €
B0286.605010X40	L	tumbled	M10	50	18	32	40	10.27 €
B0286.605010X50	L	tumbled	M10	50	18	32	50	10.42 €
B0286.606312X20	L	tumbled	M12	63	25	40	20	12.34 €
B0286.606312X30	L	tumbled	M12	63	25	40	30	12.48 €
B0286.606312X40	L	tumbled	M12	63	25	40	40	12.75 €
B0286.606312X50	L	tumbled	M12	63	25	40	50	13.66 €
