Star gripssimilar to DIN 6336
B0288

Star grips similar to DIN 6336

go back

Item description/product images

 Show/filter all items
DescriptionMaterial:Black thermoplastic.
Bush and screw steel.Version:Bush and screw trivalent blue passivated.On request:Other colours or designs, such as company logo.Drawing reference:
Form D: tapped bush without cap
Form G: without bush

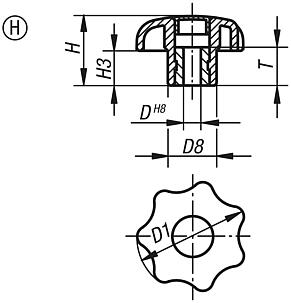

Form H: with reamed bush
Form K: tapped bush with cap
Form L: external thread

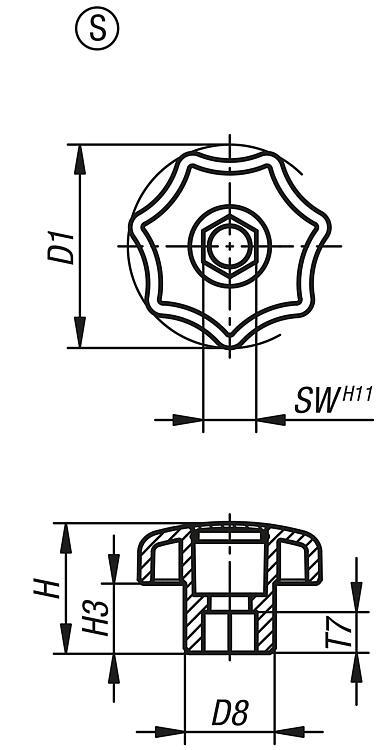

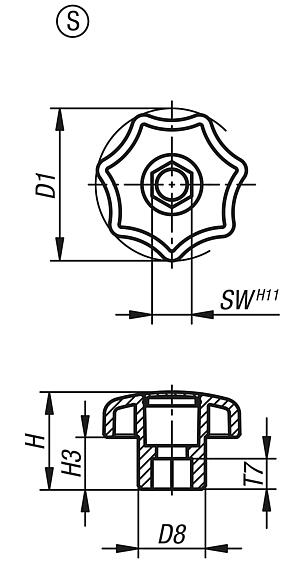

Form S: hexagon
Special features:
RoHS
DownloadHere is all the information as a PDF datasheet:

Are you looking for CAD data? These can be found directly in the product table.
Datasheet B0288 Star gripssimilar to DIN 6336 286 kB

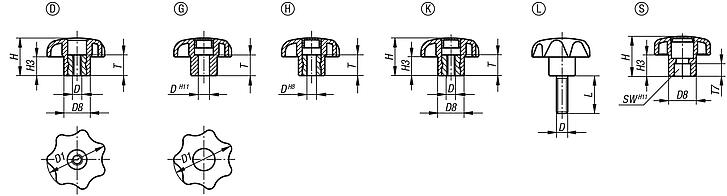

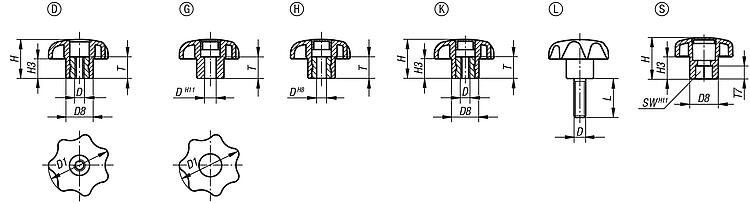

Drawings (total overview)

Star gripssimilar to DIN 6336

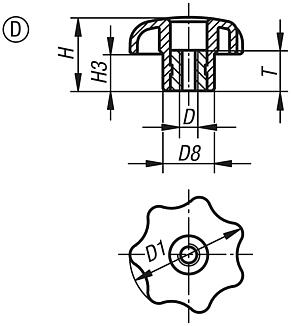

Star grips similar to DIN 6336, internal thread without cap, Form D

 More information

Drawings
Star grips similar to DIN 6336, internal thread without cap, Form D

Item selection/filter
Order No.

FormDD1D8HH3TCADAcc.PriceOrder
B0288.504DM4251216810 0.55 €
B0288.505DM5251216810 0.55 €
B0288.5061DM6251216810 0.55 €
B0288.5051DM53214201010 0.57 €
B0288.506DM63214201010 0.57 €
B0288.508DM84018251314 0.64 €
B0288.5101DM104018251314 0.64 €
B0288.5081DM85022321714 1.01 €
B0288.510DM105022321714 1.01 €
B0288.5121DM125022321718 1.01 €
B0288.5102DM106326402114 1.80 €
B0288.512DM126326402118 1.80 €
B0288.516DM166326402118 2.59 €

Star grips similar to DIN 6336, without bush, with reamed hole, Form G

 More information

Drawings
Star grips similar to DIN 6336, without bush, with reamed hole, Form G

Item selection/filter
Order No.FormColour
Cap
DD1D8HH3TCADAcc.PriceOrder
B0288.305Gjet black5251216810 0.27 €
B0288.3055Glight grey RAL 70355251216810 0.27 €
B0288.3056Gtraffic red RAL 30205251216810 0.27 €
B0288.3057Gcolza yellow RAL 10215251216810 0.27 €
B0288.306Gjet black63214201010 0.31 €
B0288.3065Glight grey RAL 703563214201010 0.31 €
B0288.3066Gtraffic red RAL 302063214201010 0.31 €
B0288.3067Gcolza yellow RAL 102163214201010 0.31 €
B0288.308Gjet black84018251314 0.42 €
B0288.3085Glight grey RAL 703584018251314 0.42 €
B0288.3086Gtraffic red RAL 302084018251314 0.42 €
B0288.3087Gcolza yellow RAL 102184018251314 0.42 €
B0288.310Gjet black105022321714 0.59 €
B0288.3105Glight grey RAL 7035105022321714 0.59 €
B0288.3106Gtraffic red RAL 3020105022321714 0.59 €
B0288.3107Gcolza yellow RAL 1021105022321714 0.59 €
B0288.312Gjet black126326402118 0.88 €
B0288.3125Glight grey RAL 7035126326402118 0.88 €
B0288.3126Gtraffic red RAL 3020126326402118 0.88 €
B0288.3127Gcolza yellow RAL 1021126326402118 0.88 €

Star grips similar to DIN 6336, with reamed bush, Form L

 More information

Drawings
Star grips similar to DIN 6336, with reamed bush, Form L

Item selection/filter
Order No.FormColour
Cap
DD1D8HH3TCADAcc.PriceOrder
B0288.105Hjet black5251216810 0.59 €
B0288.1055Hlight grey RAL 70355251216810 0.59 €
B0288.1056Htraffic red RAL 30205251216810 0.59 €
B0288.1057Hcolza yellow RAL 10215251216810 0.59 €
B0288.106Hjet black63214201010 0.61 €
B0288.1065Hlight grey RAL 703563214201010 0.61 €
B0288.1066Htraffic red RAL 302063214201010 0.61 €
B0288.1067Hcolza yellow RAL 102163214201010 0.61 €
B0288.108Hjet black84018251314 0.71 €
B0288.1085Hlight grey RAL 703584018251314 0.71 €
B0288.1086Htraffic red RAL 302084018251314 0.71 €
B0288.1087Hcolza yellow RAL 102184018251314 0.71 €
B0288.110Hjet black105022321714 1.08 €
B0288.1105Hlight grey RAL 7035105022321714 1.08 €
B0288.1106Htraffic red RAL 3020105022321714 1.08 €
B0288.1107Hcolza yellow RAL 1021105022321714 1.08 €
B0288.1101Hjet black106326402114 1.94 €
B0288.11015Hlight grey RAL 7035106326402114 1.94 €
B0288.11016Htraffic red RAL 3020106326402114 1.94 €
B0288.11017Hcolza yellow RAL 1021106326402114 1.94 €
B0288.112Hjet black126326402118 1.94 €
B0288.1125Hlight grey RAL 7035126326402118 1.94 €
B0288.1126Htraffic red RAL 3020126326402118 1.94 €
B0288.1127Hcolza yellow RAL 1021126326402118 1.94 €

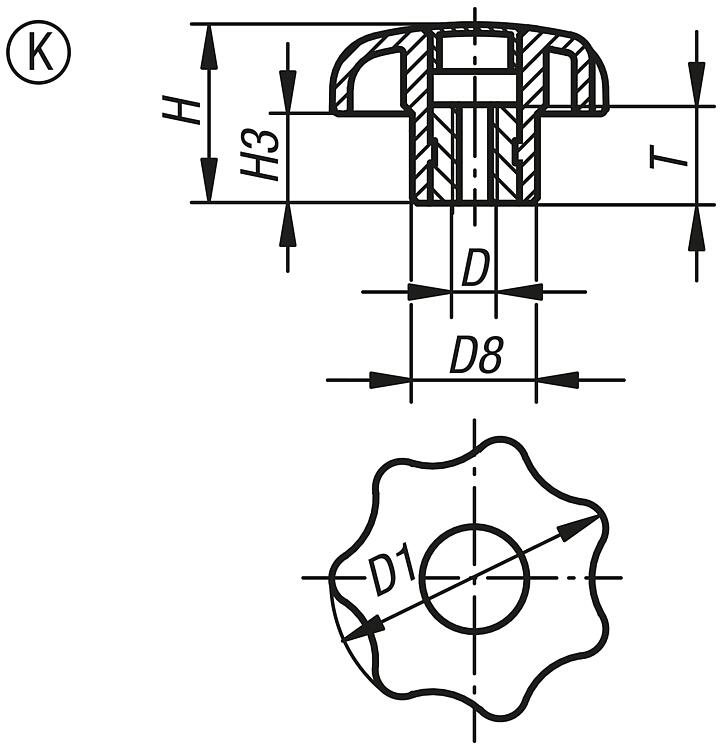

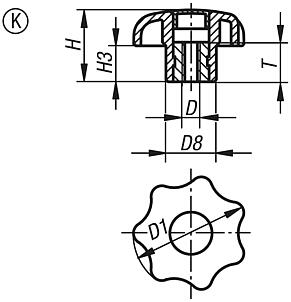

Star grips similar to DIN 6336, internal thread with cap, Form K

More information

Drawings
Star grips similar to DIN 6336, internal thread with cap, Form K

Item selection/filter
Order No.FormColour
Cap
DD1D8HH3TCADAcc.PriceOrder
B0288.204Kjet blackM4251216810 0.59 €
B0288.2045Klight grey RAL 7035M4251216810 0.59 €
B0288.2046Ktraffic red RAL 3020M4251216810 0.59 €
B0288.2047Kcolza yellow RAL 1021M4251216810 0.59 €
B0288.205Kjet blackM5251216810 0.59 €
B0288.2055Klight grey RAL 7035M5251216810 0.59 €
B0288.2056Ktraffic red RAL 3020M5251216810 0.59 €
B0288.2057Kcolza yellow RAL 1021M5251216810 0.59 €
B0288.2061Kjet blackM6251216810 0.59 €
B0288.20615Klight grey RAL 7035M6251216810 0.59 €
B0288.20616Ktraffic red RAL 3020M6251216810 0.59 €
B0288.20617Kcolza yellow RAL 1021M6251216810 0.59 €
B0288.2051Kjet blackM53214201010 0.61 €
B0288.20515Klight grey RAL 7035M53214201010 0.61 €
B0288.20516Ktraffic red RAL 3020M53214201010 0.61 €
B0288.20517Kcolza yellow RAL 1021M53214201010 0.61 €
B0288.206Kjet blackM63214201010 0.61 €
B0288.2065Klight grey RAL 7035M63214201010 0.61 €
B0288.2066Ktraffic red RAL 3020M63214201010 0.61 €
B0288.2067Kcolza yellow RAL 1021M63214201010 0.61 €
B0288.208Kjet blackM84018251314 0.71 €
B0288.2085Klight grey RAL 7035M84018251314 0.71 €
B0288.2086Ktraffic red RAL 3020M84018251314 0.71 €
B0288.2087Kcolza yellow RAL 1021M84018251314 0.71 €
B0288.2101Kjet blackM104018251314 0.71 €
B0288.21015Klight grey RAL 7035M104018251314 0.71 €
B0288.21016Ktraffic red RAL 3020M104018251314 0.71 €
B0288.21017Kcolza yellow RAL 1021M104018251314 0.71 €
B0288.2081Kjet blackM85022321714 1.08 €
B0288.20815Klight grey RAL 7035M85022321714 1.08 €
B0288.20816Ktraffic red RAL 3020M85022321714 1.08 €
B0288.20817Kcolza yellow RAL 1021M85022321714 1.08 €
B0288.210Kjet blackM105022321714 1.08 €
B0288.2105Klight grey RAL 7035M105022321714 1.08 €
B0288.2106Ktraffic red RAL 3020M105022321714 1.08 €
B0288.2107Kcolza yellow RAL 1021M105022321714 1.08 €
B0288.2121Kjet blackM125022321718 1.08 €
B0288.21215Klight grey RAL 7035M125022321718 1.08 €
B0288.21216Ktraffic red RAL 3020M125022321718 1.08 €
B0288.21217Kcolza yellow RAL 1021M125022321718 1.08 €
B0288.2102Kjet blackM106326402114 1.94 €
B0288.21025Klight grey RAL 7035M106326402114 1.94 €
B0288.21026Ktraffic red RAL 3020M106326402114 1.94 €
B0288.21027Kcolza yellow RAL 1021M106326402114 1.94 €
B0288.212Kjet blackM126326402118 1.94 €
B0288.2125Klight grey RAL 7035M126326402118 1.94 €
B0288.2126Ktraffic red RAL 3020M126326402118 1.94 €
B0288.2127Kcolza yellow RAL 1021M126326402118 1.94 €
B0288.216Kjet blackM166326402118 2.80 €
B0288.2165Klight grey RAL 7035M166326402118 2.80 €
B0288.2166Ktraffic red RAL 3020M166326402118 2.80 €
B0288.2167Kcolza yellow RAL 1021M166326402118 2.80 €

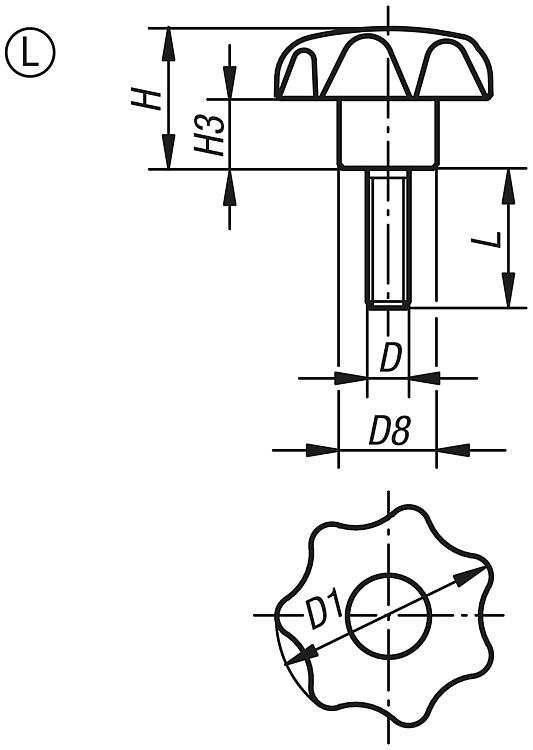

Star grips similar to DIN 6336 with external thread, Form L

More information

Drawings
Star grips similar to DIN 6336 with external thread, Form L

Item selection/filter
Order No.FormColour
Cap
DD1D8HH3LCADAcc.PriceOrder
B0288.405X10Ljet blackM5251216810 0.48 €
B0288.4055X10Llight grey RAL 7035M5251216810 0.48 €
B0288.4056X10Ltraffic red RAL 3020M5251216810 0.48 €
B0288.4057X10Lcolza yellow RAL 1021M5251216810 0.48 €
B0288.405X15Ljet blackM5251216815 0.48 €
B0288.4055X15Llight grey RAL 7035M5251216815 0.48 €
B0288.4056X15Ltraffic red RAL 3020M5251216815 0.48 €
B0288.4057X15Lcolza yellow RAL 1021M5251216815 0.48 €
B0288.405X20Ljet blackM5251216820 0.48 €
B0288.4055X20Llight grey RAL 7035M5251216820 0.48 €
B0288.4056X20Ltraffic red RAL 3020M5251216820 0.48 €
B0288.4057X20Lcolza yellow RAL 1021M5251216820 0.48 €
B0288.405X25Ljet blackM5251216825 0.49 €
B0288.4055X25Llight grey RAL 7035M5251216825 0.49 €
B0288.4056X25Ltraffic red RAL 3020M5251216825 0.49 €
B0288.4057X25Lcolza yellow RAL 1021M5251216825 0.49 €
B0288.405X30Ljet blackM5251216830 0.49 €
B0288.4055X30Llight grey RAL 7035M5251216830 0.49 €
B0288.4056X30Ltraffic red RAL 3020M5251216830 0.49 €
B0288.4057X30Lcolza yellow RAL 1021M5251216830 0.49 €
B0288.405X35Ljet blackM5251216835 0.53 €
B0288.4055X35Llight grey RAL 7035M5251216835 0.53 €
B0288.4056X35Ltraffic red RAL 3020M5251216835 0.53 €
B0288.4057X35Lcolza yellow RAL 1021M5251216835 0.53 €
B0288.405X40Ljet blackM5251216840 0.54 €
B0288.4055X40Llight grey RAL 7035M5251216840 0.54 €
B0288.4056X40Ltraffic red RAL 3020M5251216840 0.54 €
B0288.4057X40Lcolza yellow RAL 1021M5251216840 0.54 €
B0288.405X45Ljet blackM5251216845 0.56 €
B0288.4055X45Llight grey RAL 7035M5251216845 0.56 €
B0288.4056X45Ltraffic red RAL 3020M5251216845 0.56 €
B0288.4057X45Lcolza yellow RAL 1021M5251216845 0.56 €
B0288.405X50Ljet blackM5251216850 0.57 €
B0288.4055X50Llight grey RAL 7035M5251216850 0.57 €
B0288.4056X50Ltraffic red RAL 3020M5251216850 0.57 €
B0288.4057X50Lcolza yellow RAL 1021M5251216850 0.57 €
B0288.405X60Ljet blackM5251216860 0.61 €
B0288.4055X60Llight grey RAL 7035M5251216860 0.61 €
B0288.4056X60Ltraffic red RAL 3020M5251216860 0.61 €
B0288.4057X60Lcolza yellow RAL 1021M5251216860 0.61 €
B0288.406X10Ljet blackM6251216810 0.48 €
B0288.4065X10Llight grey RAL 7035M6251216810 0.48 €
B0288.4066X10Ltraffic red RAL 3020M6251216810 0.48 €
B0288.4067X10Lcolza yellow RAL 1021M6251216810 0.48 €
B0288.406X15Ljet blackM6251216815 0.48 €
B0288.4065X15Llight grey RAL 7035M6251216815 0.48 €
B0288.4066X15Ltraffic red RAL 3020M6251216815 0.48 €
B0288.4067X15Lcolza yellow RAL 1021M6251216815 0.48 €
B0288.406X20Ljet blackM6251216820 0.48 €
B0288.4065X20Llight grey RAL 7035M6251216820 0.48 €
B0288.4066X20Ltraffic red RAL 3020M6251216820 0.48 €
B0288.4067X20Lcolza yellow RAL 1021M6251216820 0.48 €
B0288.406X25Ljet blackM6251216825 0.49 €
B0288.4065X25Llight grey RAL 7035M6251216825 0.49 €
B0288.4066X25Ltraffic red RAL 3020M6251216825 0.49 €
B0288.4067X25Lcolza yellow RAL 1021M6251216825 0.49 €
B0288.406X30Ljet blackM6251216830 0.49 €
B0288.4065X30Llight grey RAL 7035M6251216830 0.49 €
B0288.4066X30Ltraffic red RAL 3020M6251216830 0.49 €
B0288.4067X30Lcolza yellow RAL 1021M6251216830 0.49 €
B0288.406X35Ljet blackM6251216835 0.53 €
B0288.4065X35Llight grey RAL 7035M6251216835 0.53 €
B0288.4066X35Ltraffic red RAL 3020M6251216835 0.53 €
B0288.4067X35Lcolza yellow RAL 1021M6251216835 0.53 €
B0288.406X40Ljet blackM6251216840 0.54 €
B0288.4065X40Llight grey RAL 7035M6251216840 0.54 €
B0288.4066X40Ltraffic red RAL 3020M6251216840 0.54 €
B0288.4067X40Lcolza yellow RAL 1021M6251216840 0.54 €
B0288.406X45Ljet blackM6251216845 0.56 €
B0288.4065X45Llight grey RAL 7035M6251216845 0.56 €
B0288.4066X45Ltraffic red RAL 3020M6251216845 0.56 €
B0288.4067X45Lcolza yellow RAL 1021M6251216845 0.56 €
B0288.406X50Ljet blackM6251216850 0.57 €
B0288.4065X50Llight grey RAL 7035M6251216850 0.57 €
B0288.4066X50Ltraffic red RAL 3020M6251216850 0.57 €
B0288.4067X50Lcolza yellow RAL 1021M6251216850 0.57 €
B0288.406X60Ljet blackM6251216860 0.61 €
B0288.4065X60Llight grey RAL 7035M6251216860 0.61 €
B0288.4066X60Ltraffic red RAL 3020M6251216860 0.61 €
B0288.4067X60Lcolza yellow RAL 1021M6251216860 0.61 €
B0288.4061X10Ljet blackM63214201010 0.59 €
B0288.40615X10Llight grey RAL 7035M63214201010 0.59 €
B0288.40616X10Ltraffic red RAL 3020M63214201010 0.59 €
B0288.40617X10Lcolza yellow RAL 1021M63214201010 0.59 €
B0288.4061X15Ljet blackM63214201015 0.59 €
B0288.40615X15Llight grey RAL 7035M63214201015 0.59 €
B0288.40616X15Ltraffic red RAL 3020M63214201015 0.59 €
B0288.40617X15Lcolza yellow RAL 1021M63214201015 0.59 €
B0288.4061X20Ljet blackM63214201020 0.59 €
B0288.40615X20Llight grey RAL 7035M63214201020 0.59 €
B0288.40616X20Ltraffic red RAL 3020M63214201020 0.59 €
B0288.40617X20Lcolza yellow RAL 1021M63214201020 0.59 €
B0288.4061X25Ljet blackM63214201025 0.60 €
B0288.40615X25Llight grey RAL 7035M63214201025 0.60 €
B0288.40616X25Ltraffic red RAL 3020M63214201025 0.60 €
B0288.40617X25Lcolza yellow RAL 1021M63214201025 0.60 €
B0288.4061X30Ljet blackM63214201030 0.60 €
B0288.40615X30Llight grey RAL 7035M63214201030 0.60 €
B0288.40616X30Ltraffic red RAL 3020M63214201030 0.60 €
B0288.40617X30Lcolza yellow RAL 1021M63214201030 0.60 €
B0288.4061X35Ljet blackM63214201035 0.61 €
B0288.40615X35Llight grey RAL 7035M63214201035 0.61 €
B0288.40616X35Ltraffic red RAL 3020M63214201035 0.61 €
B0288.40617X35Lcolza yellow RAL 1021M63214201035 0.61 €
B0288.4061X40Ljet blackM63214201040 0.62 €
B0288.40615X40Llight grey RAL 7035M63214201040 0.62 €
B0288.40616X40Ltraffic red RAL 3020M63214201040 0.62 €
B0288.40617X40Lcolza yellow RAL 1021M63214201040 0.62 €
B0288.4061X45Ljet blackM63214201045 0.64 €
B0288.40615X45Llight grey RAL 7035M63214201045 0.64 €
B0288.40616X45Ltraffic red RAL 3020M63214201045 0.64 €
B0288.40617X45Lcolza yellow RAL 1021M63214201045 0.64 €
B0288.4061X50Ljet blackM63214201050 0.65 €
B0288.40615X50Llight grey RAL 7035M63214201050 0.65 €
B0288.40616X50Ltraffic red RAL 3020M63214201050 0.65 €
B0288.40617X50Lcolza yellow RAL 1021M63214201050 0.65 €
B0288.4061X60Ljet blackM63214201060 0.71 €
B0288.40615X60Llight grey RAL 7035M63214201060 0.71 €
B0288.40616X60Ltraffic red RAL 3020M63214201060 0.71 €
B0288.40617X60Lcolza yellow RAL 1021M63214201060 0.71 €
B0288.408X15Ljet blackM83214201015 0.59 €
B0288.4085X15Llight grey RAL 7035M83214201015 0.59 €
B0288.4086X15Ltraffic red RAL 3020M83214201015 0.59 €
B0288.4087X15Lcolza yellow RAL 1021M83214201015 0.59 €
B0288.408X20Ljet blackM83214201020 0.59 €
B0288.4085X20Llight grey RAL 7035M83214201020 0.59 €
B0288.4086X20Ltraffic red RAL 3020M83214201020 0.59 €
B0288.4087X20Lcolza yellow RAL 1021M83214201020 0.59 €
B0288.408X25Ljet blackM83214201025 0.60 €
B0288.4085X25Llight grey RAL 7035M83214201025 0.60 €
B0288.4086X25Ltraffic red RAL 3020M83214201025 0.60 €
B0288.4087X25Lcolza yellow RAL 1021M83214201025 0.60 €
B0288.408X30Ljet blackM83214201030 0.60 €
B0288.4085X30Llight grey RAL 7035M83214201030 0.60 €
B0288.4086X30Ltraffic red RAL 3020M83214201030 0.60 €
B0288.4087X30Lcolza yellow RAL 1021M83214201030 0.60 €
B0288.408X35Ljet blackM83214201035 0.61 €
B0288.4085X35Llight grey RAL 7035M83214201035 0.61 €
B0288.4086X35Ltraffic red RAL 3020M83214201035 0.61 €
B0288.4087X35Lcolza yellow RAL 1021M83214201035 0.61 €
B0288.408X40Ljet blackM83214201040 0.62 €
B0288.4085X40Llight grey RAL 7035M83214201040 0.62 €
B0288.4086X40Ltraffic red RAL 3020M83214201040 0.62 €
B0288.4087X40Lcolza yellow RAL 1021M83214201040 0.62 €
B0288.408X45Ljet blackM83214201045 0.64 €
B0288.4085X45Llight grey RAL 7035M83214201045 0.64 €
B0288.4086X45Ltraffic red RAL 3020M83214201045 0.64 €
B0288.4087X45Lcolza yellow RAL 1021M83214201045 0.64 €
B0288.408X50Ljet blackM83214201050 0.65 €
B0288.4085X50Llight grey RAL 7035M83214201050 0.65 €
B0288.4086X50Ltraffic red RAL 3020M83214201050 0.65 €
B0288.4087X50Lcolza yellow RAL 1021M83214201050 0.65 €
B0288.408X60Ljet blackM83214201060 0.71 €
B0288.4085X60Llight grey RAL 7035M83214201060 0.71 €
B0288.4086X60Ltraffic red RAL 3020M83214201060 0.71 €
B0288.4087X60Lcolza yellow RAL 1021M83214201060 0.71 €
B0288.4081X15Ljet blackM84018251315 0.91 €
B0288.40815X15Llight grey RAL 7035M84018251315 0.91 €
B0288.40816X15Ltraffic red RAL 3020M84018251315 0.91 €
B0288.40817X15Lcolza yellow RAL 1021M84018251315 0.91 €
B0288.4081X20Ljet blackM84018251320 0.91 €
B0288.40815X20Llight grey RAL 7035M84018251320 0.91 €
B0288.40816X20Ltraffic red RAL 3020M84018251320 0.91 €
B0288.40817X20Lcolza yellow RAL 1021M84018251320 0.91 €
B0288.4081X25Ljet blackM84018251325 0.91 €
B0288.40815X25Llight grey RAL 7035M84018251325 0.91 €
B0288.40816X25Ltraffic red RAL 3020M84018251325 0.91 €
B0288.40817X25Lcolza yellow RAL 1021M84018251325 0.91 €
B0288.4081X30Ljet blackM84018251330 0.93 €
B0288.40815X30Llight grey RAL 7035M84018251330 0.93 €
B0288.40816X30Ltraffic red RAL 3020M84018251330 0.93 €
B0288.40817X30Lcolza yellow RAL 1021M84018251330 0.93 €
B0288.4081X35Ljet blackM84018251335 0.98 €
B0288.40815X35Llight grey RAL 7035M84018251335 0.98 €
B0288.40816X35Ltraffic red RAL 3020M84018251335 0.98 €
B0288.40817X35Lcolza yellow RAL 1021M84018251335 0.98 €
B0288.4081X40Ljet blackM84018251340 0.99 €
B0288.40815X40Llight grey RAL 7035M84018251340 0.99 €
B0288.40816X40Ltraffic red RAL 3020M84018251340 0.99 €
B0288.40817X40Lcolza yellow RAL 1021M84018251340 0.99 €
B0288.4081X45Ljet blackM84018251345 1.02 €
B0288.40815X45Llight grey RAL 7035M84018251345 1.02 €
B0288.40816X45Ltraffic red RAL 3020M84018251345 1.02 €
B0288.40817X45Lcolza yellow RAL 1021M84018251345 1.02 €
B0288.4081X50Ljet blackM84018251350 1.03 €
B0288.40815X50Llight grey RAL 7035M84018251350 1.03 €
B0288.40816X50Ltraffic red RAL 3020M84018251350 1.03 €
B0288.40817X50Lcolza yellow RAL 1021M84018251350 1.03 €
B0288.4081X60Ljet blackM84018251360 1.08 €
B0288.40815X60Llight grey RAL 7035M84018251360 1.08 €
B0288.40816X60Ltraffic red RAL 3020M84018251360 1.08 €
B0288.40817X60Lcolza yellow RAL 1021M84018251360 1.08 €
B0288.410X15Ljet blackM104018251315 0.91 €
B0288.4105X15Llight grey RAL 7035M104018251315 0.91 €
B0288.4106X15Ltraffic red RAL 3020M104018251315 0.91 €
B0288.4107X15Lcolza yellow RAL 1021M104018251315 0.91 €
B0288.410X20Ljet blackM104018251320 0.91 €
B0288.4105X20Llight grey RAL 7035M104018251320 0.91 €
B0288.4106X20Ltraffic red RAL 3020M104018251320 0.91 €
B0288.4107X20Lcolza yellow RAL 1021M104018251320 0.91 €
B0288.410X25Ljet blackM104018251325 0.91 €
B0288.4105X25Llight grey RAL 7035M104018251325 0.91 €
B0288.4106X25Ltraffic red RAL 3020M104018251325 0.91 €
B0288.4107X25Lcolza yellow RAL 1021M104018251325 0.91 €
B0288.410X30Ljet blackM104018251330 0.93 €
B0288.4105X30Llight grey RAL 7035M104018251330 0.93 €
B0288.4106X30Ltraffic red RAL 3020M104018251330 0.93 €
B0288.4107X30Lcolza yellow RAL 1021M104018251330 0.93 €
B0288.410X35Ljet blackM104018251335 0.98 €
B0288.4105X35Llight grey RAL 7035M104018251335 0.98 €
B0288.4106X35Ltraffic red RAL 3020M104018251335 0.98 €
B0288.4107X35Lcolza yellow RAL 1021M104018251335 0.98 €
B0288.410X40Ljet blackM104018251340 0.99 €
B0288.4105X40Llight grey RAL 7035M104018251340 0.99 €
B0288.4106X40Ltraffic red RAL 3020M104018251340 0.99 €
B0288.4107X40Lcolza yellow RAL 1021M104018251340 0.99 €
B0288.410X45Ljet blackM104018251345 1.02 €
B0288.4105X45Llight grey RAL 7035M104018251345 1.02 €
B0288.4106X45Ltraffic red RAL 3020M104018251345 1.02 €
B0288.4107X45Lcolza yellow RAL 1021M104018251345 1.02 €
B0288.410X50Ljet blackM104018251350 1.03 €
B0288.4105X50Llight grey RAL 7035M104018251350 1.03 €
B0288.4106X50Ltraffic red RAL 3020M104018251350 1.03 €
B0288.4107X50Lcolza yellow RAL 1021M104018251350 1.03 €
B0288.410X60Ljet blackM104018251360 1.08 €
B0288.4105X60Llight grey RAL 7035M104018251360 1.08 €
B0288.4106X60Ltraffic red RAL 3020M104018251360 1.08 €
B0288.4107X60Lcolza yellow RAL 1021M104018251360 1.08 €
B0288.4101X15Ljet blackM105022321715 1.46 €
B0288.41015X15Llight grey RAL 7035M105022321715 1.46 €
B0288.41016X15Ltraffic red RAL 3020M105022321715 1.46 €
B0288.41017X15Lcolza yellow RAL 1021M105022321715 1.46 €
B0288.4101X20Ljet blackM105022321720 1.47 €
B0288.41015X20Llight grey RAL 7035M105022321720 1.47 €
B0288.41016X20Ltraffic red RAL 3020M105022321720 1.47 €
B0288.41017X20Lcolza yellow RAL 1021M105022321720 1.47 €
B0288.4101X25Ljet blackM105022321725 1.49 €
B0288.41015X25Llight grey RAL 7035M105022321725 1.49 €
B0288.41016X25Ltraffic red RAL 3020M105022321725 1.49 €
B0288.41017X25Lcolza yellow RAL 1021M105022321725 1.49 €
B0288.4101X30Ljet blackM105022321730 1.52 €
B0288.41015X30Llight grey RAL 7035M105022321730 1.52 €
B0288.41016X30Ltraffic red RAL 3020M105022321730 1.52 €
B0288.41017X30Lcolza yellow RAL 1021M105022321730 1.52 €
B0288.4101X35Ljet blackM105022321735 1.59 €
B0288.41015X35Llight grey RAL 7035M105022321735 1.59 €
B0288.41016X35Ltraffic red RAL 3020M105022321735 1.59 €
B0288.41017X35Lcolza yellow RAL 1021M105022321735 1.59 €
B0288.4101X40Ljet blackM105022321740 1.64 €
B0288.41015X40Llight grey RAL 7035M105022321740 1.64 €
B0288.41016X40Ltraffic red RAL 3020M105022321740 1.64 €
B0288.41017X40Lcolza yellow RAL 1021M105022321740 1.64 €
B0288.4101X45Ljet blackM105022321745 1.70 €
B0288.41015X45Llight grey RAL 7035M105022321745 1.70 €
B0288.41016X45Ltraffic red RAL 3020M105022321745 1.70 €
B0288.41017X45Lcolza yellow RAL 1021M105022321745 1.70 €
B0288.4101X50Ljet blackM105022321750 1.79 €
B0288.41015X50Llight grey RAL 7035M105022321750 1.79 €
B0288.41016X50Ltraffic red RAL 3020M105022321750 1.79 €
B0288.41017X50Lcolza yellow RAL 1021M105022321750 1.79 €
B0288.4101X60Ljet blackM105022321760 1.86 €
B0288.41015X60Llight grey RAL 7035M105022321760 1.86 €
B0288.41016X60Ltraffic red RAL 3020M105022321760 1.86 €
B0288.41017X60Lcolza yellow RAL 1021M105022321760 1.86 €
B0288.412X15Ljet blackM125022321715 1.46 €
B0288.4125X15Llight grey RAL 7035M125022321715 1.46 €
B0288.4126X15Ltraffic red RAL 3020M125022321715 1.46 €
B0288.4127X15Lcolza yellow RAL 1021M125022321715 1.46 €
B0288.412X20Ljet blackM125022321720 1.47 €
B0288.4125X20Llight grey RAL 7035M125022321720 1.47 €
B0288.4126X20Ltraffic red RAL 3020M125022321720 1.47 €
B0288.4127X20Lcolza yellow RAL 1021M125022321720 1.47 €
B0288.412X25Ljet blackM125022321725 1.49 €
B0288.4125X25Llight grey RAL 7035M125022321725 1.49 €
B0288.4126X25Ltraffic red RAL 3020M125022321725 1.49 €
B0288.4127X25Lcolza yellow RAL 1021M125022321725 1.49 €
B0288.412X30Ljet blackM125022321730 1.52 €
B0288.4125X30Llight grey RAL 7035M125022321730 1.52 €
B0288.4126X30Ltraffic red RAL 3020M125022321730 1.52 €
B0288.4127X30Lcolza yellow RAL 1021M125022321730 1.52 €
B0288.412X35Ljet blackM125022321735 1.59 €
B0288.4125X35Llight grey RAL 7035M125022321735 1.59 €
B0288.4126X35Ltraffic red RAL 3020M125022321735 1.59 €
B0288.4127X35Lcolza yellow RAL 1021M125022321735 1.59 €
B0288.412X40Ljet blackM125022321740 1.64 €
B0288.4125X40Llight grey RAL 7035M125022321740 1.64 €
B0288.4126X40Ltraffic red RAL 3020M125022321740 1.64 €
B0288.4127X40Lcolza yellow RAL 1021M125022321740 1.64 €
B0288.412X45Ljet blackM125022321745 1.70 €
B0288.4125X45Llight grey RAL 7035M125022321745 1.70 €
B0288.4126X45Ltraffic red RAL 3020M125022321745 1.70 €
B0288.4127X45Lcolza yellow RAL 1021M125022321745 1.70 €
B0288.412X50Ljet blackM125022321750 1.79 €
B0288.4125X50Llight grey RAL 7035M125022321750 1.79 €
B0288.4126X50Ltraffic red RAL 3020M125022321750 1.79 €
B0288.4127X50Lcolza yellow RAL 1021M125022321750 1.79 €
B0288.412X60Ljet blackM125022321760 1.86 €
B0288.4125X60Llight grey RAL 7035M125022321760 1.86 €
B0288.4126X60Ltraffic red RAL 3020M125022321760 1.86 €
B0288.4127X60Lcolza yellow RAL 1021M125022321760 1.86 €
B0288.4102X20Ljet blackM106326402120 2.16 €
B0288.41025X20Llight grey RAL 7035M106326402120 2.16 €
B0288.41026X20Ltraffic red RAL 3020M106326402120 2.16 €
B0288.41027X20Lcolza yellow RAL 1021M106326402120 2.16 €
B0288.4102X25Ljet blackM106326402125 2.17 €
B0288.41025X25Llight grey RAL 7035M106326402125 2.17 €
B0288.41026X25Ltraffic red RAL 3020M106326402125 2.17 €
B0288.41027X25Lcolza yellow RAL 1021M106326402125 2.17 €
B0288.4102X30Ljet blackM106326402130 2.19 €
B0288.41025X30Llight grey RAL 7035M106326402130 2.19 €
B0288.41026X30Ltraffic red RAL 3020M106326402130 2.19 €
B0288.41027X30Lcolza yellow RAL 1021M106326402130 2.19 €
B0288.4102X35Ljet blackM106326402135 2.33 €
B0288.41025X35Llight grey RAL 7035M106326402135 2.33 €
B0288.41026X35Ltraffic red RAL 3020M106326402135 2.33 €
B0288.41027X35Lcolza yellow RAL 1021M106326402135 2.33 €
B0288.4102X40Ljet blackM106326402140 2.40 €
B0288.41025X40Llight grey RAL 7035M106326402140 2.40 €
B0288.41026X40Ltraffic red RAL 3020M106326402140 2.40 €
B0288.41027X40Lcolza yellow RAL 1021M106326402140 2.40 €
B0288.4102X45Ljet blackM106326402145 2.46 €
B0288.41025X45Llight grey RAL 7035M106326402145 2.46 €
B0288.41026X45Ltraffic red RAL 3020M106326402145 2.46 €
B0288.41027X45Lcolza yellow RAL 1021M106326402145 2.46 €
B0288.4102X50Ljet blackM106326402150 2.51 €
B0288.41025X50Llight grey RAL 7035M106326402150 2.51 €
B0288.41026X50Ltraffic red RAL 3020M106326402150 2.51 €
B0288.41027X50Lcolza yellow RAL 1021M106326402150 2.51 €
B0288.4102X60Ljet blackM106326402160 2.63 €
B0288.41025X60Llight grey RAL 7035M106326402160 2.63 €
B0288.41026X60Ltraffic red RAL 3020M106326402160 2.63 €
B0288.41027X60Lcolza yellow RAL 1021M106326402160 2.63 €
B0288.4121X20Ljet blackM126326402120 2.16 €
B0288.41215X20Llight grey RAL 7035M126326402120 2.16 €
B0288.41216X20Ltraffic red RAL 3020M126326402120 2.16 €
B0288.41217X20Lcolza yellow RAL 1021M126326402120 2.16 €
B0288.4121X25Ljet blackM126326402125 2.17 €
B0288.41215X25Llight grey RAL 7035M126326402125 2.17 €
B0288.41216X25Ltraffic red RAL 3020M126326402125 2.17 €
B0288.41217X25Lcolza yellow RAL 1021M126326402125 2.17 €
B0288.4121X30Ljet blackM126326402130 2.19 €
B0288.41215X30Llight grey RAL 7035M126326402130 2.19 €
B0288.41216X30Ltraffic red RAL 3020M126326402130 2.19 €
B0288.41217X30Lcolza yellow RAL 1021M126326402130 2.19 €
B0288.4121X35Ljet blackM126326402135 2.33 €
B0288.41215X35Llight grey RAL 7035M126326402135 2.33 €
B0288.41216X35Ltraffic red RAL 3020M126326402135 2.33 €
B0288.41217X35Lcolza yellow RAL 1021M126326402135 2.33 €
B0288.4121X40Ljet blackM126326402140 2.40 €
B0288.41215X40Llight grey RAL 7035M126326402140 2.40 €
B0288.41216X40Ltraffic red RAL 3020M126326402140 2.40 €
B0288.41217X40Lcolza yellow RAL 1021M126326402140 2.40 €
B0288.4121X45Ljet blackM126326402145 2.46 €
B0288.41215X45Llight grey RAL 7035M126326402145 2.46 €
B0288.41216X45Ltraffic red RAL 3020M126326402145 2.46 €
B0288.41217X45Lcolza yellow RAL 1021M126326402145 2.46 €
B0288.4121X50Ljet blackM126326402150 2.51 €
B0288.41215X50Llight grey RAL 7035M126326402150 2.51 €
B0288.41216X50Ltraffic red RAL 3020M126326402150 2.51 €
B0288.41217X50Lcolza yellow RAL 1021M126326402150 2.51 €
B0288.4121X60Ljet blackM126326402160 2.63 €
B0288.41215X60Llight grey RAL 7035M126326402160 2.63 €
B0288.41216X60Ltraffic red RAL 3020M126326402160 2.63 €
B0288.41217X60Lcolza yellow RAL 1021M126326402160 2.63 €
B0288.416X30Ljet blackM166326402130 3.41 €
B0288.4165X30Llight grey RAL 7035M166326402130 3.41 €
B0288.4166X30Ltraffic red RAL 3020M166326402130 3.41 €
B0288.4167X30Lcolza yellow RAL 1021M166326402130 3.41 €
B0288.416X35Ljet blackM166326402135 3.49 €
B0288.4165X35Llight grey RAL 7035M166326402135 3.49 €
B0288.4166X35Ltraffic red RAL 3020M166326402135 3.49 €
B0288.4167X35Lcolza yellow RAL 1021M166326402135 3.49 €
B0288.416X40Ljet blackM166326402140 3.63 €
B0288.4165X40Llight grey RAL 7035M166326402140 3.63 €
B0288.4166X40Ltraffic red RAL 3020M166326402140 3.63 €
B0288.4167X40Lcolza yellow RAL 1021M166326402140 3.63 €
B0288.416X45Ljet blackM166326402145 3.76 €
B0288.4165X45Llight grey RAL 7035M166326402145 3.76 €
B0288.4166X45Ltraffic red RAL 3020M166326402145 3.76 €
B0288.4167X45Lcolza yellow RAL 1021M166326402145 3.76 €
B0288.416X50Ljet blackM166326402150 3.90 €
B0288.4165X50Llight grey RAL 7035M166326402150 3.90 €
B0288.4166X50Ltraffic red RAL 3020M166326402150 3.90 €
B0288.4167X50Lcolza yellow RAL 1021M166326402150 3.90 €
B0288.416X60Ljet blackM166326402160 4.06 €
B0288.4165X60Llight grey RAL 7035M166326402160 4.06 €
B0288.4166X60Ltraffic red RAL 3020M166326402160 4.06 €
B0288.4167X60Lcolza yellow RAL 1021M166326402160 4.06 €

Star grips similar to DIN 6336, hexagonal, Form S

 More information

Drawings
Star grips similar to DIN 6336, hexagonal, Form S

Item selection/filter
Order No.

FormD1

D8HH3SWT7CADAcc.PriceOrder
B0288.808S3214201085 0.36 €
B0288.810S401825131010 0.53 €
B0288.813S502232171310 0.71 €
B0288.816S632640211615 1.03 €
Search
Shopping cart
Number of items: 0
Amount: 0.00  €
Display
Speed ordering
Go to order form
Germany
Sitemap Print Top
Copyright © 2023 NORMTEILWERK ROBERT BLOHM GmbH. All rights reserved. Tel. +49 (0) 41 55 / 80 08-0 · Fax +49 (0) 41 55 / 81 11 31
