B0290

Star grips with projecting steel bush

go back

Products
- Product overview
  - Handles and knobs
    - Palm grips, star grips, clamping grips
      - Star grips with projecting steel bush

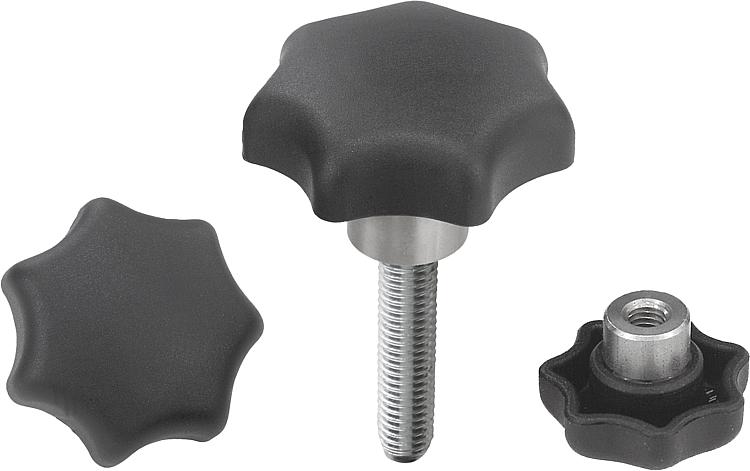

Item description/product images

Show/filter all items

DescriptionMaterial:

Black thermoplastic.
Steel grade 5.8 or stainless steel 1.4305.

Version:Metal parts trivalent blue passivated steel or bright stainless steel.Note:Star grips with projecting steel bush and blind hole or internal thread are especially suited for cross pinning.Drawing reference:

Form H: bush with blind hole
Form K: tapped bush
Form L: external thread

DownloadHere is all the information as a PDF datasheet:

Are you looking for CAD data? These can be found directly in the product table.

Datasheet B0290 Star grips with projecting steel bush

177 kB

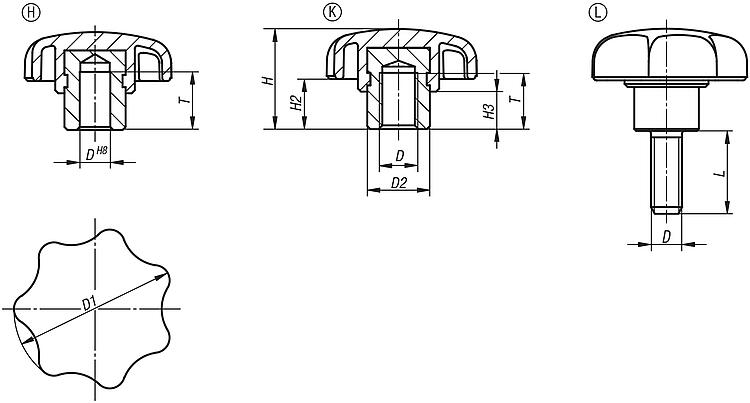

Drawings (total overview)

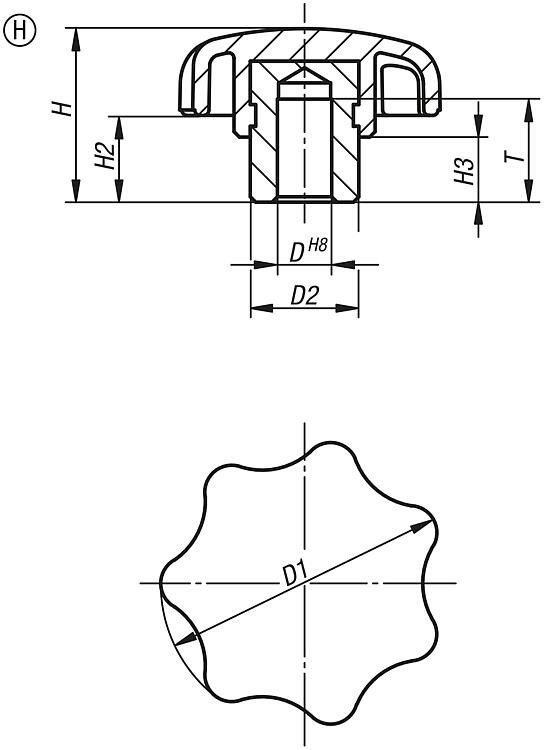

Star grips, Form H with projecting steel bush with blind hole

More information

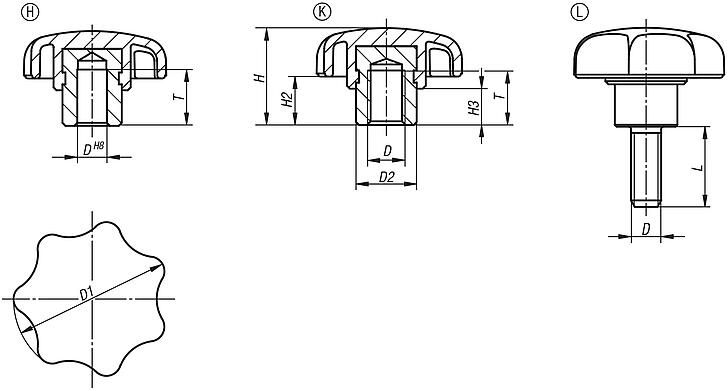

Drawings

Star grips, Form H with projecting steel bush with blind hole

Item selection/filter

Order No.	Form	Component material	D	D1	D2	H	H2	H3	T	Price
B0290.105	H	steel	5	25	10	17	9	7	9,5	0.98 €
B0290.106	H	steel	6	32	13,5	21	11	9,5	12,5	1.22 €
B0290.1061	H	steel	6	40	13,5	25	13	10	12,5	1.53 €
B0290.108	H	steel	8	40	13,5	25	13	10	12,5	1.53 €
B0290.1081	H	steel	8	50	19	32	17	12	19,5	2.01 €
B0290.110	H	steel	10	50	19	32	17	12	19,5	2.01 €
B0290.1101	H	steel	10	63	19	37	18	12	19,5	3.08 €
B0290.112	H	steel	12	63	19	37	18	12	19,5	3.08 €
B0290.116	H	steel	16	63	23	40	21	15	24,5	4.33 €

Star grips, Form K, with projecting steel tapped bush

More information

Drawings

Star grips, Form K, with projecting steel tapped bush

Item selection/filter

Order No.	Form	Component material	D	D1	D2	H	H2	H3	T	Price
B0290.205	K	steel	M5	25	10	17	9	7	9	1.12 €
B0290.206	K	steel	M6	32	13,5	21	11	9,5	12	1.13 €
B0290.2061	K	steel	M6	40	13,5	25	13	10	12	1.40 €
B0290.208	K	steel	M8	40	13,5	25	13	10	12	1.40 €
B0290.2081	K	steel	M8	50	19	32	17	12	17	2.01 €
B0290.210	K	steel	M10	50	19	32	17	12	17	2.01 €
B0290.2101	K	steel	M10	63	19	37	18	12	17	2.94 €
B0290.212	K	steel	M12	63	19	37	18	12	17	2.94 €
B0290.216	K	steel	M16	63	23	40	21	15	23	4.33 €
B0290.305	K	stainless steel	M5	25	10	17	9	7	9	1.82 €
B0290.306	K	stainless steel	M6	32	13,5	21	11	9,5	12	2.21 €
B0290.3061	K	stainless steel	M6	40	13,5	25	13	10	12	2.77 €
B0290.308	K	stainless steel	M8	40	13,5	25	13	10	12	2.77 €
B0290.3081	K	stainless steel	M8	50	19	32	17	12	17	3.76 €
B0290.310	K	stainless steel	M10	50	19	32	17	12	17	3.76 €
B0290.3101	K	stainless steel	M10	63	19	37	18	12	17	4.80 €
B0290.312	K	stainless steel	M12	63	19	37	18	12	17	4.80 €
B0290.316	K	stainless steel	M16	63	23	40	21	15	23	6.93 €

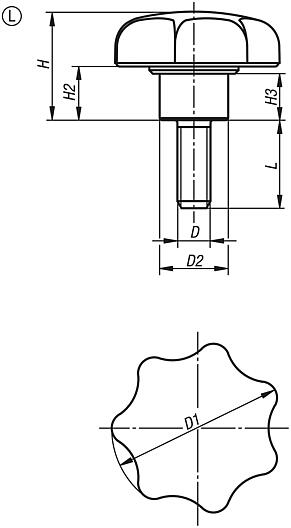

Star grips, Form L, projecting steel bush with external thread

More information

Drawings

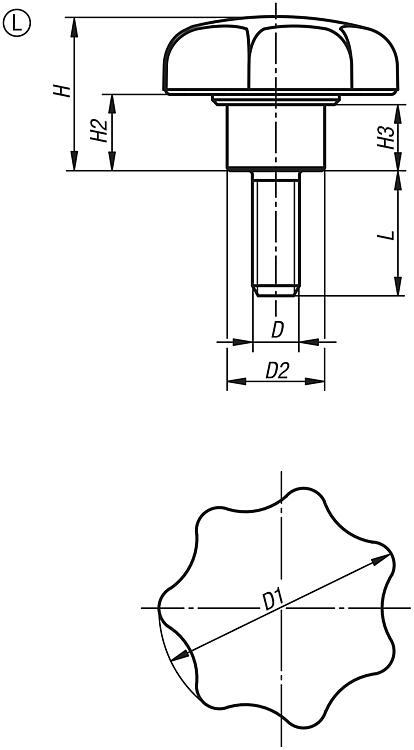

Star grips, Form L, projecting steel bush with external thread

Item selection/filter

Order No.	Form	Component material	D	D1	D2	H	H2	H3	L	Price
B0290.405X10	L	steel	M5	25	10	17	9	7	10	1.36 €
B0290.405X15	L	steel	M5	25	10	17	9	7	15	1.36 €
B0290.405X20	L	steel	M5	25	10	17	9	7	20	1.36 €
B0290.406X10	L	steel	M6	32	13,5	21	11	9,5	10	1.57 €
B0290.406X15	L	steel	M6	32	13,5	21	11	9,5	15	1.57 €
B0290.406X20	L	steel	M6	32	13,5	21	11	9,5	20	1.57 €
B0290.406X25	L	steel	M6	32	13,5	21	11	9,5	25	1.77 €
B0290.406X30	L	steel	M6	32	13,5	21	11	9,5	30	1.77 €
B0290.408X15	L	steel	M8	40	13,5	25	13	10	15	1.82 €
B0290.408X20	L	steel	M8	40	13,5	25	13	10	20	1.88 €
B0290.408X25	L	steel	M8	40	13,5	25	13	10	25	1.95 €
B0290.408X30	L	steel	M8	40	13,5	25	13	10	30	2.01 €
B0290.408X40	L	steel	M8	40	13,5	25	13	10	40	2.09 €
B0290.408X50	L	steel	M8	40	13,5	25	13	10	50	2.21 €
B0290.410X20	L	steel	M10	50	19	32	17	12	20	2.34 €
B0290.410X25	L	steel	M10	50	19	32	17	12	25	2.54 €
B0290.410X30	L	steel	M10	50	19	32	17	12	30	2.74 €
B0290.410X40	L	steel	M10	50	19	32	17	12	40	3.01 €
B0290.410X50	L	steel	M10	50	19	32	17	12	50	3.25 €
B0290.410X60	L	steel	M10	50	19	32	17	12	60	3.34 €
B0290.412X20	L	steel	M12	63	19	37	18	12	20	3.19 €
B0290.412X25	L	steel	M12	63	19	37	18	12	25	3.45 €
B0290.412X30	L	steel	M12	63	19	37	18	12	30	3.72 €
B0290.412X40	L	steel	M12	63	19	37	18	12	40	3.98 €
B0290.412X50	L	steel	M12	63	19	37	18	12	50	4.22 €
B0290.412X60	L	steel	M12	63	19	37	18	12	60	4.50 €
B0290.505X10	L	stainless steel	M5	25	10	17	9	7	10	1.88 €
B0290.505X15	L	stainless steel	M5	25	10	17	9	7	15	1.88 €
B0290.505X20	L	stainless steel	M5	25	10	17	9	7	20	1.88 €
B0290.506X10	L	stainless steel	M6	32	13,5	21	11	9,5	10	2.27 €
B0290.506X15	L	stainless steel	M6	32	13,5	21	11	9,5	15	2.27 €
B0290.506X20	L	stainless steel	M6	32	13,5	21	11	9,5	20	2.27 €
B0290.506X25	L	stainless steel	M6	32	13,5	21	11	9,5	25	2.41 €
B0290.506X30	L	stainless steel	M6	32	13,5	21	11	9,5	30	2.41 €
B0290.508X15	L	stainless steel	M8	40	13,5	25	13	10	15	2.85 €
B0290.508X20	L	stainless steel	M8	40	13,5	25	13	10	20	2.94 €
B0290.508X25	L	stainless steel	M8	40	13,5	25	13	10	25	3.01 €
B0290.508X30	L	stainless steel	M8	40	13,5	25	13	10	30	3.07 €
B0290.508X40	L	stainless steel	M8	40	13,5	25	13	10	40	3.19 €
B0290.508X50	L	stainless steel	M8	40	13,5	25	13	10	50	3.25 €
B0290.510X20	L	stainless steel	M10	50	19	32	17	12	20	3.84 €
B0290.510X25	L	stainless steel	M10	50	19	32	17	12	25	3.88 €
B0290.510X30	L	stainless steel	M10	50	19	32	17	12	30	3.98 €
B0290.510X40	L	stainless steel	M10	50	19	32	17	12	40	4.06 €
B0290.510X50	L	stainless steel	M10	50	19	32	17	12	50	4.11 €
B0290.510X60	L	stainless steel	M10	50	19	32	17	12	60	4.16 €
B0290.512X20	L	stainless steel	M12	63	19	37	18	12	20	4.82 €
B0290.512X25	L	stainless steel	M12	63	19	37	18	12	25	4.96 €
B0290.512X30	L	stainless steel	M12	63	19	37	18	12	30	5.20 €
B0290.512X40	L	stainless steel	M12	63	19	37	18	12	40	5.33 €
B0290.512X50	L	stainless steel	M12	63	19	37	18	12	50	5.46 €
B0290.512X60	L	stainless steel	M12	63	19	37	18	12	60	5.92 €
