B0284Palm grips grey cast iron, DIN 6335 |
go back |
|
|
DescriptionMaterial:Grey cast iron GJL 200.
Grub screw stainless steel 1.4305.
Pin stainless steel 1.4310. Version:Vibratory ground, bright.

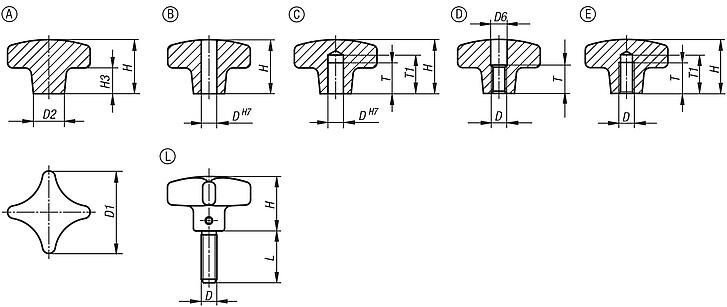

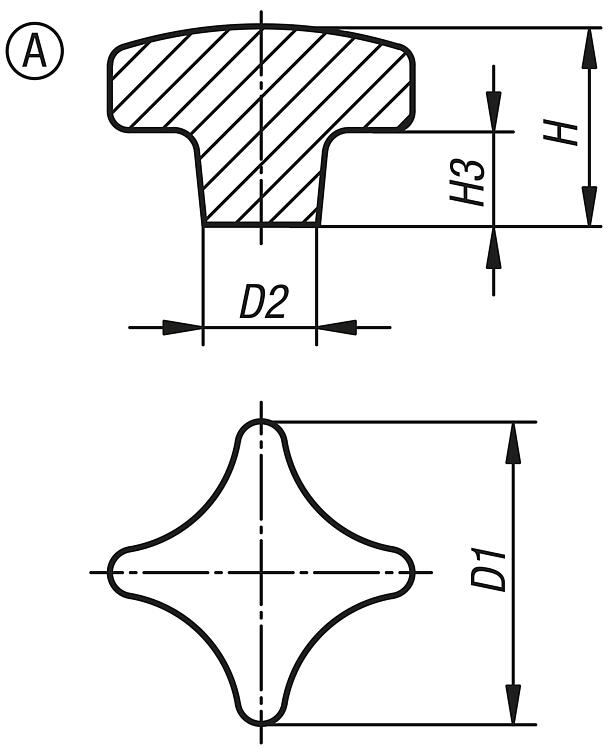

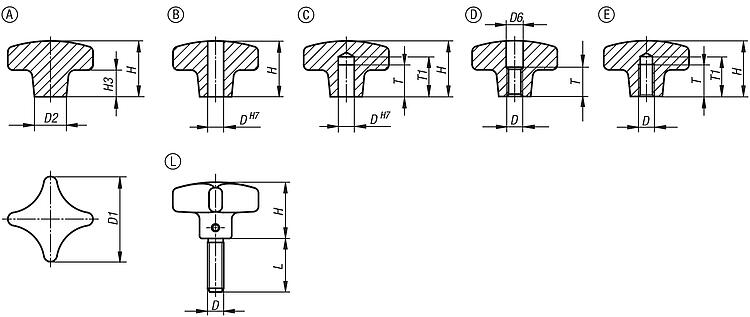

Grub screw and pin bright.Drawing reference:Form A: blank

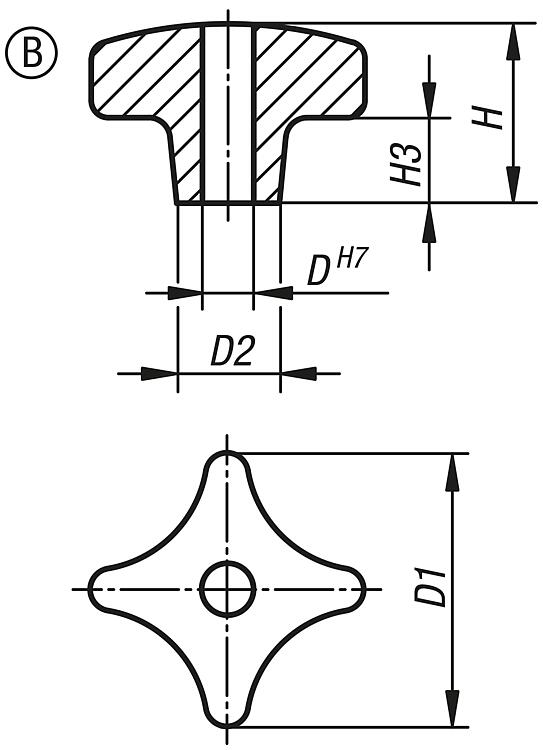

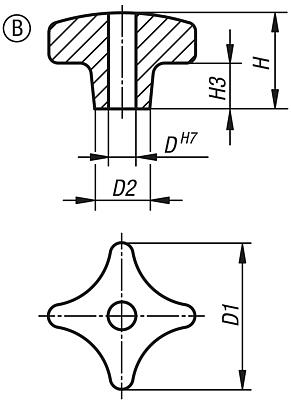

Form B: drilled through

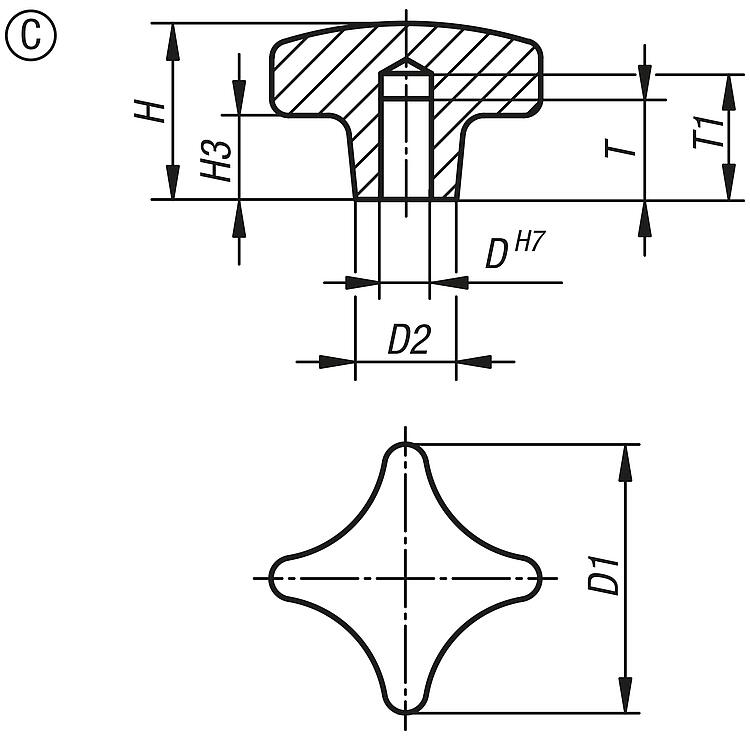

Form C: blind hole

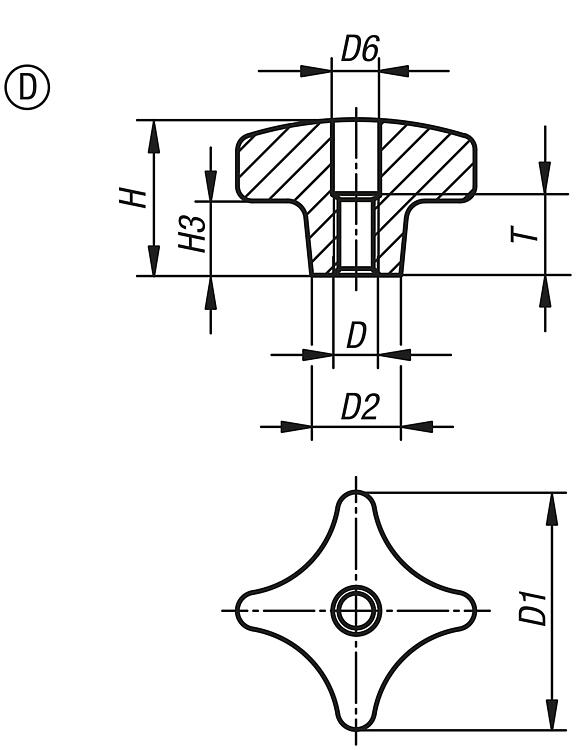

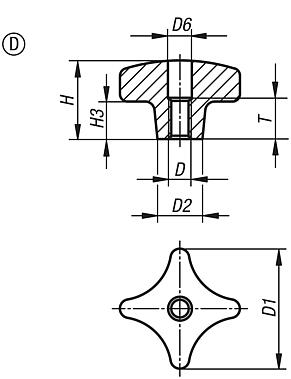

Form D: tapped and counterbored

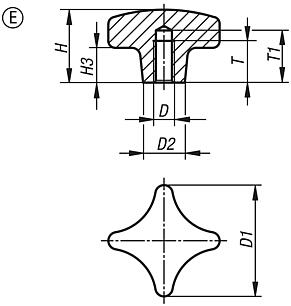

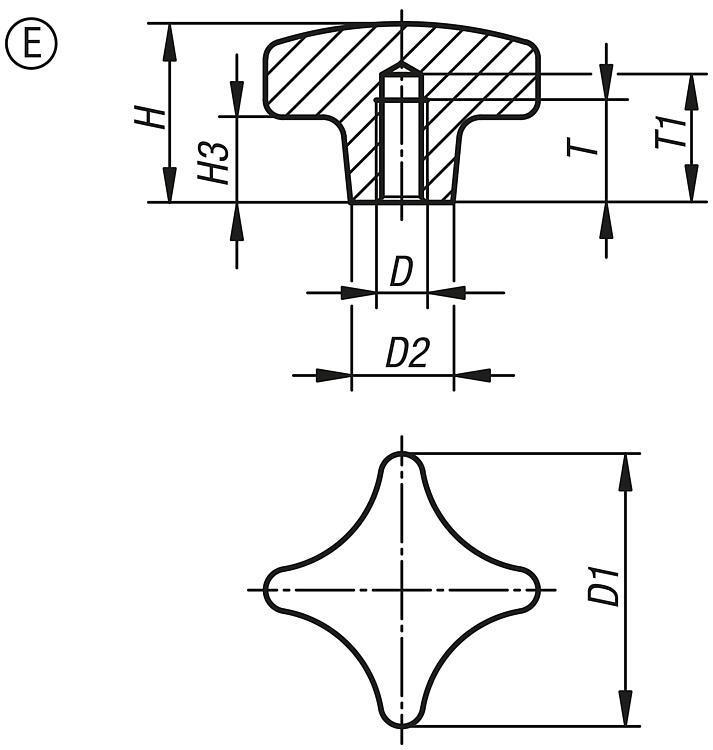

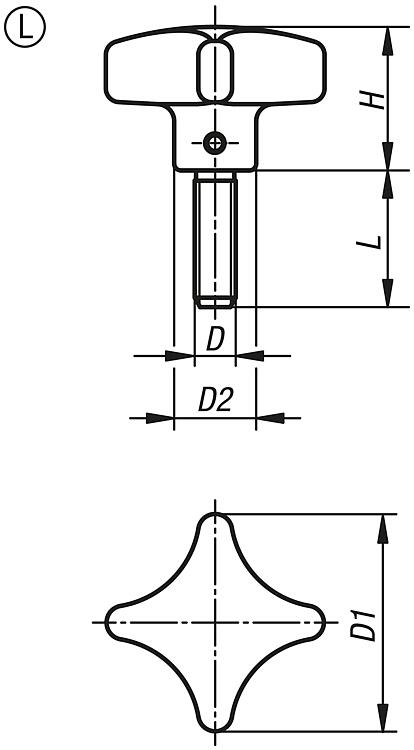

Form E: tapped blind hole
Form L: external thread DownloadHere is all the information as a PDF datasheet:
Are you looking for CAD data? These can be found directly in the product table.
|
Drawings (total overview) |
