B0294

Star grips aluminium, similar to DIN 6336

go back

Products
- Product overview
  - Handles and knobs
    - Palm grips, star grips, clamping grips
      - Star grips aluminium, similar to DIN 6336

Item description/product images

Show/filter all items

DescriptionMaterial:

Aluminium.
Grub screw stainless steel 1.4305.
Pin stainless steel 1.4310.

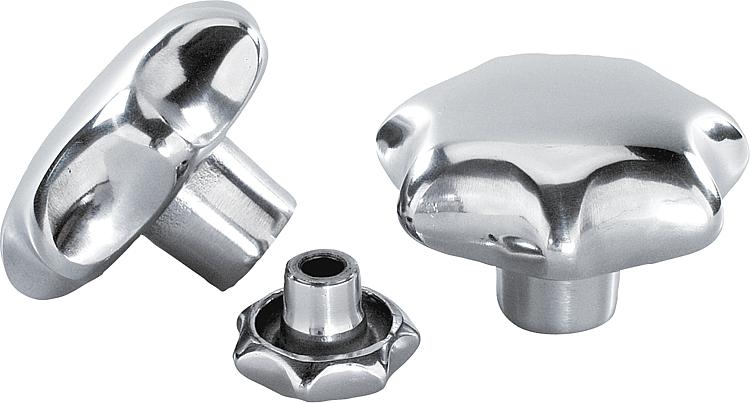

Version:Vibratory ground or ground and polished.
Grub screw and pin bright.On request:Blank star grips (not tumbled).Drawing reference:

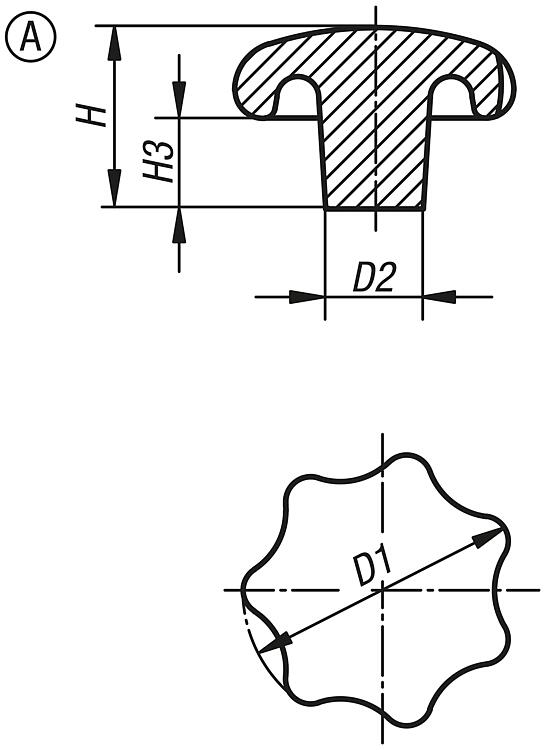

Form A: blank

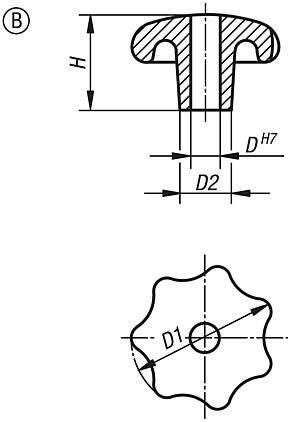

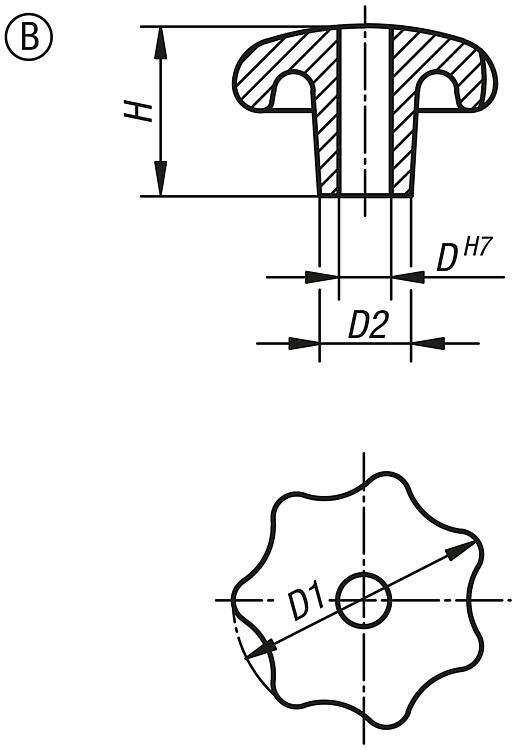

Form B: drilled through

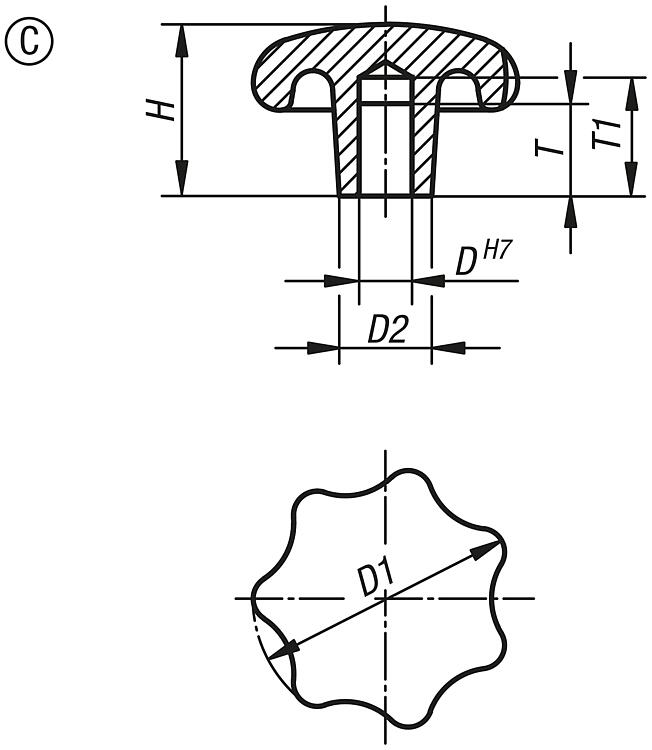

Form C: blind hole

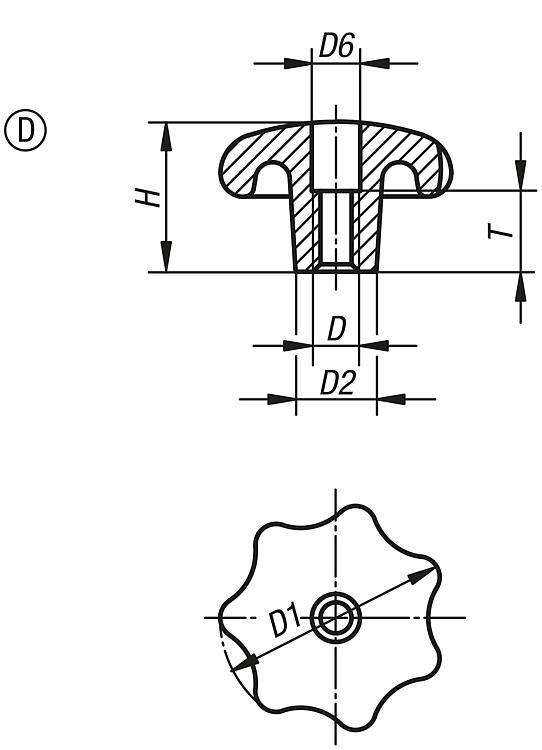

Form D: tapped and counterbored

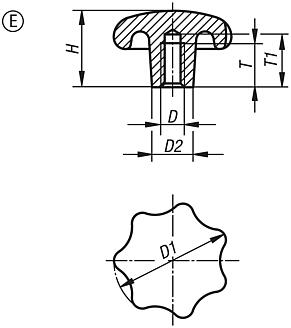

Form E: tapped blind hole

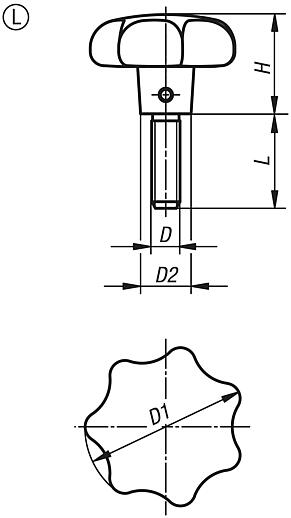

Form L: external thread

DownloadHere is all the information as a PDF datasheet:

Are you looking for CAD data? These can be found directly in the product table.

Datasheet B0294 Star gripsaluminium, similar to DIN 6336

188 kB

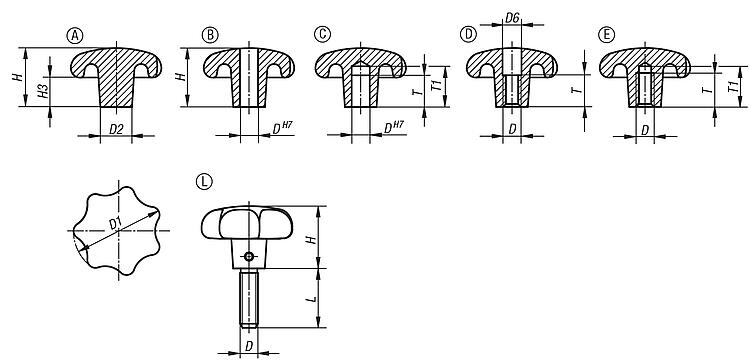

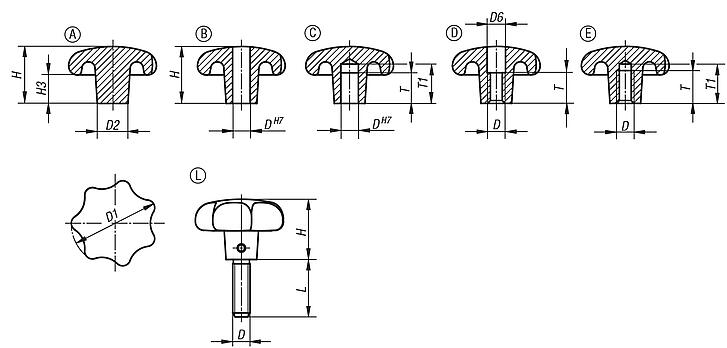

Drawings (total overview)

Star grips similar to DIN 6336, aluminium, Form A, blank

More information

Drawings

Star grips similar to DIN 6336, aluminium, Form A, blank

Item selection/filter

Order No.	Form	Surface finish body	D1	D2	H	H3	Price
B0294.14008	A	tumbled	40	14	26	13	3.40 €
B0294.15010	A	tumbled	50	18	34	17	4.42 €
B0294.16312	A	tumbled	63	20	42	21	5.83 €
B0294.18016	A	tumbled	80	25	52	25	8.36 €

Star grips similar to DIN 6336, aluminium, Form B, drilled through

More information

Drawings

Star grips similar to DIN 6336, aluminium, Form B, drilled through

Item selection/filter

Order No.	Form	Surface finish body	D	D1	D2	H	Price
B0294.240082	B	polished	8	40	14	25	8.43 €
B0294.250102	B	polished	10	50	18	32	10.30 €
B0294.263122	B	polished	12	63	20	40	11.38 €
B0294.280162	B	polished	16	80	25	50	17.12 €
B0294.24008	B	tumbled	8	40	14	25	4.94 €
B0294.25010	B	tumbled	10	50	18	32	6.18 €
B0294.26312	B	tumbled	12	63	20	40	7.84 €
B0294.28016	B	tumbled	16	80	25	50	10.30 €

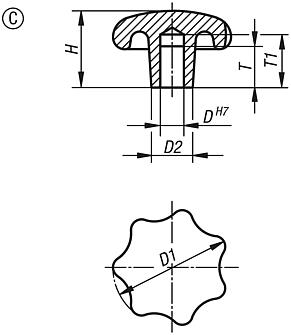

Star grips similar to DIN 6336, aluminium, Form C, blind hole

More information

Drawings

Star grips similar to DIN 6336, aluminium, Form C, blind hole

Item selection/filter

Order No.	Form	Surface finish body	D	D1	D2	H	T	T1	Price
B0294.340082	C	polished	8	40	14	25	15	18	8.43 €
B0294.350102	C	polished	10	50	18	32	18	21	10.30 €
B0294.363122	C	polished	12	63	20	40	22	25	11.38 €
B0294.380162	C	polished	16	80	25	50	28	32	17.12 €
B0294.34008	C	tumbled	8	40	14	25	15	18	4.94 €
B0294.35010	C	tumbled	10	50	18	32	18	21	6.18 €
B0294.36312	C	tumbled	12	63	20	40	22	25	7.84 €
B0294.38016	C	tumbled	16	80	25	50	28	32	10.30 €

Star grips similar to DIN 6336, aluminium, Form D, thread countersunk

More information

Drawings

Star grips similar to DIN 6336, aluminium, Form D, thread countersunk

Item selection/filter

Order No.	Form	Surface finish body	D	D1	D2	D6	H	T	Price
B0294.440082	D	polished	M8	40	14	8,4	25	12	8.43 €
B0294.450102	D	polished	M10	50	18	10,5	32	16	10.30 €
B0294.463122	D	polished	M12	63	20	13	40	20	11.38 €
B0294.480162	D	polished	M16	80	25	17	50	30	17.12 €
B0294.44008	D	tumbled	M8	40	14	8,4	25	12	4.94 €
B0294.45010	D	tumbled	M10	50	18	10,5	32	16	6.18 €
B0294.46312	D	tumbled	M12	63	20	13	40	20	7.84 €
B0294.48016	D	tumbled	M16	80	25	17	50	30	10.30 €

Star grips similar to DIN 6336, aluminium, Form E, blind tapped hole

More information

Drawings

Star grips similar to DIN 6336, aluminium, Form E, blind tapped hole

Item selection/filter

Order No.	Form	Surface finish body	D	D1	D2	H	T	T1	Price
B0294.540082	E	polished	M8	40	14	25	15	18	8.43 €
B0294.550102	E	polished	M10	50	18	32	18	21	10.30 €
B0294.563122	E	polished	M12	63	20	40	22	25	11.38 €
B0294.580162	E	polished	M16	80	25	50	28	32	17.12 €
B0294.54008	E	tumbled	M8	40	14	25	15	18	4.94 €
B0294.55010	E	tumbled	M10	50	18	32	18	21	6.18 €
B0294.56312	E	tumbled	M12	63	20	40	22	25	7.84 €
B0294.58016	E	tumbled	M16	80	25	50	28	32	10.30 €

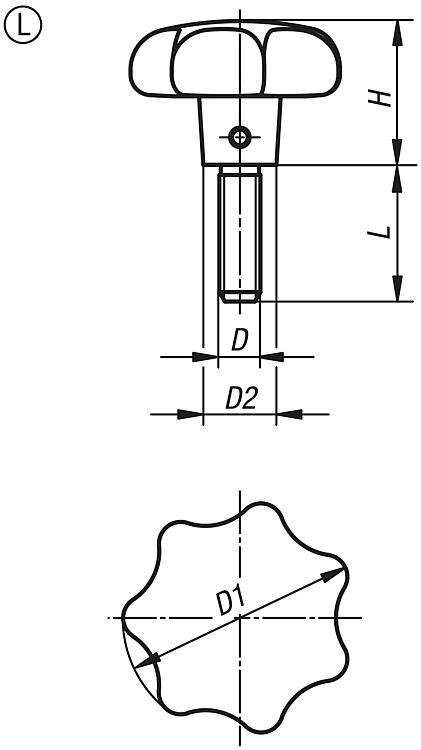

Star grips similar to DIN 6336, aluminium, Form L, with external thread

More information

Drawings

Star grips similar to DIN 6336, aluminium, Form L, with external thread

Item selection/filter

Order No.	Form	Surface finish body	D	D1	D2	H	L	Price
B0294.64008X20	L	tumbled	M8	40	14	25	20	8.64 €
B0294.64008X25	L	tumbled	M8	40	14	25	25	8.82 €
B0294.64008X30	L	tumbled	M8	40	14	25	30	8.87 €
B0294.64008X40	L	tumbled	M8	40	14	25	40	9.04 €
B0294.65010X25	L	tumbled	M10	50	18	32	25	10.27 €
B0294.65010X30	L	tumbled	M10	50	18	32	30	10.46 €
B0294.65010X40	L	tumbled	M10	50	18	32	40	10.69 €
B0294.65010X50	L	tumbled	M10	50	18	32	50	10.86 €
B0294.66312X30	L	tumbled	M12	63	20	40	30	12.96 €
B0294.66312X40	L	tumbled	M12	63	20	40	40	13.11 €
B0294.66312X50	L	tumbled	M12	63	20	40	50	13.64 €
B0294.66312X60	L	tumbled	M12	63	20	40	60	13.88 €
