Palm gripssimilar to DIN 6335
B0282

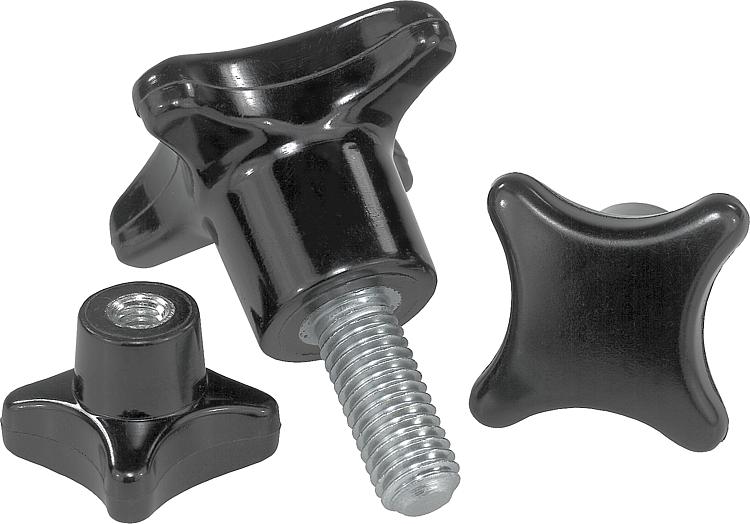

Palm grips similar to DIN 6335

go back

Item description/product images

Show/filter all items
DescriptionMaterial:Black thermoset PF 31.
Bush and screw electro zinc-plated steel.
Version:High-gloss polished.Drawing reference:
Form E: projecting steel bush
Form G: blind hole
Form K: tapped bush
Form L: external thread
Special features:
RoHS
DownloadHere is all the information as a PDF datasheet:

Are you looking for CAD data? These can be found directly in the product table.
 Datasheet B0282 Palm gripssimilar to DIN 6335 235 kB

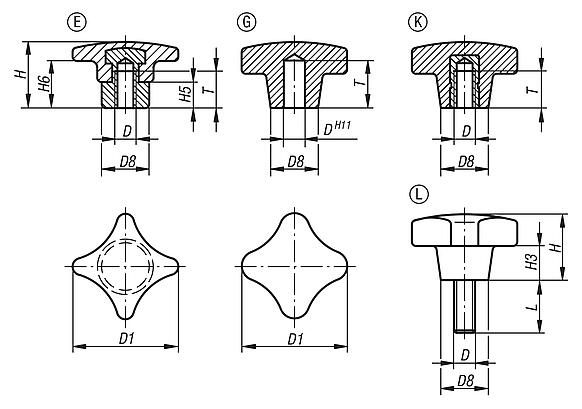

Drawings (total overview)

Palm gripssimilar to DIN 6335

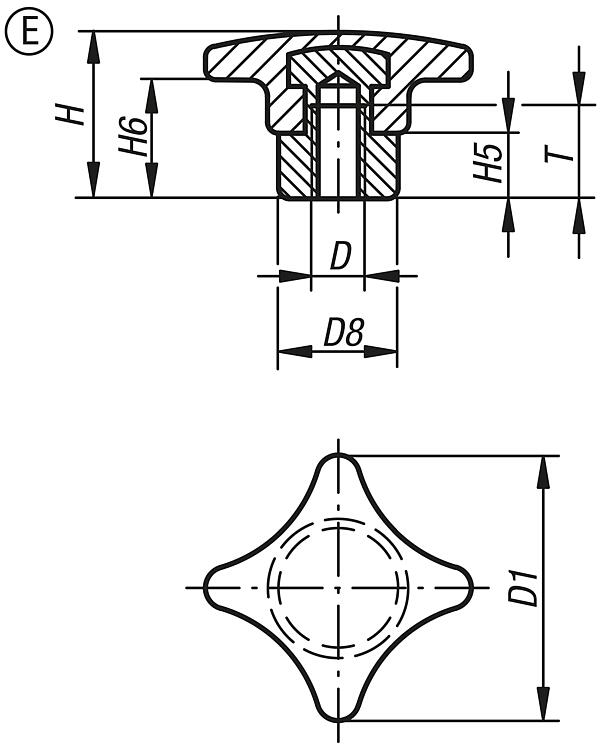

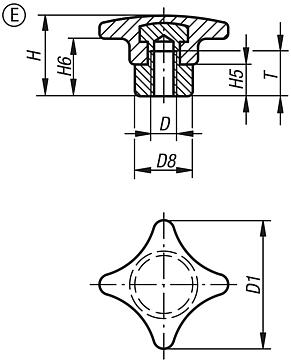

Palm grips, similar to DIN 6335, Form E with protruding steel bush

More information

Drawings

Palm grips, similar to DIN 6335, Form E with protruding steel bush

Item selection/filter

Order No.

FormDD1D8HH5H6TCADAcc.PriceOrder
B0282.306EM632122391212 2.07 €
B0282.308EM8401426101315 2.24 €
B0282.310EM10501832121818 2.87 €
B0282.312EM12632040142322 4.08 €
B0282.316EM16802550172828 6.31 €

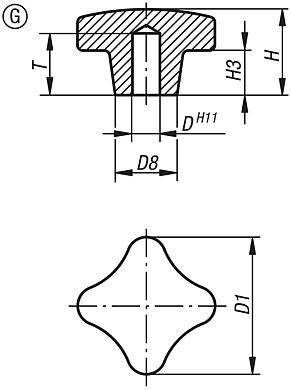

Palm grips, similar to DIN 6335, Form G with blind hole

More information

Drawings

Palm grips, similar to DIN 6335, Form G with blind hole

Item selection/filter

Order No.

FormDD1D8HH3TCADAcc.PriceOrder
B0282.405G5251216812 0.38 €
B0282.406G63214201015 0.49 €
B0282.408G84018251318 0.83 €
B0282.410G105022322021 0.97 €
B0282.412G126326402525 1.57 €

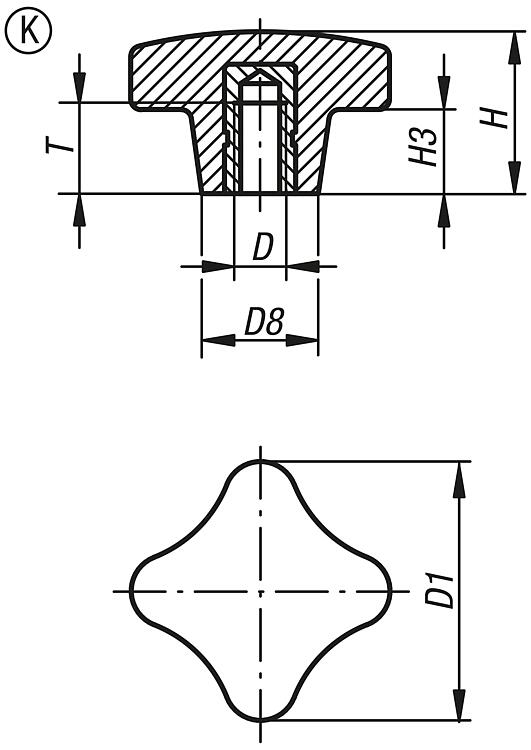

Palm grips, similar to DIN 6335, Form K with tapped bush

More information

Drawings

Palm grips, similar to DIN 6335, Form K with tapped bush

Item selection/filter

Order No.

FormDD1D8HH3TCADAcc.PriceOrder
B0282.205KM525121689,5 0.49 €
B0282.206KM63214201012 0.55 €
B0282.208KM84018251314 0.79 €
B0282.210KM105022322018 1.02 €
B0282.212KM126326402522 1.77 €
B0282.216KM168035503030 4.81 €

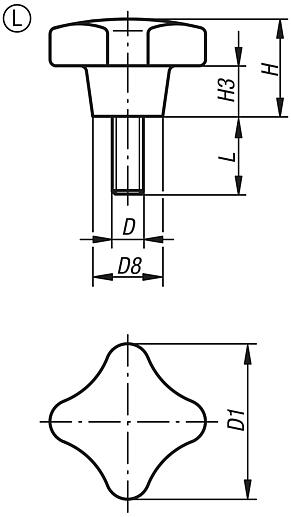

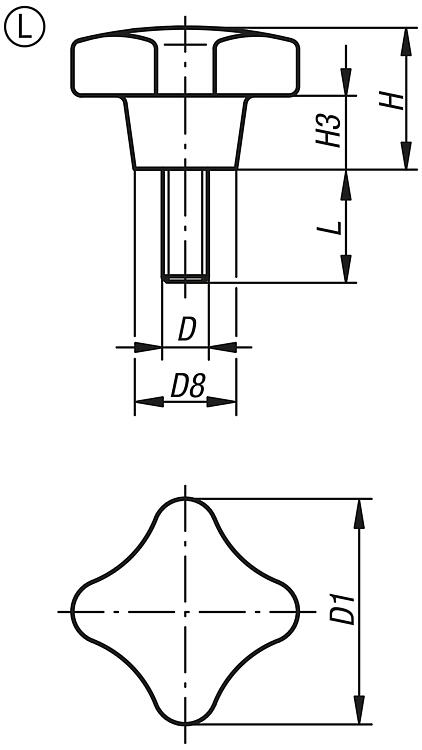

Palm grips, similar to DIN 6335, Form L with external thread

More information

Drawings

Palm grips, similar to DIN 6335, Form L with external thread

Item selection/filter

Order No.FormDD1D8HH3LCADAcc.PriceOrder
B0282.505X15LM5251216815 0.60 €
B0282.505X20LM5251216820 0.60 €
B0282.505X25LM5251216825 0.62 €
B0282.505X30LM5251216830 0.64 €
B0282.505X40LM5251216840 0.70 €
B0282.505X50LM5251216850 0.71 €
B0282.506X15LM63214201015 0.64 €
B0282.506X20LM63214201020 0.65 €
B0282.506X25LM63214201025 0.70 €
B0282.506X30LM63214201030 0.70 €
B0282.506X40LM63214201040 0.75 €
B0282.506X50LM63214201050 0.79 €
B0282.508X20LM84018251320 0.87 €
B0282.508X25LM84018251325 0.88 €
B0282.508X30LM84018251330 0.89 €
B0282.508X35LM84018251335 0.98 €
B0282.508X40LM84018251340 1.00 €
B0282.508X45LM84018251345 1.07 €
B0282.508X50LM84018251350 1.18 €
B0282.510X20LM105022322020 1.16 €
B0282.510X25LM105022322025 1.19 €
B0282.510X30LM105022322030 1.27 €
B0282.510X35LM105022322035 1.31 €
B0282.510X40LM105022322040 1.38 €
B0282.510X45LM105022322045 1.45 €
B0282.510X50LM105022322050 1.53 €
B0282.512X20LM126326402520 1.83 €
B0282.512X30LM126326402530 1.92 €
B0282.512X40LM126326402540 2.01 €
B0282.512X50LM126326402550 2.14 €
B0282.512X60LM126326402560 2.27 €
