B0295

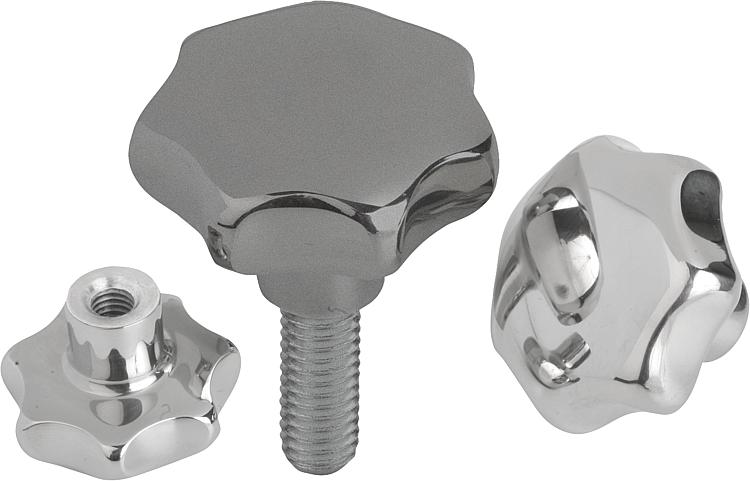

Star grips stainless steel, similar to DIN 6336

go back

Products
- Product overview
  - Handles and knobs
    - Palm grips, star grips, clamping grips
      - Star grips stainless steel, similar to DIN 6336

Item description/product images

Show/filter all items

DescriptionMaterial:

Stainless steel 1.4308.
Grub screw stainless steel 1.4305.
Pin stainless steel 1.4310.

Version:Ground and polished or blasted.
Grub screw and pin bright.Drawing reference:

Form B: drilled through
Form C: blind hole
Form D: tapped and counterbored
Form E: tapped blind hole
Form L: external thread

Special features:

DownloadHere is all the information as a PDF datasheet:

Are you looking for CAD data? These can be found directly in the product table.

Datasheet B0295 Star gripsstainless steel, similar to DIN 6336

191 kB

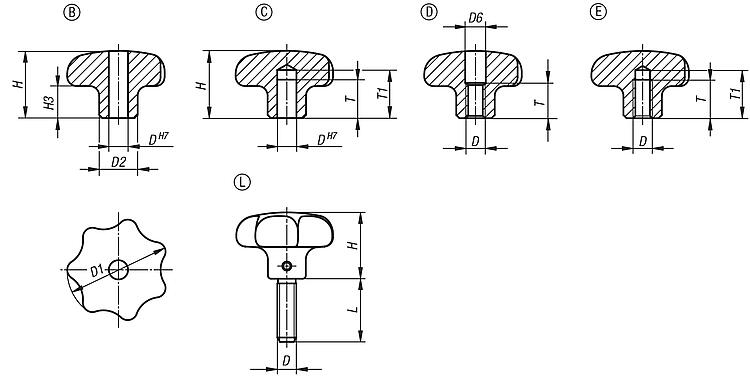

Drawings (total overview)

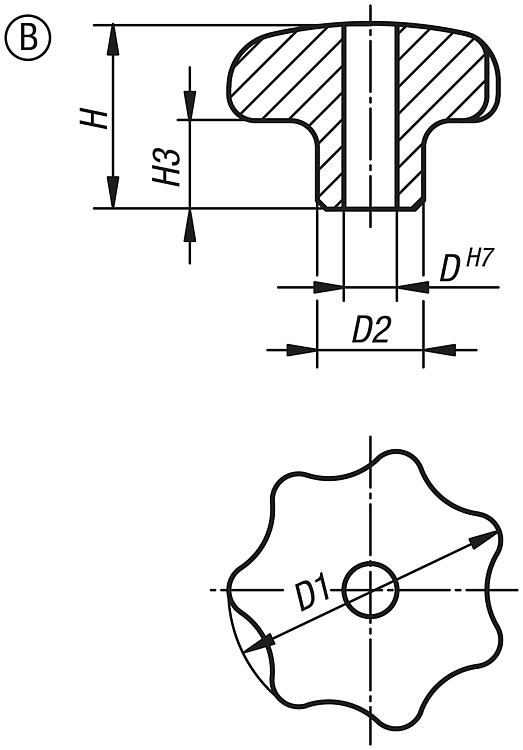

Star grips similar to DIN 6336, stainless steel, Form B, drilled through

More information

Drawings

Star grips similar to DIN 6336, stainless steel, Form B, drilled through

Item selection/filter

Order No.	Form	Surface finish body	D	D1	D2	H	H3	Price
B0295.232062	B	polished	6	32	12	21	10	6.31 €
B0295.240082	B	polished	8	40	14	26	13	8.27 €
B0295.250102	B	polished	10	50	18	34	17	9.99 €
B0295.263122	B	polished	12	63	20	42	21	13.10 €
B0295.232063	B	blasted	6	32	12	21	10	5.70 €
B0295.240083	B	blasted	8	40	14	26	13	7.47 €
B0295.250103	B	blasted	10	50	18	34	17	8.98 €
B0295.263123	B	blasted	12	63	20	42	21	11.80 €

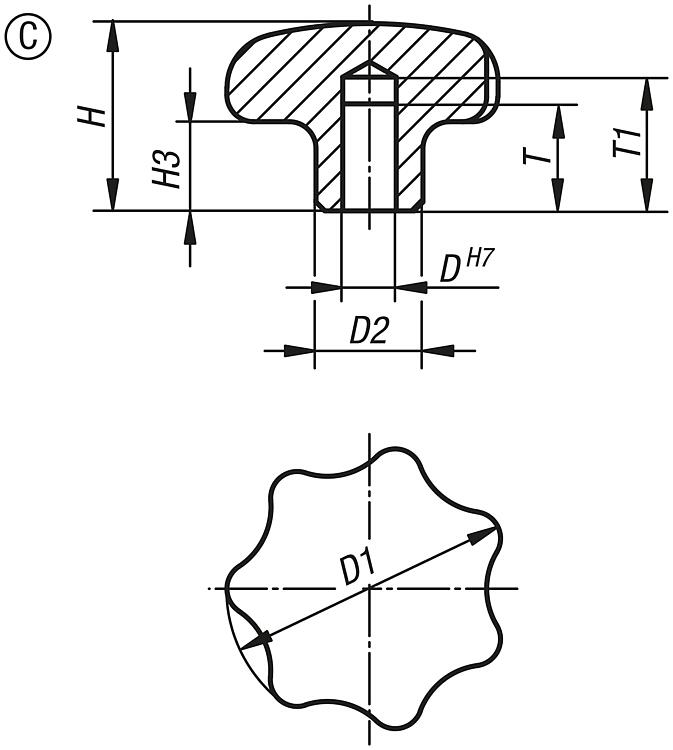

Star grips similar to DIN 6336, stainless steel, Form C, blind hole

More information

Drawings

Star grips similar to DIN 6336, stainless steel, Form C, blind hole

Item selection/filter

Order No.	Form	Surface finish body	D	D1	D2	H	H3	T	T1	Price
B0295.332062	C	polished	6	32	12	21	10	12	15	7.03 €
B0295.340082	C	polished	8	40	14	26	13	15	18	9.25 €
B0295.350102	C	polished	10	50	18	34	17	18	21	12.16 €
B0295.363122	C	polished	12	63	20	42	21	22	25	15.75 €
B0295.332063	C	blasted	6	32	12	21	10	12	15	6.33 €
B0295.340083	C	blasted	8	40	14	26	13	15	18	8.33 €
B0295.350103	C	blasted	10	50	18	34	17	18	21	10.94 €
B0295.363123	C	blasted	12	63	20	42	21	22	25	14.18 €

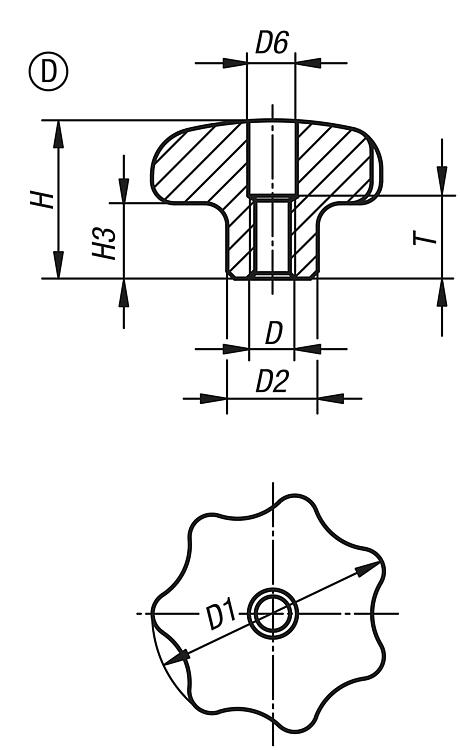

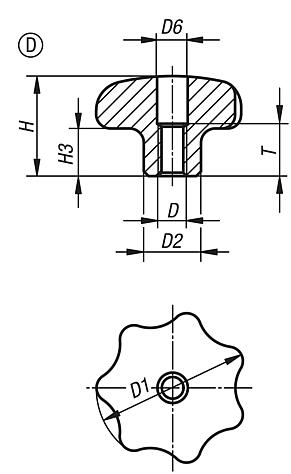

Star grips similar to DIN 6336, stainless steel, Form D, thread countersunk

More information

Drawings

Star grips similar to DIN 6336, stainless steel, Form D, thread countersunk

Item selection/filter

Order No.	Form	Surface finish body	D	D1	D2	D6	H	H3	T	Price
B0295.432062	D	polished	M6	32	12	6,4	21	10	11	7.79 €
B0295.440082	D	polished	M8	40	14	8,4	26	13	14	9.86 €
B0295.450102	D	polished	M10	50	18	10,5	34	17	18	13.12 €
B0295.463122	D	polished	M12	63	20	13	42	21	22	16.63 €
B0295.432063	D	blasted	M6	32	12	6,4	21	10	11	7.01 €
B0295.440083	D	blasted	M8	40	14	8,4	26	13	14	8.87 €
B0295.450103	D	blasted	M10	50	18	10,5	34	17	18	11.81 €
B0295.463123	D	blasted	M12	63	20	13	42	21	22	14.98 €

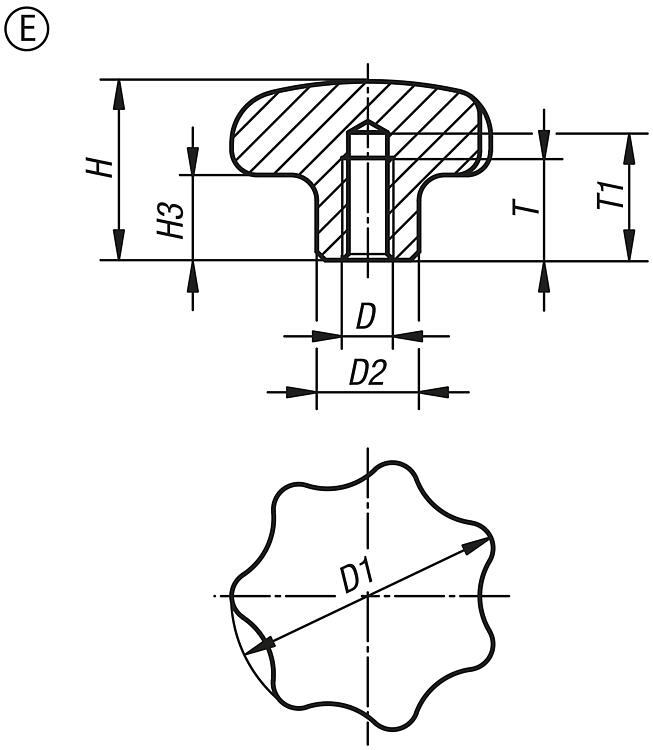

Star grips similar to DIN 6336, stainless steel, Form E, blind tapped hole

More information

Drawings

Star grips similar to DIN 6336, stainless steel, Form E, blind tapped hole

Item selection/filter

Order No.	Form	Surface finish body	D	D1	D2	H	H3	T	T1	Price
B0295.532062	E	polished	M6	32	12	21	10	12	15	7.79 €
B0295.540082	E	polished	M8	40	14	26	13	15	18	9.86 €
B0295.550102	E	polished	M10	50	18	34	17	18	21	13.12 €
B0295.563122	E	polished	M12	63	20	42	21	22	25	16.63 €
B0295.532063	E	blasted	M6	32	12	21	10	12	15	7.01 €
B0295.540083	E	blasted	M8	40	14	26	13	15	18	8.87 €
B0295.550103	E	blasted	M10	50	18	34	17	18	21	11.81 €
B0295.563123	E	blasted	M12	63	20	42	21	22	25	14.98 €

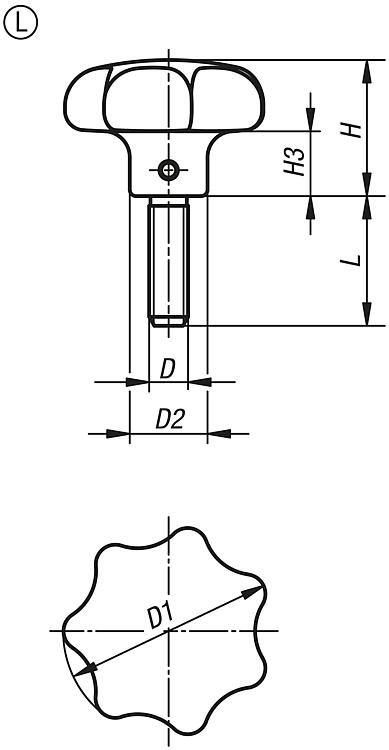

Star grips similar to DIN 6336, stainless steel, Form L, with external thread

More information

Drawings

Star grips similar to DIN 6336, stainless steel, Form L, with external thread

Item selection/filter

Order No.	Form	Surface finish body	D	D1	D2	H	H3	L	Price
B0295.632063X15	L	blasted	M6	32	12	21	10	15	10.19 €
B0295.632063X20	L	blasted	M6	32	12	21	10	20	10.26 €
B0295.632063X25	L	blasted	M6	32	12	21	10	25	10.31 €
B0295.632063X30	L	blasted	M6	32	12	21	10	30	10.33 €
B0295.640083X20	L	blasted	M8	40	14	26	13	20	11.32 €
B0295.640083X25	L	blasted	M8	40	14	26	13	25	11.47 €
B0295.640083X30	L	blasted	M8	40	14	26	13	30	11.54 €
B0295.640083X40	L	blasted	M8	40	14	26	13	40	11.72 €
B0295.650103X25	L	blasted	M10	50	18	34	17	25	14.75 €
B0295.650103X30	L	blasted	M10	50	18	34	17	30	14.86 €
B0295.650103X40	L	blasted	M10	50	18	34	17	40	15.06 €
B0295.650103X50	L	blasted	M10	50	18	34	17	50	15.26 €
B0295.663123X30	L	blasted	M12	63	20	42	21	30	18.86 €
B0295.663123X40	L	blasted	M12	63	20	42	21	40	19.01 €
B0295.663123X50	L	blasted	M12	63	20	42	21	50	19.53 €
B0295.663123X60	L	blasted	M12	63	20	42	21	60	19.79 €
