Palm grips DIN 6335, grey cast iron, Form L, with external thread
B0284

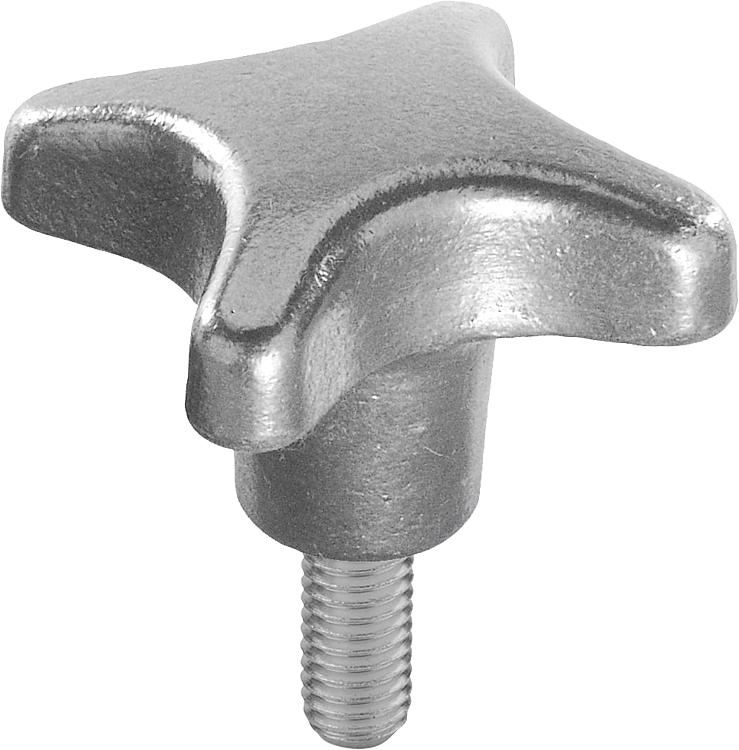

Palm grips DIN 6335, grey cast iron, Form L, with external thread

go back

Item description/product images

DescriptionMaterial:

Grey cast iron GJL 200.
Grub screw stainless steel 1.4305.
Pin stainless steel 1.4310.

Version:Palm grip vibratory ground.
Grub screw and pin bright.
Special features:
RoHS
DownloadHere is all the information as a PDF datasheet:

Are you looking for CAD data? These can be found directly in the product table.
 Datasheet B0284 Palm grips DIN 6335, grey cast iron, Form L, with external thread 196 kB

Drawings

Palm grips DIN 6335, grey cast iron, Form L, with external thread

Item selection/filter

Order No.FormVersion 1D

D1D2HLCADAcc.PriceOrder
B0284.606X15LtumbledM632122015 5.95 €
B0284.606X20LtumbledM632122020 6.02 €
B0284.606X25LtumbledM632122025 6.04 €
B0284.606X30LtumbledM632122030 6.07 €
B0284.606X40LtumbledM632122040 6.18 €
B0284.606X50LtumbledM632122050 6.24 €
B0284.608X20LtumbledM840142520 6.61 €
B0284.608X25LtumbledM840142525 6.80 €
B0284.608X30LtumbledM840142530 6.82 €
B0284.608X40LtumbledM840142540 6.86 €
B0284.608X50LtumbledM840142550 6.94 €
B0284.610X20LtumbledM1050183220 8.84 €
B0284.610X25LtumbledM1050183225 8.86 €
B0284.610X30LtumbledM1050183230 8.91 €
B0284.610X40LtumbledM1050183240 8.99 €
B0284.610X50LtumbledM1050183250 9.04 €
B0284.612X20LtumbledM1263204020 9.23 €
B0284.612X30LtumbledM1263204030 9.27 €
B0284.612X40LtumbledM1263204040 9.43 €
B0284.612X50LtumbledM1263204050 9.52 €
