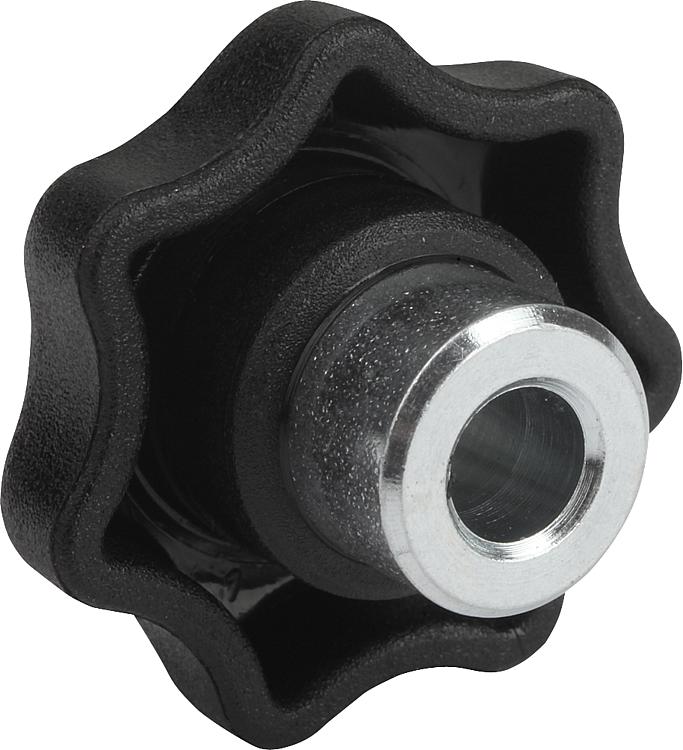

Star grips, Form H with projecting steel bush with blind hole
B0290

Star grips, Form H with projecting steel bush with blind hole

go back

Item description/product images

DescriptionMaterial:

Black thermoplastic.
Steel grade 5.8 or stainless steel 1.4305.

Version:Metal parts trivalent blue passivated steel or bright stainless steel.Note:Star grips with projecting steel bush and blind hole or internal thread are especially suited for cross pinning.
DownloadHere is all the information as a PDF datasheet:

Are you looking for CAD data? These can be found directly in the product table.
 Datasheet B0290 Star grips, Form H with projecting steel bush with blind hole 210 kB

Drawings

Star grips, Form H with projecting steel bush with blind hole

Item selection/filter

Order No.

FormComponent
material
DD1D2HH2H3TCADAcc.PriceOrder
B0290.105Hsteel5251017979,5 0.98 €
B0290.106Hsteel63213,521119,512,5 1.22 €
B0290.1061Hsteel64013,525131012,5 1.53 €
B0290.108Hsteel84013,525131012,5 1.53 €
B0290.1081Hsteel8501932171219,5 2.01 €
B0290.110Hsteel10501932171219,5 2.01 €
B0290.1101Hsteel10631937181219,5 3.08 €
B0290.112Hsteel12631937181219,5 3.08 €
B0290.116Hsteel16632340211524,5 4.33 €
