B0291

Star grips similar to DIN 6336 with external thread, Form L

go back

Products
- Product overview
  - Handles and knobs
    - Palm grips, star grips, clamping grips
      - Star grips similar to DIN 6336

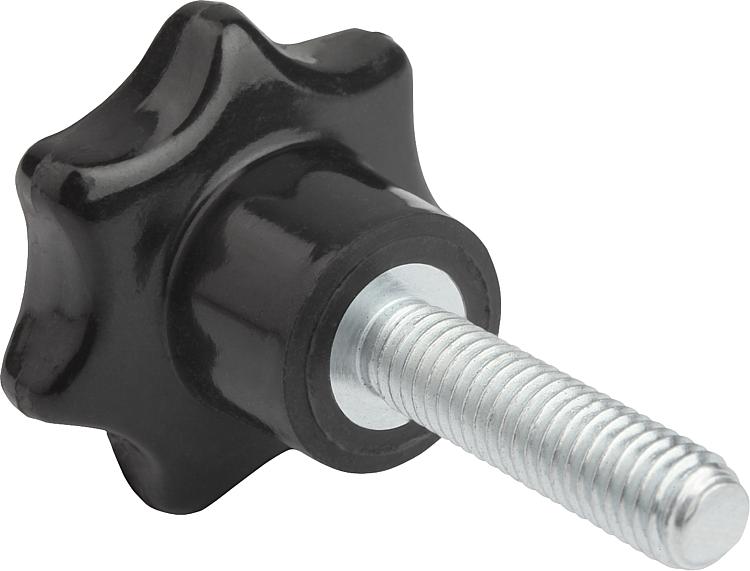

        Star grips similar to DIN 6336 with external thread, Form L

Item description/product images

DescriptionMaterial:Thermoset PF 31, black.
Screw trivalent blue passivated steel.Version:High-gloss polished.On request:Other colours.Special features:

DownloadHere is all the information as a PDF datasheet:

Are you looking for CAD data? These can be found directly in the product table.

Datasheet B0291 Star grips similar to DIN 6336 with external thread, Form L

148 kB

Drawings

Item selection/filter

Order No.	Form	D	D1	D8	H	H3	L	Price
B0291.42505X15	L	M5	25	12	16	8	15	0.67 €
B0291.42505X20	L	M5	25	12	16	8	20	0.73 €
B0291.42505X25	L	M5	25	12	16	8	25	0.91 €
B0291.43206X15	L	M6	32	14	20	10	15	0.73 €
B0291.43206X20	L	M6	32	14	20	10	20	0.73 €
B0291.43206X25	L	M6	32	14	20	10	25	0.75 €
B0291.43206X30	L	M6	32	14	20	10	30	0.79 €
B0291.44008X20	L	M8	40	18	25	13	20	1.02 €
B0291.44008X25	L	M8	40	18	25	13	25	1.04 €
B0291.44008X30	L	M8	40	18	25	13	30	1.06 €
B0291.44008X35	L	M8	40	18	25	13	35	1.12 €
B0291.44008X40	L	M8	40	18	25	13	40	1.15 €
B0291.45010X25	L	M10	50	22	32	17	25	1.57 €
B0291.45010X30	L	M10	50	22	32	17	30	1.59 €
B0291.45010X35	L	M10	50	22	32	17	35	1.68 €
B0291.45010X40	L	M10	50	22	32	17	40	1.70 €
B0291.45010X50	L	M10	50	22	32	17	50	2.15 €
B0291.46312X30	L	M12	63	26	40	21	30	2.40 €
B0291.46312X35	L	M12	63	26	40	21	35	2.46 €
B0291.46312X40	L	M12	63	26	40	21	40	2.51 €
B0291.46312X50	L	M12	63	26	40	21	50	2.62 €
B0291.46312X60	L	M12	63	26	40	21	60	2.82 €
B0291.48016X30	L	M16	80	35	50	25	30	4.36 €
B0291.48016X40	L	M16	80	35	50	25	40	4.52 €
B0291.48016X50	L	M16	80	35	50	25	50	4.76 €
B0291.48016X60	L	M16	80	35	50	25	60	4.99 €
