B0288

Star grips similar to DIN 6336, internal thread with cap, Form K

go back

Products
- Product overview
  - Handles and knobs
    - Palm grips, star grips, clamping grips
      - Star grips similar to DIN 6336
        Star grips similar to DIN 6336, internal thread with cap, Form K

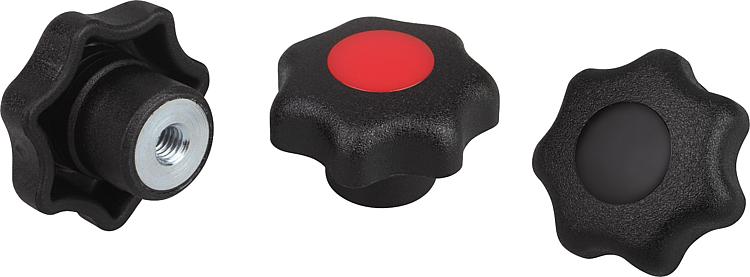

Item description/product images

DescriptionMaterial:Black thermoplastic, bush in steelVersion:Bush trivalent blue passivated.On request:Other colours or designs, such as company logo.

DownloadHere is all the information as a PDF datasheet:

Are you looking for CAD data? These can be found directly in the product table.

Datasheet B0288 Star grips similar to DIN 6336, internal thread with cap, Form K

175 kB

Drawings

Item selection/filter

Order No.	Form	Colour Cap	D	D1	D8	H	H3	T	Price
B0288.204	K	jet black	M4	25	12	16	8	10	0.59 €
B0288.2045	K	light grey RAL 7035	M4	25	12	16	8	10	0.59 €
B0288.2046	K	traffic red RAL 3020	M4	25	12	16	8	10	0.59 €
B0288.2047	K	colza yellow RAL 1021	M4	25	12	16	8	10	0.59 €
B0288.205	K	jet black	M5	25	12	16	8	10	0.59 €
B0288.2055	K	light grey RAL 7035	M5	25	12	16	8	10	0.59 €
B0288.2056	K	traffic red RAL 3020	M5	25	12	16	8	10	0.59 €
B0288.2057	K	colza yellow RAL 1021	M5	25	12	16	8	10	0.59 €
B0288.2061	K	jet black	M6	25	12	16	8	10	0.59 €
B0288.20615	K	light grey RAL 7035	M6	25	12	16	8	10	0.59 €
B0288.20616	K	traffic red RAL 3020	M6	25	12	16	8	10	0.59 €
B0288.20617	K	colza yellow RAL 1021	M6	25	12	16	8	10	0.59 €
B0288.2051	K	jet black	M5	32	14	20	10	10	0.61 €
B0288.20515	K	light grey RAL 7035	M5	32	14	20	10	10	0.61 €
B0288.20516	K	traffic red RAL 3020	M5	32	14	20	10	10	0.61 €
B0288.20517	K	colza yellow RAL 1021	M5	32	14	20	10	10	0.61 €
B0288.206	K	jet black	M6	32	14	20	10	10	0.61 €
B0288.2065	K	light grey RAL 7035	M6	32	14	20	10	10	0.61 €
B0288.2066	K	traffic red RAL 3020	M6	32	14	20	10	10	0.61 €
B0288.2067	K	colza yellow RAL 1021	M6	32	14	20	10	10	0.61 €
B0288.208	K	jet black	M8	40	18	25	13	14	0.71 €
B0288.2085	K	light grey RAL 7035	M8	40	18	25	13	14	0.71 €
B0288.2086	K	traffic red RAL 3020	M8	40	18	25	13	14	0.71 €
B0288.2087	K	colza yellow RAL 1021	M8	40	18	25	13	14	0.71 €
B0288.2101	K	jet black	M10	40	18	25	13	14	0.71 €
B0288.21015	K	light grey RAL 7035	M10	40	18	25	13	14	0.71 €
B0288.21016	K	traffic red RAL 3020	M10	40	18	25	13	14	0.71 €
B0288.21017	K	colza yellow RAL 1021	M10	40	18	25	13	14	0.71 €
B0288.2081	K	jet black	M8	50	22	32	17	14	1.08 €
B0288.20815	K	light grey RAL 7035	M8	50	22	32	17	14	1.08 €
B0288.20816	K	traffic red RAL 3020	M8	50	22	32	17	14	1.08 €
B0288.20817	K	colza yellow RAL 1021	M8	50	22	32	17	14	1.08 €
B0288.210	K	jet black	M10	50	22	32	17	14	1.08 €
B0288.2105	K	light grey RAL 7035	M10	50	22	32	17	14	1.08 €
B0288.2106	K	traffic red RAL 3020	M10	50	22	32	17	14	1.08 €
B0288.2107	K	colza yellow RAL 1021	M10	50	22	32	17	14	1.08 €
B0288.2121	K	jet black	M12	50	22	32	17	18	1.08 €
B0288.21215	K	light grey RAL 7035	M12	50	22	32	17	18	1.08 €
B0288.21216	K	traffic red RAL 3020	M12	50	22	32	17	18	1.08 €
B0288.21217	K	colza yellow RAL 1021	M12	50	22	32	17	18	1.08 €
B0288.2102	K	jet black	M10	63	26	40	21	14	1.94 €
B0288.21025	K	light grey RAL 7035	M10	63	26	40	21	14	1.94 €
B0288.21026	K	traffic red RAL 3020	M10	63	26	40	21	14	1.94 €
B0288.21027	K	colza yellow RAL 1021	M10	63	26	40	21	14	1.94 €
B0288.212	K	jet black	M12	63	26	40	21	18	1.94 €
B0288.2125	K	light grey RAL 7035	M12	63	26	40	21	18	1.94 €
B0288.2126	K	traffic red RAL 3020	M12	63	26	40	21	18	1.94 €
B0288.2127	K	colza yellow RAL 1021	M12	63	26	40	21	18	1.94 €
B0288.216	K	jet black	M16	63	26	40	21	18	2.80 €
B0288.2165	K	light grey RAL 7035	M16	63	26	40	21	18	2.80 €
B0288.2166	K	traffic red RAL 3020	M16	63	26	40	21	18	2.80 €
B0288.2167	K	colza yellow RAL 1021	M16	63	26	40	21	18	2.80 €
