B0288

Star grips similar to DIN 6336, with reamed bush, Form L

go back

Products
- Product overview
  - Handles and knobs
    - Palm grips, star grips, clamping grips
      - Star grips similar to DIN 6336
        Star grips similar to DIN 6336, with reamed bush, Form L

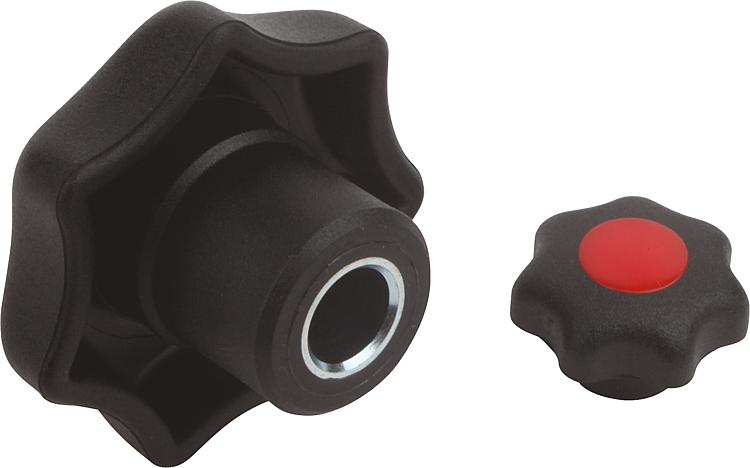

Item description/product images

DescriptionMaterial:Black thermoplastic, bush in steelVersion:Bush trivalent blue passivated.On request:Other colours or designs, such as company logo.Special features:

DownloadHere is all the information as a PDF datasheet:

Are you looking for CAD data? These can be found directly in the product table.

Datasheet B0288 Star grips similar to DIN 6336, with reamed bush, Form L

158 kB

Drawings

Item selection/filter

Order No.	Form	Colour Cap	D	D1	D8	H	H3	T	Price
B0288.105	H	jet black	5	25	12	16	8	10	0.59 €
B0288.1055	H	light grey RAL 7035	5	25	12	16	8	10	0.59 €
B0288.1056	H	traffic red RAL 3020	5	25	12	16	8	10	0.59 €
B0288.1057	H	colza yellow RAL 1021	5	25	12	16	8	10	0.59 €
B0288.106	H	jet black	6	32	14	20	10	10	0.61 €
B0288.1065	H	light grey RAL 7035	6	32	14	20	10	10	0.61 €
B0288.1066	H	traffic red RAL 3020	6	32	14	20	10	10	0.61 €
B0288.1067	H	colza yellow RAL 1021	6	32	14	20	10	10	0.61 €
B0288.108	H	jet black	8	40	18	25	13	14	0.71 €
B0288.1085	H	light grey RAL 7035	8	40	18	25	13	14	0.71 €
B0288.1086	H	traffic red RAL 3020	8	40	18	25	13	14	0.71 €
B0288.1087	H	colza yellow RAL 1021	8	40	18	25	13	14	0.71 €
B0288.110	H	jet black	10	50	22	32	17	14	1.08 €
B0288.1105	H	light grey RAL 7035	10	50	22	32	17	14	1.08 €
B0288.1106	H	traffic red RAL 3020	10	50	22	32	17	14	1.08 €
B0288.1107	H	colza yellow RAL 1021	10	50	22	32	17	14	1.08 €
B0288.1101	H	jet black	10	63	26	40	21	14	1.94 €
B0288.11015	H	light grey RAL 7035	10	63	26	40	21	14	1.94 €
B0288.11016	H	traffic red RAL 3020	10	63	26	40	21	14	1.94 €
B0288.11017	H	colza yellow RAL 1021	10	63	26	40	21	14	1.94 €
B0288.112	H	jet black	12	63	26	40	21	18	1.94 €
B0288.1125	H	light grey RAL 7035	12	63	26	40	21	18	1.94 €
B0288.1126	H	traffic red RAL 3020	12	63	26	40	21	18	1.94 €
B0288.1127	H	colza yellow RAL 1021	12	63	26	40	21	18	1.94 €
